Model # FAC084N7A2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAC084N7A2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

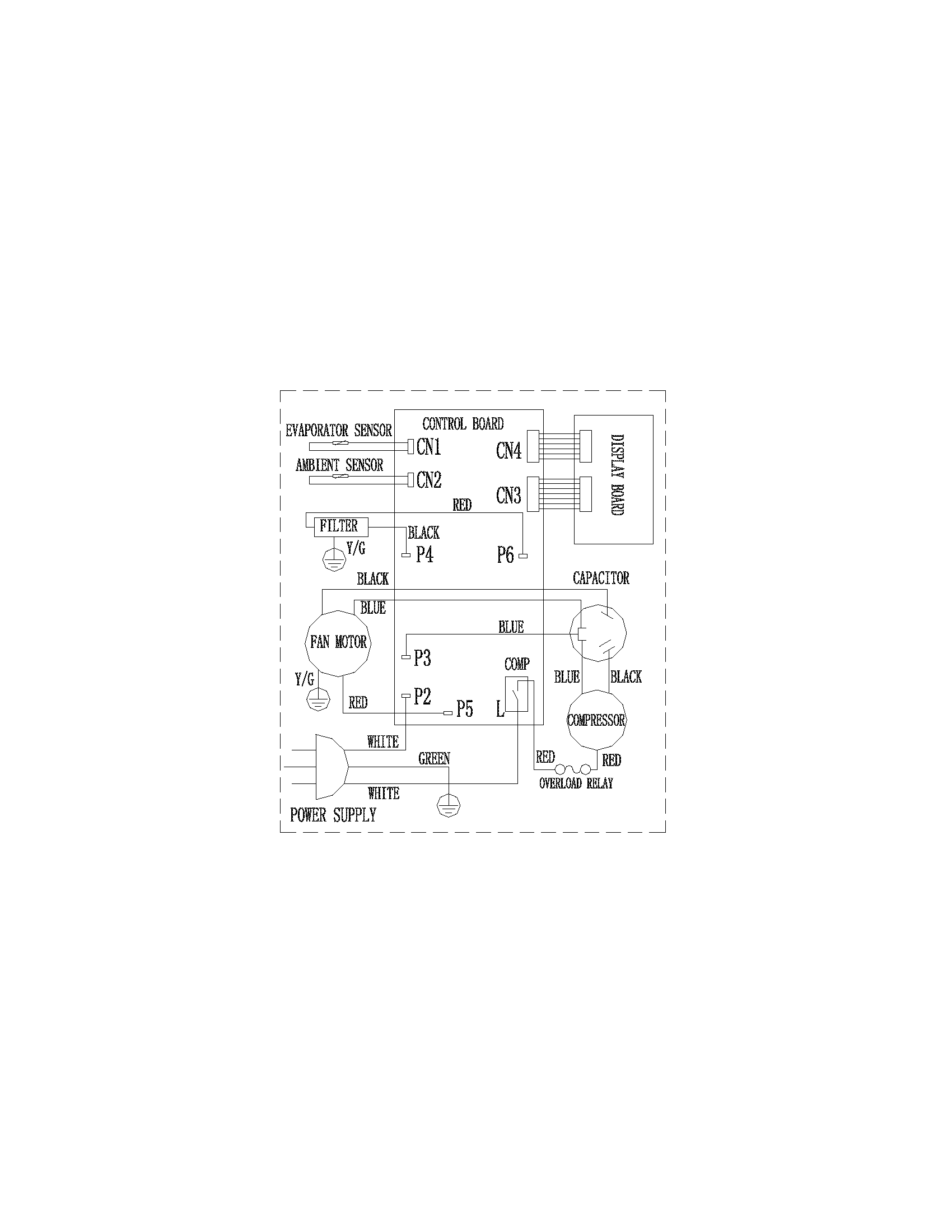

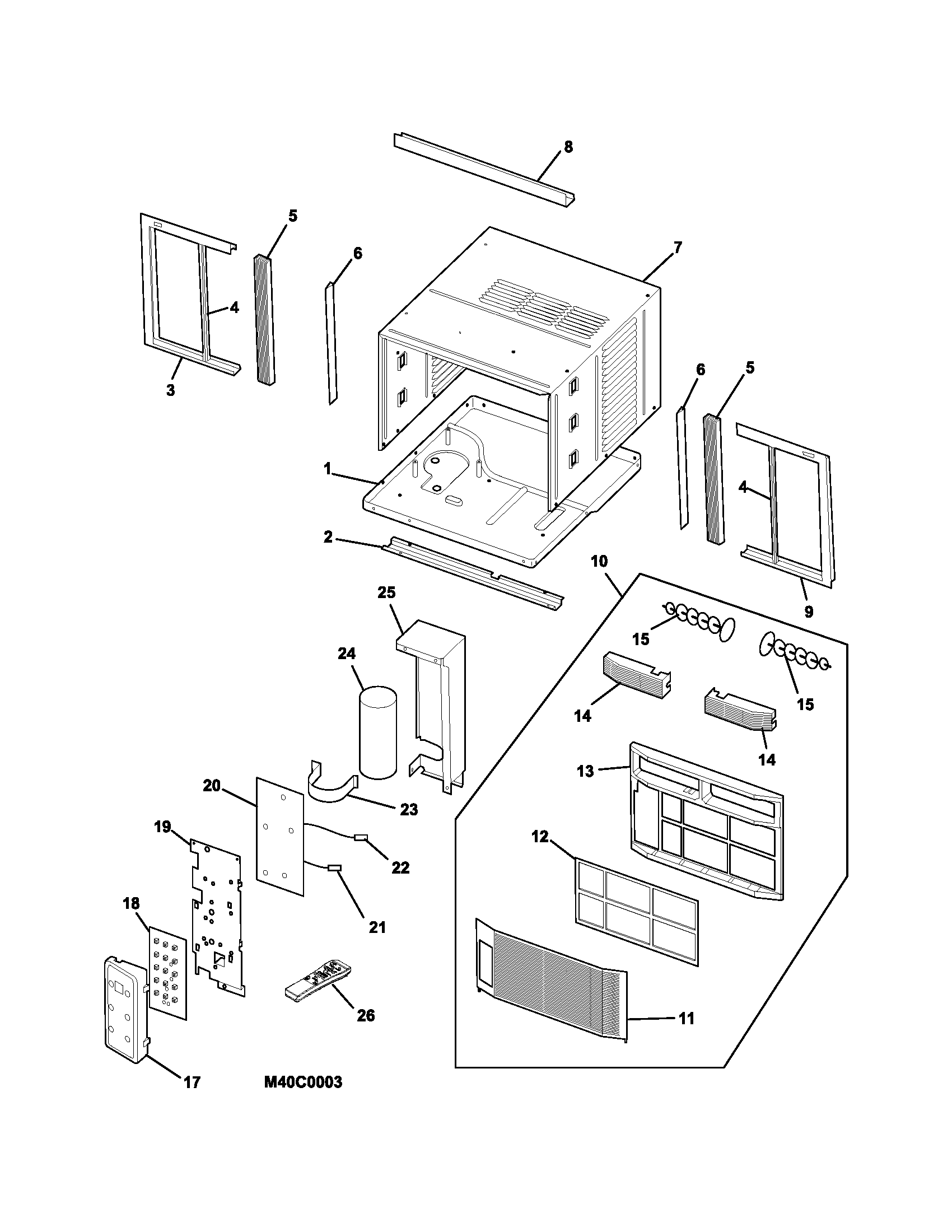

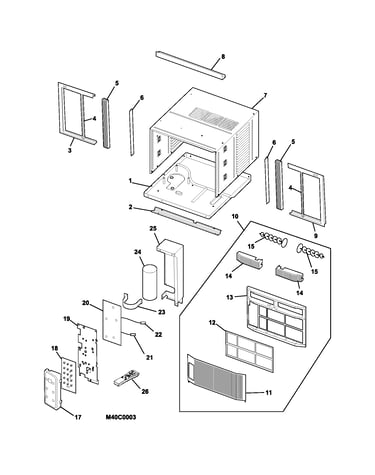

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Discharge Pi 5304436577
#13

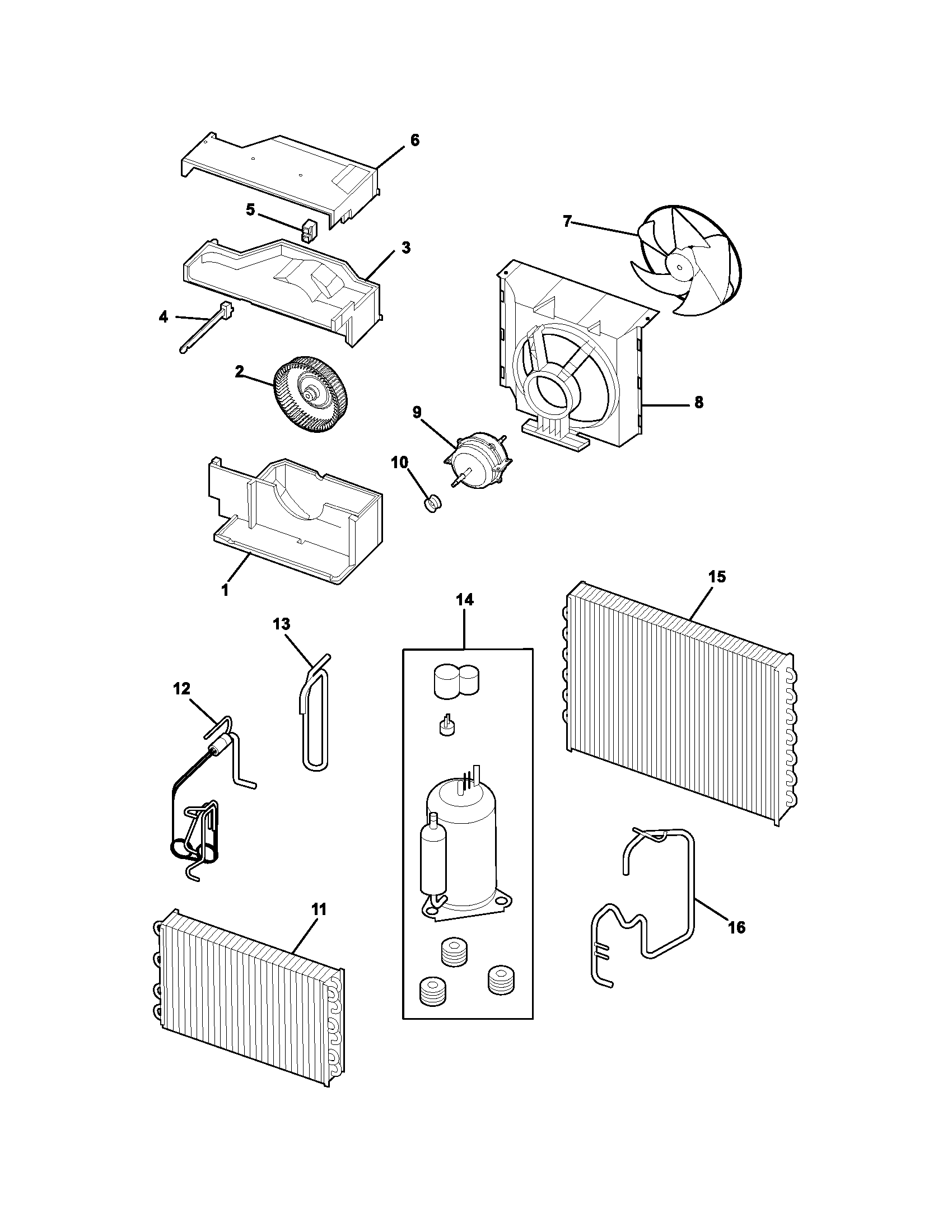

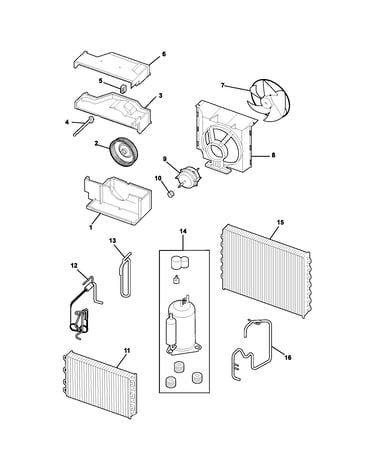

Cooling & air flow systems diagram

Discharge pi

Part #5304436577

$7.71
In Stock
Charging Board 5304436562
#8

Cooling & air flow systems diagram

Charging board

Part #5304436562

$48.72
In Stock
Air Condenser 5304436573
#15

Cooling & air flow systems diagram

Air condenser

Part #5304436573

$90.67
In Stock
Motor 5304442198
#9

Cooling & air flow systems diagram

Motor

Part #5304442198

$128.59
In Stock
Fan 5304436565
#6

Cooling & air flow systems diagram

Fan

Part #5304436565

$22.01
In Stock
Tube 5304437100
#16

Cooling & air flow systems diagram

Tube

Part #5304437100

$12.25
In Stock
Fan 5304436563
#7

Cooling & air flow systems diagram

Fan

Part #5304436563

The manufacturer no longer makes this part, and there's no substitute part

Fan 5304436557
#2

Cooling & air flow systems diagram

Fan

Part #5304436557

The manufacturer no longer makes this part, and there's no substitute part

Seal 5304436560
#10

Cooling & air flow systems diagram

Seal

Part #5304436560

The manufacturer no longer makes this part, and there's no substitute part

Door 5304436564
#5

Cooling & air flow systems diagram

Door

Part #5304436564

The manufacturer no longer makes this part, and there's no substitute part
