Frigidaire
Countertop Microwave

Model # MC850E2 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC850E2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

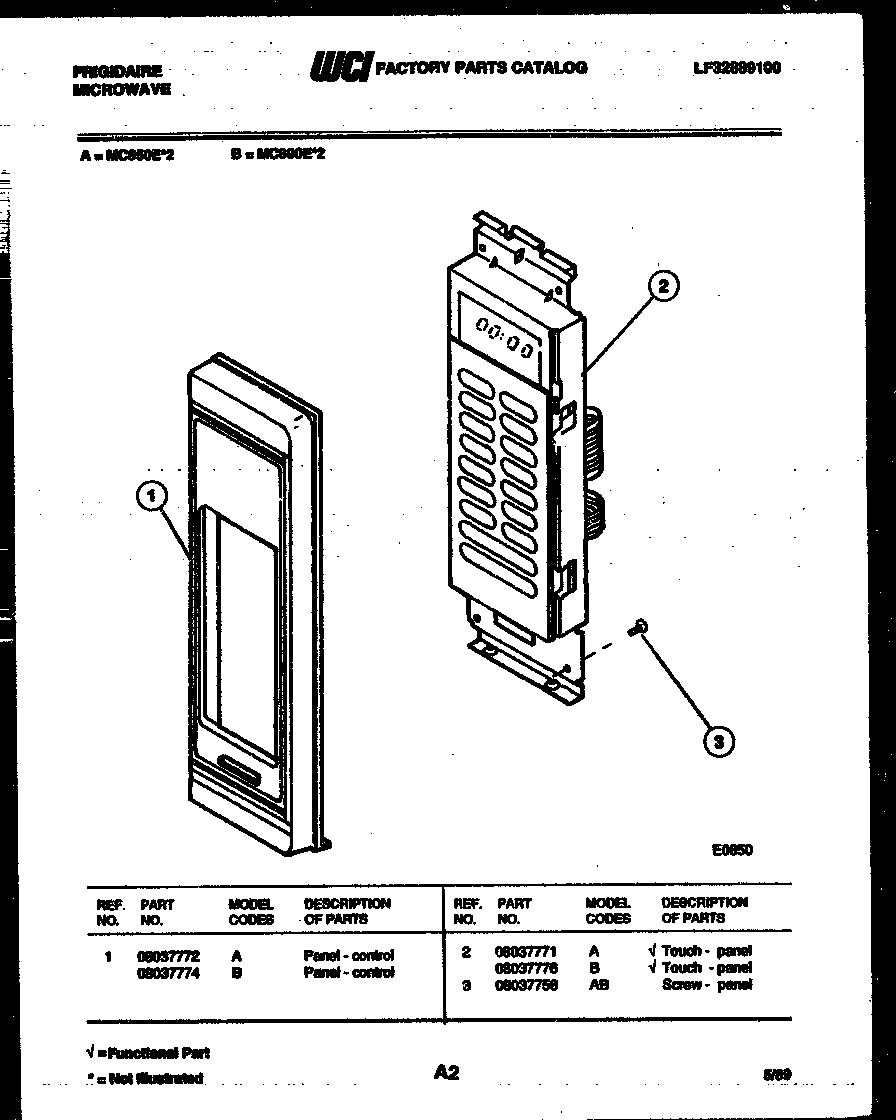

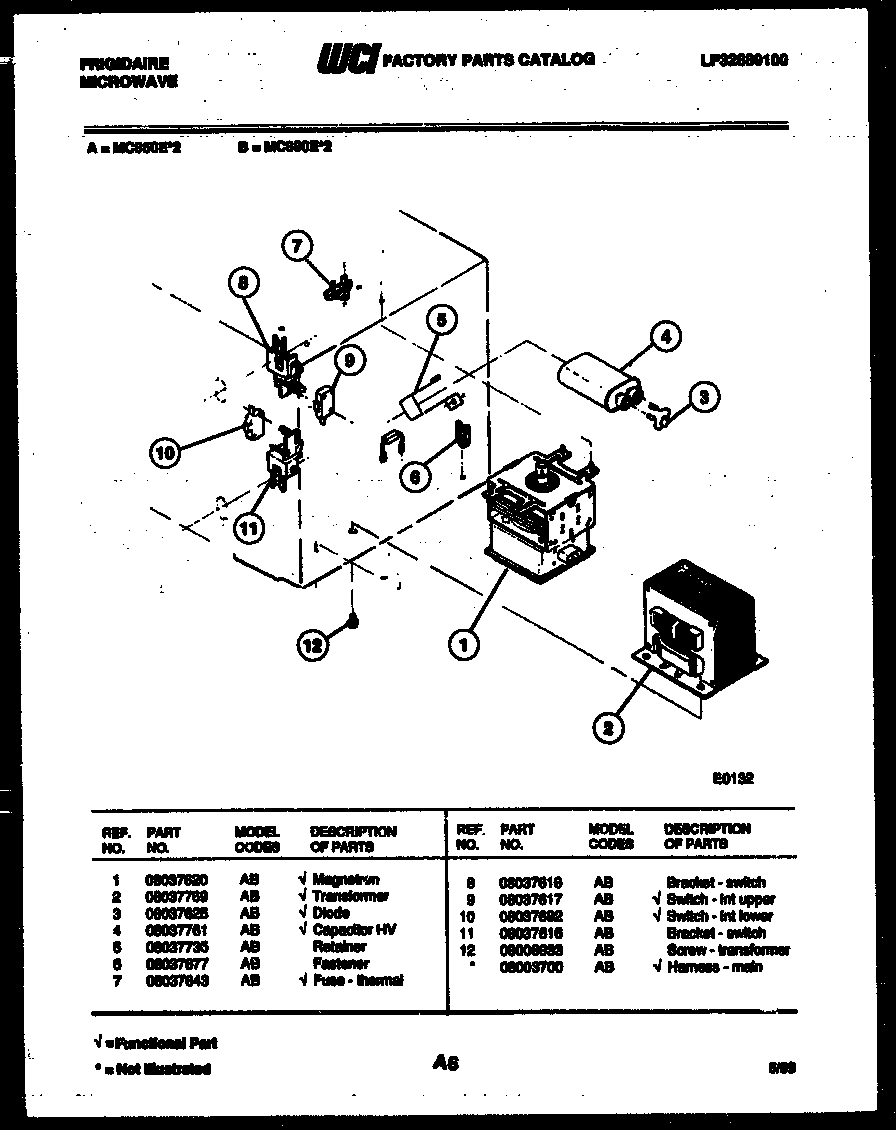

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Paint White 3203187

#NI

All parts diagram

Paint white

Part #3203187

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 3203187. Substitute parts can look different from the original.
This item is not returnable
$15.09
12% OFF Phone Price : $17.09
In Stock
Door Sheet 3200487
#1

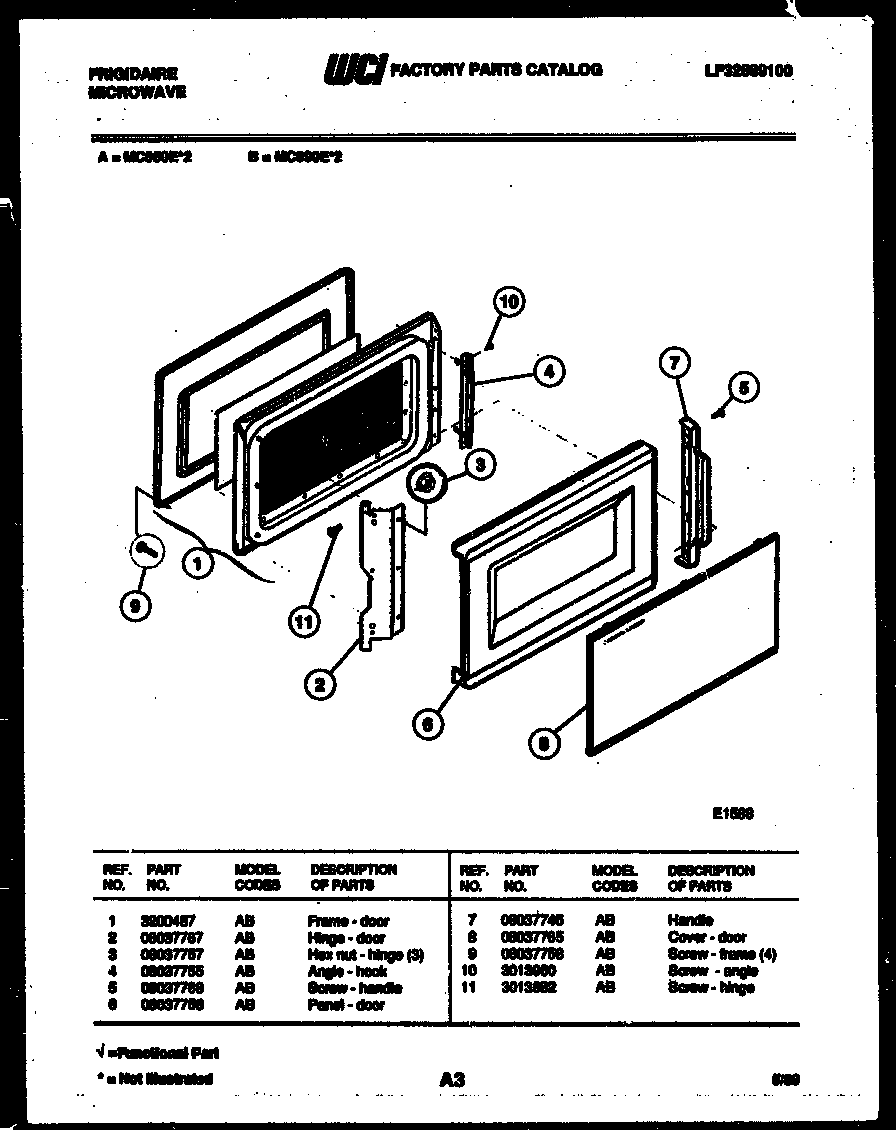

Door parts diagram

Door sheet

Part #3200487

In Stock
Paint White 3203124

#NI

All parts diagram

Paint white

Part #3203124

In Stock
Plug 3013626
#41

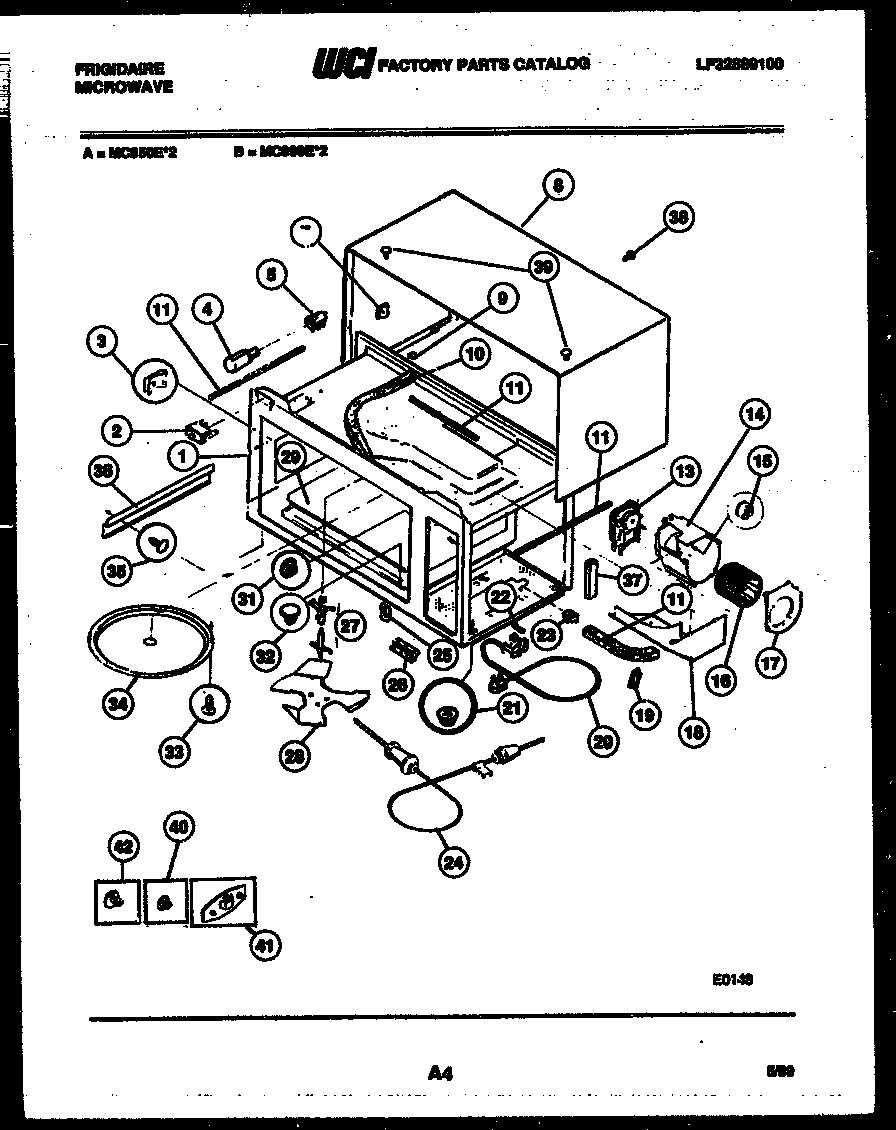

Body parts diagram

Plug

Part #3013626

This item is not returnable
In Stock
Label 3018849
#38A

Body parts diagram

Label

Part #3018849

Replaced by #5303018849

?
Manufacturer substitution
This part replaces 3018849. Substitute parts can look different from the original.
This item is not returnable
In Stock
Duct - Foam Mag 08037728
#37

Body parts diagram

Duct - foam mag

Part #08037728

The manufacturer no longer makes this part, and there's no substitute part

Main Harness 08003700

#NI

All parts diagram

Main harness

Part #08003700

The manufacturer no longer makes this part, and there's no substitute part

Clip 08037677
Clip

Part #08037677

The manufacturer no longer makes this part, and there's no substitute part

Screw - Door (4) 08008993
#5A

Body parts diagram

Screw - door (4)

Part #08008993

The manufacturer no longer makes this part, and there's no substitute part

Bracket 08037720
#26

Body parts diagram

Bracket

Part #08037720

The manufacturer no longer makes this part, and there's no substitute part
