Model # 143531042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143531042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

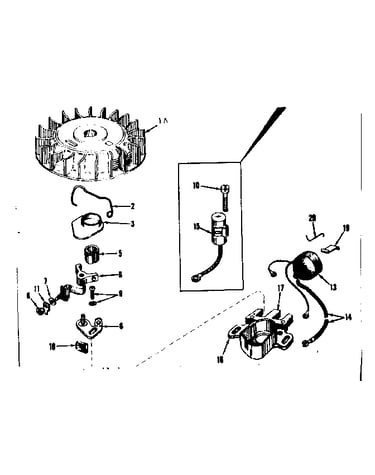

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#118

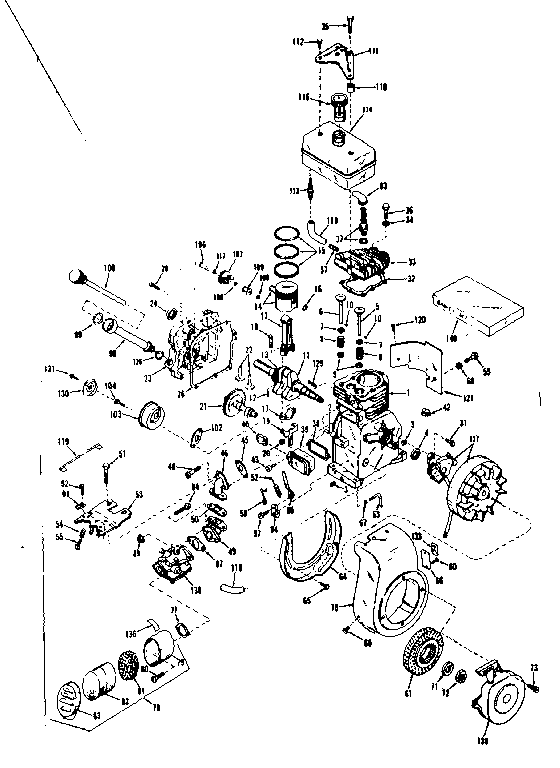

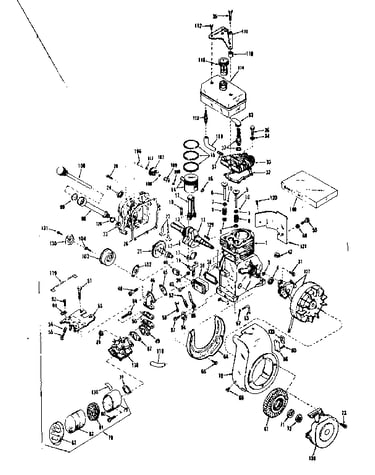

Basic engine diagram

Lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Rope 30337
#9

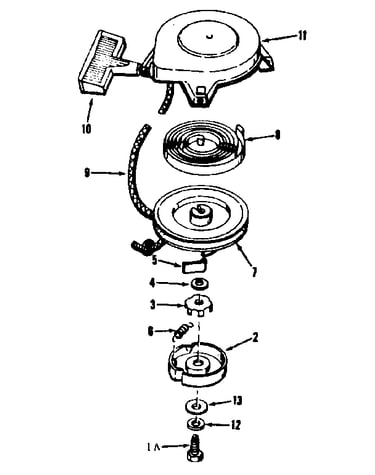

Rewind starter no. 590374 diagram

Rope

Part #30337

Replaced by #590535

?
Manufacturer substitution
This part replaces 30337. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Repair Kit 630974
#25

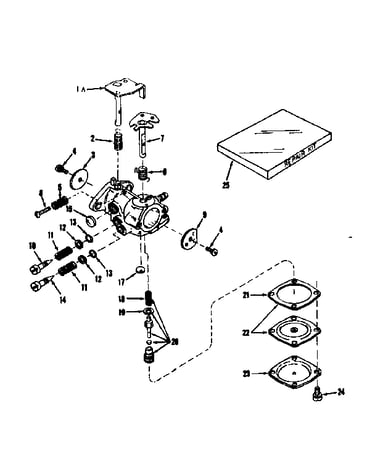

Carburetor no. 630989 diagram

Repair kit

Part #630974

Replaced by #631893A

?
Manufacturer substitution
This part replaces 630974. Substitute parts can look different from the original.
$16.84
In Stock
Screw 28820
#80

Basic engine diagram

Screw

Part #28820

Replaced by #651081

?
Manufacturer substitution
This part replaces 28820. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Breather Gasket 27272
#77

Basic engine diagram

Breather gasket

Part #27272

Replaced by #27272A

?
Manufacturer substitution
This part replaces 27272. Substitute parts can look different from the original.
This item is not returnable
$3.64 |
23% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Carburetor O-ring 630740
#13

Carburetor no. 630989 diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
23% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Governor Gear Assembly 30591
#107

Basic engine diagram

Lawn & garden equipment engine governor gear assembly

Part #30591

$15.69 |
11% OFF Phone Price : $17.69
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm 630978
#22

Carburetor no. 630989 diagram

Lawn & garden equipment engine carburetor diaphragm

Part #630978

This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Lawn & Garden Equipment Engine Carburetor Adjustment Screw Spring 630738
#11

Carburetor no. 630989 diagram

Lawn & garden equipment engine carburetor adjustment screw spring

Part #630738

This item is not returnable
$2.16
In Stock
Screw 650128
Screw

Part #650128

This item is not returnable
$5.71
In Stock
