Model # 4101 Official Porter Cable underscribe laminate trimmer

Here are the diagrams and repair parts for Official Porter Cable 4101 underscribe laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Connector 682063
#218

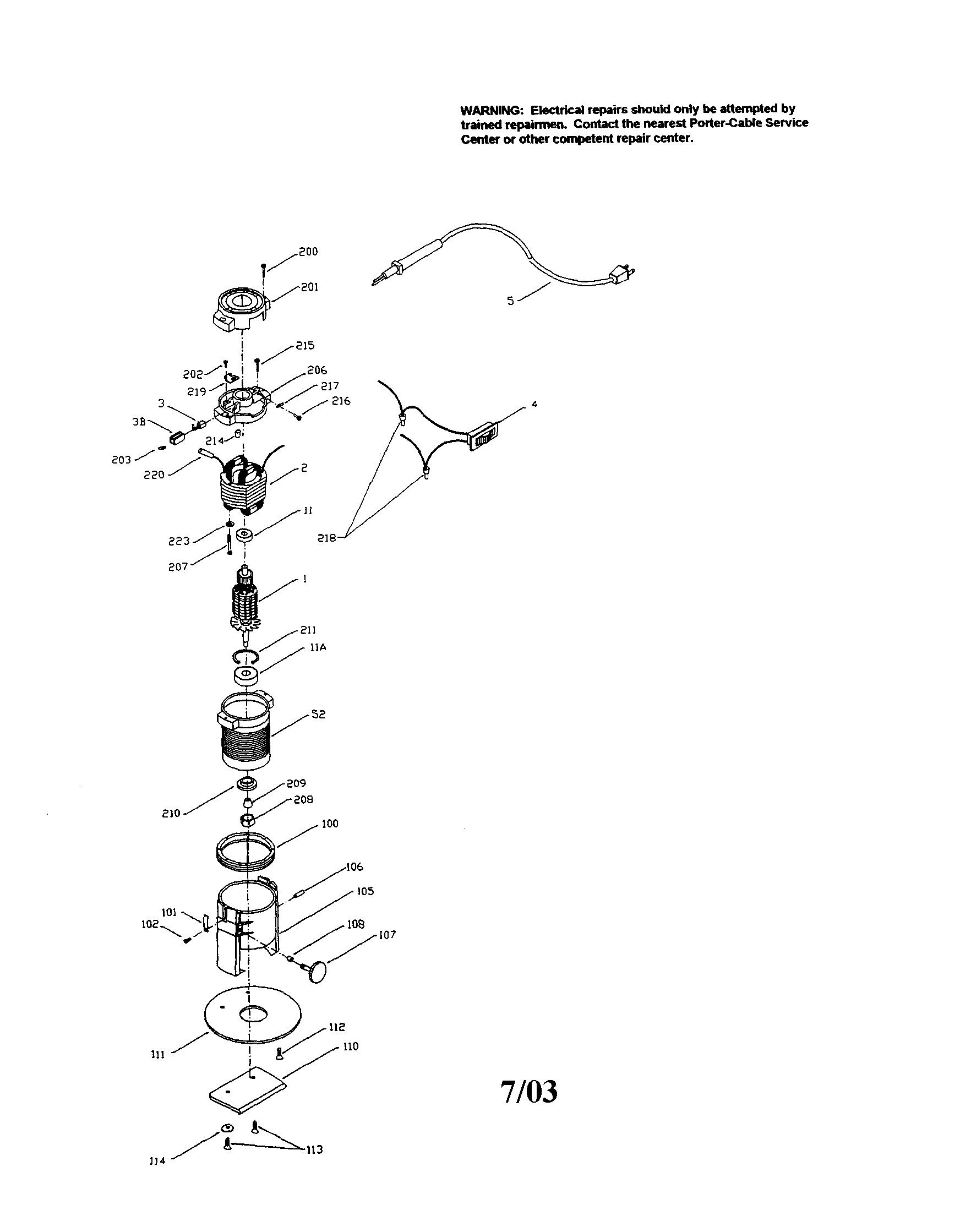

Underscribe laminate trimmer diagram

Connector

Part #682063

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 846755
#220

Underscribe laminate trimmer diagram

Sleeve

Part #846755

The manufacturer no longer makes this part, and there's no substitute part

Screw 802289
#112

Underscribe laminate trimmer diagram

Screw

Part #802289

The manufacturer no longer makes this part, and there's no substitute part

Screw 844705
#202

Underscribe laminate trimmer diagram

Screw

Part #844705

The manufacturer no longer makes this part, and there's no substitute part

Cap 810006
#201

Underscribe laminate trimmer diagram

Cap

Part #810006

The manufacturer no longer makes this part, and there's no substitute part

Knob 693885
#107

Underscribe laminate trimmer diagram

Knob

Part #693885

The manufacturer no longer makes this part, and there's no substitute part

Screw 802607
#207

Underscribe laminate trimmer diagram

Screw

Part #802607

The manufacturer no longer makes this part, and there's no substitute part

Ring 802302
#211

Underscribe laminate trimmer diagram

Ring

Part #802302

The manufacturer no longer makes this part, and there's no substitute part

Screw 858008
#102

Underscribe laminate trimmer diagram

Screw

Part #858008

The manufacturer no longer makes this part, and there's no substitute part

Laminate Trimmer Motor Brush 868866
#3

Underscribe laminate trimmer diagram

Laminate trimmer motor brush

Part #868866

The manufacturer no longer makes this part, and there's no substitute part
