Model # 1631-C Official Tecumseh 2-cycle engine a

Here are the diagrams and repair parts for Official Tecumseh 1631-C 2-cycle engine a, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Lawn Mower O-ring 631028
#7

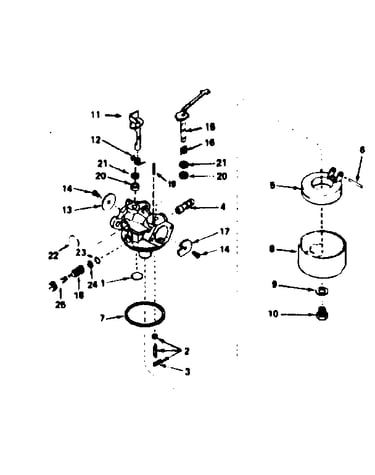

Carburetor no. 632283 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lamination 34443A
#86A

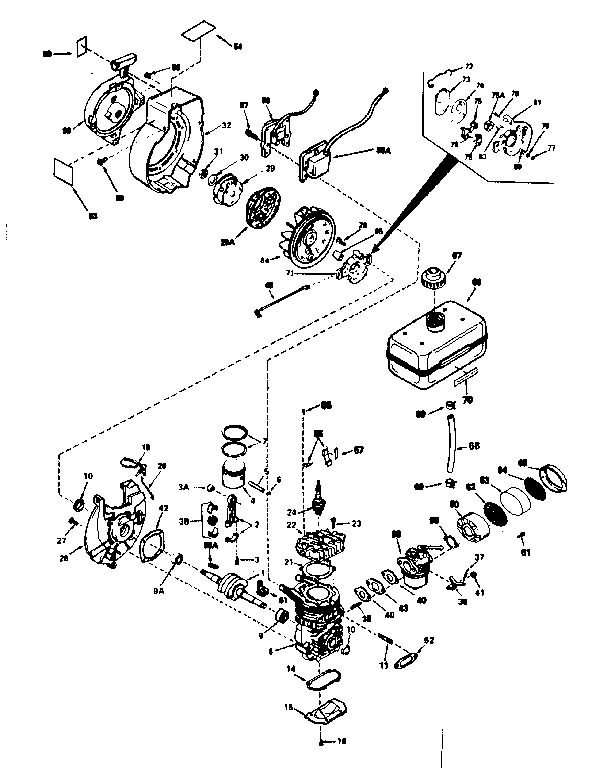

Engine diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$46.33 |
10% OFF Phone Price : $51.33
In Stock
Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#69

Engine diagram

Lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#5

Carburetor no. 632283 diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lawn & Garden Equipment Engine Flywheel Key (replaces 02-403) 611004
#85A

Engine diagram

Lawn & garden equipment engine flywheel key (replaces 02-403)

Part #611004

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#3

Carburetor no. 632283 diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 510230
#52

Engine diagram

Gasket

Part #510230

Replaced by #510207A

?
Manufacturer substitution
This part replaces 510230. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Lawn & Garden Equipment Engine Screw 650506
#14

Carburetor no. 632283 diagram

Lawn & garden equipment engine screw

Part #650506

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl 590148
#4

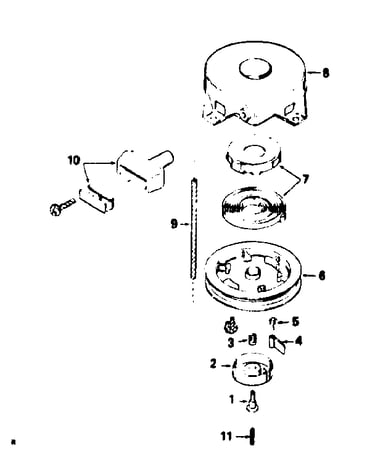

Rewind starter no. 590420 diagram

Lawn & garden equipment engine recoil starter pawl

Part #590148

This item is not returnable
$3.66
In Stock
Lawn & Garden Equipment Engine Tension Spring 630766
#18

Carburetor no. 632283 diagram

Lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
$2.16
In Stock
