Model #ZGU384NSM2SS GE gas cooktop

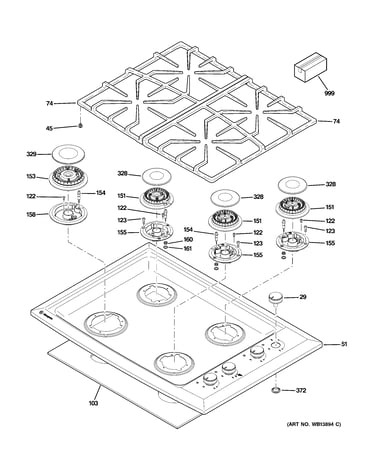

Here are the diagrams and repair parts for GE ZGU384NSM2SS gas cooktop, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 80 parts

    Range Surface Burner Orifice

    #2

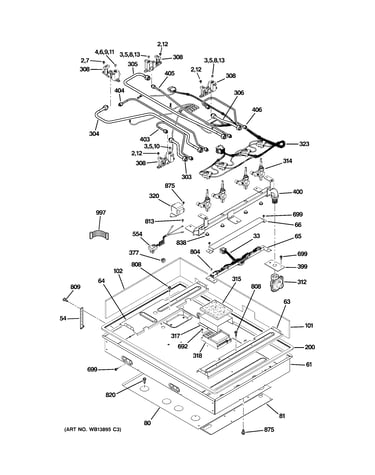

    Gas & burner parts Diagram

    Range surface burner orifice

    Part #WB28T10118
    This item is not returnable
    $6.70

    In Stock

    Screw, #8-18

    #875

    Gas & burner parts Diagram

    Screw, #8-18

    Part #WB01T10046
    This item is not returnable
    $3.06

    In Stock

    Insulation

    #315

    Gas & burner parts Diagram

    Insulation

    Part #WB35T10142
    $18.05

    In Stock

    Insulation

    #101

    Gas & burner parts Diagram

    Insulation

    Part #WB35T10145
    $23.86

    In Stock

    Burner Bracket

    #63

    Gas & burner parts Diagram

    Burner bracket

    Part #WB02T10321
    $13.97

    In Stock

    Orifice Spud

    #3

    Gas & burner parts Diagram

    Orifice spud

    Part #WB28T10158
    This item is not returnable
    $4.35

    In Stock

    Cooktop Burner High-Altitude Orifice, 12,000-BTU

    #12

    Gas & burner parts Diagram

    Cooktop burner high-altitude orifice, 12,000-btu

    Part #WB28T10164
    This item is not returnable
    $4.35

    In Stock

    Tube Nut

    #405

    Gas & burner parts Diagram

    Tube nut

    Part #WB28T10183
    $16.53

    In Stock

    Spark Cover

    #317

    Gas & burner parts Diagram

    Spark cover

    Part #WB02T10317
    $9.67

    In Stock

    Complete Regulator

    #312

    Gas & burner parts Diagram

    Complete regulator

    Part #WB19T10076
    $42.41

    In Stock
