Model # 21759860 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759860 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

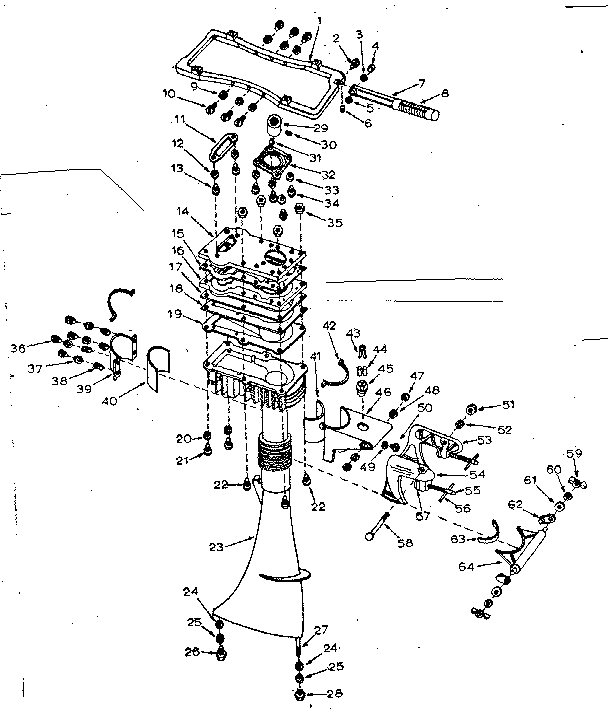

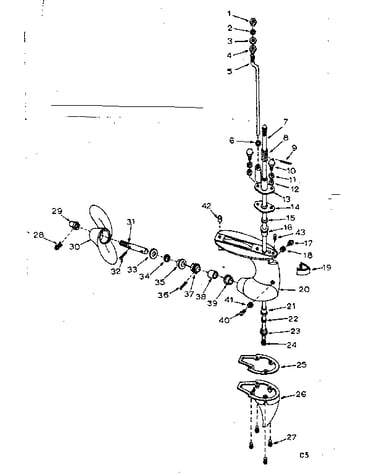

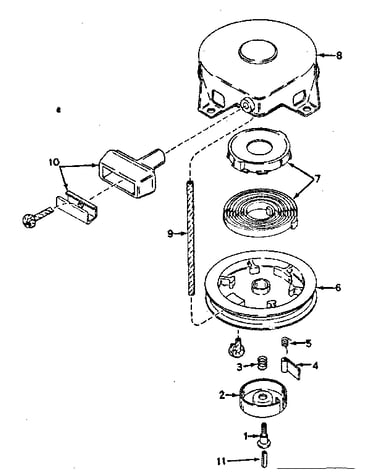

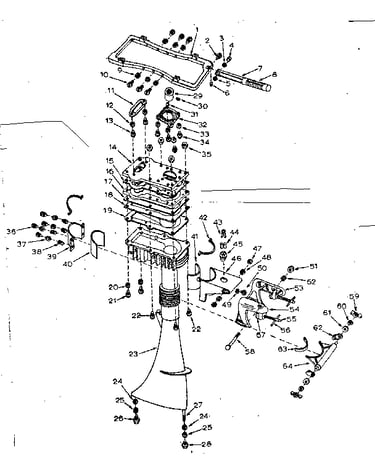

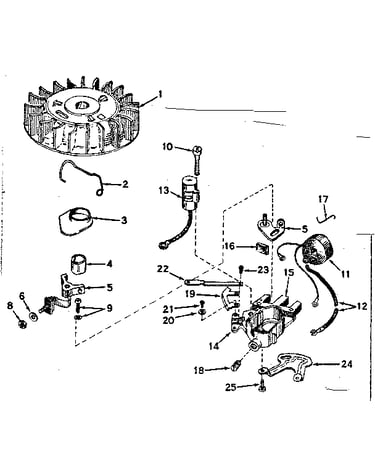

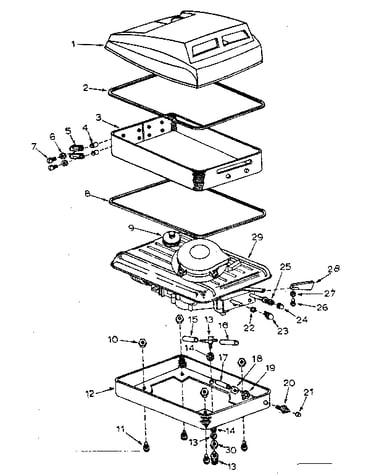

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |
Gasket 631028
#25

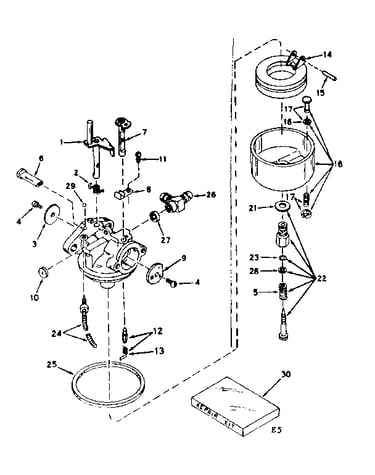

Carburetor no. 631477 diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

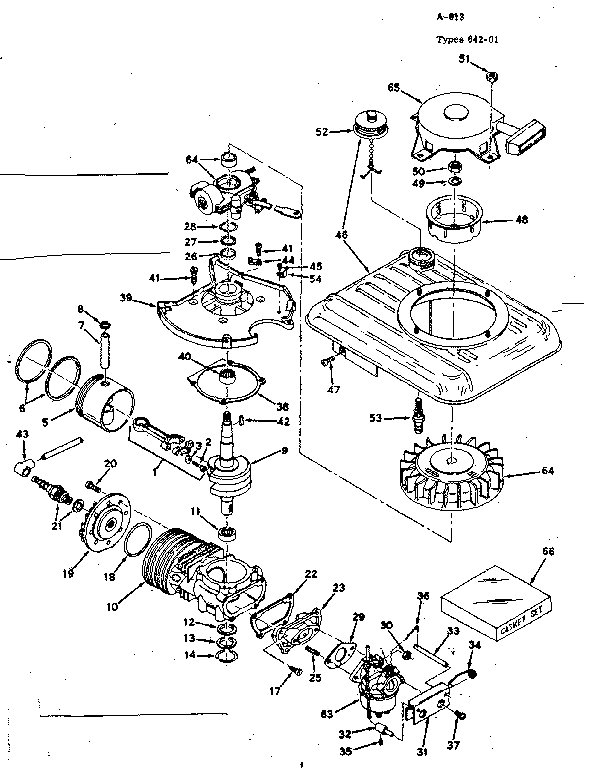

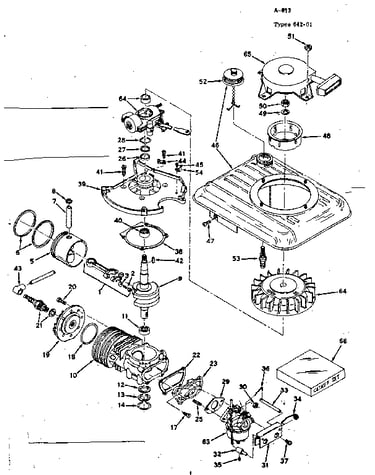

Motor assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#27

Motor assembly diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510260
#18

Motor assembly diagram

Gasket

Part #510260

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#28

Motor assembly diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Spring 630738
#5

Carburetor no. 631477 diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#12

Motor assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510232
#22

Motor assembly diagram

Gasket

Part #510232

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#18

Carburetor no. 631477 diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#28

Carburetor no. 631477 diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part
