Model # JGD3536BB00 Official Jenn-Air 36" gas built-in downdraft cooktop

Here are the diagrams and repair parts for Official Jenn-Air JGD3536BB00 36" gas built-in downdraft cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

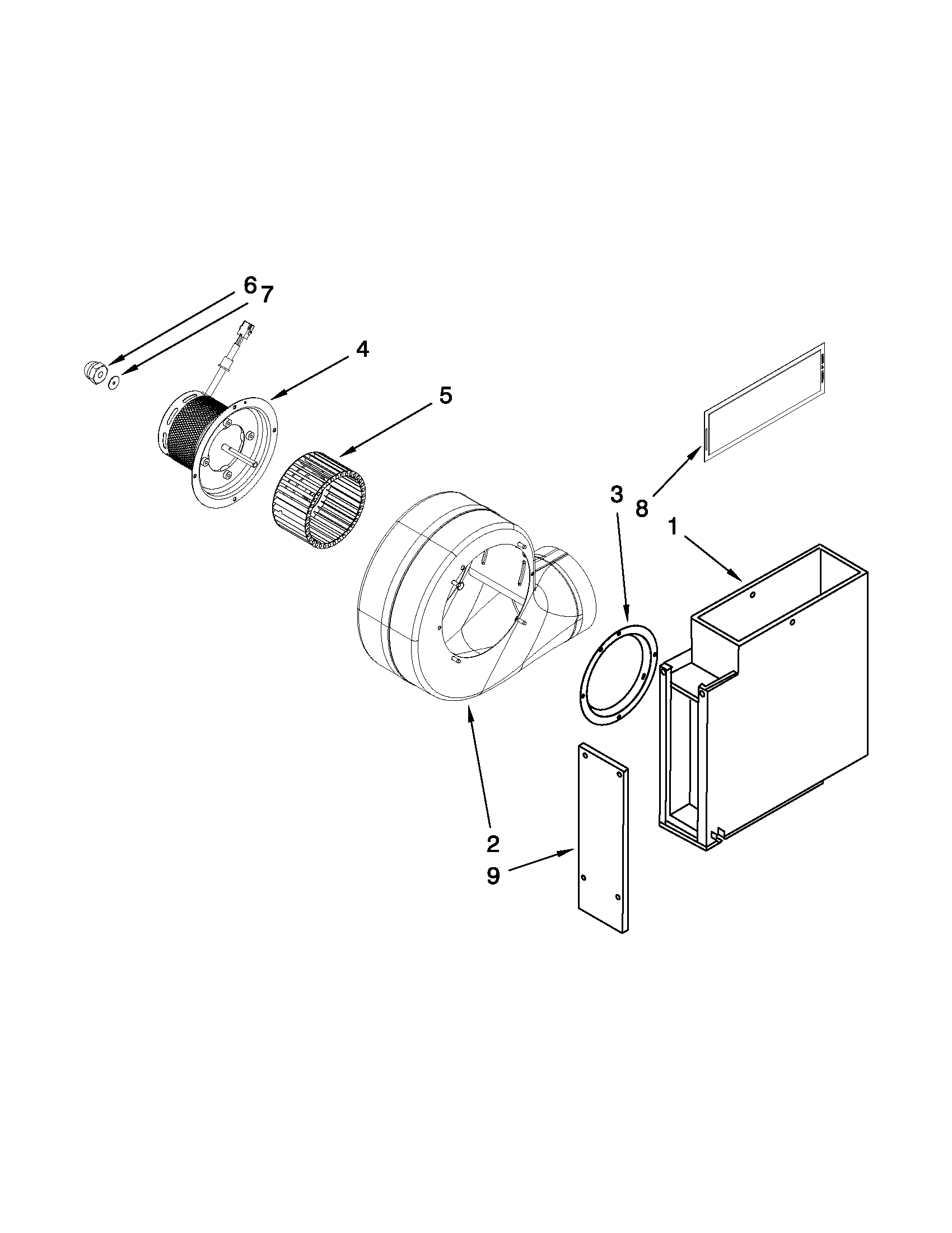

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Igniter 7432P121-60
#7

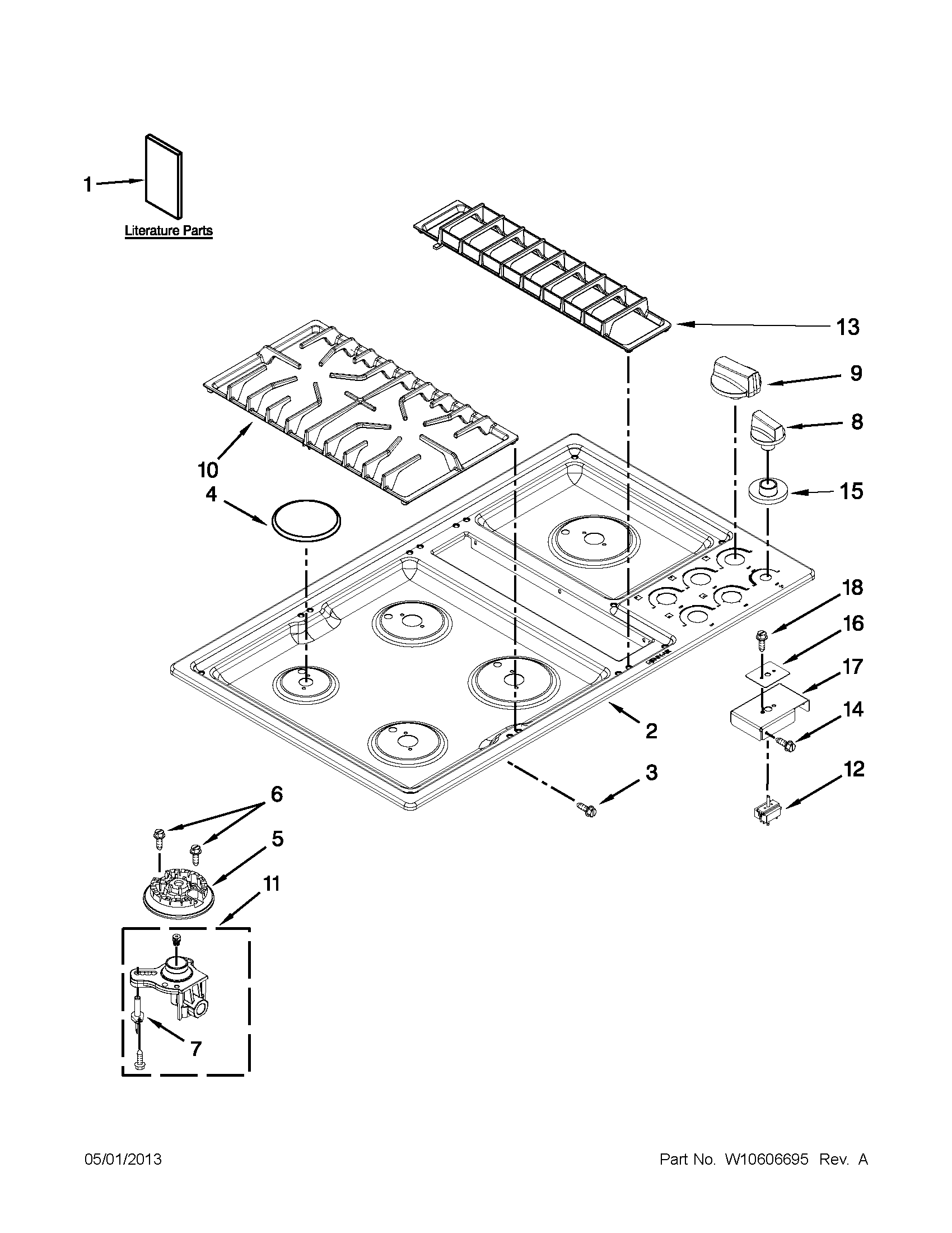

Cooktop parts diagram

Igniter

Part #7432P121-60

Replaced by #WP74009336

?
Manufacturer substitution
This part replaces 7432P121-60. Substitute parts can look different from the original.
BEST SELLER
$25.14
24% OFF MSRP : $33.00
In Stock
Burner Assembly 7505P305-60
#5A

Cooktop parts diagram

Burner assembly

Part #7505P305-60

Replaced by #74007735

?
Manufacturer substitution
This part replaces 7505P305-60. Substitute parts can look different from the original.
BEST SELLER
$67.17
7% OFF Phone Price : $72.17
In Stock
Cooktop Downdraft Vent Fan Control Switch 4456836
#12

Cooktop parts diagram

Cooktop downdraft vent fan control switch

Part #4456836

Replaced by #WP4456836

?
Manufacturer substitution
This part replaces 4456836. Substitute parts can look different from the original.
$101.69
9% OFF Phone Price : $111.69
In Stock
Holder Orifice 7527P031-60
#11

Cooktop parts diagram

Holder orifice

Part #7527P031-60

Replaced by #WP7527P031-60

?
Manufacturer substitution
This part replaces 7527P031-60. Substitute parts can look different from the original.
$51.39
9% OFF Phone Price : $56.39
In Stock
Spark Module W10475150
#10

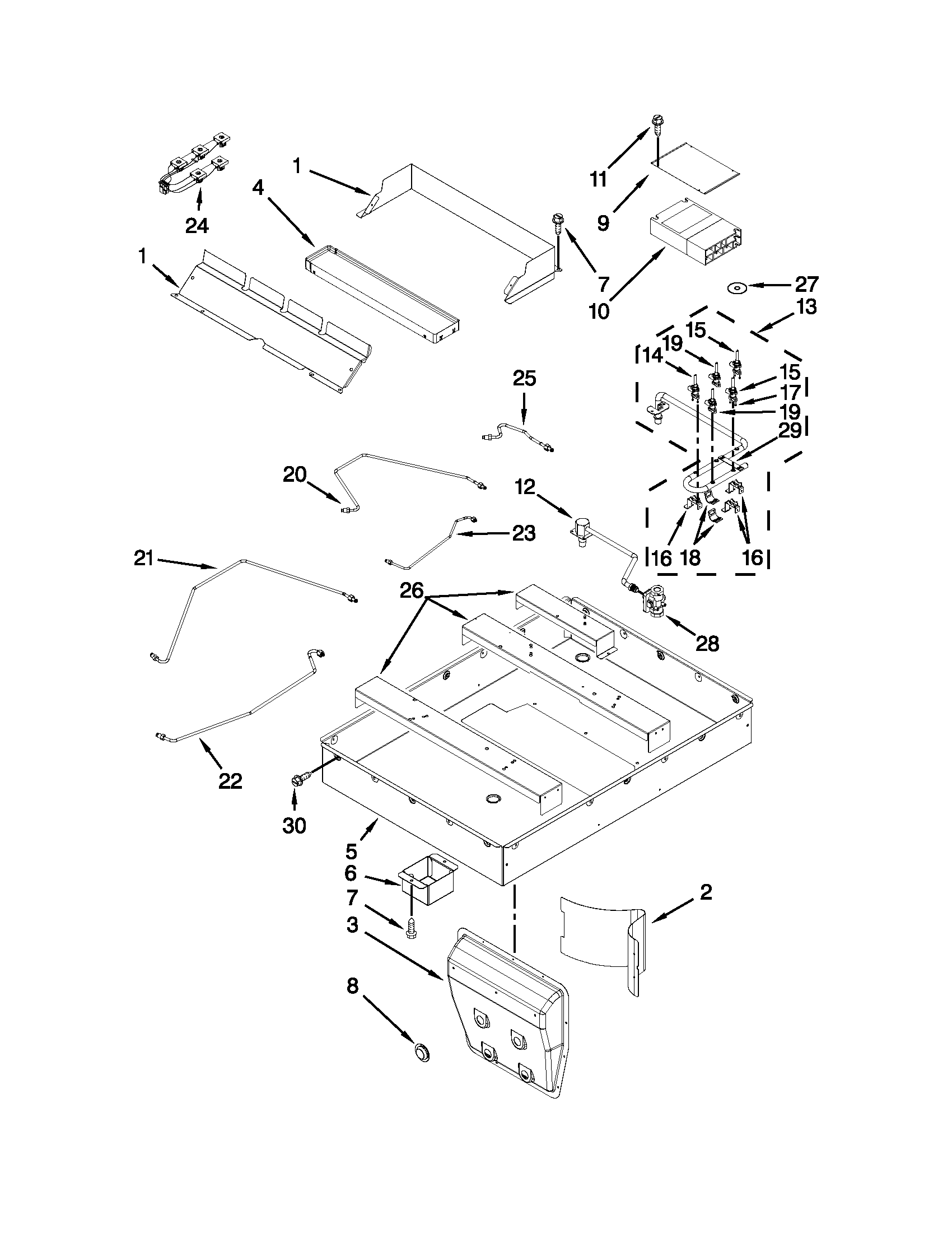

Burner box assembly diagram

Spark module

Part #W10475150

Replaced by #WPW10475150

?
Manufacturer substitution
This part replaces W10475150. Substitute parts can look different from the original.
$147.17
6% OFF Phone Price : $157.17
In Stock
Screw 7101P427-60
Screw

Part #7101P427-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P427-60. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Range Broil Pan 4396923
#NI

Optional parts diagram

Range broil pan

Part #4396923

$29.55
24% OFF MSRP : $39.00
In Stock
Grommet W10559486
#15

Cooktop parts diagram

Grommet

Part #W10559486

Replaced by #W11544657

?
Manufacturer substitution
This part replaces W10559486. Substitute parts can look different from the original.
In Stock
Gasket Switch 3191387
#27

Burner box assembly diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89
13% OFF Phone Price : $37.89
In Stock
Range Broil Pan Assembly W10123240
#NI

Optional parts diagram

Range broil pan assembly

Part #W10123240

$62.06
13% OFF MSRP : $71.00
In Stock
