Model # 624A23 Official Tractor Accessories transmission

Here are the diagrams and repair parts for Official Tractor Accessories 624A23 transmission, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Shldr Bolt 4898H
#41

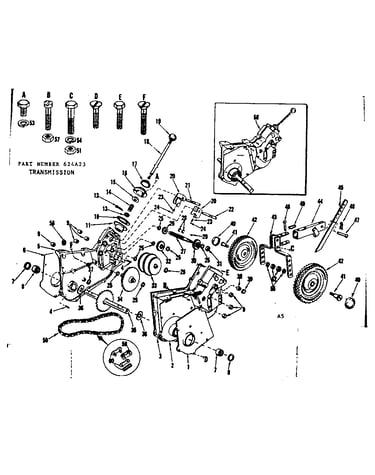

Replacement parts diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Woodruff Key 9858M
#29

Replacement parts diagram

Woodruff key

Part #9858M

The manufacturer no longer makes this part, and there's no substitute part

Needle Brg 4895H
#9

Replacement parts diagram

Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
This item is not returnable
$12.79 |
14% OFF Phone Price : $14.79
In Stock
Thrust Bearing 1370H
#25

Replacement parts diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lock Washer 10040600
#55

Replacement parts diagram

Lock washer

Part #10040600

Replaced by #596238701

?
Manufacturer substitution
This part replaces 10040600. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cap Screw 04010512
#61A

Replacement parts diagram

Cap screw

Part #04010512

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 10030500
#53

Replacement parts diagram

Lock washer

Part #10030500

Replaced by #596238801

?
Manufacturer substitution
This part replaces 10030500. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cotter 06010412
#12

Replacement parts diagram

Cotter

Part #06010412

The manufacturer no longer makes this part, and there's no substitute part

Gasket 4913H
#10

Replacement parts diagram

Gasket

Part #4913H

The manufacturer no longer makes this part, and there's no substitute part

Idler Shaft 624A15
#32

Replacement parts diagram

Idler shaft

Part #624A15

The manufacturer no longer makes this part, and there's no substitute part
