Craftsman
Power Sander

Model # 315116361 Official Craftsman orbital sander

Here are the diagrams and repair parts for Official Craftsman 315116361 orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

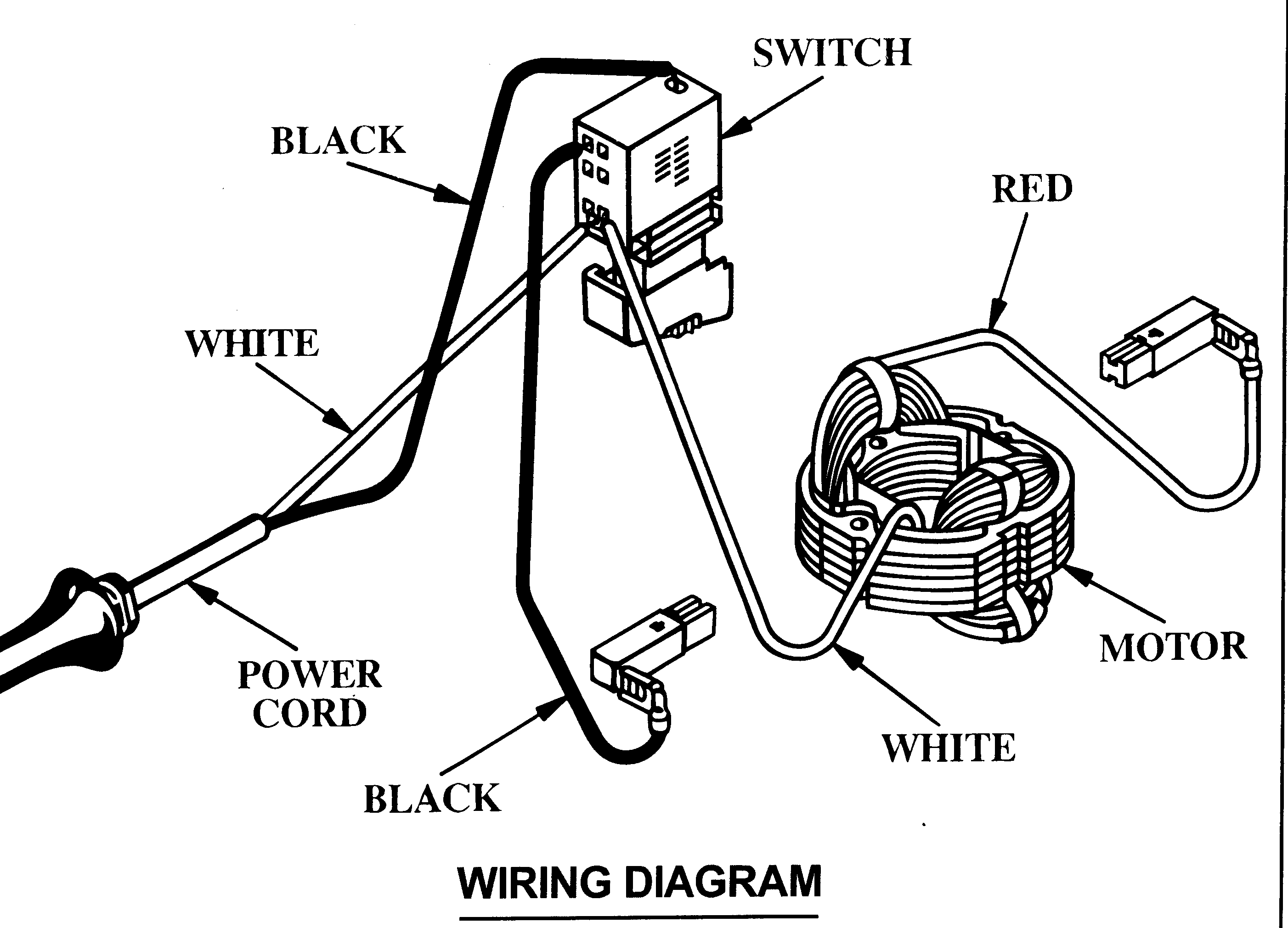

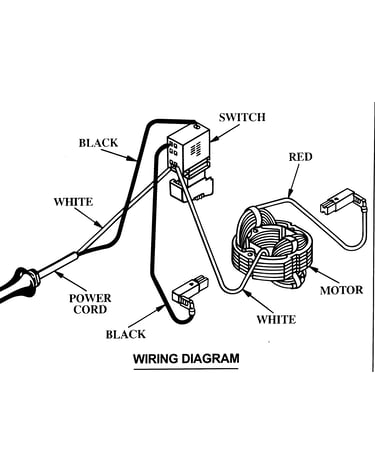

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Ac Cord 990494-019
#13

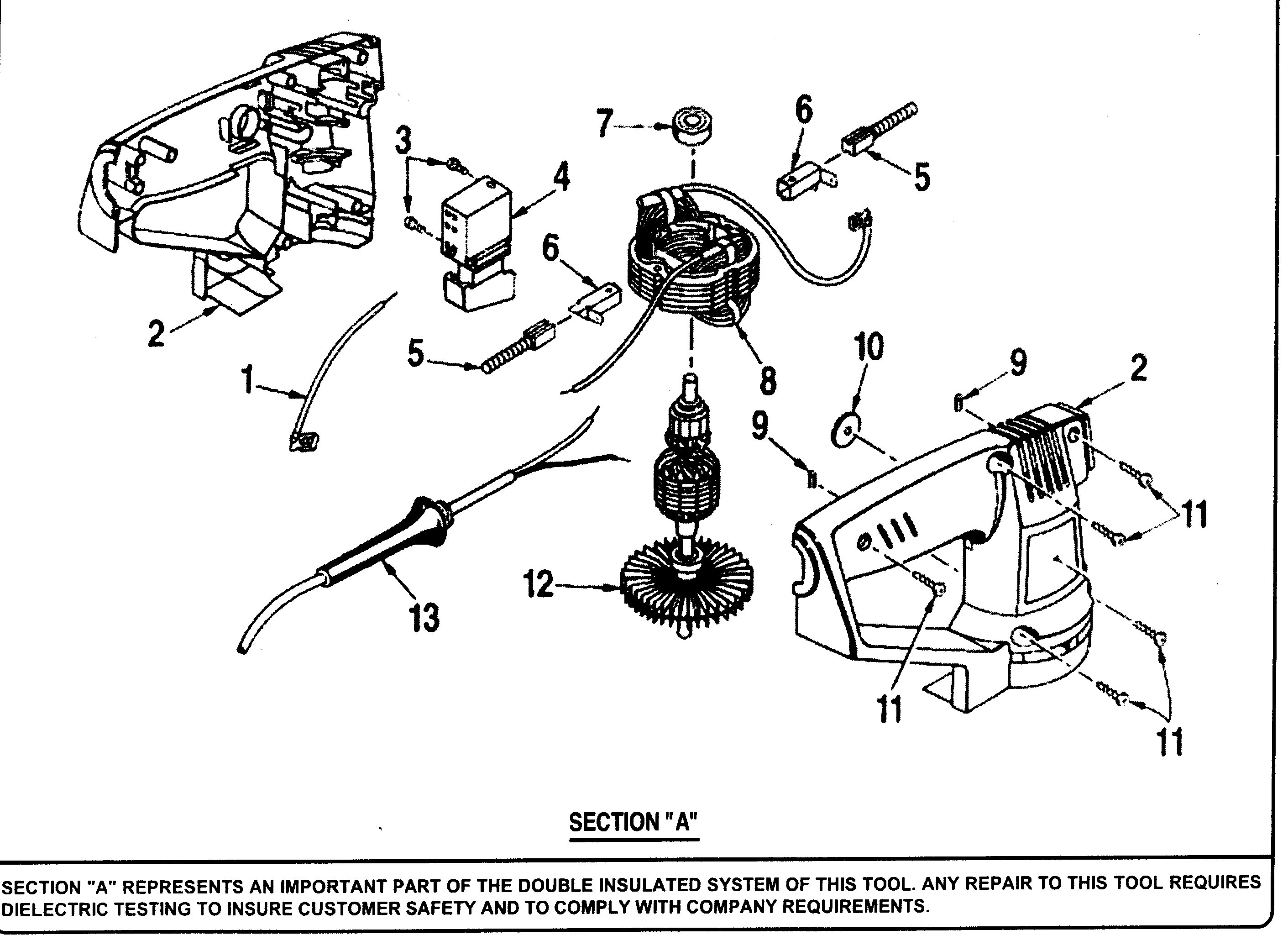

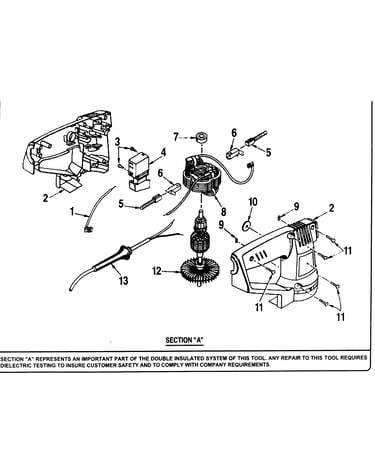

Housing assy diagram

Ac cord

Part #990494-019

The manufacturer no longer makes this part, and there's no substitute part

Pad 974484-001
#16

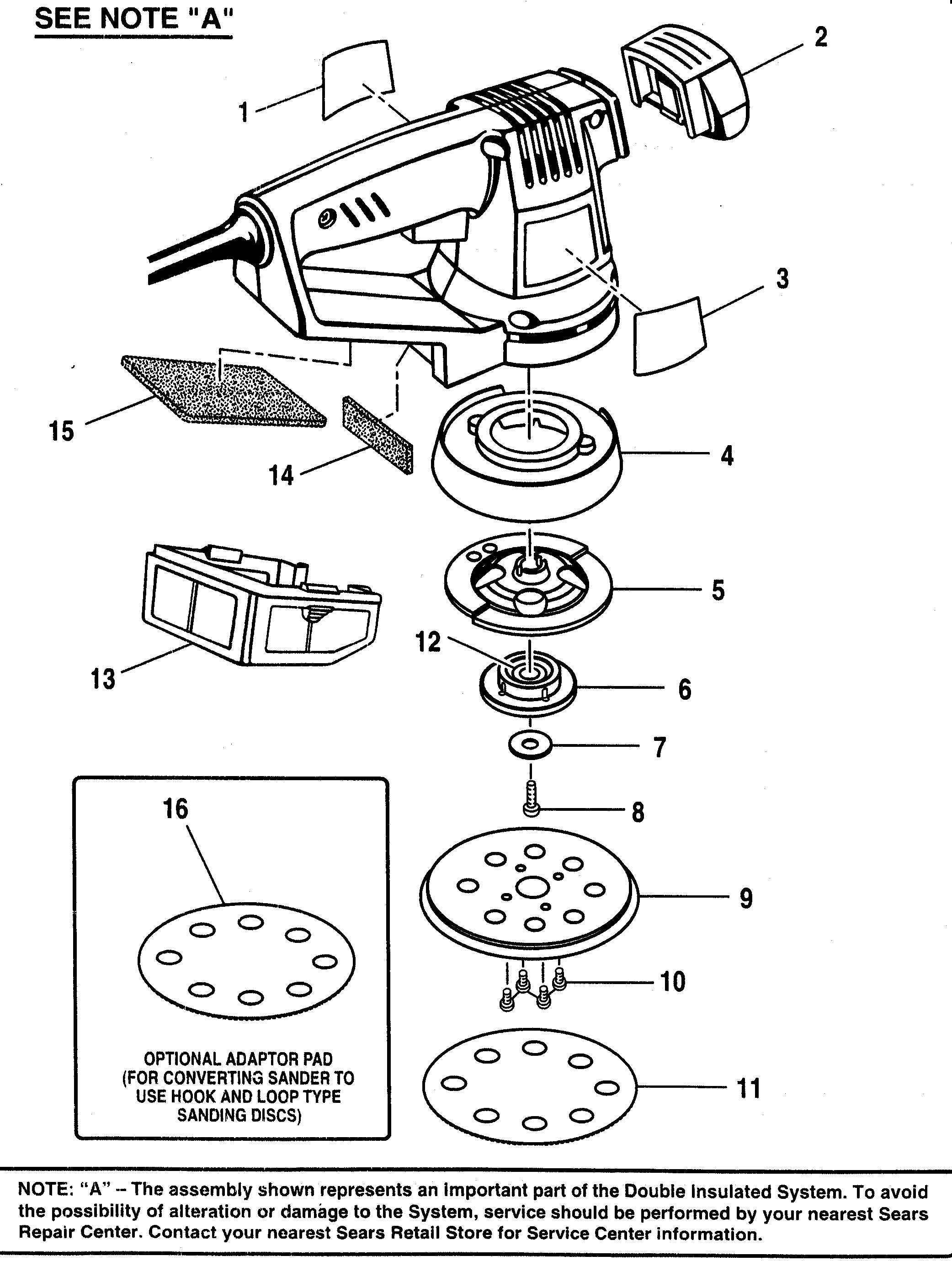

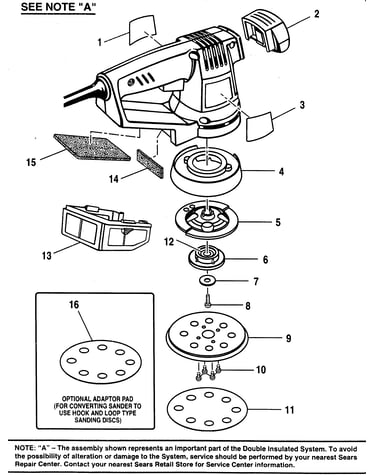

Sander diagram

Pad

Part #974484-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Sanding Pad 975241-002
#9

Sander diagram

Sander sanding pad

Part #975241-002

The manufacturer no longer makes this part, and there's no substitute part

Washer 703493-818
#7

Sander diagram

Washer

Part #703493-818

The manufacturer no longer makes this part, and there's no substitute part

Cntr Balnc 973714-003
#5

Sander diagram

Cntr balnc

Part #973714-003

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly 969645-001
#2

Sander diagram

Knob assembly

Part #969645-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968775-001
#3

Housing assy diagram

Screw

Part #968775-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Brush 610784-053
#5

Housing assy diagram

Sander motor brush

Part #610784-053

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 623019-004
#9

Housing assy diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 969649-001
#8

Sander diagram

Screw

Part #969649-001

The manufacturer no longer makes this part, and there's no substitute part
