Craftsman 919156611 air compressor Parts
Here are the diagrams and repair parts for Craftsman 919156611 air compressor, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 919156611 Power Tools

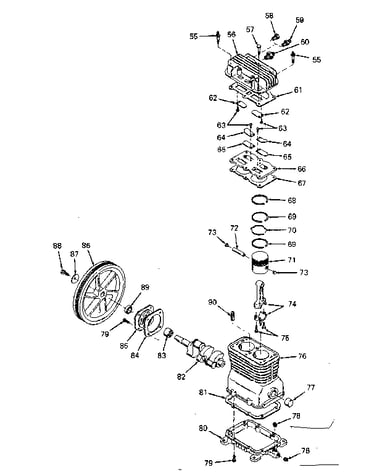

Compressor pump diagram
Unknown Brand Name #696 Air Compressor Screw
Part #SSF-927
The manufacturer no longer makes this part, and there's no substitute part
Compressor pump diagram
Unknown Brand Name #696 Air Compressor Screw
Part #SSF-925
The manufacturer no longer makes this part, and there's no substitute part
Compressor pump diagram
Unknown Brand Name #696 Air Compressor Valve Restrictor Plate
Part #CAC-294
The manufacturer no longer makes this part, and there's no substitute part

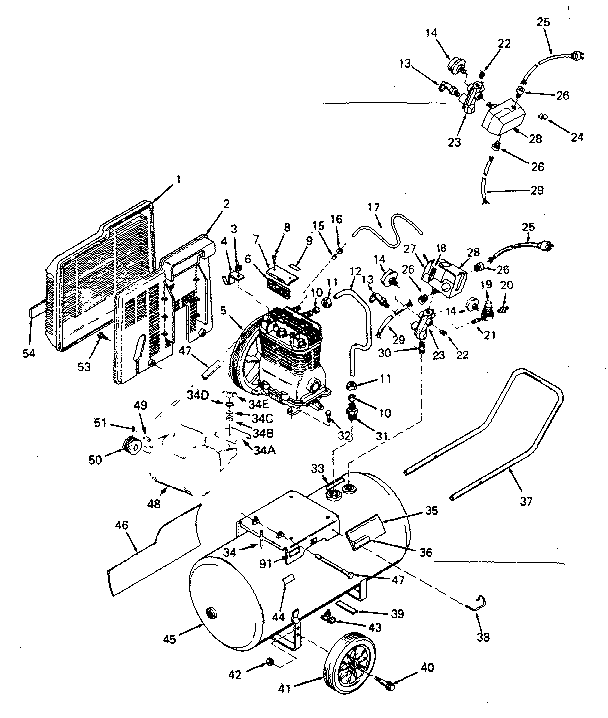

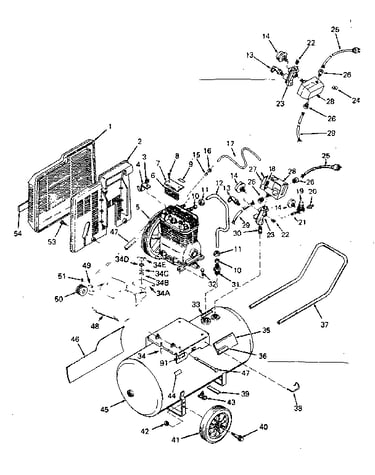

Air compressor (view from back) diagram
Air Compressor Handle Retainer Clip
Part #CAC-1059
The manufacturer no longer makes this part, and there's no substitute part
Air compressor (view from back) diagram
Unknown Brand Name #696 Air Compressor Belt Guard
Part #CAC-323
The manufacturer no longer makes this part, and there's no substitute part
Compressor pump diagram
Pipe Plug
Part #SS-1215
The manufacturer no longer makes this part, and there's no substitute part
Compressor pump diagram
Unknown Brand Name #696 Air Compressor Compression Nut Thread Adapter
Part #SSP-9401
The manufacturer no longer makes this part, and there's no substitute part
Compressor pump diagram
Air Compressor Reed Valve Screw
Part #SSF-9821
The manufacturer no longer makes this part, and there's no substitute part
Air compressor (view from back) diagram
Air Compressor Pressure Relief Valve
Part #KK-4315
The manufacturer no longer makes this part, and there's no substitute part
Air compressor (view from back) diagram
Unknown Brand Name #696 Screw
Part #SSF-928
The manufacturer no longer makes this part, and there's no substitute part
