Frigidaire
Wall Oven/Microwave Combo

Model # FGMC3066UDB Official Frigidaire electric oven w/microwave

Here are the diagrams and repair parts for Official Frigidaire FGMC3066UDB electric oven w/microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

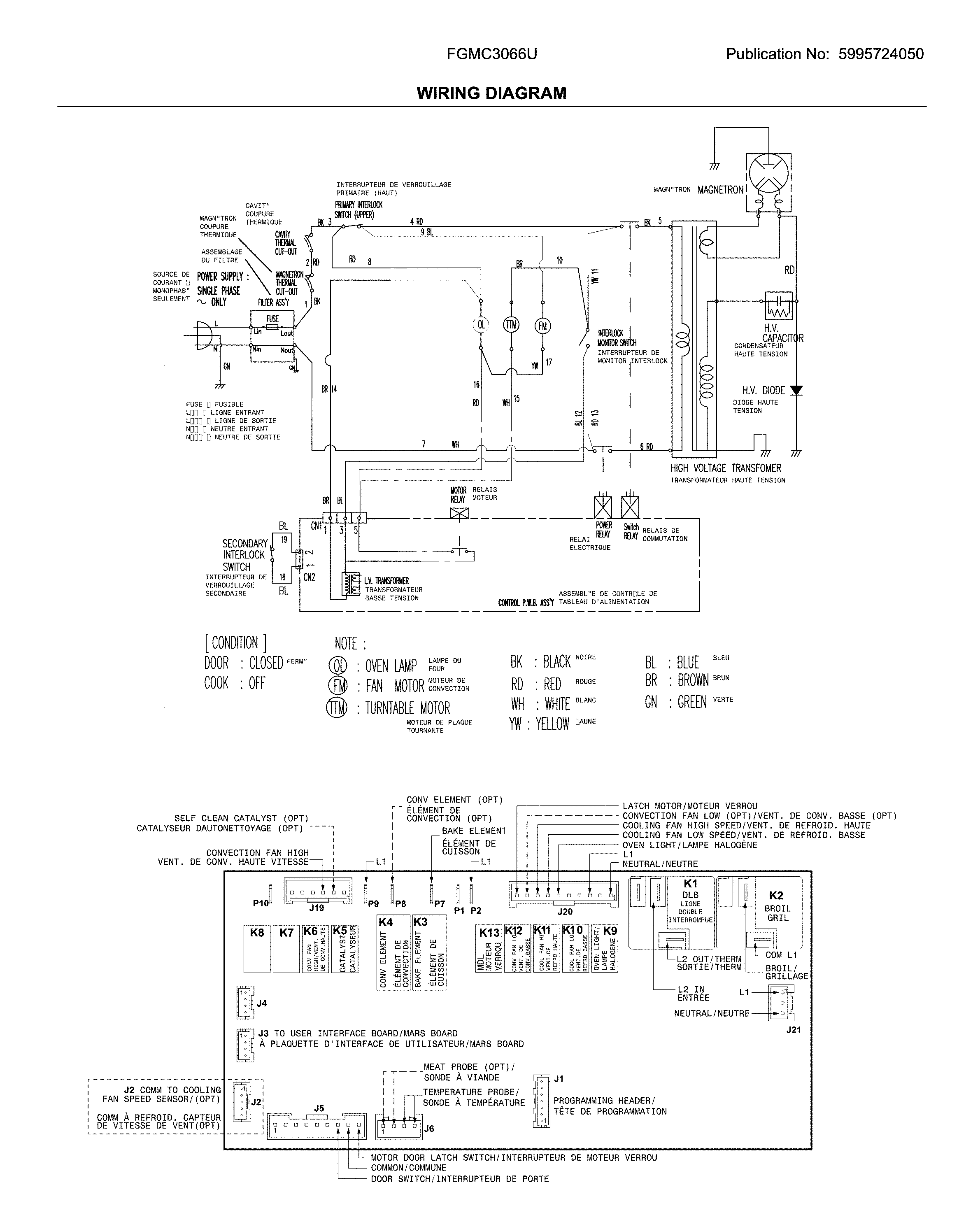

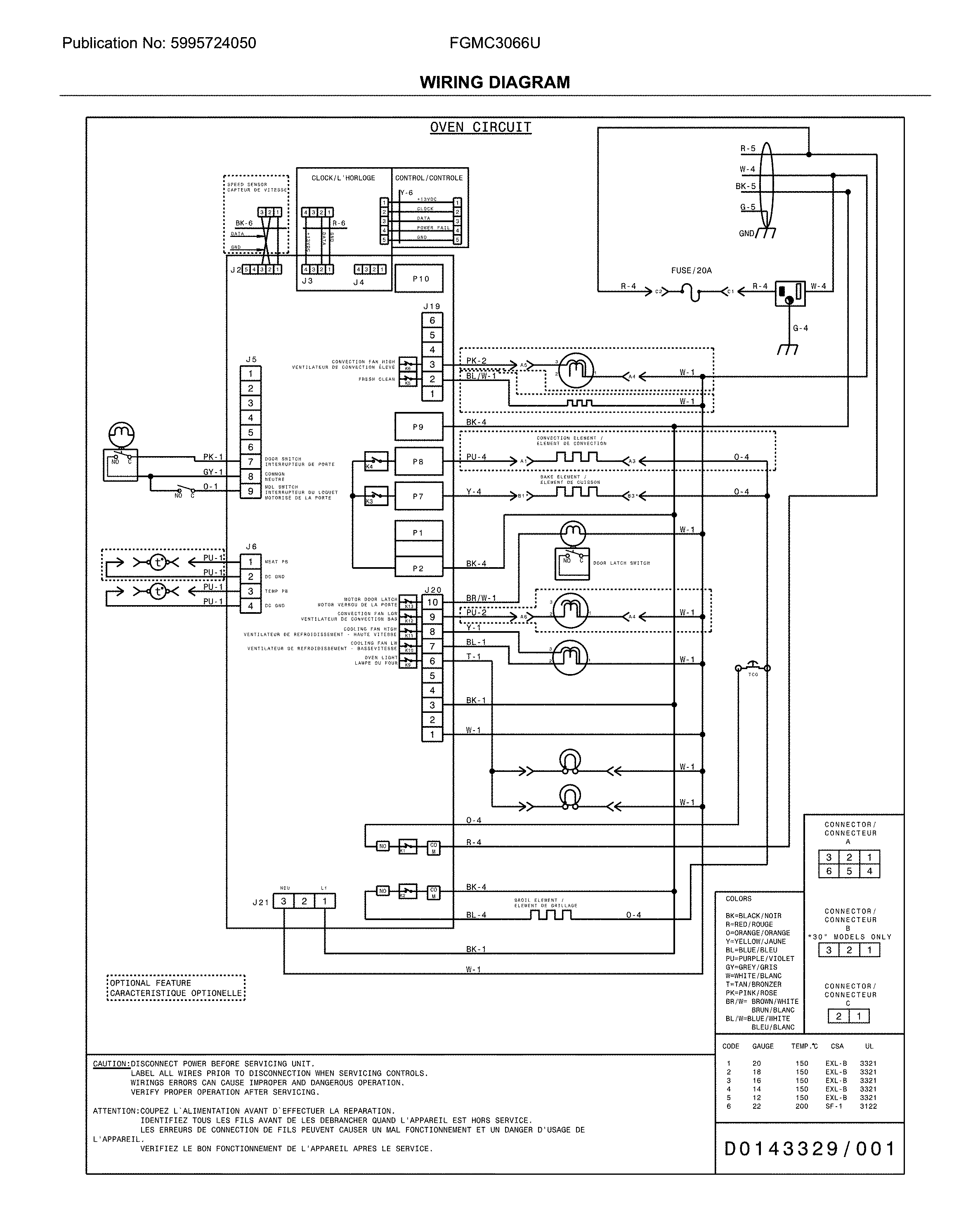

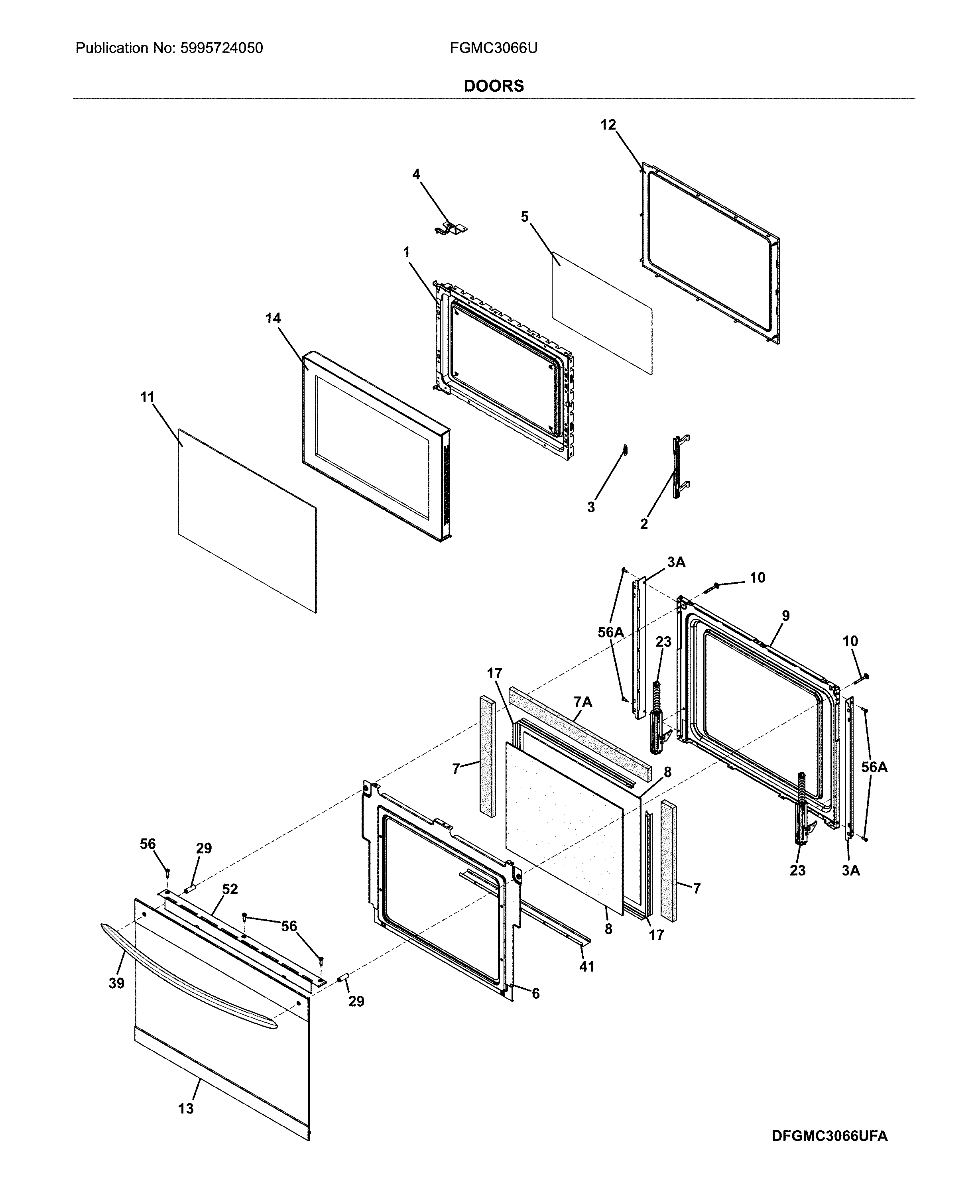

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Microwave Fuse (replaces 5304488359) 5304509451
#34

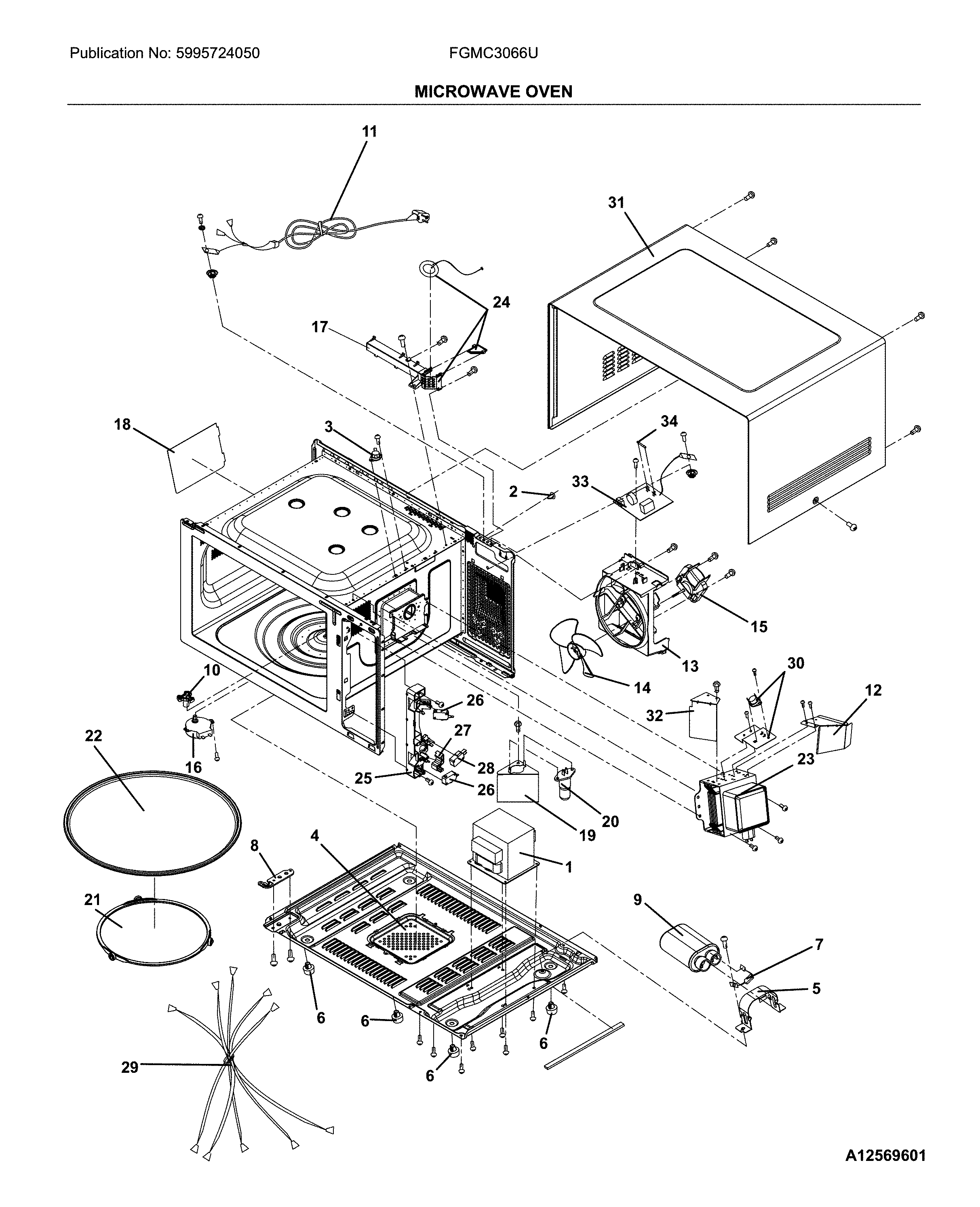

Microwave oven diagram

Microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$11.96 |
30% OFF MSRP : $17.00
In Stock
Switch 5304520020
#26

Microwave oven diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$34.70 |
17% OFF MSRP : $42.00
In Stock
Terminal Block 316056000
#62

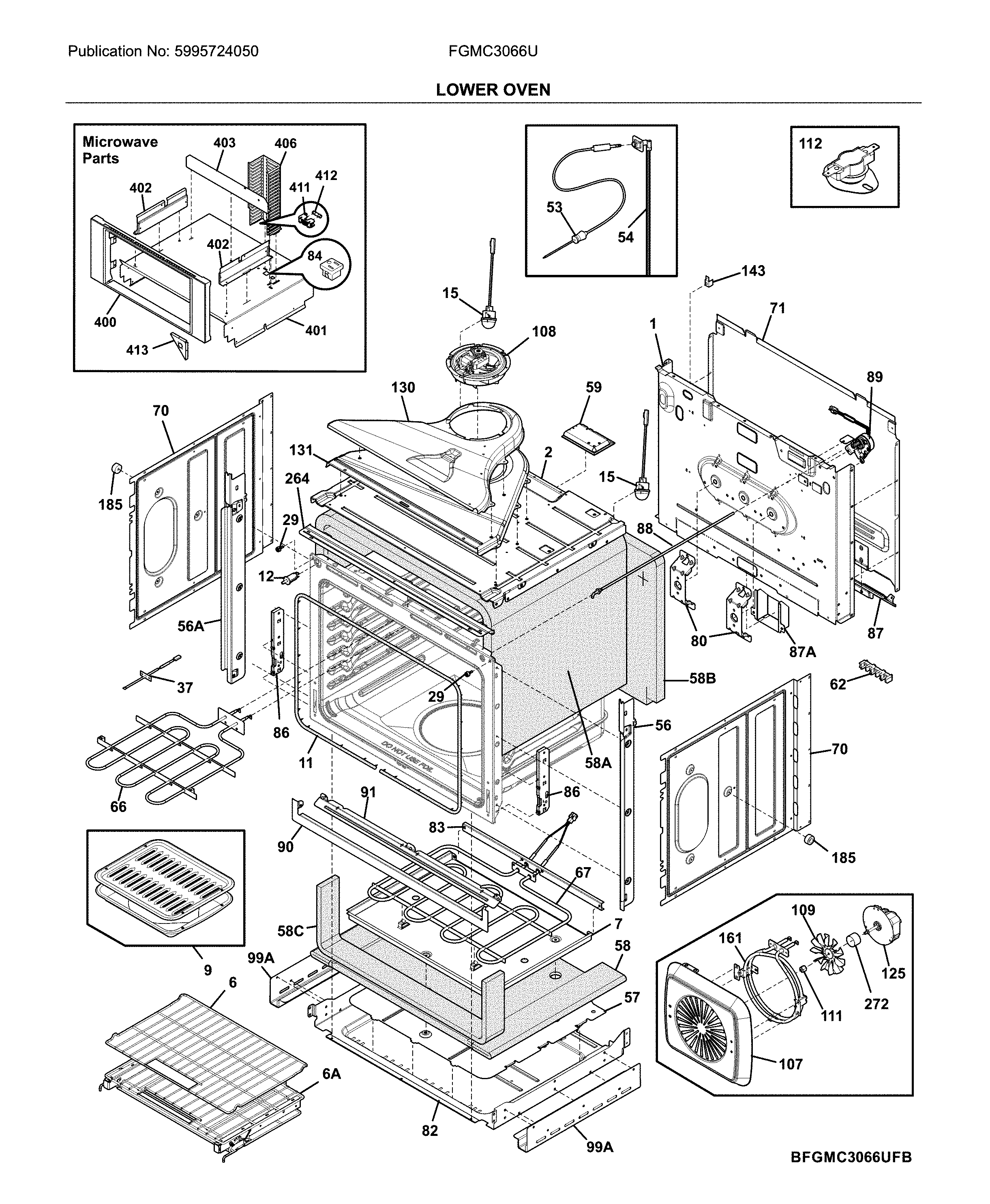

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Lower oven diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
18% OFF MSRP : $40.00
In Stock
Range Oven Control Board (replaces 316472802) 316472807
#97

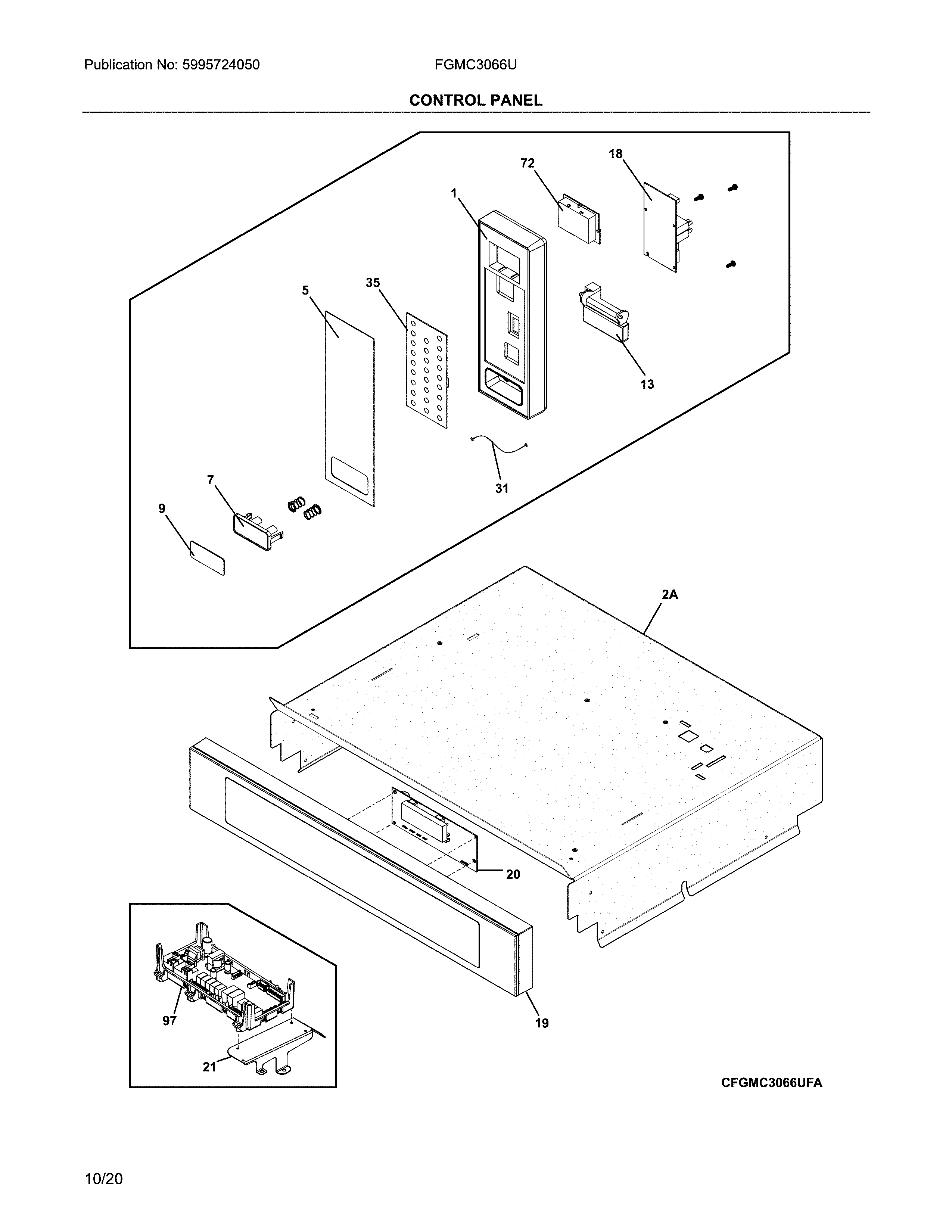

Control panel diagram

Range oven control board (replaces 316472802)

Part #316472807

BEST SELLER
$260.79 |
$10.00 OFF Phone Price : $270.79
In Stock
Microwave Diode (replaces 5304488358) 5304513459
#7

Microwave oven diagram

Microwave diode (replaces 5304488358)

Part #5304513459

BEST SELLER
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Range Convection Fan Blade (replaces 139009100, 316136400, 318398300) 318398302
#109

Lower oven diagram

Range convection fan blade (replaces 139009100, 316136400, 318398300)

Part #318398302

BEST SELLER
$23.89 |
17% OFF Phone Price : $28.89
In Stock
Wall Oven Cooling Fan Assembly 807123001
#108

Lower oven diagram

Wall oven cooling fan assembly

Part #807123001

Replaced by #5304528825

?
Manufacturer substitution
This part replaces 807123001. Substitute parts can look different from the original.
BEST SELLER
$133.18 |
7% OFF Phone Price : $143.18
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Magnetron 5304513456
#23

Microwave oven diagram

Microwave magnetron

Part #5304513456

$149.93 |
6% OFF Phone Price : $159.93
In Stock
