York H4TS036S06A h4ts stealth condensing unit Parts
Here are the diagrams and repair parts for York H4TS036S06A h4ts stealth condensing unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for H4TS036S06A H4TS Stealth Condensing Unit

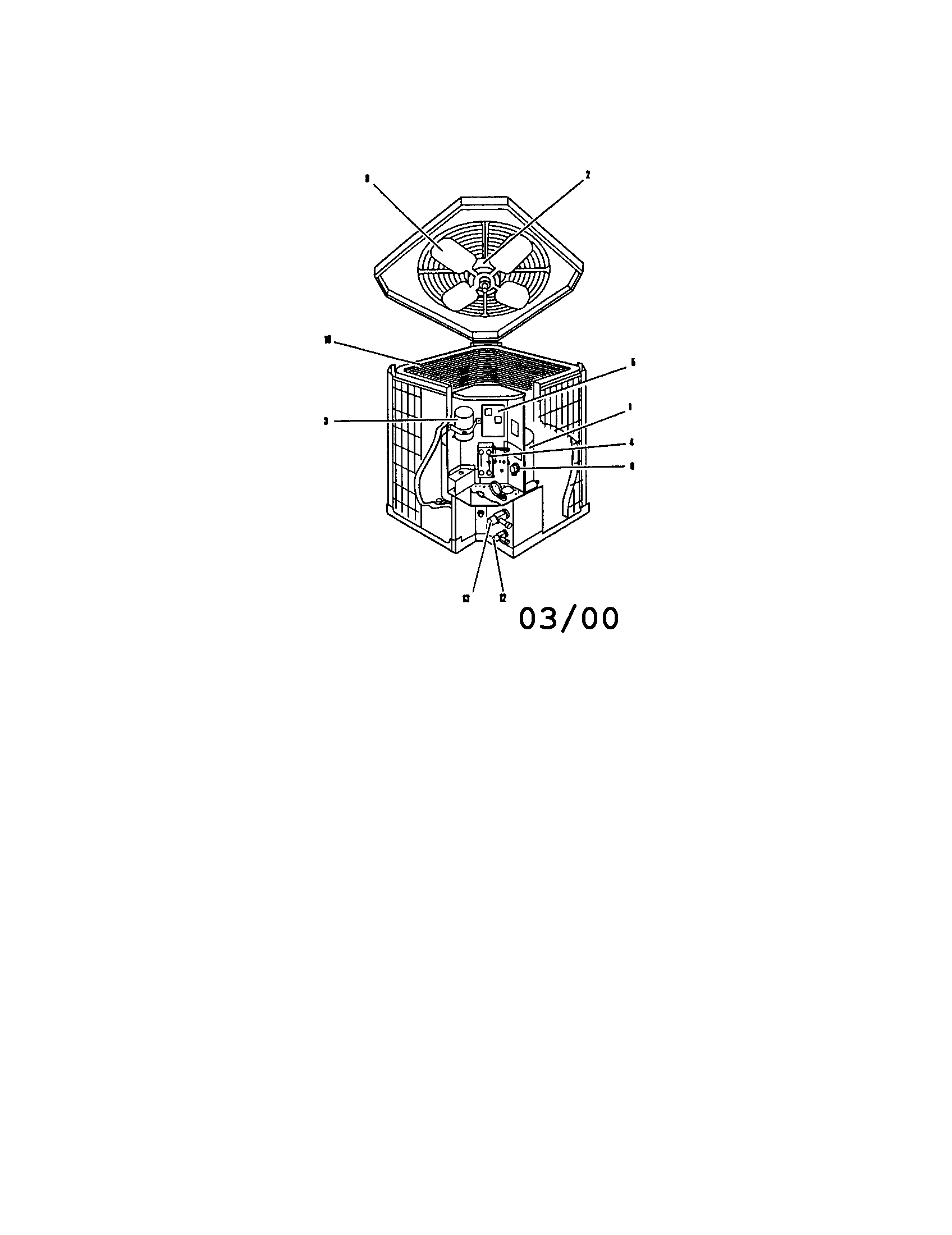

Condensing unit-fig. 1 diagram
Contactor
Part #024-27531-000
The manufacturer no longer makes this part, and there's no substitute part

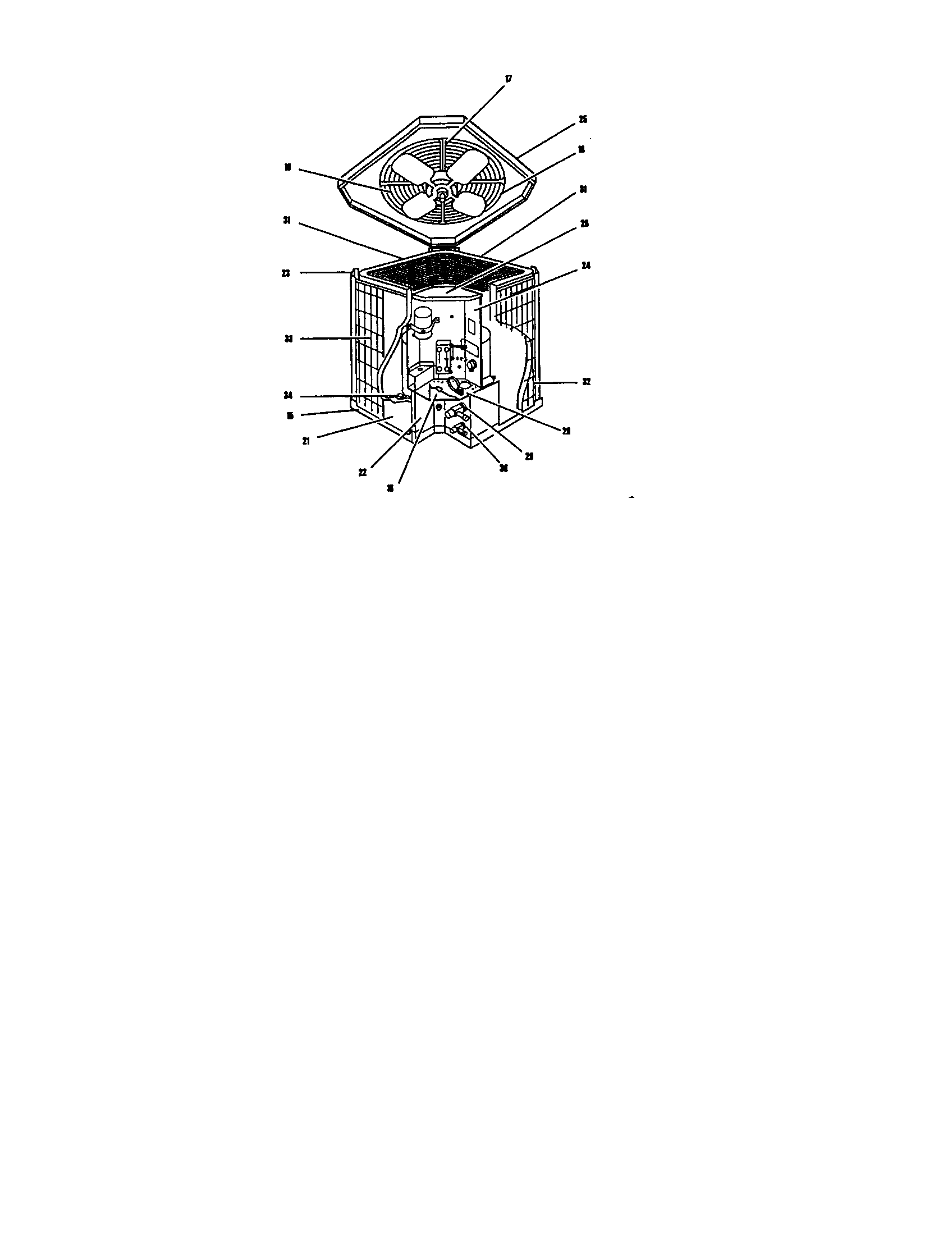

Condensing unit-fig. 2 diagram
Isolator, Uniit
Part #028-12264-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Top Panel
Part #073-21125-001
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Channel, Electric
Part #025-29018-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 1 diagram
Capacitor, Run (50/7.5mfd/440v)
Part #024-31434-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Panel Bttm
Part #063-94133-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Guard, Coil (30 X 28)
Part #026-35565-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Fan Grille
Part #026-31698-004
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 1 diagram
Valve, Angle (suction)
Part #022-08963-700
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 2 diagram
Panel, Corner (3 Req'd)
Part #073-21132-001
The manufacturer no longer makes this part, and there's no substitute part
