Model #RAEA300AAX Official Maytag admiral ice maker

Here are the diagrams and repair parts for Maytag RAEA300AAX admiral ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 19 parts

    Refrigerator Ice Maker Module Housing#22

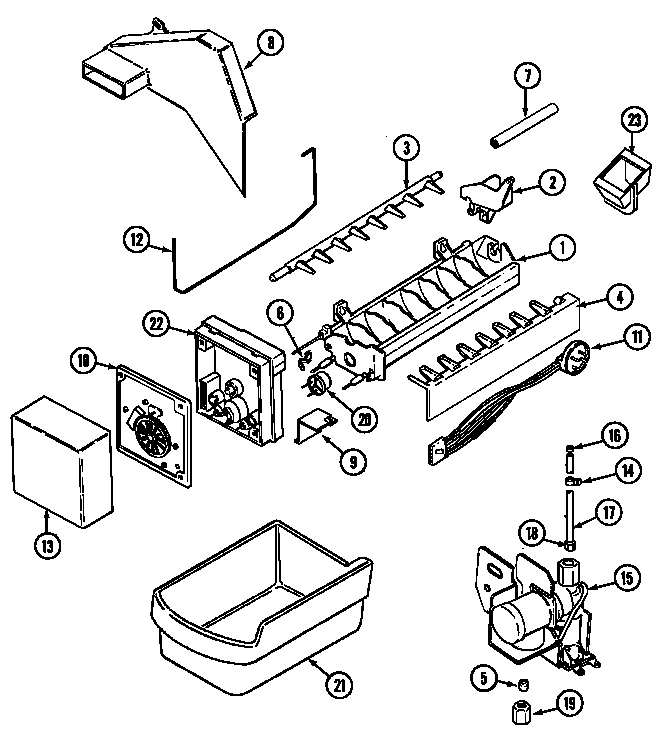

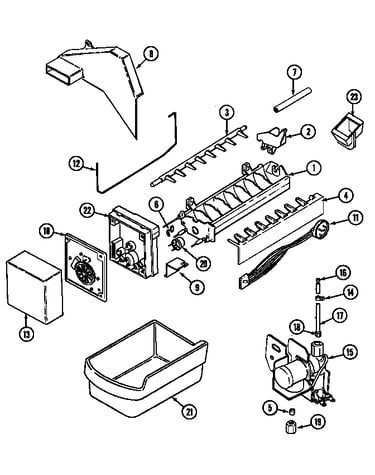

    Ice maker kit Diagram

    Support module

    Part #95103-1
    Replaced by #WP2195914
    ?
    Manufacturer substitution
    This part replaces 95103-1. Substitute parts can look different from the original.
    In Stock
    $39.59 |
    11% OFF
    Phone Price: $44.59
    Refrigerator Ice Maker Thermostat Retainer#6

    Ice maker kit Diagram

    Retainer, th

    Part #95104-1
    Replaced by #WP2315522
    ?
    Manufacturer substitution
    This part replaces 95104-1. Substitute parts can look different from the original.
    In Stock
    $8.09 |
    11% OFF
    Phone Price: $9.09
    Refrigerator Ice Maker Cube Ejector#4

    Ice maker kit Diagram

    Stripper, ic

    Part #95102-1
    Replaced by #WP2182124
    ?
    Manufacturer substitution
    This part replaces 95102-1. Substitute parts can look different from the original.
    In Stock
    $30.59 |
    14% OFF
    Phone Price: $35.59
    Refrigerator Ice Maker Cube Ejector#3

    Ice maker kit Diagram

    Refrigerator ice ejector

    Part #95101-1
    Replaced by #WP627843
    ?
    Manufacturer substitution
    This part replaces 95101-1. Substitute parts can look different from the original.
    In Stock
    $32.89 |
    13% OFF
    Phone Price: $37.89
    Refrigerator Screw

    See All Related Diagrams

    Igniter screw

    Part #400021-1
    Replaced by #WP400021-1
    ?
    Manufacturer substitution
    This part replaces 400021-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Refrigerator Screw#22A

    Ice maker kit Diagram

    Refrigerator screw

    Part #95106-1
    Replaced by #WP681249
    ?
    Manufacturer substitution
    This part replaces 95106-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Clamp Spring#16

    Ice maker kit Diagram

    Clamp spring

    Part #60333-4

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#9A

    Ice maker kit Diagram

    Screw

    Part #95108-1

    The manufacturer no longer makes this part, and there's no substitute part

    CLAMP, FEEDER TUBE#14

    Ice maker kit Diagram

    Clamp, feeder tube

    Part #23197-8

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#15A

    Ice maker kit Diagram

    Screw

    Part #401017-1

    The manufacturer no longer makes this part, and there's no substitute part
