Model # STR-DH750 Official Sony receiver

Here are the diagrams and repair parts for Official Sony STR-DH750 receiver, as well as links to manuals and error code tables, if available.

By Schematic

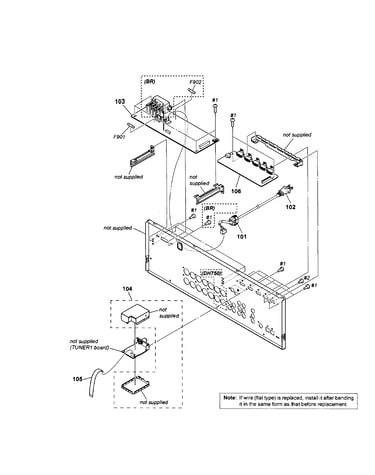

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSTR-DH750 Audio Equipment

  • Home Theater System Fm Antenna 179318441
    #NI

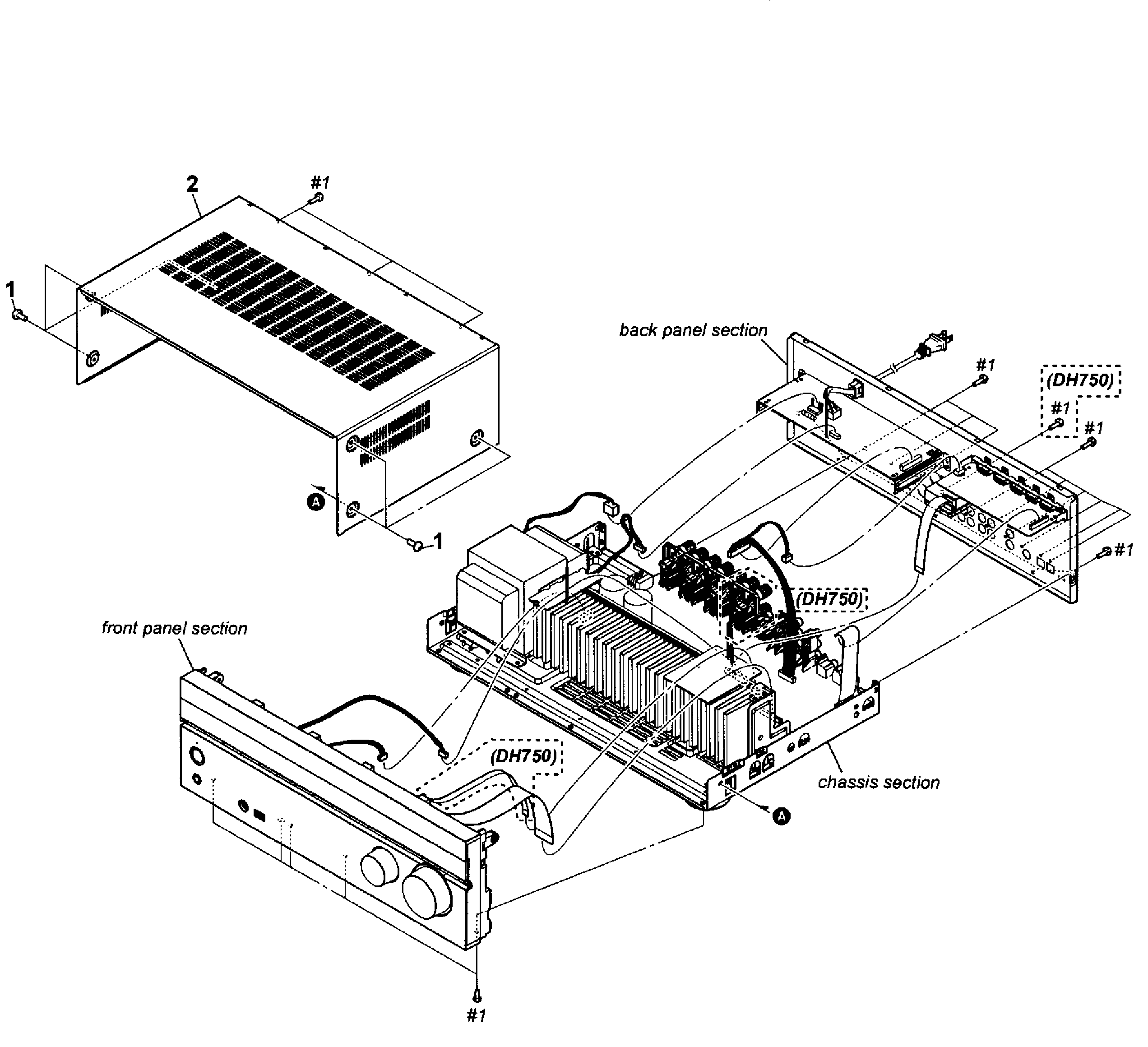

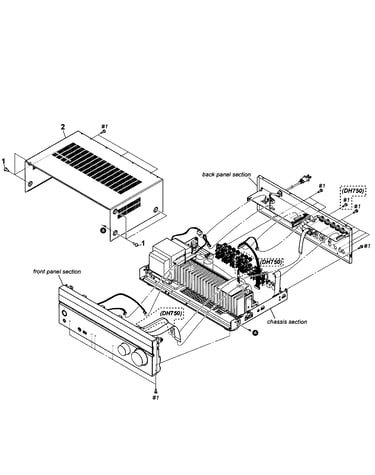

    Case diagram

    Home theater system fm antenna

    Part #179318441

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit 671516401
    #NI

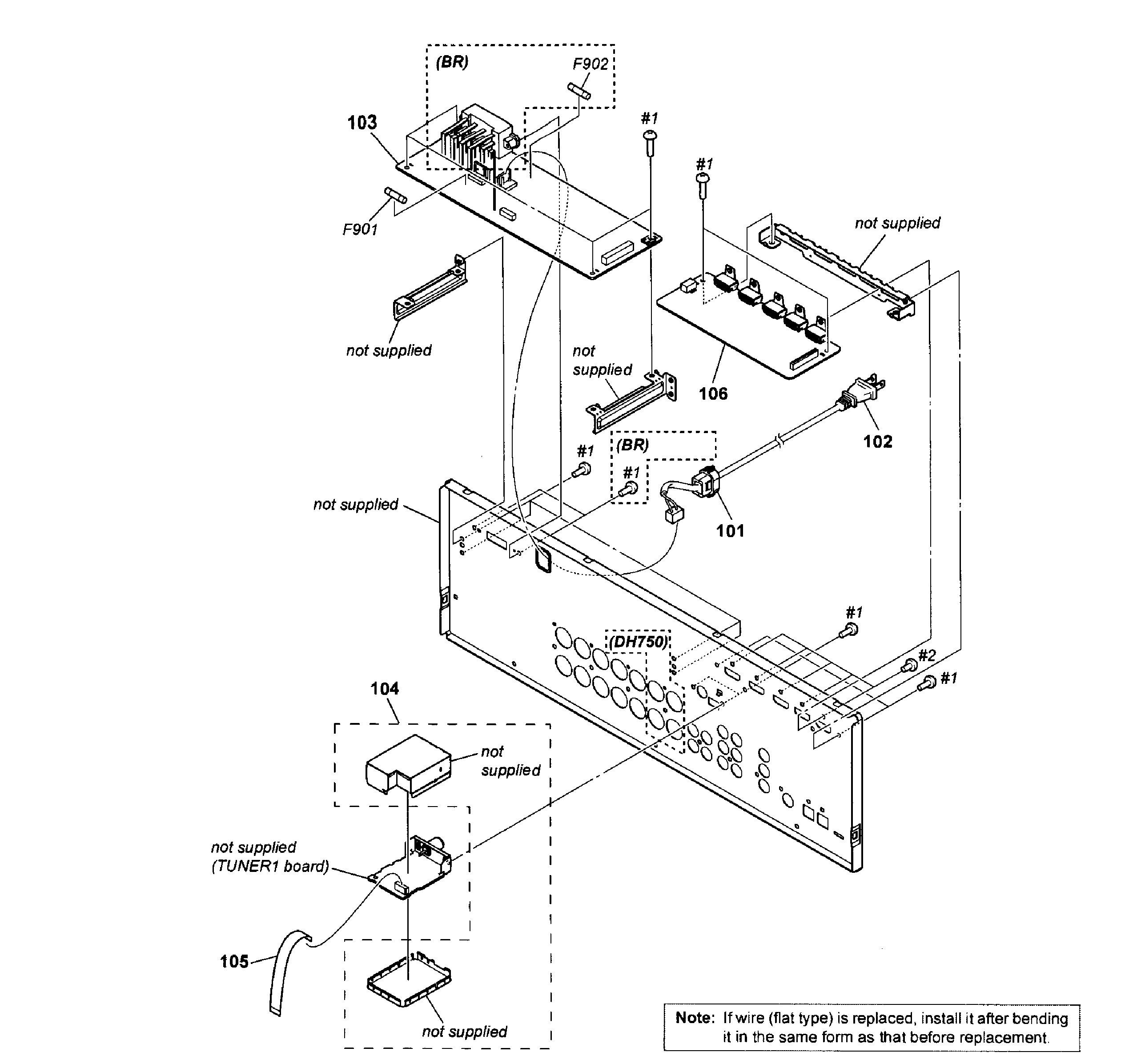

    Case diagram

    Integrated circuit

    Part #671516401

    The manufacturer no longer makes this part, and there's no substitute part

  • Home Electronics Selector Knob 444285901
    #52

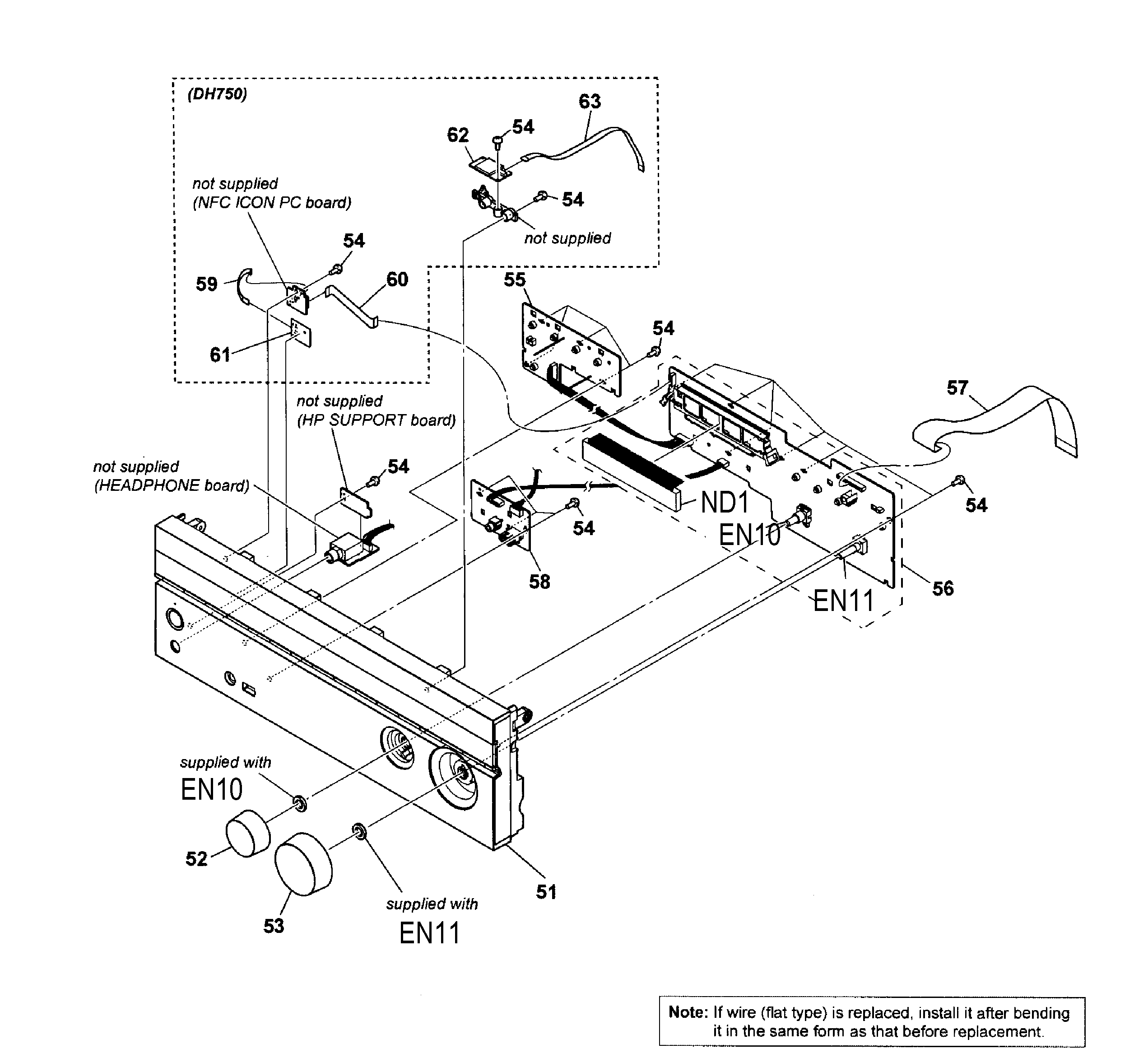

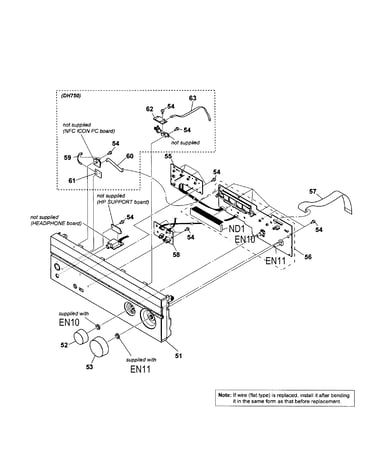

    Front panel diagram

    Home electronics selector knob

    Part #444285901

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit 660082701
    #NI

    Case diagram

    Integrated circuit

    Part #660082701

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Fr Jac A1989184A
    #58

    Front panel diagram

    Pcb fr jac

    Part #A1989184A

    The manufacturer no longer makes this part, and there's no substitute part

  • Transistor 670239001
    Transistor

    Part #670239001

    The manufacturer no longer makes this part, and there's no substitute part

  • Flat Cable 182830861
    Flat cable

    Part #182830861

    The manufacturer no longer makes this part, and there's no substitute part

  • Cushion-fo 444749101
    #156

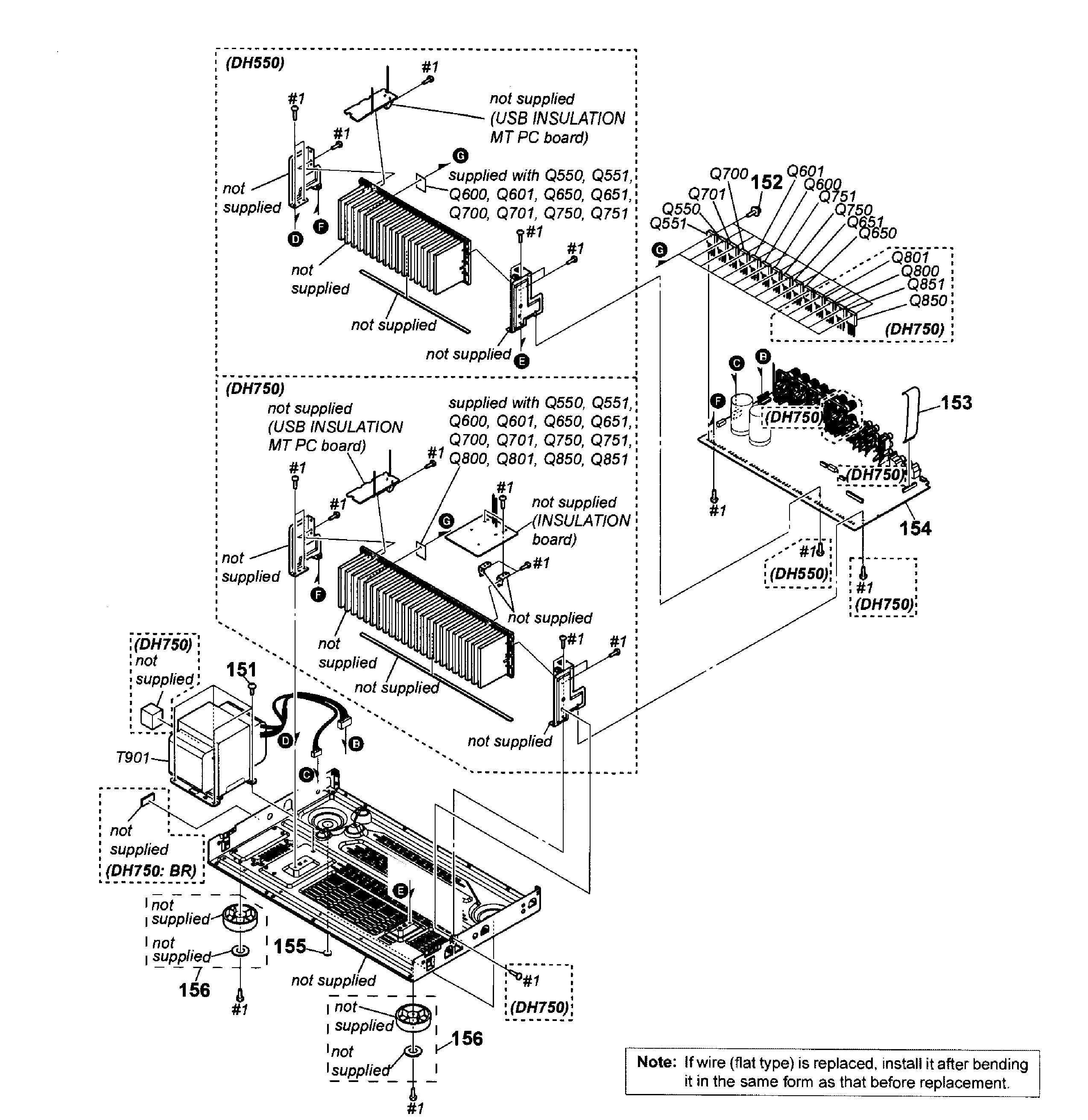

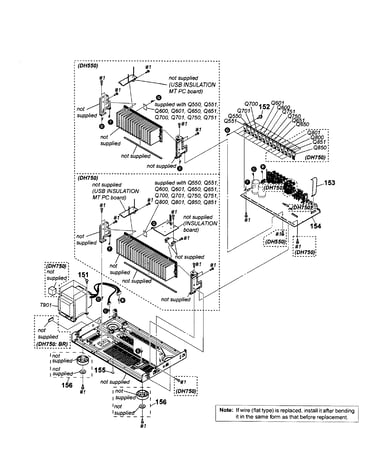

    Chassis diagram

    Cushion-fo

    Part #444749101

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit 671812901
    #NI

    Case diagram

    Integrated circuit

    Part #671812901

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Key/pw A1989183A
    #55

    Front panel diagram

    Pcb key/pw

    Part #A1989183A

    The manufacturer no longer makes this part, and there's no substitute part
