Amana
Countertop Microwave

Model # AU1430.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana AU1430000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

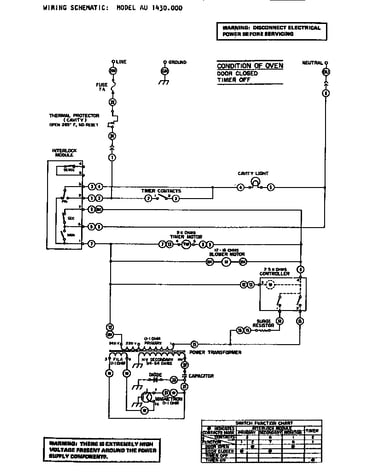

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Exhaust Gasket M26D31
#13A

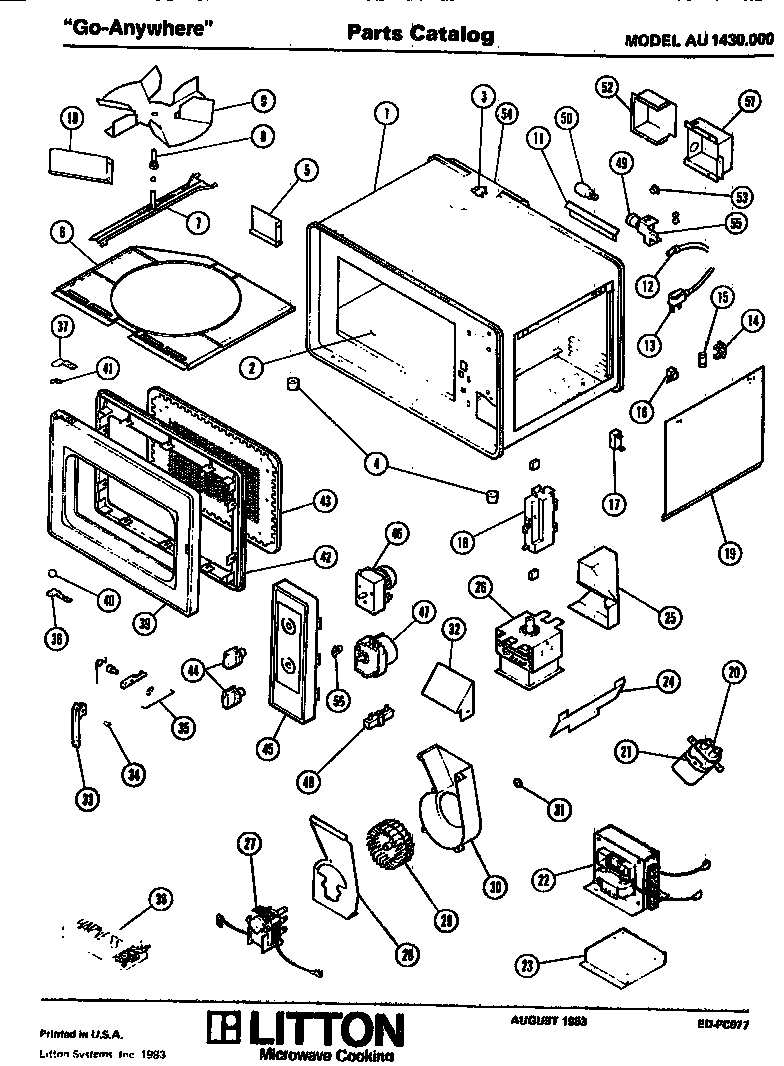

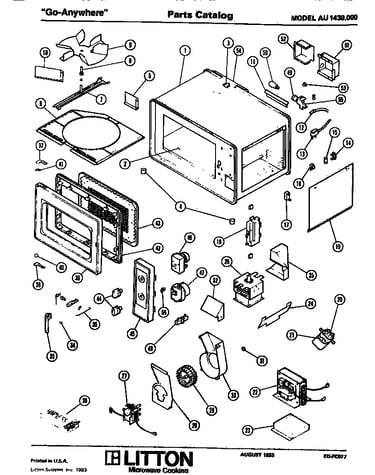

Replacement parts diagram

Exhaust gasket

Part #M26D31

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip M2D580
#16

Replacement parts diagram

Wire clip

Part #M2D580

The manufacturer no longer makes this part, and there's no substitute part

Fuse (7 Amp, Type Abc) M4D99
#15

Replacement parts diagram

Fuse (7 amp, type abc)

Part #M4D99

The manufacturer no longer makes this part, and there's no substitute part

Bracket Resistor Mtg. M8D123
#48B

Replacement parts diagram

Bracket resistor mtg.

Part #M8D123

The manufacturer no longer makes this part, and there's no substitute part

Component Cover M8D250
#51A

Replacement parts diagram

Component cover

Part #M8D250

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector (cavity) M4D97
#3A

Replacement parts diagram

Thermal protector (cavity)

Part #M4D97

The manufacturer no longer makes this part, and there's no substitute part

Retainer Clip M2D589
#56

Replacement parts diagram

Retainer clip

Part #M2D589

The manufacturer no longer makes this part, and there's no substitute part

Nylon Washer-lower Door Pin M2D586
#12

Replacement parts diagram

Nylon washer-lower door pin

Part #M2D586

The manufacturer no longer makes this part, and there's no substitute part

Inerlock Switch Module M14D253
#18A

Replacement parts diagram

Inerlock switch module

Part #M14D253

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assy. (incl. Nos. 2, 3, 4, 54) M77D114
#1A

Replacement parts diagram

Cavity assy. (incl. nos. 2, 3, 4, 54)

Part #M77D114

The manufacturer no longer makes this part, and there's no substitute part
