Model # 1165018290C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165018290C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Lens Bulb 747286
#8

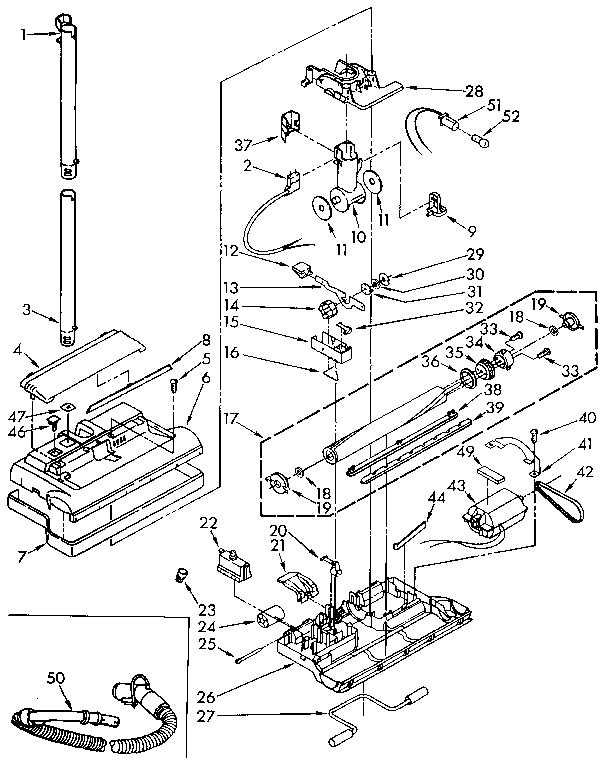

Power mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4153576
#4

Power mate diagram

Housng-blb

Part #4153576

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#30

Power mate diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part

Pedal Wand 747212
#9

Power mate diagram

Pedal wand

Part #747212

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4148053
#46

Power mate diagram

Extension button

Part #4148053

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 742509
#34

Power mate diagram

End brush (black)

Part #742509

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Lever 747287
#13

Power mate diagram

Adjustment lever

Part #747287

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#51

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part
