Model # SLT/286 Official Compaq computer

Here are the diagrams and repair parts for Official Compaq SLT-286 computer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

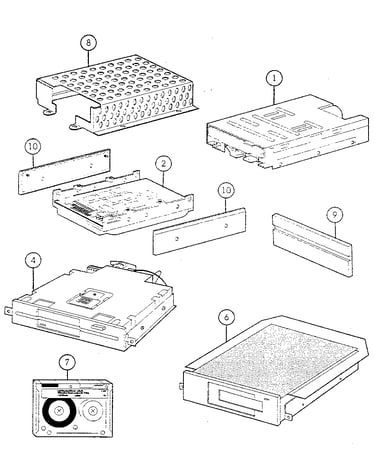

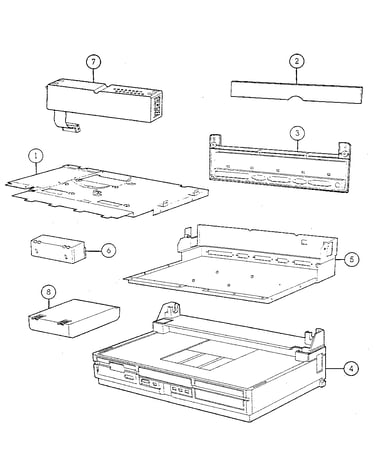

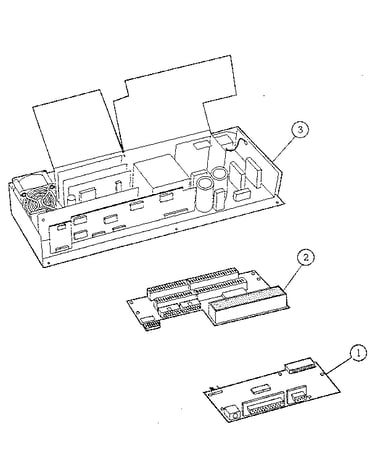

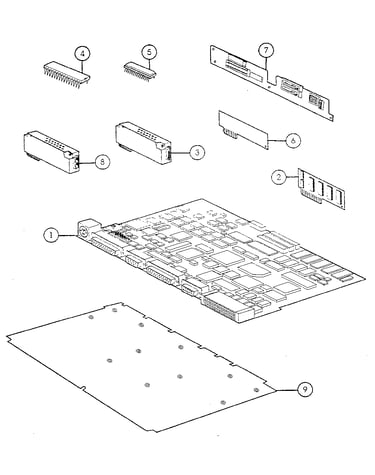

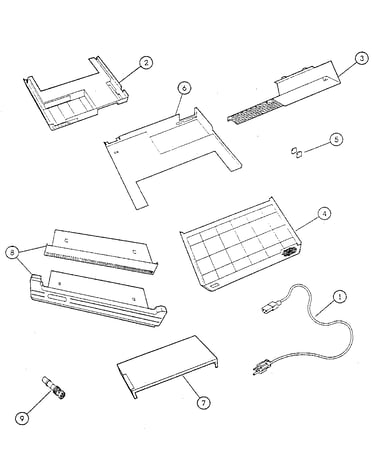

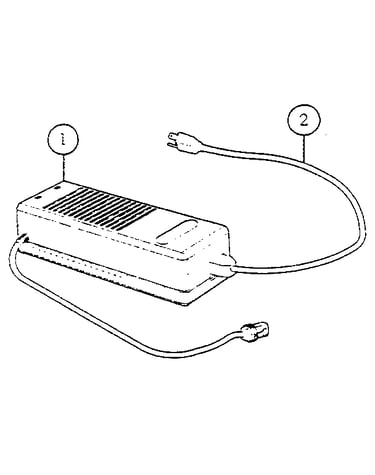

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
External Storage Module Power Cable 110270-001
#8

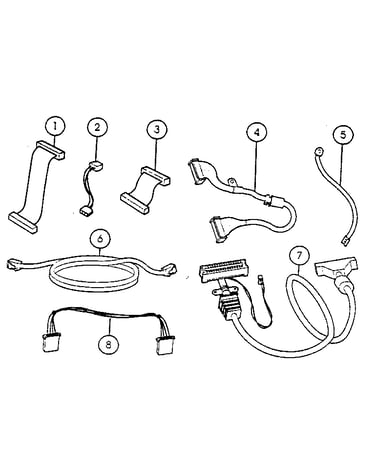

Fig. 6-6. cables diagram

External storage module power cable

Part #110270-001

The manufacturer no longer makes this part, and there's no substitute part

Keypad, U.s./u.k./swiss 110454-001
#3A

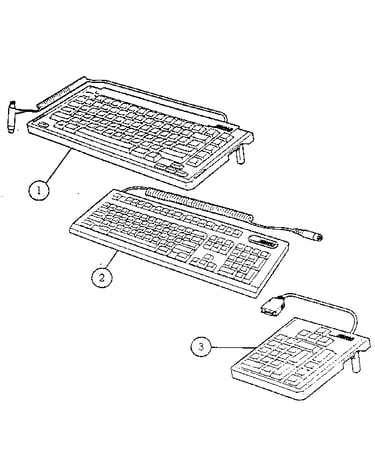

Fig. 6-5. keyboards and optional numeric keypads diagram

Keypad, u.s./u.k./swiss

Part #110454-001

The manufacturer no longer makes this part, and there's no substitute part

Filler Panel 110262-001
#9

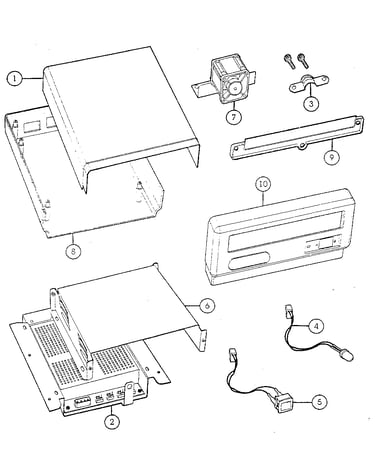

Fig. 6-8. external storage module diagram

Filler panel

Part #110262-001

The manufacturer no longer makes this part, and there's no substitute part

Torx Screw, 8-16 X 1/2, T-15 Panhead, Plastite 101346-103

#NI

All parts diagram

Torx screw, 8-16 x 1/2, t-15 panhead, plastite

Part #101346-103

The manufacturer no longer makes this part, and there's no substitute part

Right Hinge 110147-001
#8

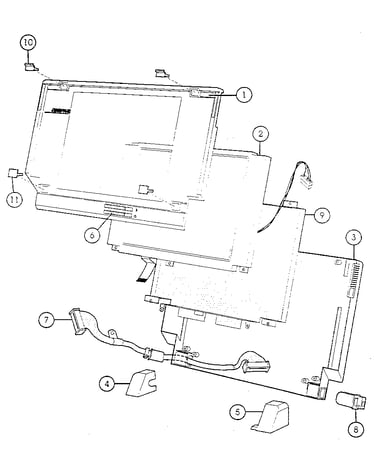

Fig. 6-2. vga backlit display diagram

Right hinge

Part #110147-001

The manufacturer no longer makes this part, and there's no substitute part

Single Diskette Drive Signal/power Cable 110005-001
#1

Fig. 6-6. cables diagram

Single diskette drive signal/power cable

Part #110005-001

The manufacturer no longer makes this part, and there's no substitute part

Keyboard, Swiss (not Shown) 110509-001
#1J

Fig. 6-5. keyboards and optional numeric keypads diagram

Keyboard, swiss (not shown)

Part #110509-001

The manufacturer no longer makes this part, and there's no substitute part

Display Ground Cable 110503-001
#5

Fig. 6-6. cables diagram

Display ground cable

Part #110503-001

The manufacturer no longer makes this part, and there's no substitute part

I/o Signal Cable (40-pin) 110679-001

#NI

All parts diagram

I/o signal cable (40-pin)

Part #110679-001

The manufacturer no longer makes this part, and there's no substitute part

Keypad, Spanish (not Shown) 110458-001
#3E

Fig. 6-5. keyboards and optional numeric keypads diagram

Keypad, spanish (not shown)

Part #110458-001

The manufacturer no longer makes this part, and there's no substitute part
