Range Oven Door Outer Panel and Foil Tape 316453054


Part #316453054

Online Only Price
$174.59 |
5% OFF
Phone Price: $184.59
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

This oven door outer panel and foil tape (part number 316453054) is for ranges.

Oven door outer panel and foil tape 316453054 is an outer heat shield for the oven door.

Wait until the surface is cool to the touch before starting the repair. Wear work gloves to protect your hands. Caution: The oven door is heavy, so you might need two people to safely lift it off the range for servicing.

Top models using the same part

Model NameModel NumberDiagram Name
Model #79074423810 Kenmore gas range79074423810
Model #79092613810 Kenmore electric range79092613810
Model #79074413810 Kenmore gas range79074413810


Haworth, N.J.Reviews 1Votes 0
• 2 years ago
kathyk• 2 years ago
outer glass panel for my oven

I had a friend install the glass panel - it took very little time. I was very pleased with how fast it got delivered after I ordered it...and it fits perfectly.

Response from Sears PartsDirect:
CS offline • 2 years ago

Thank you so much for your 5-star rating! We are happy to see that you had a great experience. Thank you for your business!

handy ladies
Copperas Cove txReviews 1Votes 0
• 4 years ago
handy ladies• 4 years ago
Received exact parts and they were easy to install

We broke the glass and dented the frame on a new stove. The parts clerk was very knowledgable. He sent the the correct parts and all we needed to replace was a drill.

venice, caReviews 1Votes 0
• 2 years ago
Joel• 2 years ago

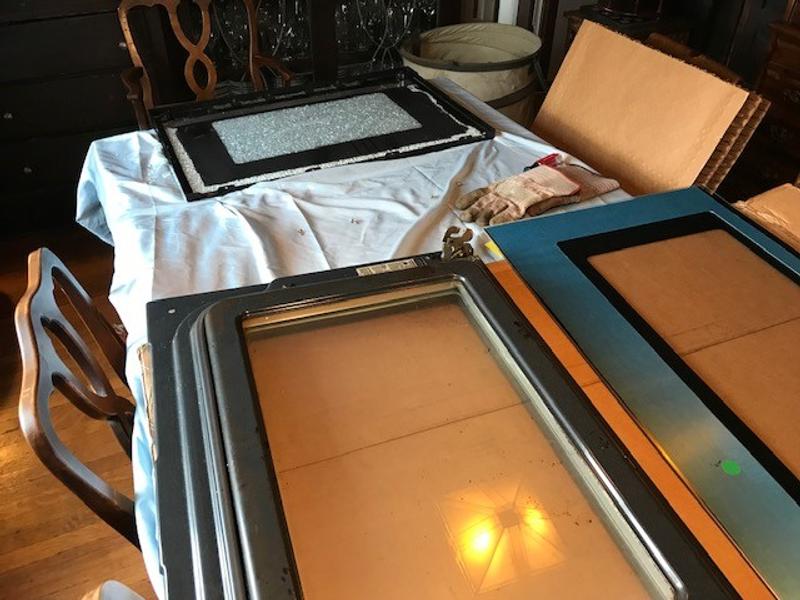

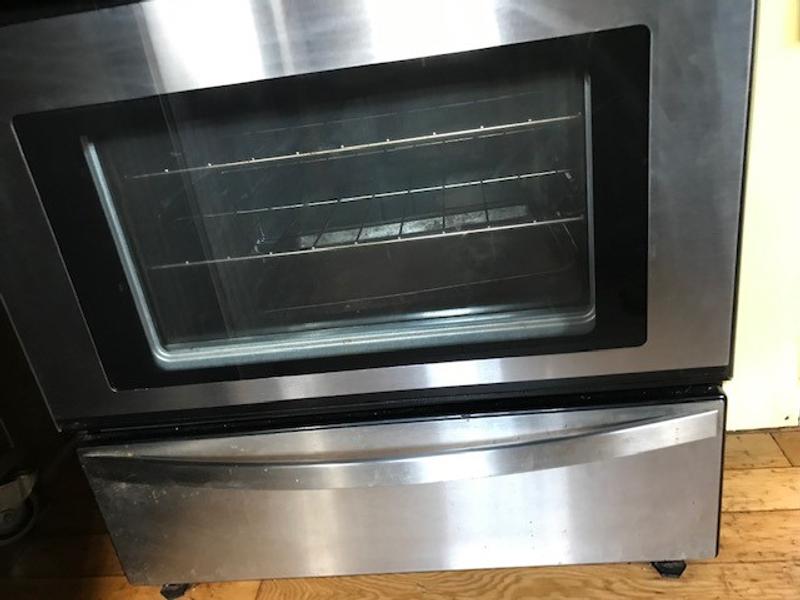

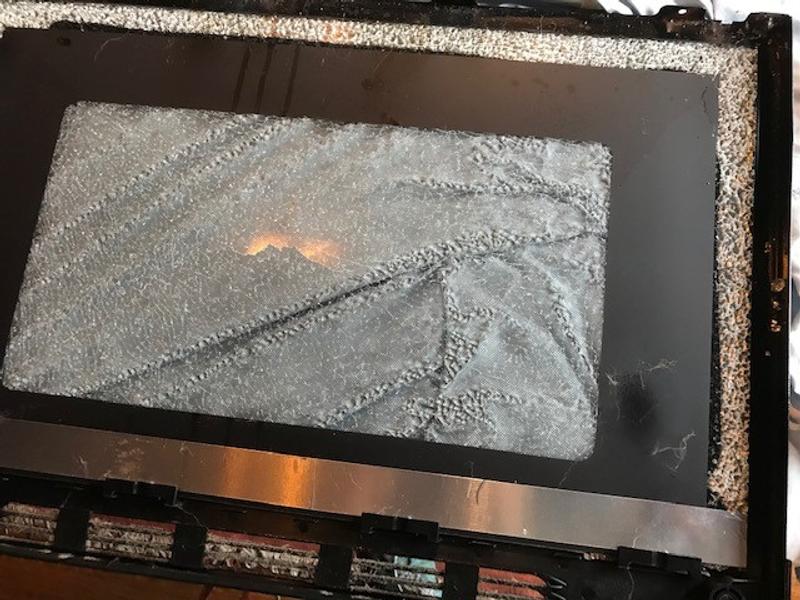

replacing shattered gas range window

Chat was very helpful with purchase guidance to get the right piece. Moderately difficult to install, but on-line videos were very helpful. Unfortunately, the two-sided padded tape that was supposed to be included with the part wasn't included, so I had to fashion my own out of electric tape. That seemed to work OK.
