Bolens
Gas Walk-Behind Mower

Model # 084 Official Bolens lawn mower

Here are the diagrams and repair parts for Official Bolens 084 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Lawn & Garden Equipment Hex Bolt, 3/8-24 X 1-1/2-in (replaces 910-1044) 710-1044
#33

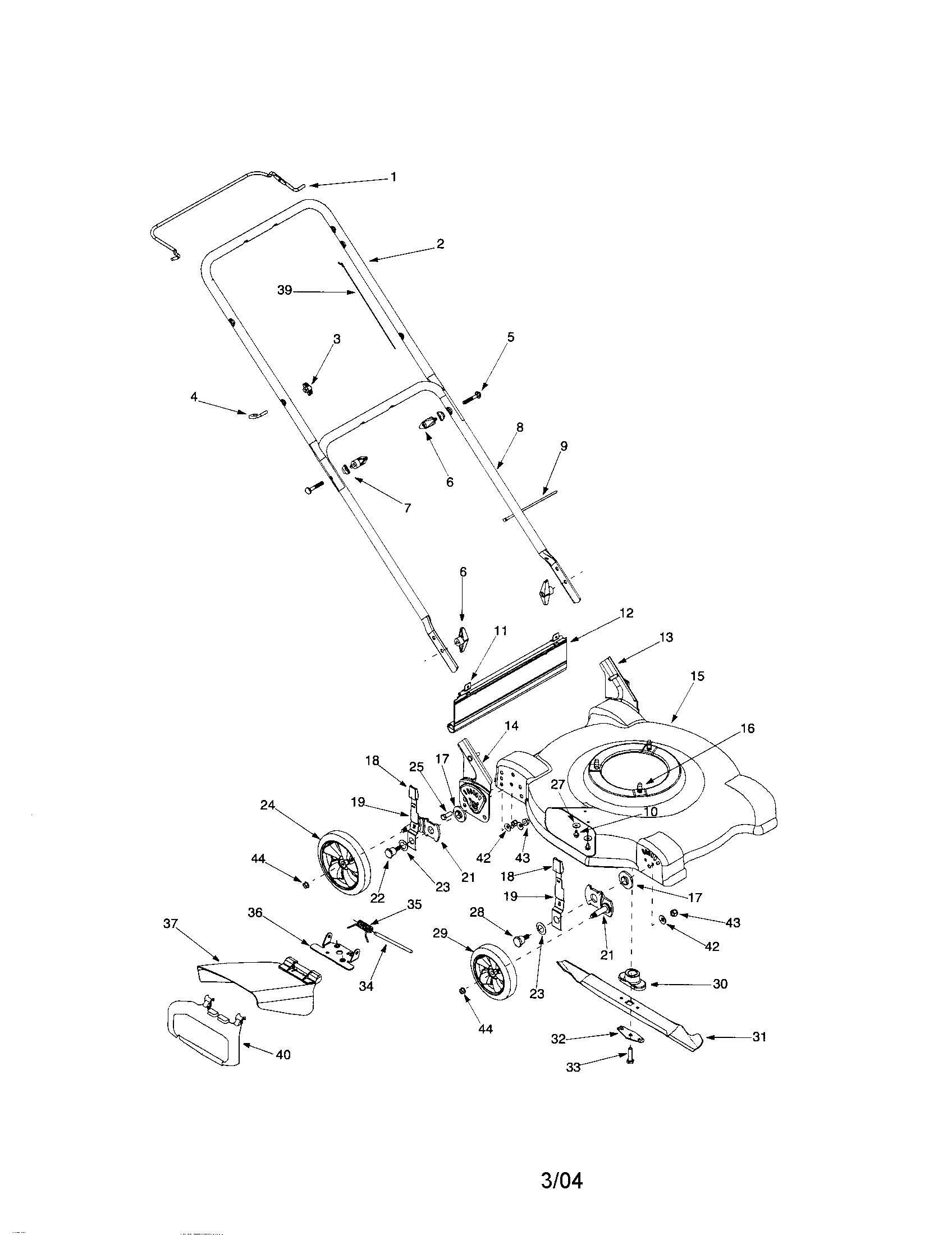

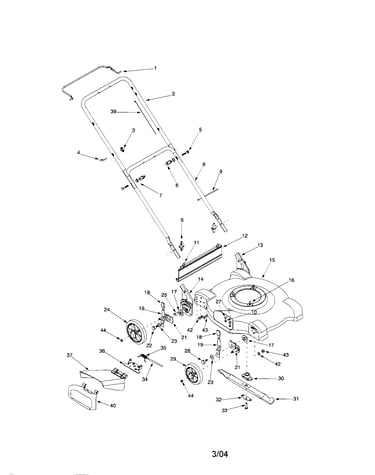

22" rotary mower diagram

Lawn & garden equipment hex bolt, 3/8-24 x 1-1/2-in (replaces 910-1044)

Part #710-1044

BEST SELLER
This item is not returnable
$3.20 |
50% OFF MSRP : $6.40
In Stock
Lawn Mower Blade Adapter 748-0376C
#30

22" rotary mower diagram

Lawn mower blade adapter

Part #748-0376C

Replaced by #748-0376E

?
Manufacturer substitution
This part replaces 748-0376C. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$21.91 |
22% OFF MSRP : $28.00
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#10

22" rotary mower diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Torsion Spring 732-1014
#35

22" rotary mower diagram

Torsion spring

Part #732-1014

Replaced by #732-1014C

?
Manufacturer substitution
This part replaces 732-1014. Substitute parts can look different from the original.
BEST SELLER
$8.08 |
27% OFF MSRP : $11.00
In Stock
Lawn Mower Mulching Blade 742-0742A
#31

22" rotary mower diagram

Lawn mower mulching blade

Part #742-0742A

Replaced by #942-0742A

?
Manufacturer substitution
This part replaces 742-0742A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$14.91 |
45% OFF MSRP : $27.00
In Stock
Lawn Mower Wheel 734-1987
#24

22" rotary mower diagram

Lawn mower wheel

Part #734-1987

BEST SELLER
$16.03 |
36% OFF MSRP : $25.00
In Stock
Control Cable 746-0957
#39

22" rotary mower diagram

Control cable

Part #746-0957

Replaced by #946-0957

?
Manufacturer substitution
This part replaces 746-0957. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.07 |
29% OFF MSRP : $24.00
In Stock
Spring 687-02051
#19

22" rotary mower diagram

Spring

Part #687-02051

Replaced by #732-1026

?
Manufacturer substitution
This part replaces 687-02051. Substitute parts can look different from the original.
This item is not returnable
$10.14 |
16% OFF Phone Price : $12.14
In Stock
Lawn Mower Lower Handle 749-04037
#8

22" rotary mower diagram

Lawn mower lower handle

Part #749-04037

$66.59 |
7% OFF Phone Price : $71.59
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
#9

22" rotary mower diagram

Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
