Model # 298586194 Official Craftsman 3.0-hp gamefisher outboard motor

Here are the diagrams and repair parts for Official Craftsman 298586194 3.0-hp gamefisher outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |
Shim 0.05 065-35500-200
#32B

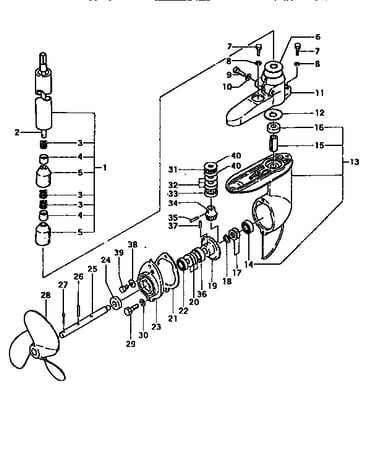

Drive shaft pipe and gear case diagram

Shim 0.05

Part #065-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Pipe Stay 226-35500-200
#47

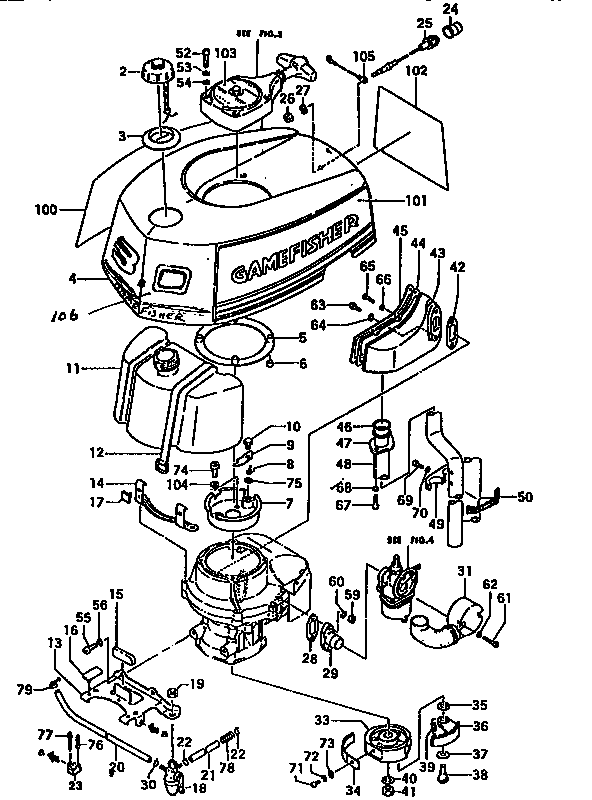

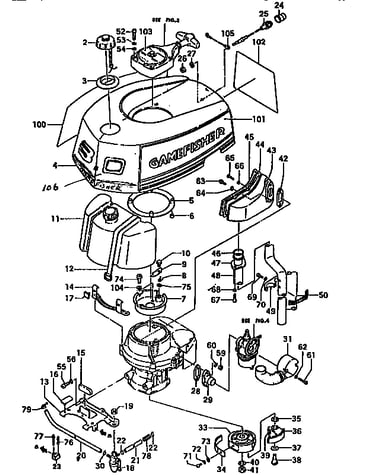

Tank, clutch and muffler diagram

Pipe stay

Part #226-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Fuel Pipe 700-15008-116
#20

Tank, clutch and muffler diagram

Fuel pipe

Part #700-15008-116

The manufacturer no longer makes this part, and there's no substitute part

Gear Pin 025-35500-200
#37

Drive shaft pipe and gear case diagram

Gear pin

Part #025-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Thrttl Grp 871-35552-200
#45

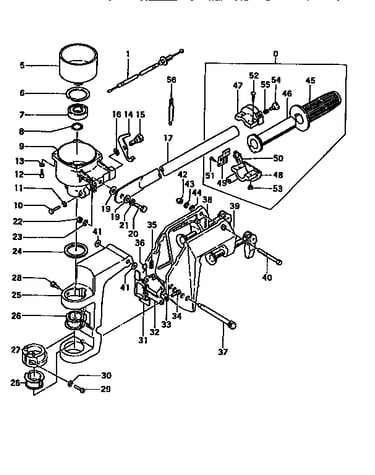

Handle and bracket diagram

Thrttl grp

Part #871-35552-200

The manufacturer no longer makes this part, and there's no substitute part

Shaft Shim 174-35500-200
#17B

Drive shaft pipe and gear case diagram

Shaft shim

Part #174-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 630-35500-200
#3

Tank, clutch and muffler diagram

Gasket (black)

Part #630-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Collar 062-35500-200
#33

Drive shaft pipe and gear case diagram

Collar

Part #062-35500-200

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin 037-10100-200
#10

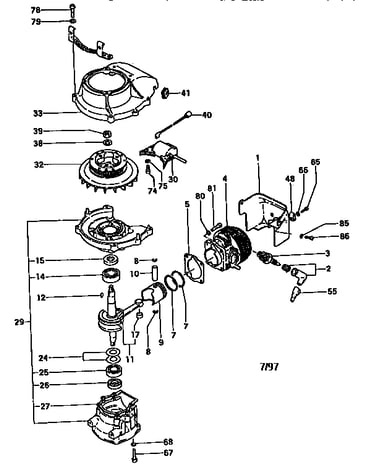

Engine diagram

Piston pin

Part #037-10100-200

The manufacturer no longer makes this part, and there's no substitute part

Carburetor 455-20217-900
#0

Carburetor diagram

Carburetor

Part #455-20217-900

The manufacturer no longer makes this part, and there's no substitute part
