Model # 694081 Official Porter Cable power unit drill

Here are the diagrams and repair parts for Official Porter Cable 694081 power unit drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Snap Ring 859769
#157

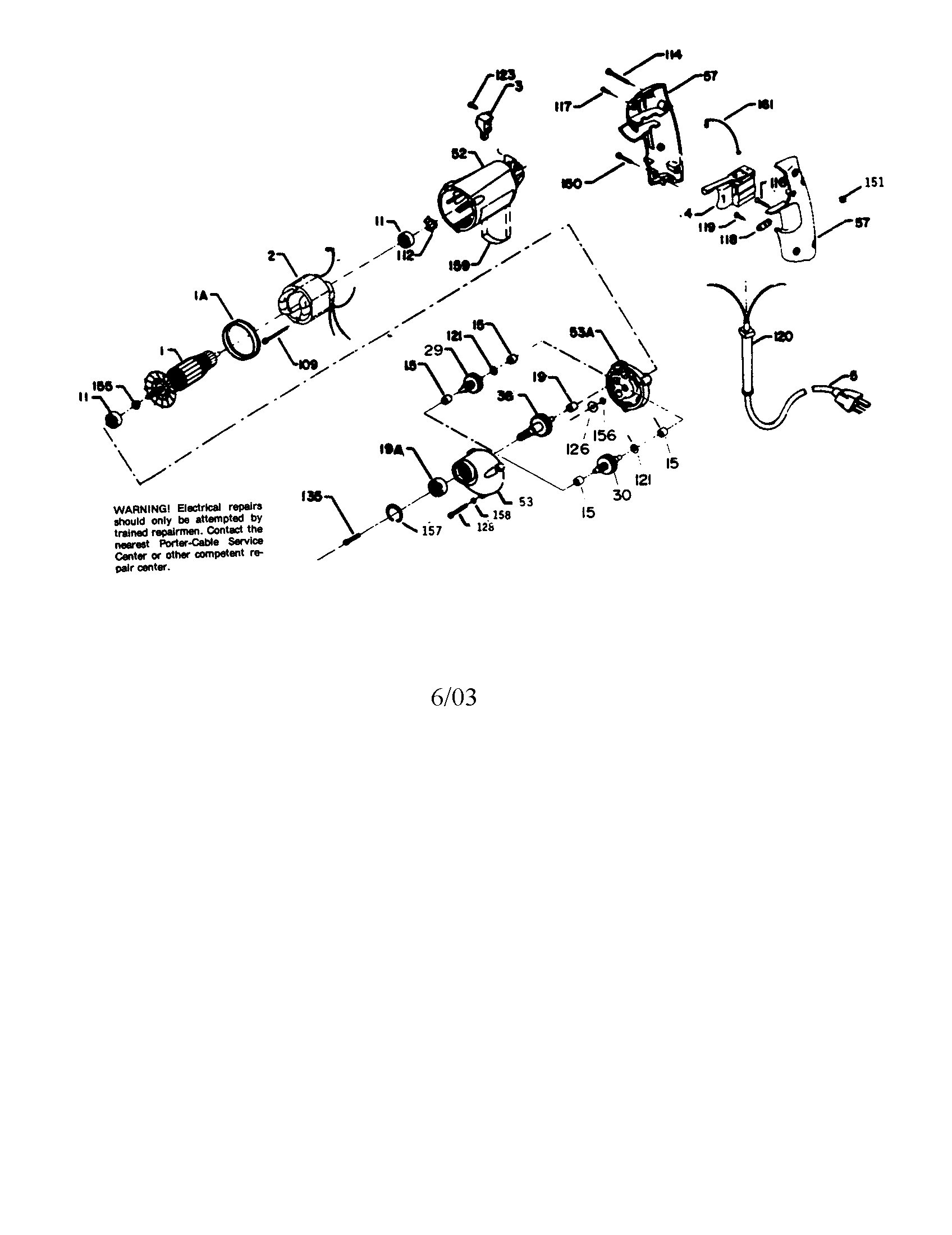

Power unit diagram

Snap ring

Part #859769

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 847564
#155

Power unit diagram

Snap ring

Part #847564

The manufacturer no longer makes this part, and there's no substitute part

Spring 842610
#112

Power unit diagram

Spring

Part #842610

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 861434
#118

Power unit diagram

Cord clamp

Part #861434

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 855284
#11

Power unit diagram

Power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Slinger 852714
#126

Power unit diagram

Slinger

Part #852714

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 802648
#158

Power unit diagram

Lock washer

Part #802648

The manufacturer no longer makes this part, and there's no substitute part

Baffle 811350
#1A

Power unit diagram

Baffle

Part #811350

The manufacturer no longer makes this part, and there's no substitute part

Lubricant 801946

#NI03

All parts diagram

Lubricant

Part #801946

The manufacturer no longer makes this part, and there's no substitute part

Screw 865643
#114

Power unit diagram

Screw

Part #865643

The manufacturer no longer makes this part, and there's no substitute part
