Amana PHB36C02E/P1220103C packaged heat pump

Amana PHB36C02E/P1220103C packaged heat pump Parts

Here are the diagrams and repair parts for Amana PHB36C02E/P1220103C packaged heat pump, as well as links to manuals and error code tables, if available.

By Schematic

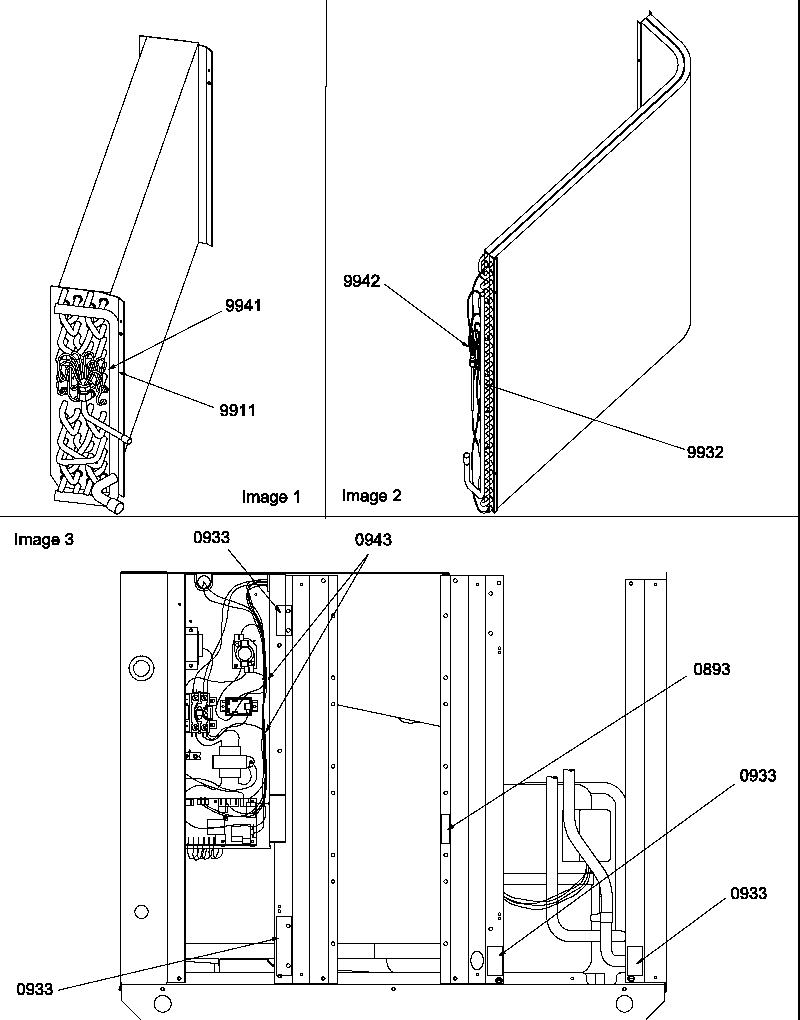

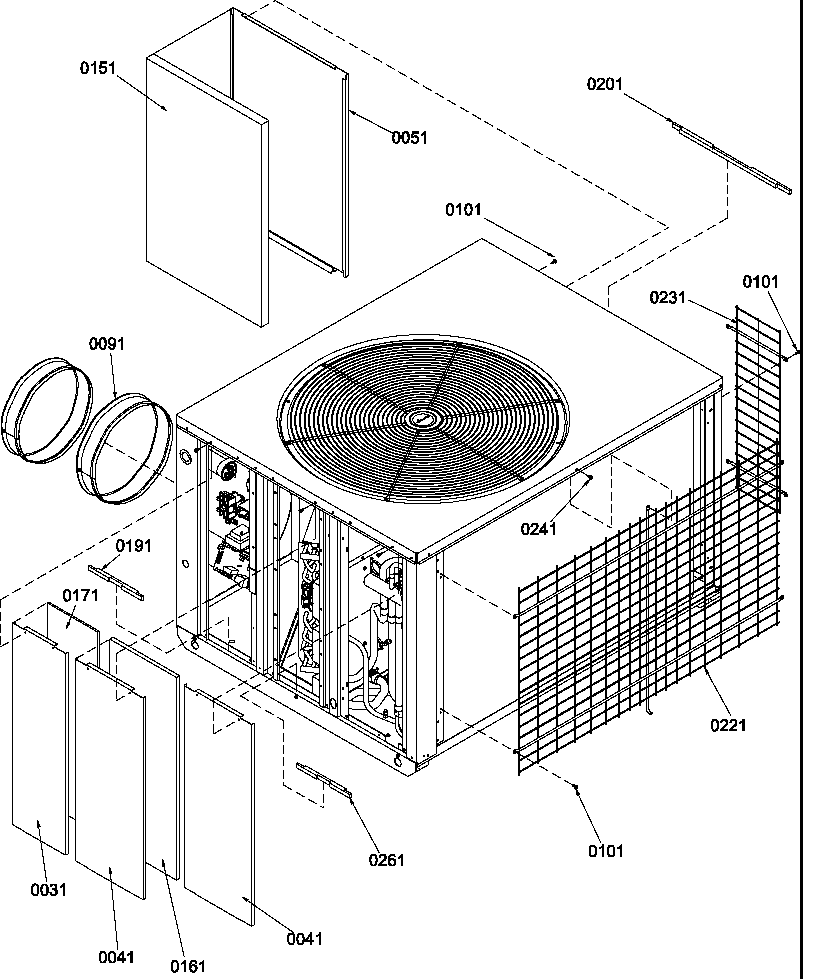

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PHB36C02E/P1220103C Packaged Heat Pump

  • Washer Screw for Amana PHB36C02E/P1220103C - Part WP90767

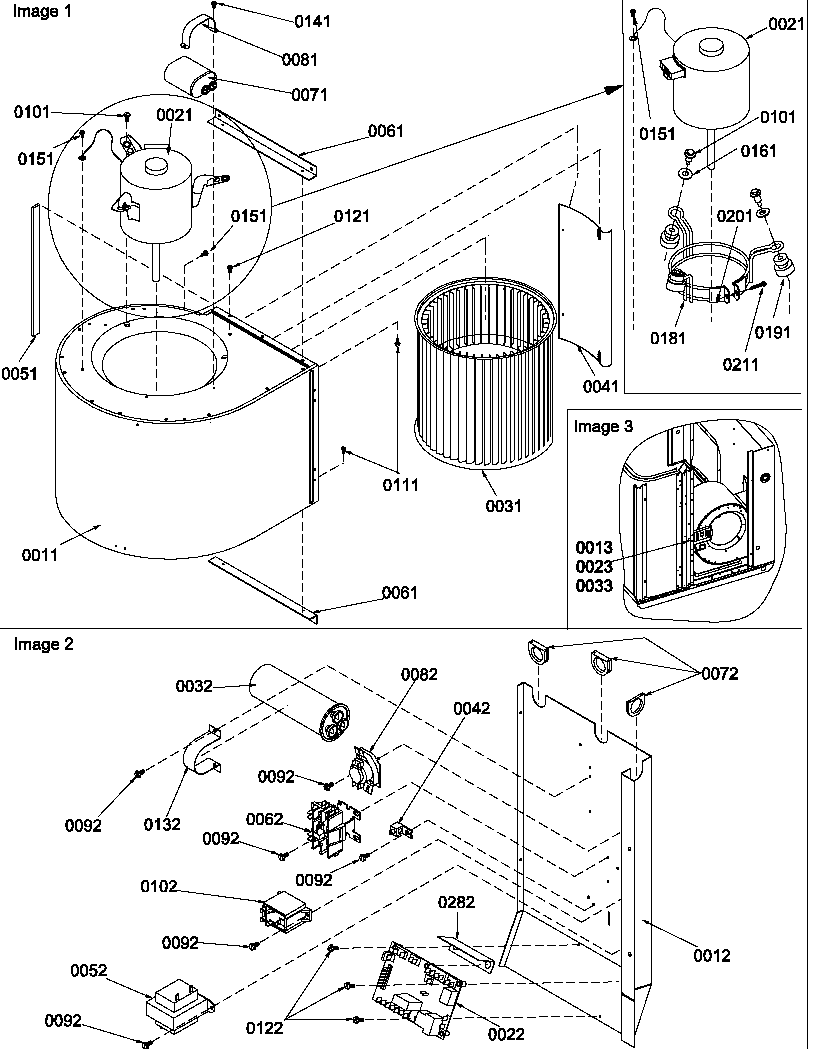

    Blower/control panel diagram

    Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PHB36C02E/P1220103C - Part 67006425

    Blower/control panel diagram

    Screw

    Part #M0211017

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0211017. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Amana PHB36C02E/P1220103C - Part WP488130

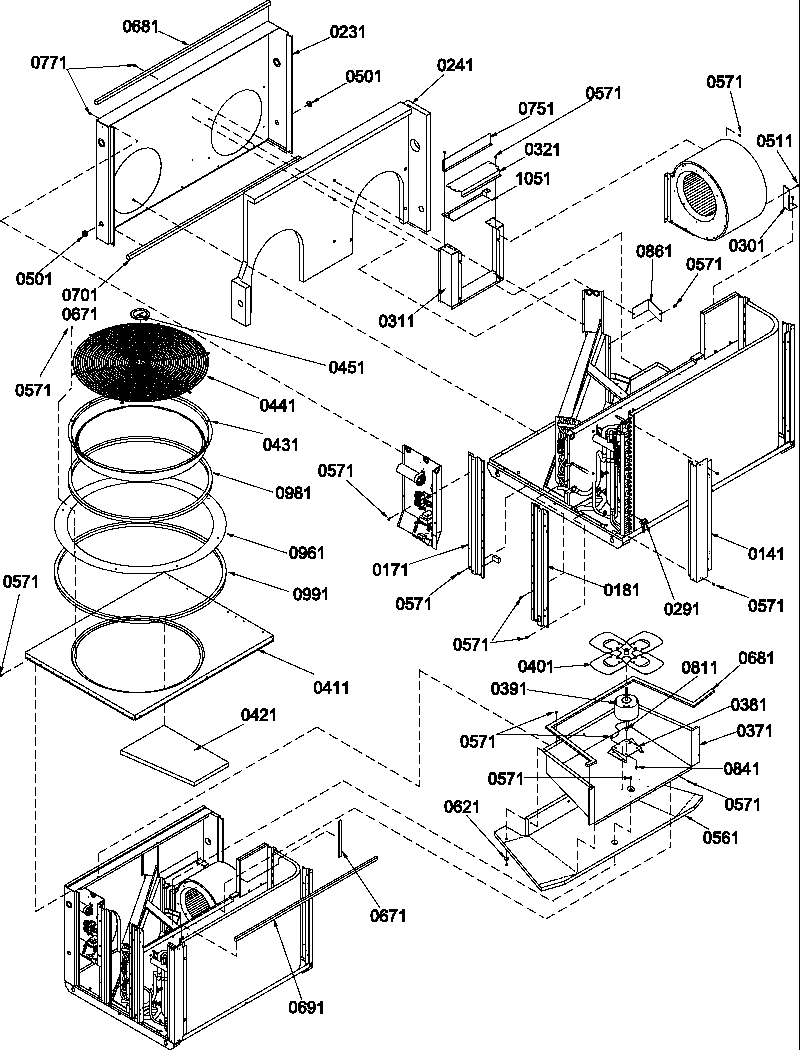

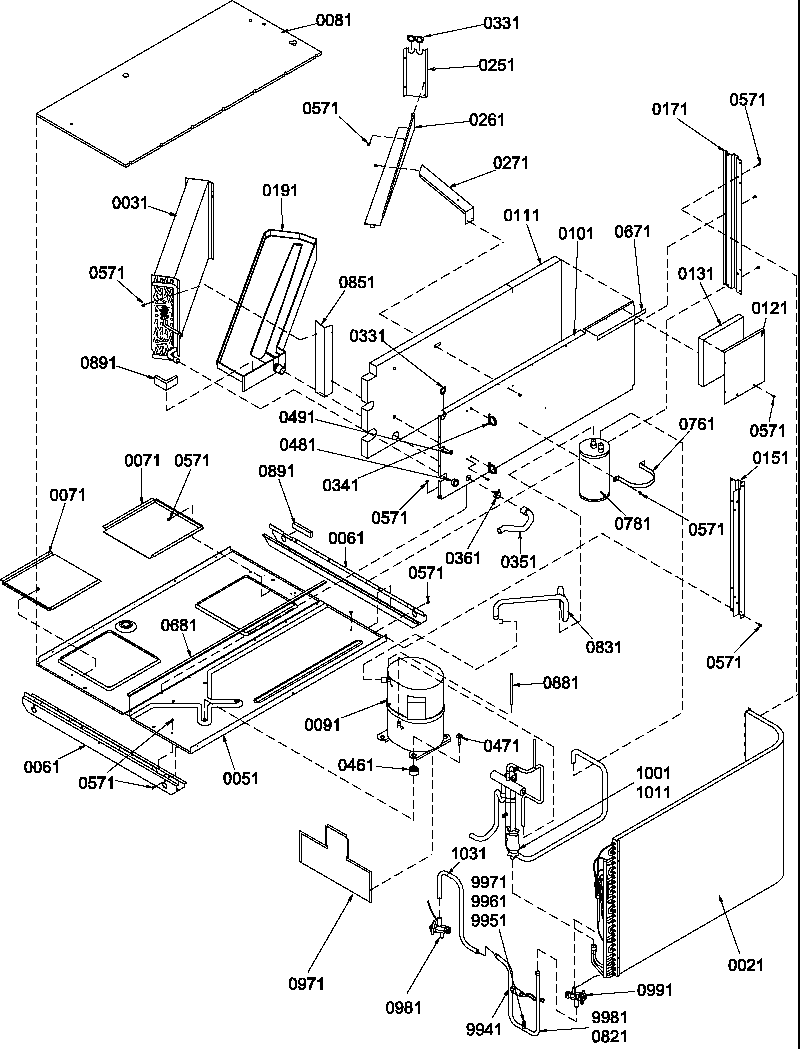

    Internal components diagram

    Keps Nut

    Part #M0280801

    Replaced by #WP488130

    Info Icon
    Manufacturer substitution
    This part replaces M0280801. Substitute parts can look different from the original.
    In Stock
    $28.95
    Minus Item
    Qty
    Plus Item
  • Central Air Conditioner Fan Control Board for Amana PHB36C02E/P1220103C - Part 20158901

    Blower/control panel diagram

    Central Air Conditioner Fan Control Board

    Part #20158901
    In Stock
    $1341.42
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PHB36C02E/P1220103C - Part 3400241

    Blower/control panel diagram

    Screw

    Part #M0267144

    Replaced by #3400241

    Info Icon
    Manufacturer substitution
    This part replaces M0267144. Substitute parts can look different from the original.
    In Stock
    $37.61
    Minus Item
    Qty
    Plus Item
  • Refrigerator Nut for Amana PHB36C02E/P1220103C - Part WP487939

    Blower/control panel diagram

    Grommet

    Part #M0282015

    Replaced by #WP487939

    Info Icon
    Manufacturer substitution
    This part replaces M0282015. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.82
    17% OFF Phone Price : $5.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Gasket for Amana PHB36C02E/P1220103C - Part 10839712

    Internal components diagram

    Gasket

    Part #10839712

    Replaced by #10839712

    Info Icon
    Manufacturer substitution
    This part replaces 10839712. Substitute parts can look different from the original.
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Capacitor St for Amana PHB36C02E/P1220103C - Part C6300502

    Blower/control panel diagram

    Capacitor St

    Part #C6300502

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Amana PHB36C02E/P1220103C - Part M0220819

    Internal components diagram

    Screw

    Part #M0220819

    The manufacturer no longer makes this part, and there's no substitute part

  • Insul-plate for Amana PHB36C02E/P1220103C - Part 11130114

    Internal components diagram

    Insul-plate

    Part #11130114

    The manufacturer no longer makes this part, and there's no substitute part
