Model # 3150/38-S16 Official Paslode stapler

Here are the diagrams and repair parts for Official Paslode 3150-38-S16 stapler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

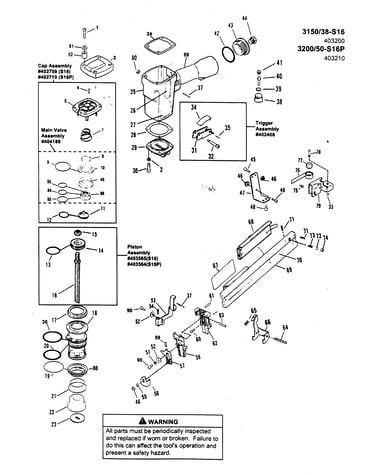

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |

Kit 406006
#NI

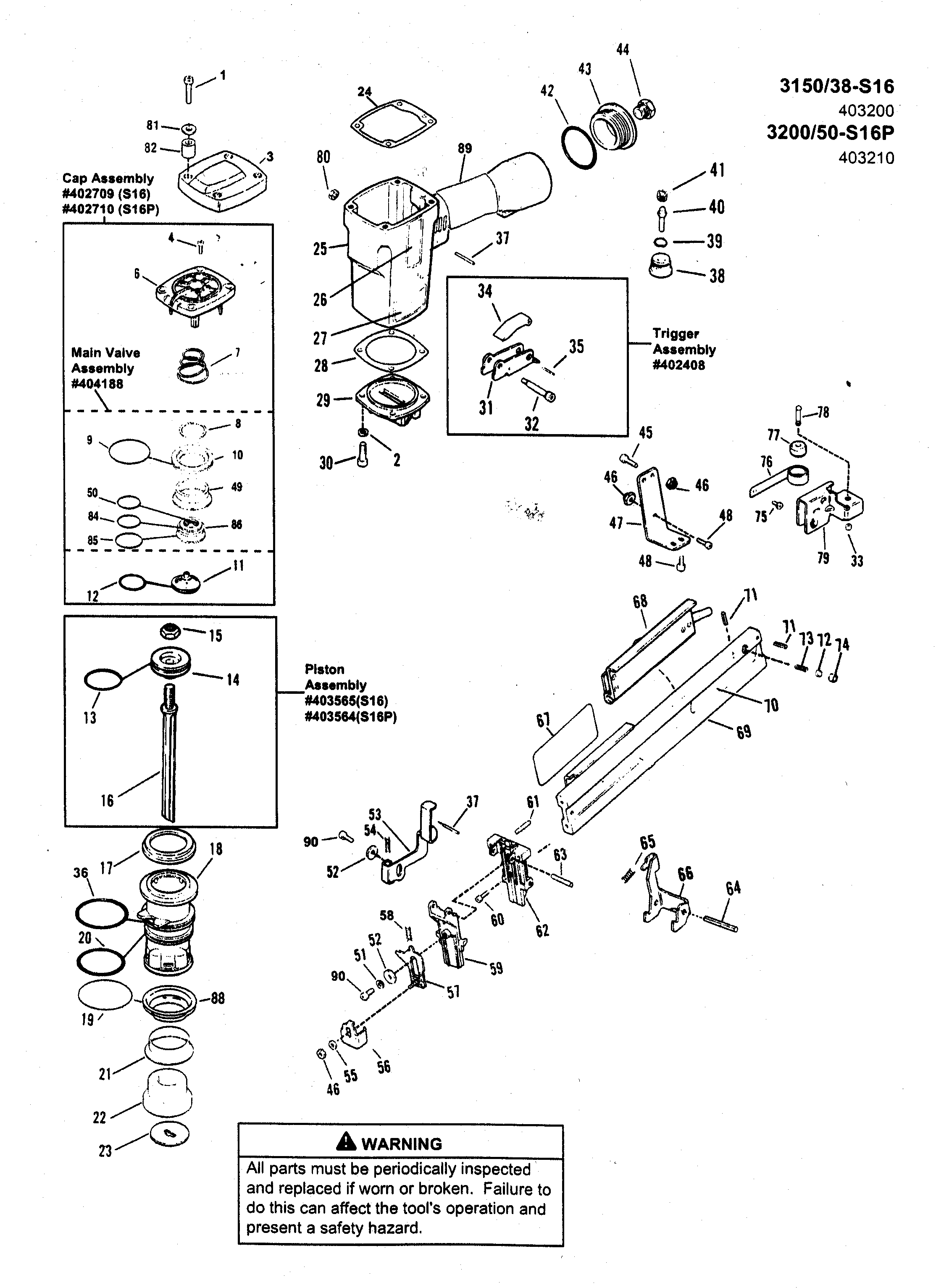

Stapler parts diagram

Kit

Part #406006

The manufacturer no longer makes this part, and there's no substitute part

Valve Acsy 1X0713
#NI

Stapler parts diagram

Valve acsy

Part #1X0713

The manufacturer no longer makes this part, and there's no substitute part

Label 500459
#67

Stapler parts diagram

Label

Part #500459

The manufacturer no longer makes this part, and there's no substitute part

Loctite 093500
#NI

Stapler parts diagram

Loctite

Part #093500

The manufacturer no longer makes this part, and there's no substitute part

Crown Rpr 219223
#NI

Stapler parts diagram

Crown rpr

Part #219223

The manufacturer no longer makes this part, and there's no substitute part

Holder 219028
#NI

Stapler parts diagram

Holder

Part #219028

The manufacturer no longer makes this part, and there's no substitute part

Piston 404122
#10

Stapler parts diagram

Piston

Part #404122

The manufacturer no longer makes this part, and there's no substitute part

Stapler Diffuser Cap Gasket 402707
#24

Stapler parts diagram

Stapler diffuser cap gasket

Part #402707

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 402740
#71

Stapler parts diagram

Roll pin

Part #402740

The manufacturer no longer makes this part, and there's no substitute part

Flange 402706
#29

Stapler parts diagram

Flange

Part #402706

The manufacturer no longer makes this part, and there's no substitute part
