Model # NN-S251BL Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-S251BL microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

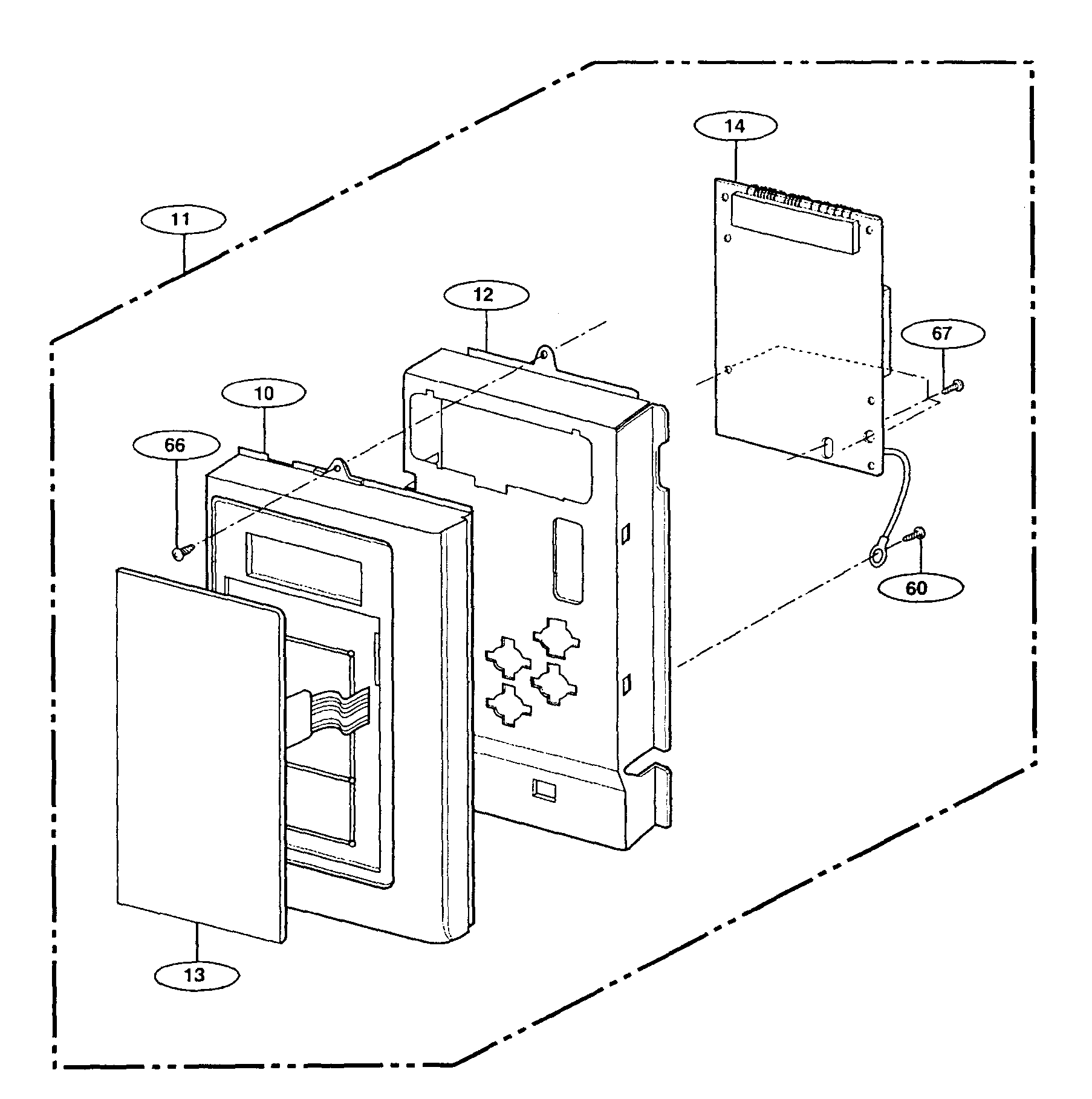

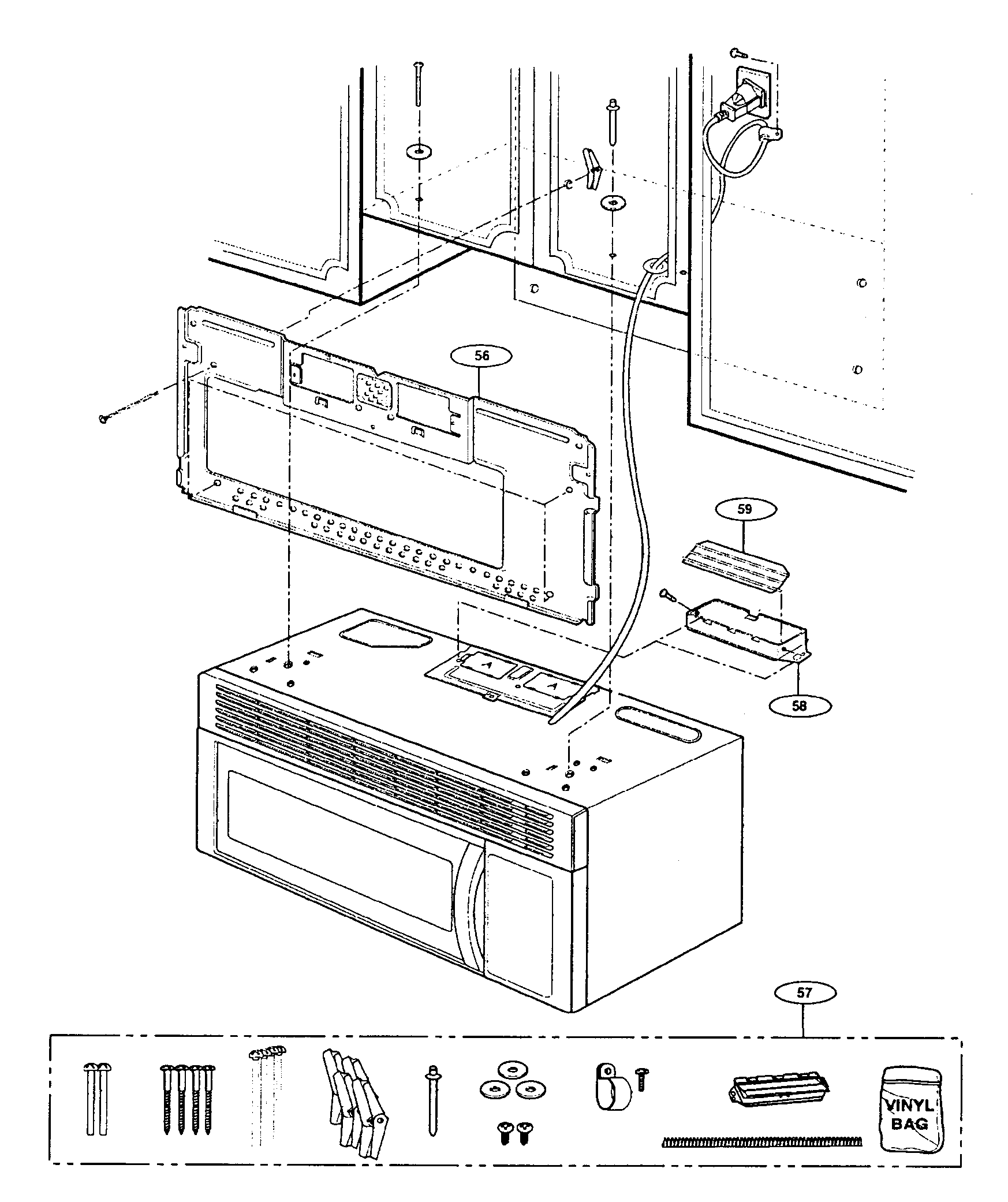

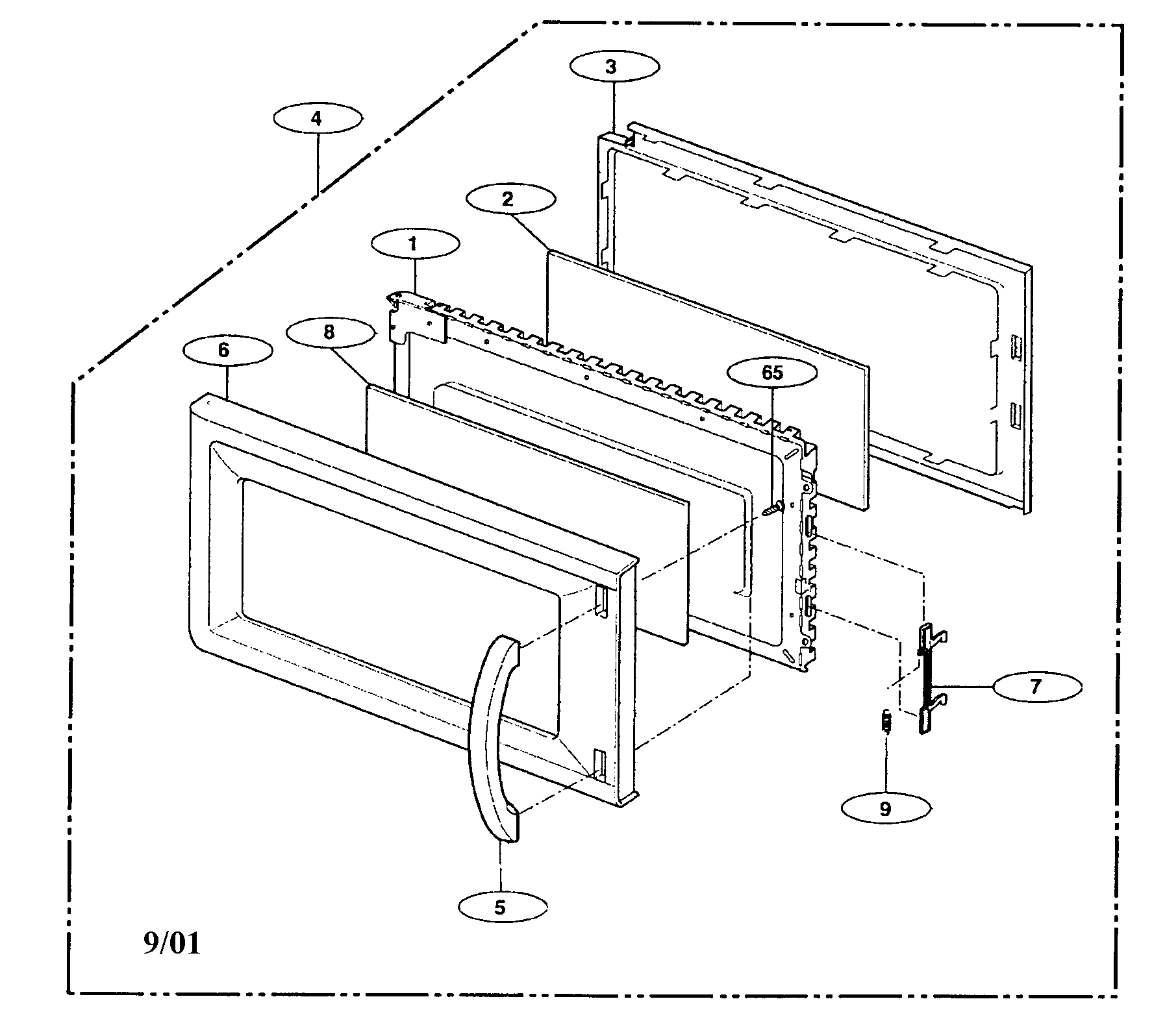

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Glass Tray K61412510AP
#33

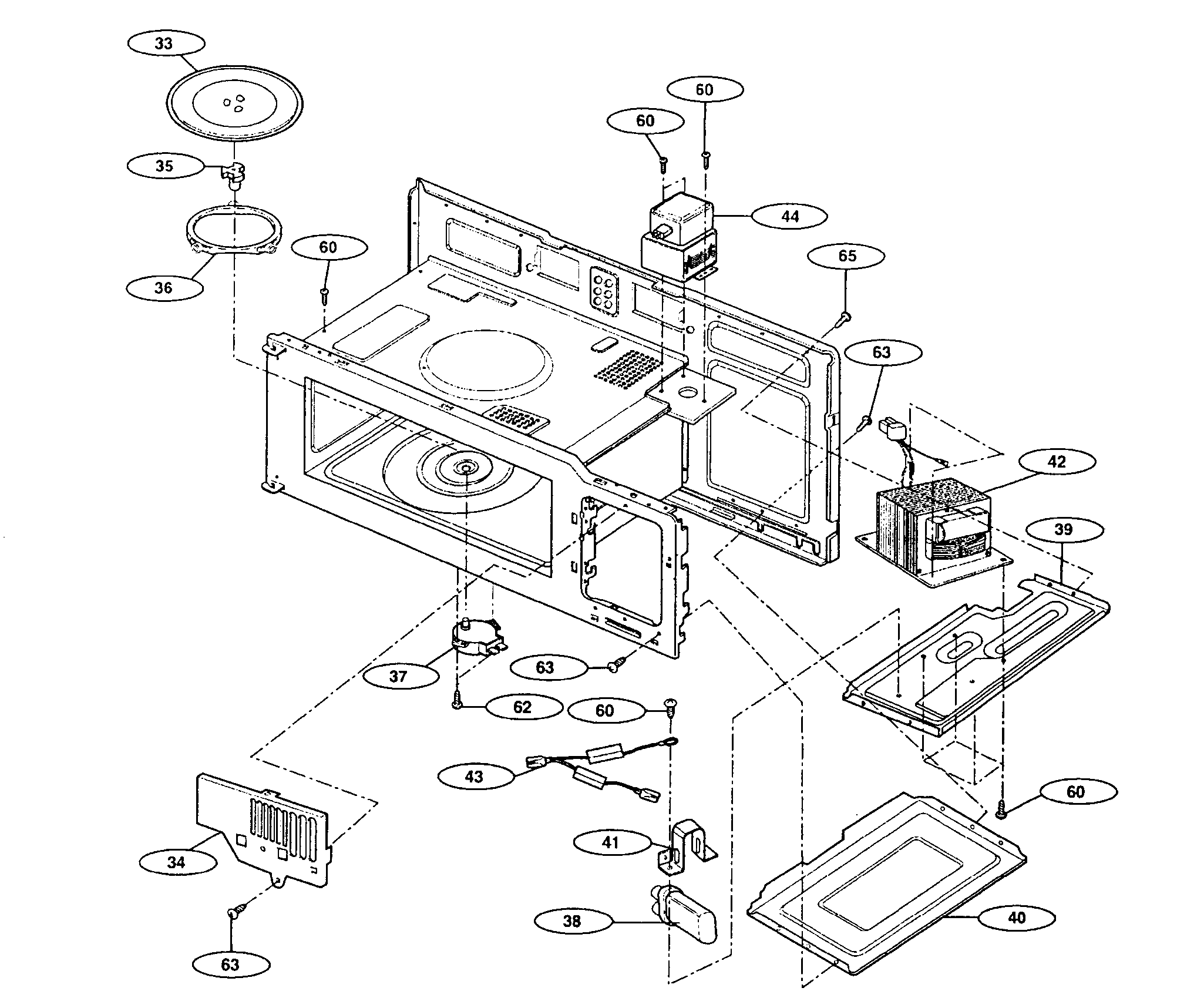

High voltage diagram

Glass tray

Part #K61412510AP

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces K61412510AP. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Cable Assembly K606V2510AP
#43

High voltage diagram

Cable assembly

Part #K606V2510AP

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Magnetron K50012510AP
#44

High voltage diagram

Panasonic magnetron

Part #K50012510AP

$77.99
In Stock
Panasonic Filter K400B2510AP
#22

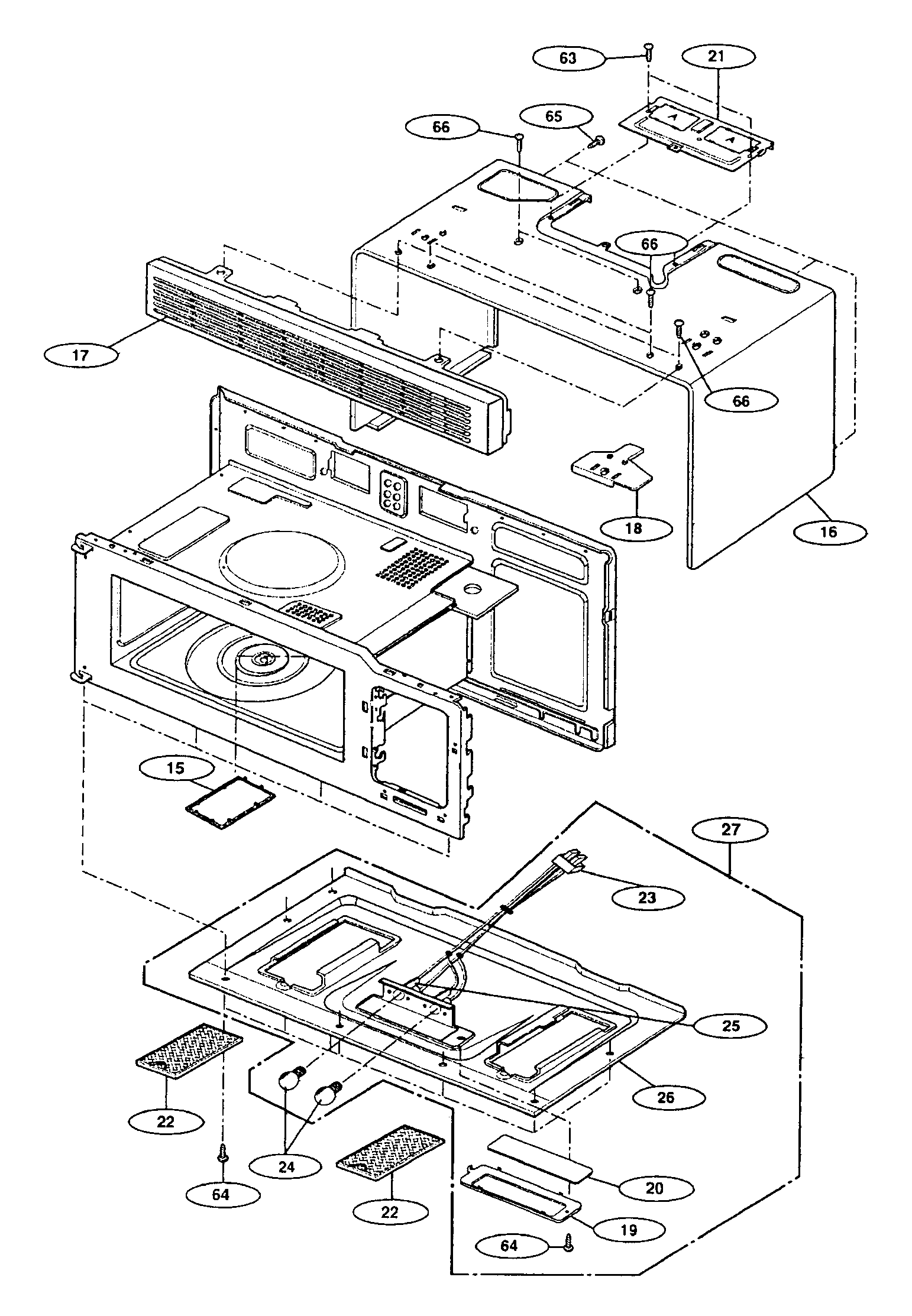

Oven cavity diagram

Panasonic filter

Part #K400B2510AP

$30.91
In Stock
Panasonic Board Assy K393C2510AP
#29

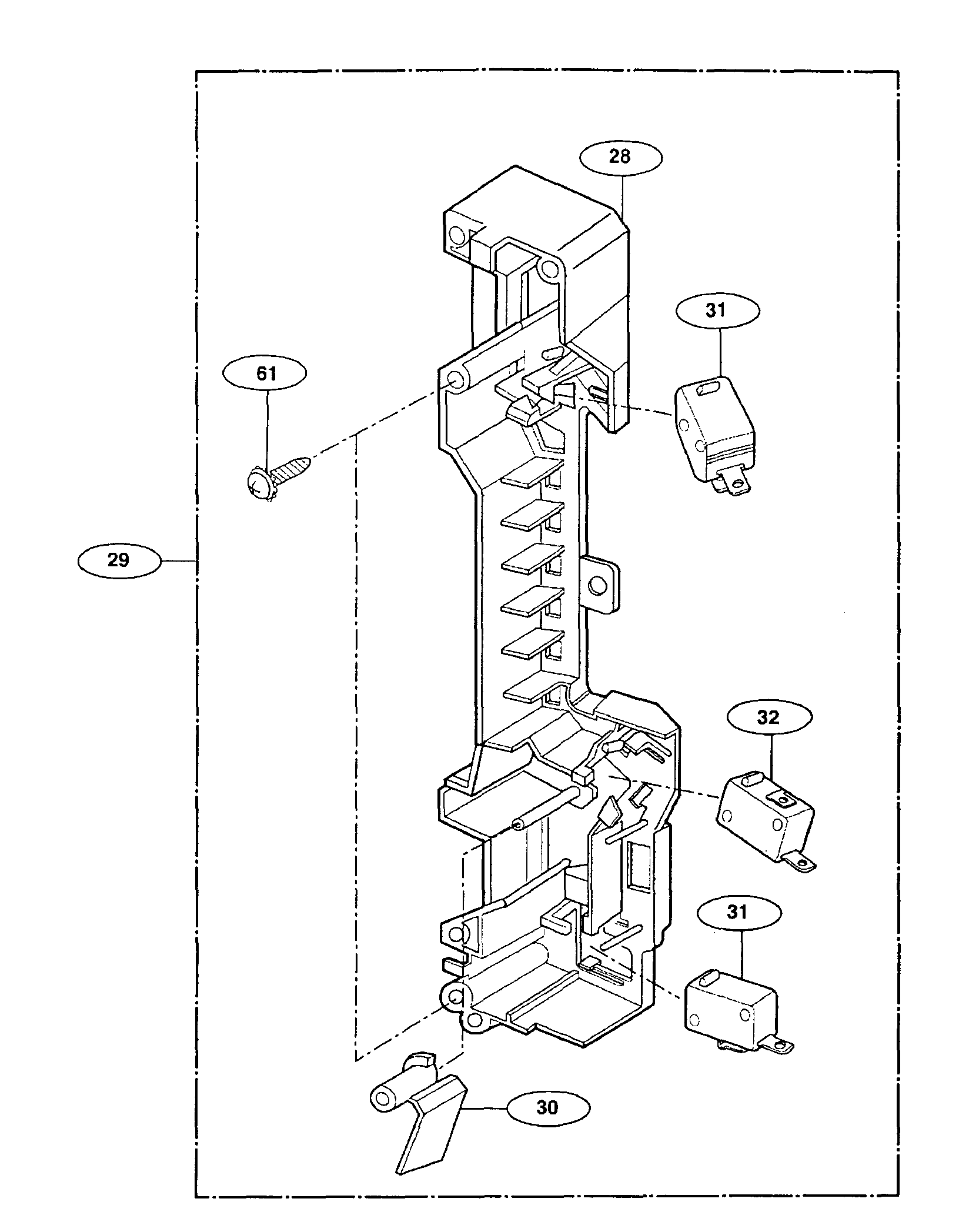

Door hook diagram

Panasonic board assy

Part #K393C2510AP

$48.33
In Stock
Grille K11192550AP
#17A

Oven cavity diagram

Grille

Part #K11192550AP

Replaced by #K1119244WL

?
Manufacturer substitution
This part replaces K11192550AP. Substitute parts can look different from the original.
$81.99
In Stock
Lamp K60302510AP
#53

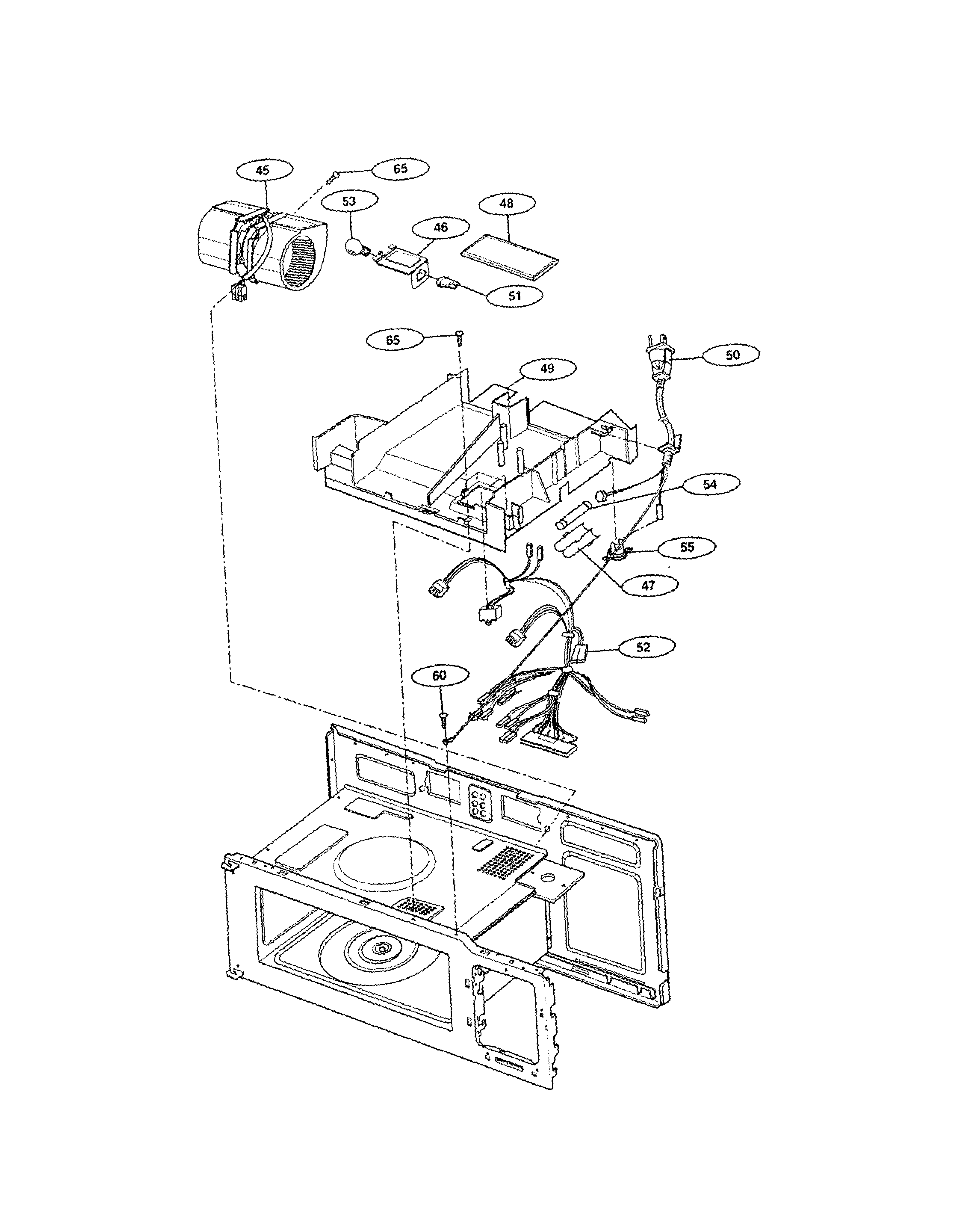

Fan assy diagram

Lamp

Part #K60302510AP

Replaced by #3B70067A

?
Manufacturer substitution
This part replaces K60302510AP. Substitute parts can look different from the original.
$26.00
In Stock
Plate K110A2510AP
#39

High voltage diagram

Plate

Part #K110A2510AP

Replaced by #K110B244BL

?
Manufacturer substitution
This part replaces K110A2510AP. Substitute parts can look different from the original.
$29.49
In Stock
Filter K400C2510AP
#48

Fan assy diagram

Filter

Part #K400C2510AP

Replaced by #5230W1A011B

?
Manufacturer substitution
This part replaces K400C2510AP. Substitute parts can look different from the original.
$13.44
In Stock
Thermostat K61452510AP
#55

Fan assy diagram

Thermostat

Part #K61452510AP

Replaced by #K6145244BL

?
Manufacturer substitution
This part replaces K61452510AP. Substitute parts can look different from the original.
$28.49
In Stock
