Model # 135277002 Official Craftsman 4-1/2" industrial disc grinder/sander

Here are the diagrams and repair parts for Official Craftsman 135277002 4-1/2" industrial disc grinder/sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Screw 318846
#36

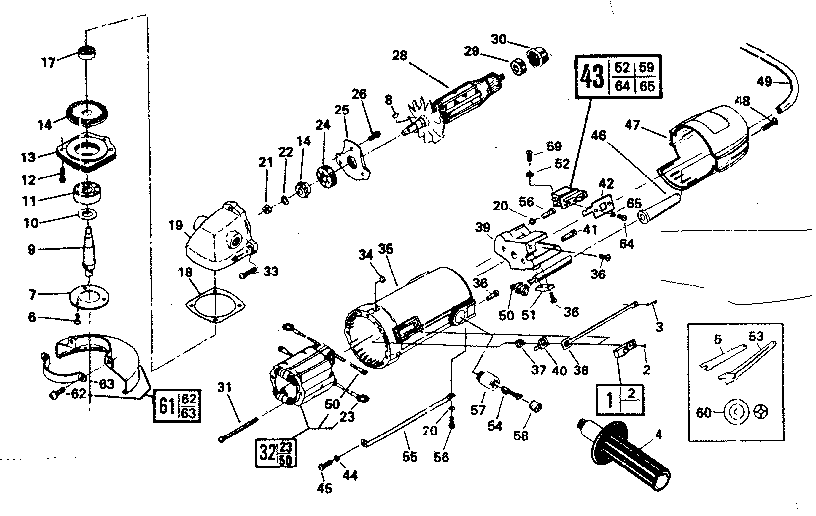

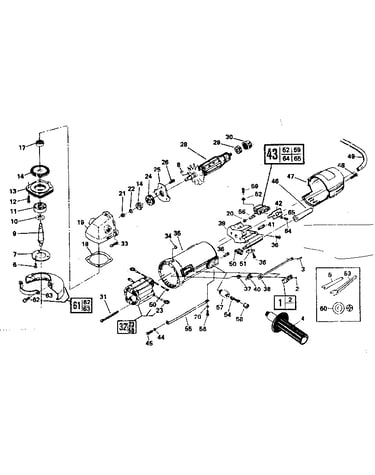

Unit parts diagram

Screw

Part #318846

The manufacturer no longer makes this part, and there's no substitute part

Screw 318836
#26

Unit parts diagram

Screw

Part #318836

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 326142
#51

Unit parts diagram

Cord clamp

Part #326142

The manufacturer no longer makes this part, and there's no substitute part

Whl Grd Asm 72024
#61

Unit parts diagram

Whl grd asm

Part #72024

The manufacturer no longer makes this part, and there's no substitute part

Bearing 318834
#24

Unit parts diagram

Bearing

Part #318834

The manufacturer no longer makes this part, and there's no substitute part

Washer 318810
#10

Unit parts diagram

Washer

Part #318810

The manufacturer no longer makes this part, and there's no substitute part

Shim 318818
#18

Unit parts diagram

Shim

Part #318818

The manufacturer no longer makes this part, and there's no substitute part

Retainer 318804
#63

Unit parts diagram

Retainer

Part #318804

The manufacturer no longer makes this part, and there's no substitute part

Gear Set 347453
#14

Unit parts diagram

Gear set

Part #347453

The manufacturer no longer makes this part, and there's no substitute part

Cover 318857
#47

Unit parts diagram

Cover

Part #318857

The manufacturer no longer makes this part, and there's no substitute part
