Kenmore 103270481 rotisserie accessory unit

Kenmore 103270481 rotisserie accessory unit Parts

Here are the diagrams and repair parts for Kenmore 103270481 rotisserie accessory unit, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 103270481 Ranges

  • Spear for Kenmore 103270481 - Part 70399

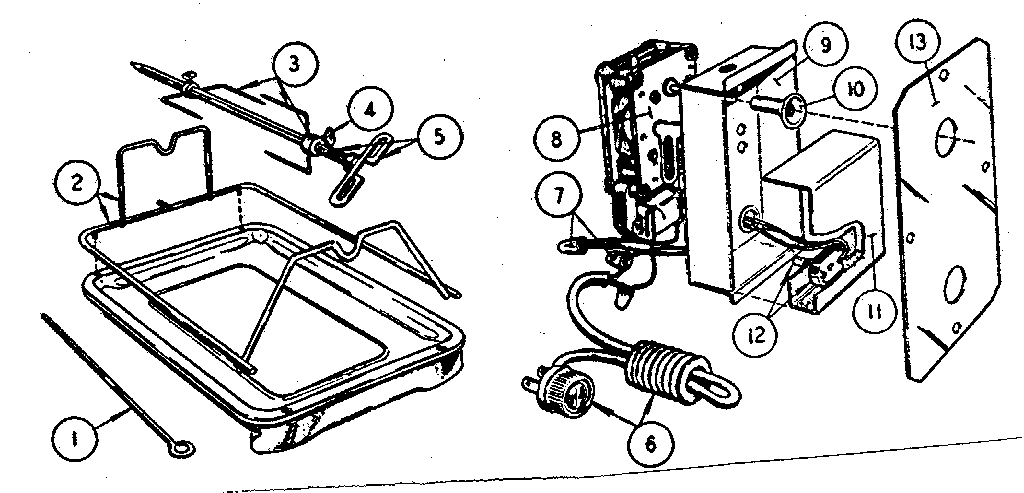

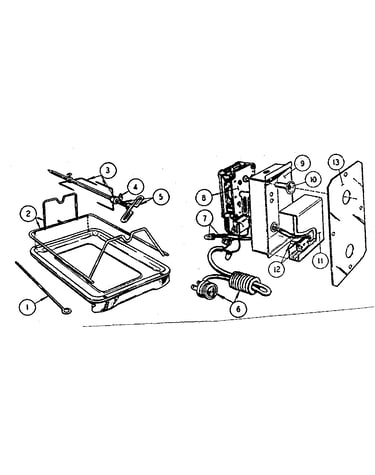

    Accessory-rotisserie diagram

    Spear

    Part #70399

    The manufacturer no longer makes this part, and there's no substitute part

  • Push Switch for Kenmore 103270481 - Part 66976

    Accessory-rotisserie diagram

    Push Switch

    Part #66976

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Box for Kenmore 103270481 - Part 70315

    Accessory-rotisserie diagram

    Motor Box

    Part #70315

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Kenmore 103270481 - Part 70318

    Accessory-rotisserie diagram

    Motor

    Part #70318

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover Plate for Kenmore 103270481 - Part 70313

    Accessory-rotisserie diagram

    Cover Plate

    Part #70313

    The manufacturer no longer makes this part, and there's no substitute part

  • Shaft Adapt for Kenmore 103270481 - Part 70285

    Accessory-rotisserie diagram

    Shaft Adapt

    Part #70285

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Kenmore 103270481 - Part 71106

    Accessory-rotisserie diagram

    Motor

    Part #71106

    The manufacturer no longer makes this part, and there's no substitute part

  • Spit Assembly for Kenmore 103270481 - Part 70283

    Accessory-rotisserie diagram

    Spit Assembly

    Part #70283

    The manufacturer no longer makes this part, and there's no substitute part

  • Connector for Kenmore 103270481 - Part 66763

    Accessory-rotisserie diagram

    Connector

    Part #66763

    The manufacturer no longer makes this part, and there's no substitute part

  • Shaft Adapter for Kenmore 103270481 - Part 71105

    Accessory-rotisserie diagram

    Shaft Adapter

    Part #71105

    The manufacturer no longer makes this part, and there's no substitute part
