DeWalt DW511 TYPE 2 hammer drill Parts

Here are the diagrams and repair parts for DeWalt DW511 TYPE 2 hammer drill, as well as links to manuals and error code tables, if available.

DeWalt DW511 TYPE 2 hammer drill
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DW511 TYPE 2 Power Tools

  • Holder for DeWalt DW511 TYPE 2 - Part 065288-02

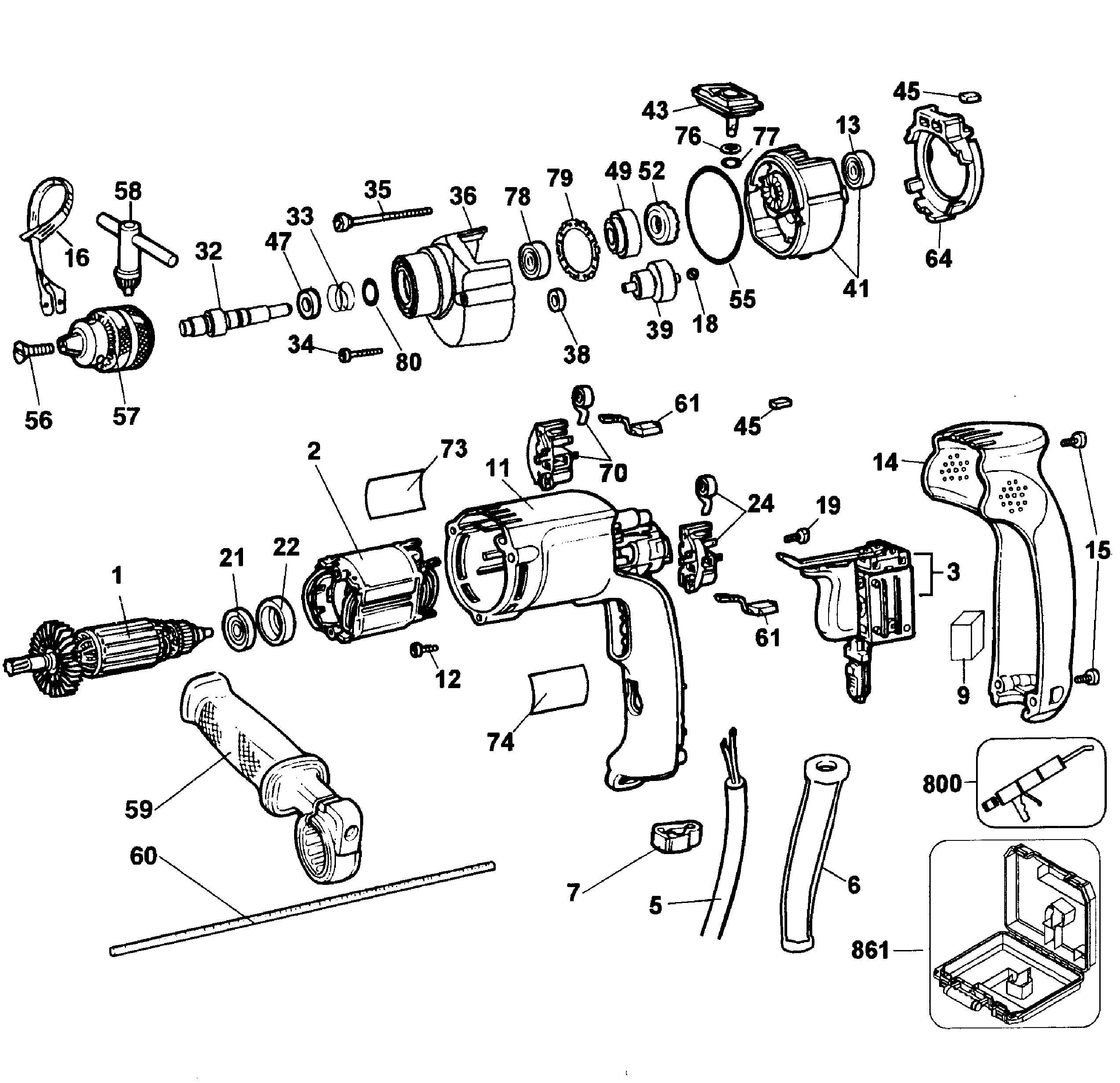

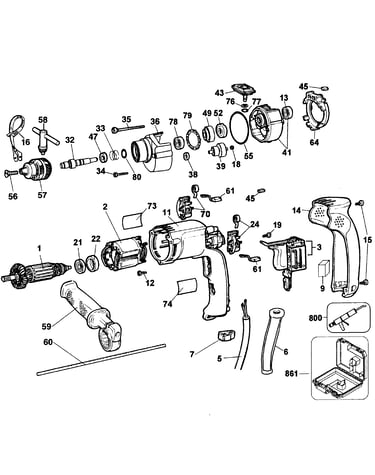

    Drill hammer diagram

    Holder

    Part #065288-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Tool Power Cord for DeWalt DW511 TYPE 2 - Part 330072-98

    Drill hammer diagram

    Power Tool Power Cord

    Part #330072-98

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal for DeWalt DW511 TYPE 2 - Part 401847-00

    Drill hammer diagram

    Seal

    Part #401847-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Holder for DeWalt DW511 TYPE 2 - Part 390524-00

    Drill hammer diagram

    Holder

    Part #390524-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Side Handle for DeWalt DW511 TYPE 2 - Part 939794-00

    Drill hammer diagram

    Drill Side Handle

    Part #939794-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw, L H for DeWalt DW511 TYPE 2 - Part 448847-02

    Drill hammer diagram

    Screw, L H

    Part #448847-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Grease for DeWalt DW511 TYPE 2 - Part 429911-00

    Drill hammer diagram

    Grease

    Part #429911-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Dewalt Nameplate for DeWalt DW511 TYPE 2 - Part 641819-00

    Drill hammer diagram

    Dewalt Nameplate

    Part #641819-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Hammer Drill Motor Brush for DeWalt DW511 TYPE 2 - Part 176949-17

    Drill hammer diagram

    Hammer Drill Motor Brush

    Part #176949-17

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for DeWalt DW511 TYPE 2 - Part 176659-00

    Drill hammer diagram

    Washer

    Part #176659-00

    The manufacturer no longer makes this part, and there's no substitute part
