Model # 40PFL5705DV/F7 Official Philips lcd television

Here are the diagrams and repair parts for Official Philips 40PFL5705DV-F7 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Television Power Cord WAV0162LW001
#NI

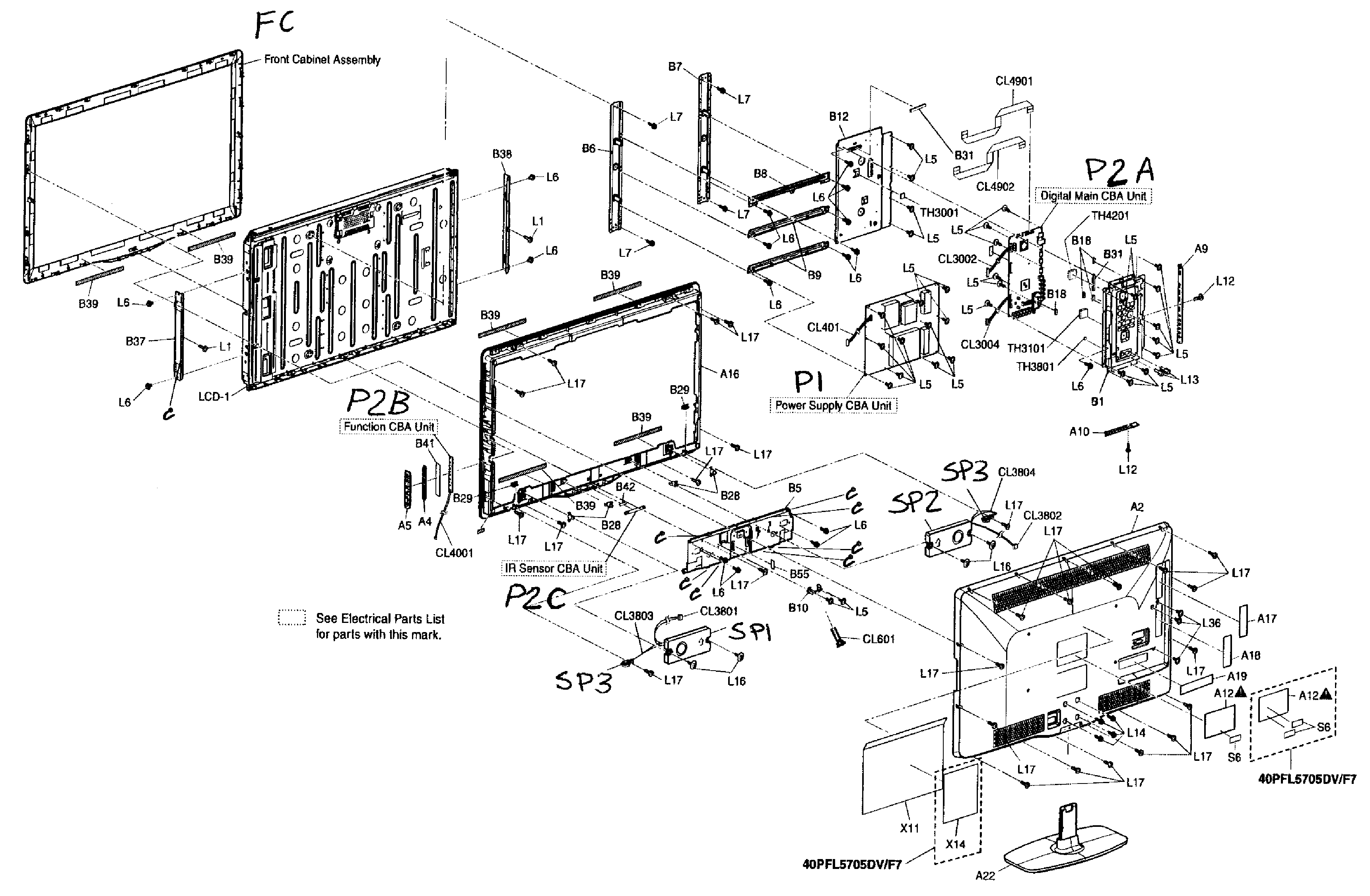

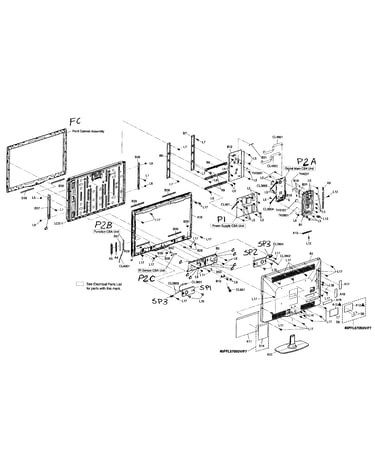

Cabinet parts diagram

Television power cord

Part #WAV0162LW001

The manufacturer no longer makes this part, and there's no substitute part

Stand Assembly 1EMN25480A
#A22

Cabinet parts diagram

Stand assembly

Part #1EMN25480A

$44.44
In Stock
Ther Sheet XK10000X4009
#NI

Cabinet parts diagram

Ther sheet

Part #XK10000X4009

This item is not returnable
$4.44
In Stock
Power Pcb UPBPSPDEL002
#P1

Cabinet parts diagram

Power pcb

Part #UPBPSPDEL002

$150.00
In Stock
Ther Sheet XK10000X4010
#NI

Cabinet parts diagram

Ther sheet

Part #XK10000X4010

This item is not returnable
$4.44
In Stock
Stand Bracket 1EM024853
#B5

Cabinet parts diagram

Stand bracket

Part #1EM024853

$19.49
In Stock
Landing Adapter UWLUSBACM001
#NI

Cabinet parts diagram

Landing adapter

Part #UWLUSBACM001

$48.64
In Stock
Stand Screw 1ESA23829
#L14

Cabinet parts diagram

Stand screw

Part #1ESA23829

The manufacturer no longer makes this part, and there's no substitute part

Remote Control URMT42JHG003
#NI

Cabinet parts diagram

Remote control

Part #URMT42JHG003

The manufacturer no longer makes this part, and there's no substitute part

Wire,14pin WX1A01P5-303
#NI

Cabinet parts diagram

Wire,14pin

Part #WX1A01P5-303

The manufacturer no longer makes this part, and there's no substitute part
