Model # FRA113PT110 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRA113PT110 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

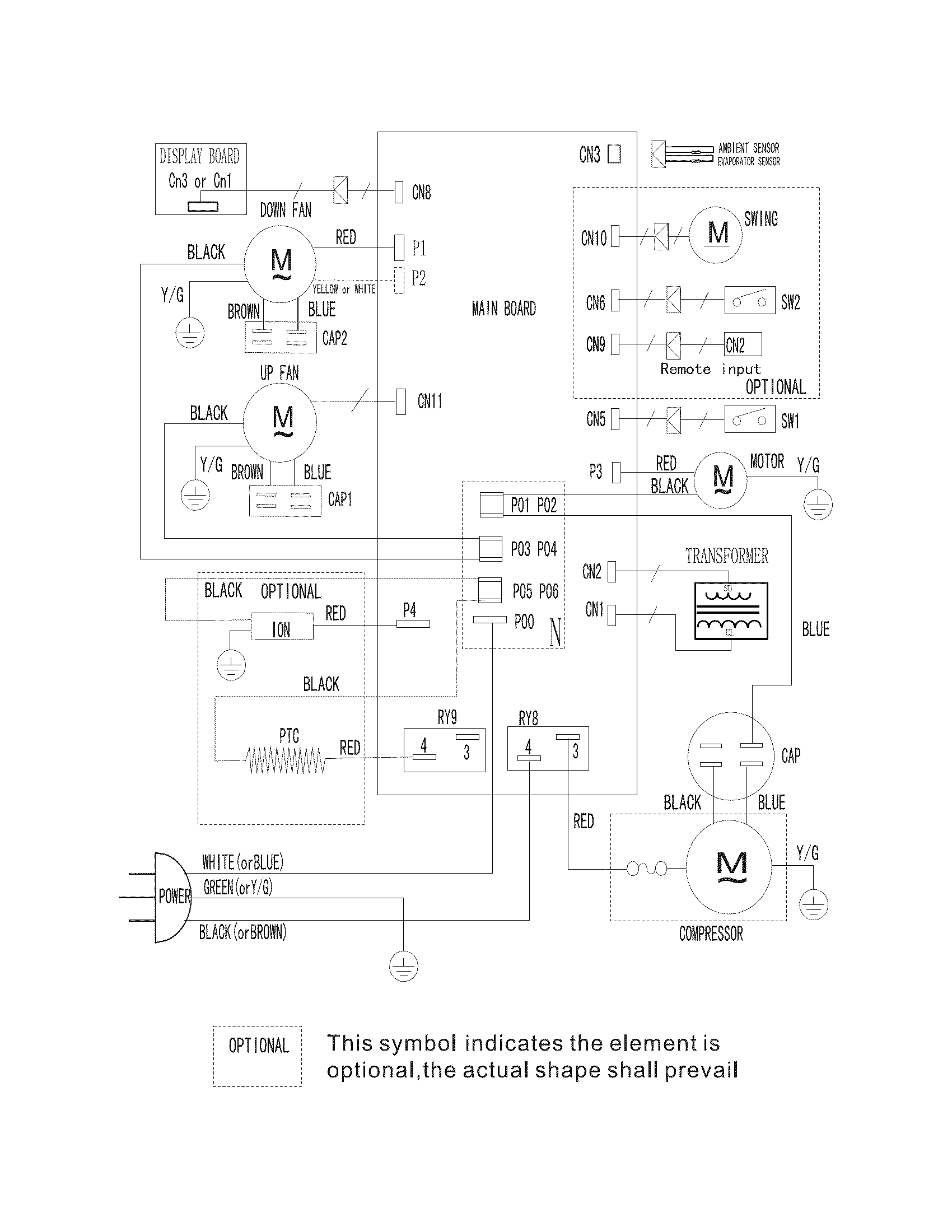

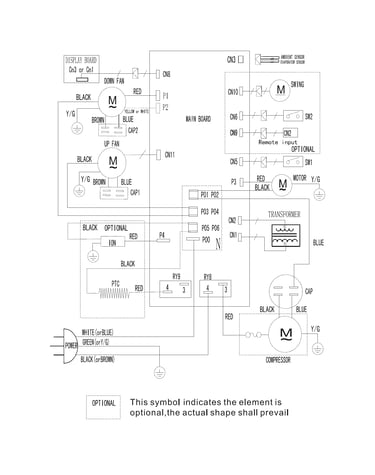

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |

Room Air Conditioner Hose-to-window Adapter 5304479274
#89

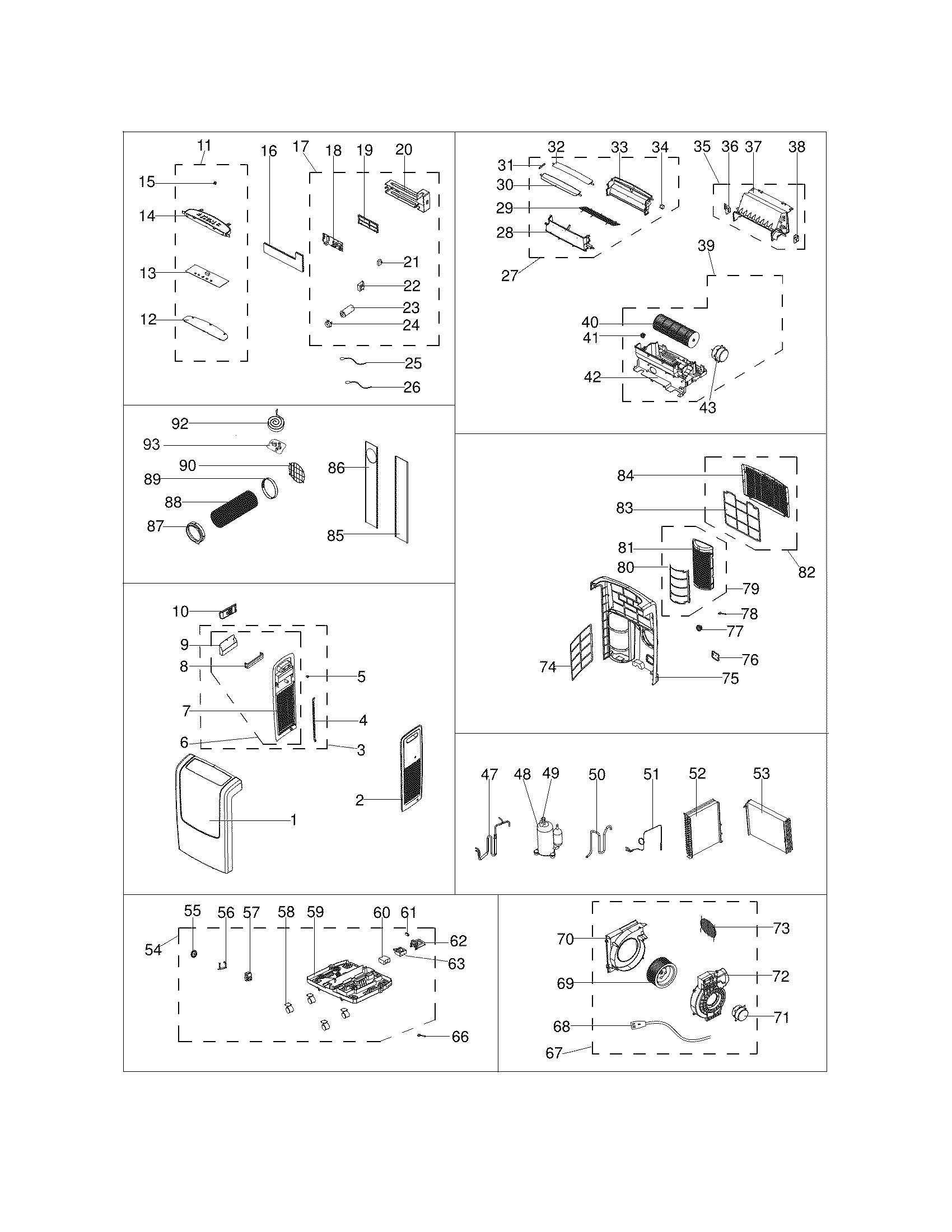

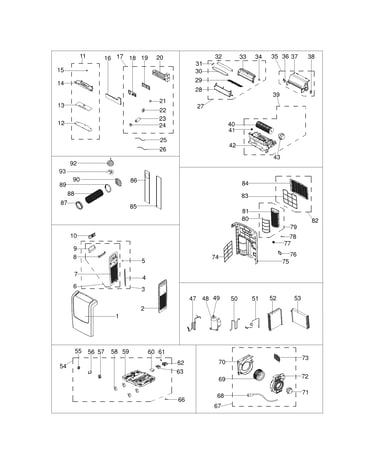

Recommended spare parts diagram

Room air conditioner hose-to-window adapter

Part #5304479274

$29.38
15% OFF Phone Price : $34.38
In Stock
Room Air Conditioner Drain Plug 5304473999
#78

Recommended spare parts diagram

Room air conditioner drain plug

Part #5304473999

This item is not returnable
$12.51
14% OFF Phone Price : $14.51
In Stock
Plug 5304479260
#66

Recommended spare parts diagram

Plug

Part #5304479260

In Stock
Room Air Conditioner Exhaust Hose 5304479273
#88

Recommended spare parts diagram

Room air conditioner exhaust hose

Part #5304479273

$109.28
8% OFF Phone Price : $119.28
In Stock
Pc Board 5304487068
#18

Recommended spare parts diagram

Pc board

Part #5304487068

In Stock
Air Conditioner Blower Wheel 5304479247
#40

Recommended spare parts diagram

Air conditioner blower wheel

Part #5304479247

The manufacturer no longer makes this part, and there's no substitute part

Louver 5304479174
#30

Recommended spare parts diagram

Louver

Part #5304479174

The manufacturer no longer makes this part, and there's no substitute part

Door 5304479269
#76

Recommended spare parts diagram

Door

Part #5304479269

The manufacturer no longer makes this part, and there's no substitute part

Vent Assembly 5304479171
#27

Recommended spare parts diagram

Vent assembly

Part #5304479171

The manufacturer no longer makes this part, and there's no substitute part

Grille 5304479310
#81

Recommended spare parts diagram

Grille

Part #5304479310

The manufacturer no longer makes this part, and there's no substitute part
