Model #48XZN048130300 Carrier central package

Here are the diagrams and repair parts for Carrier 48XZN048130300 central package, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

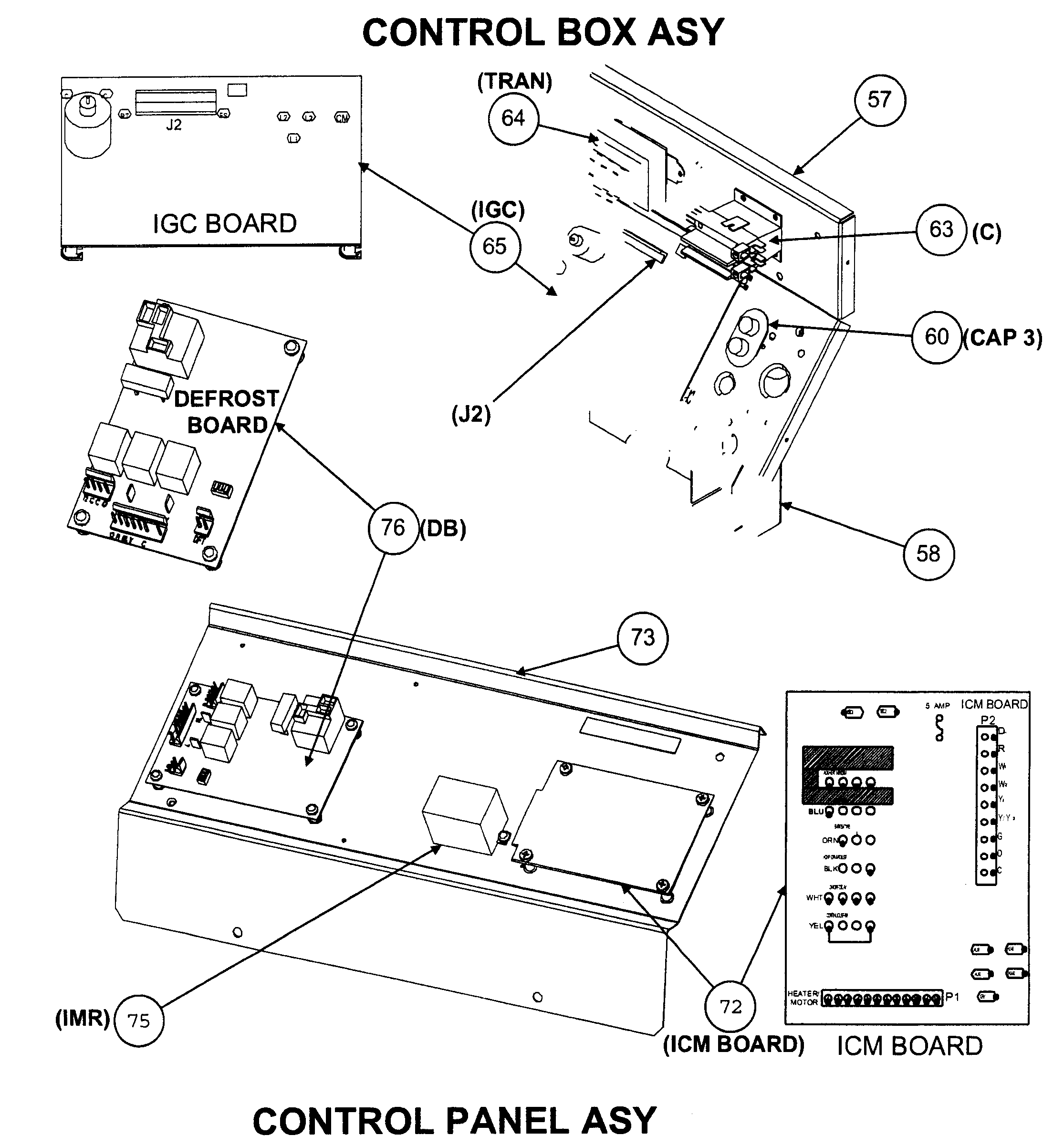

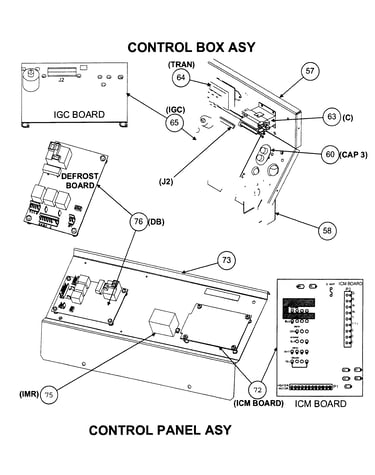

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 83 parts

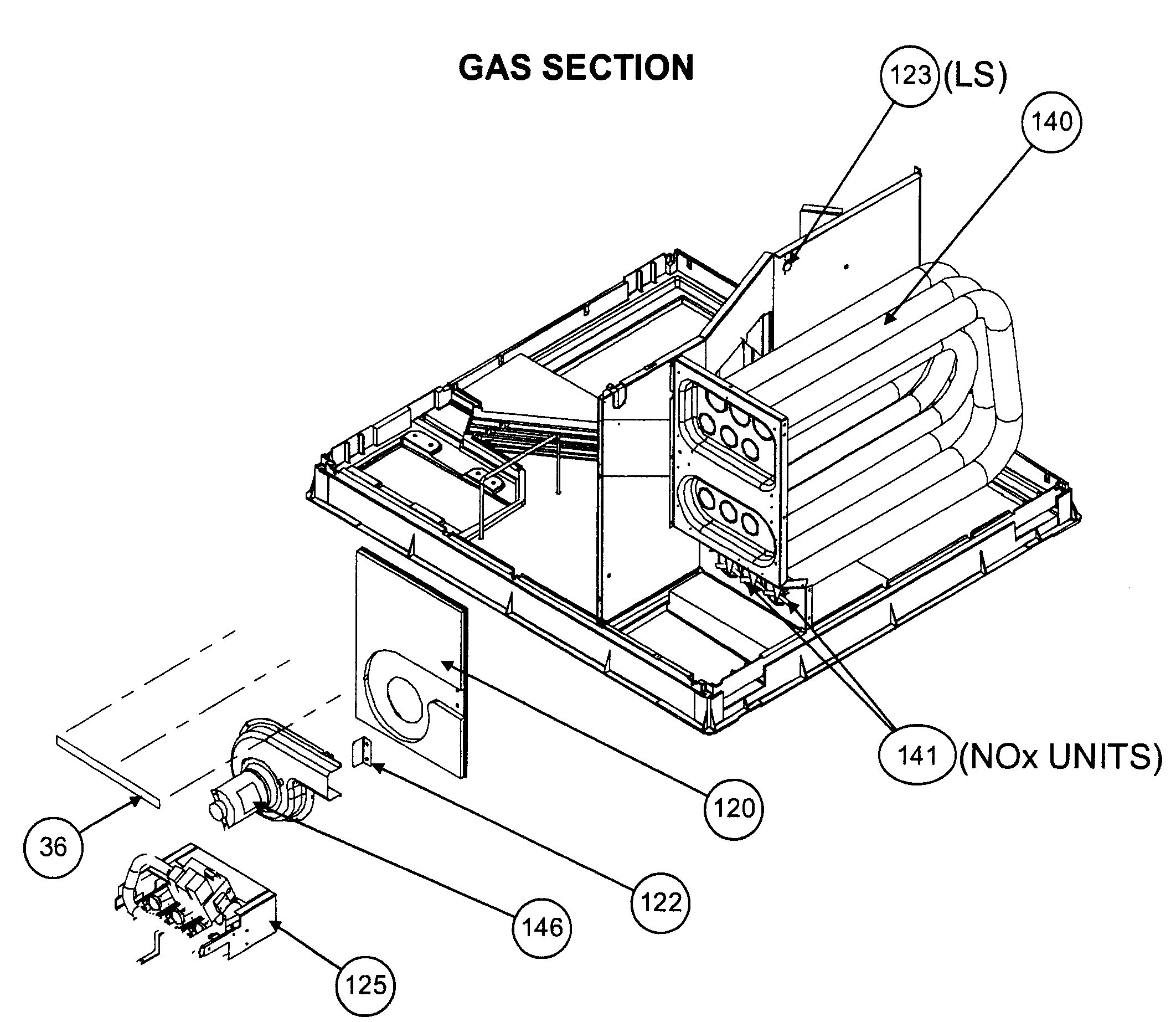

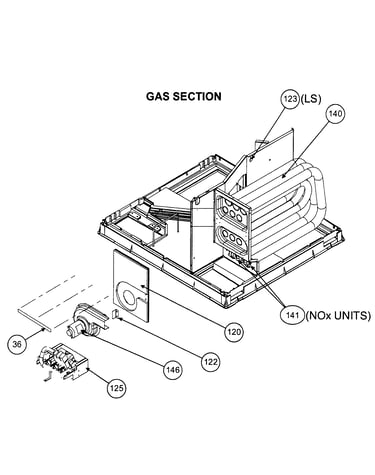

    Burner Assembly

    #133

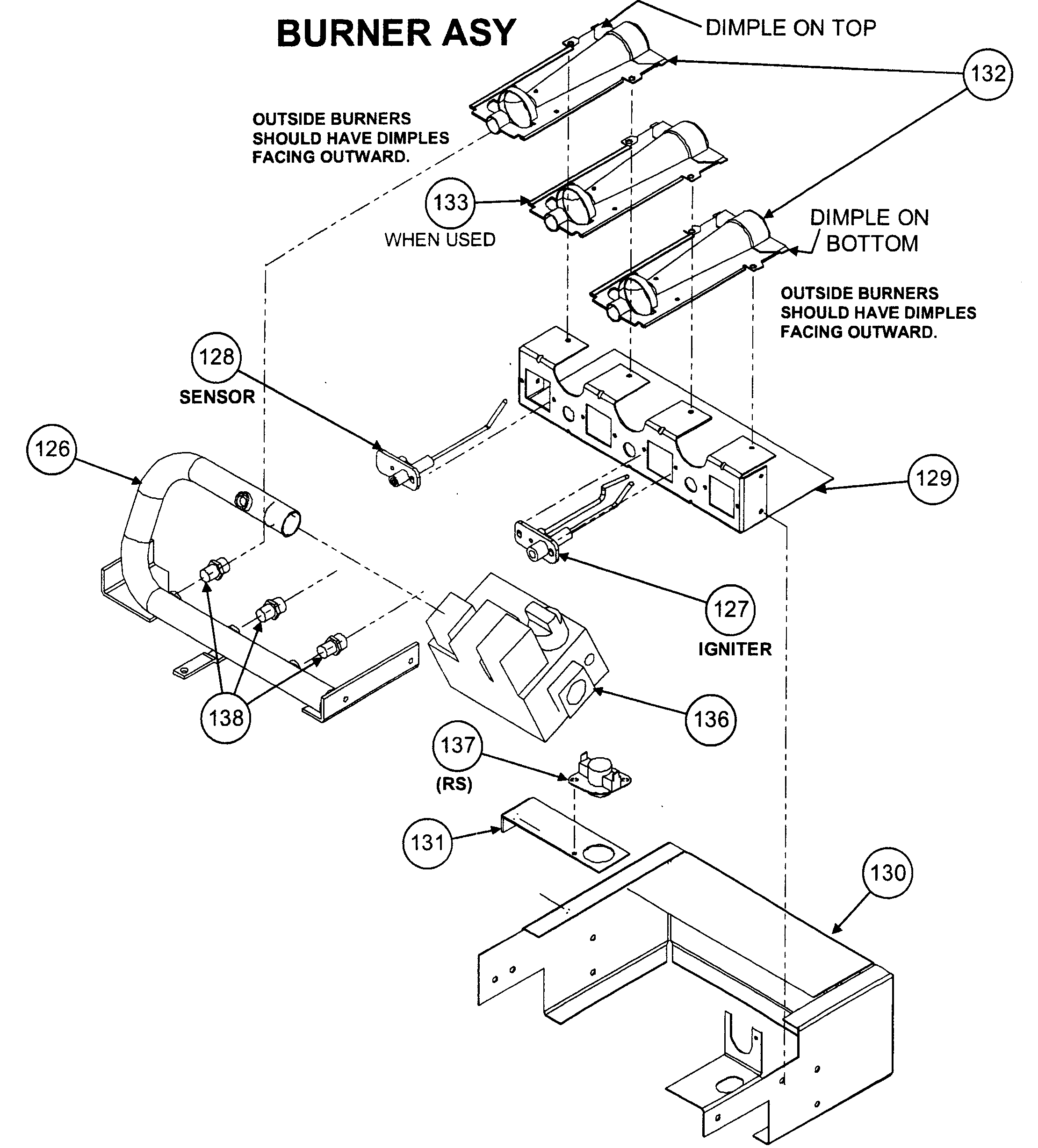

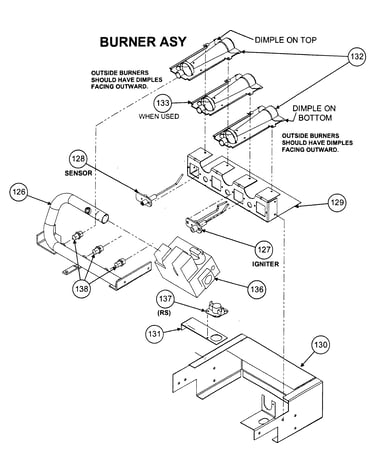

    Burner assy Diagram

    Burner assembly

    Part #50DK407029
    $17.84

    In Stock

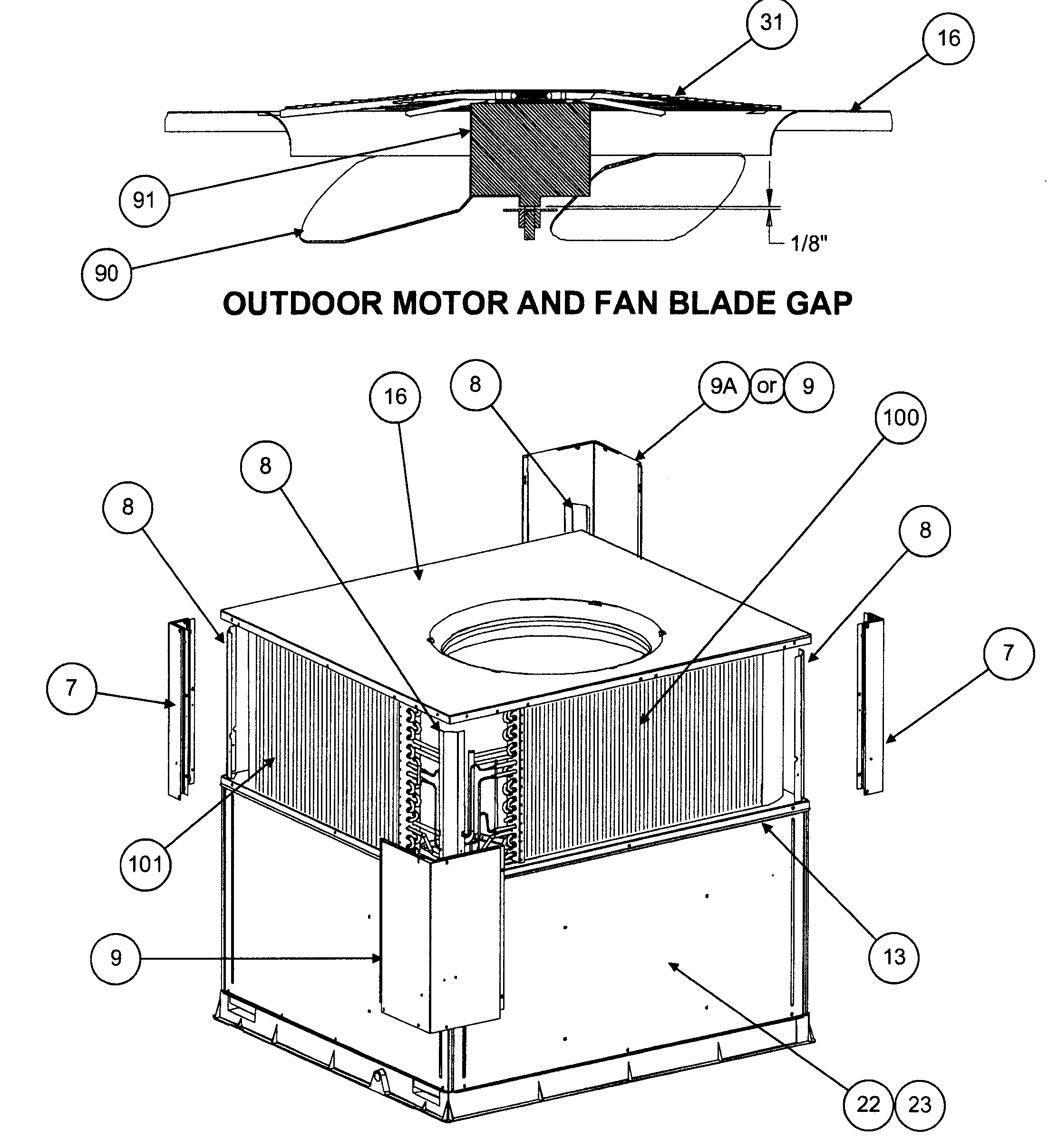

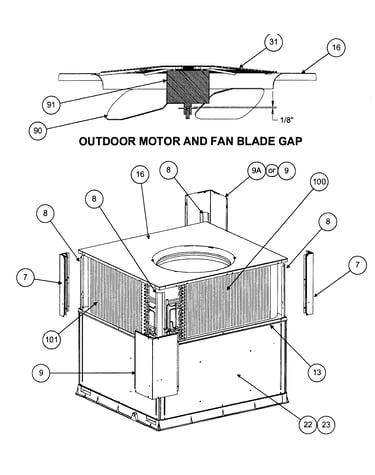

    Grille

    #31

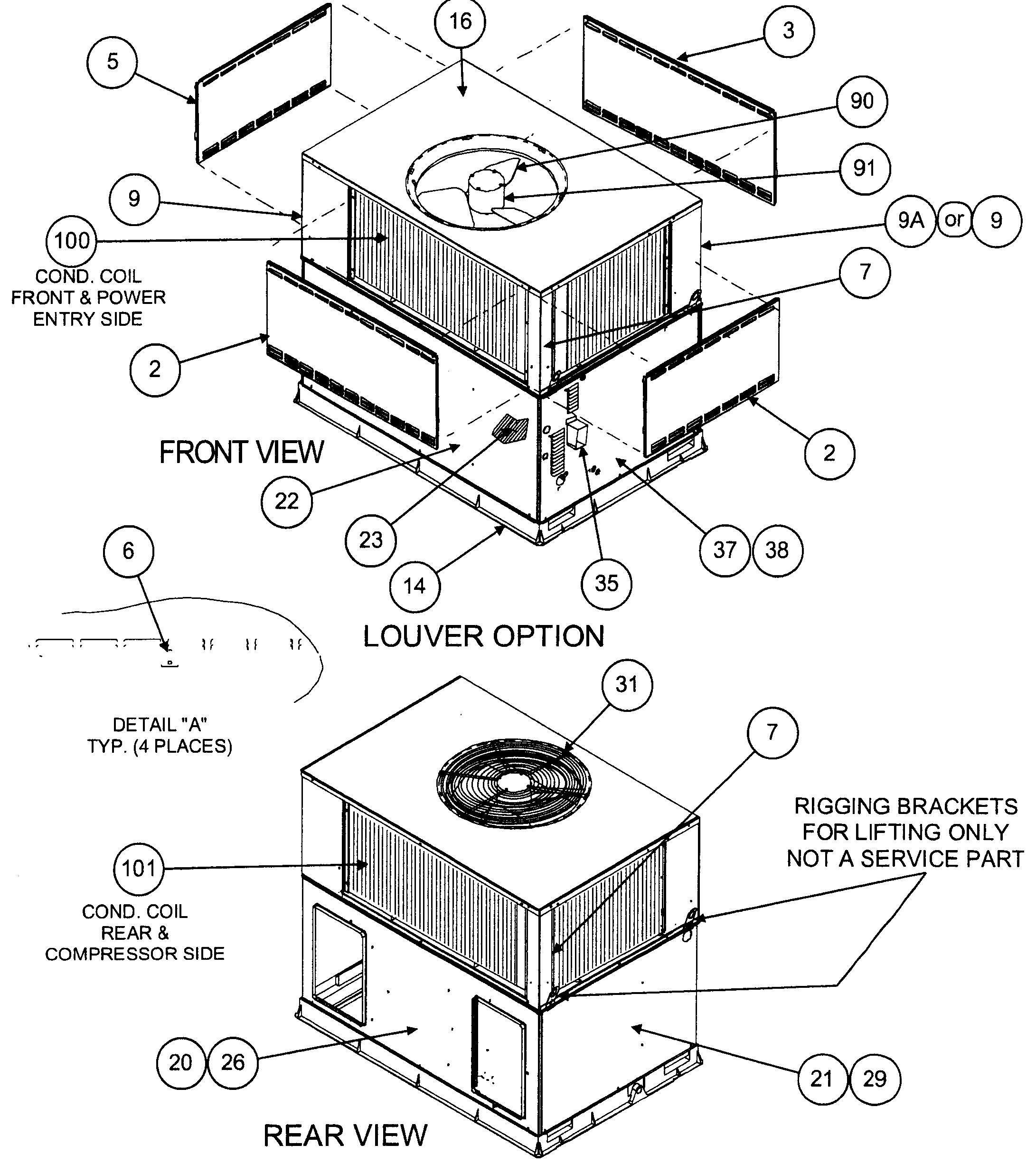

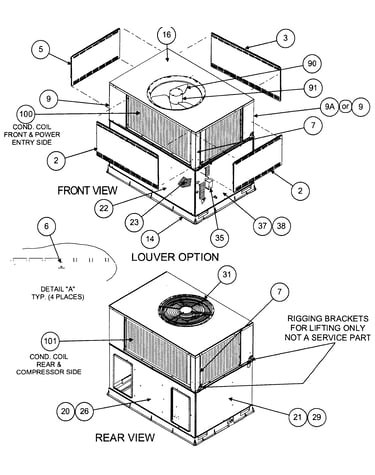

    Front view/louver option/rear view Diagram

    Grille

    Part #50HJ501200
    $65.02

    In Stock

    Wheel Blwr

    #89

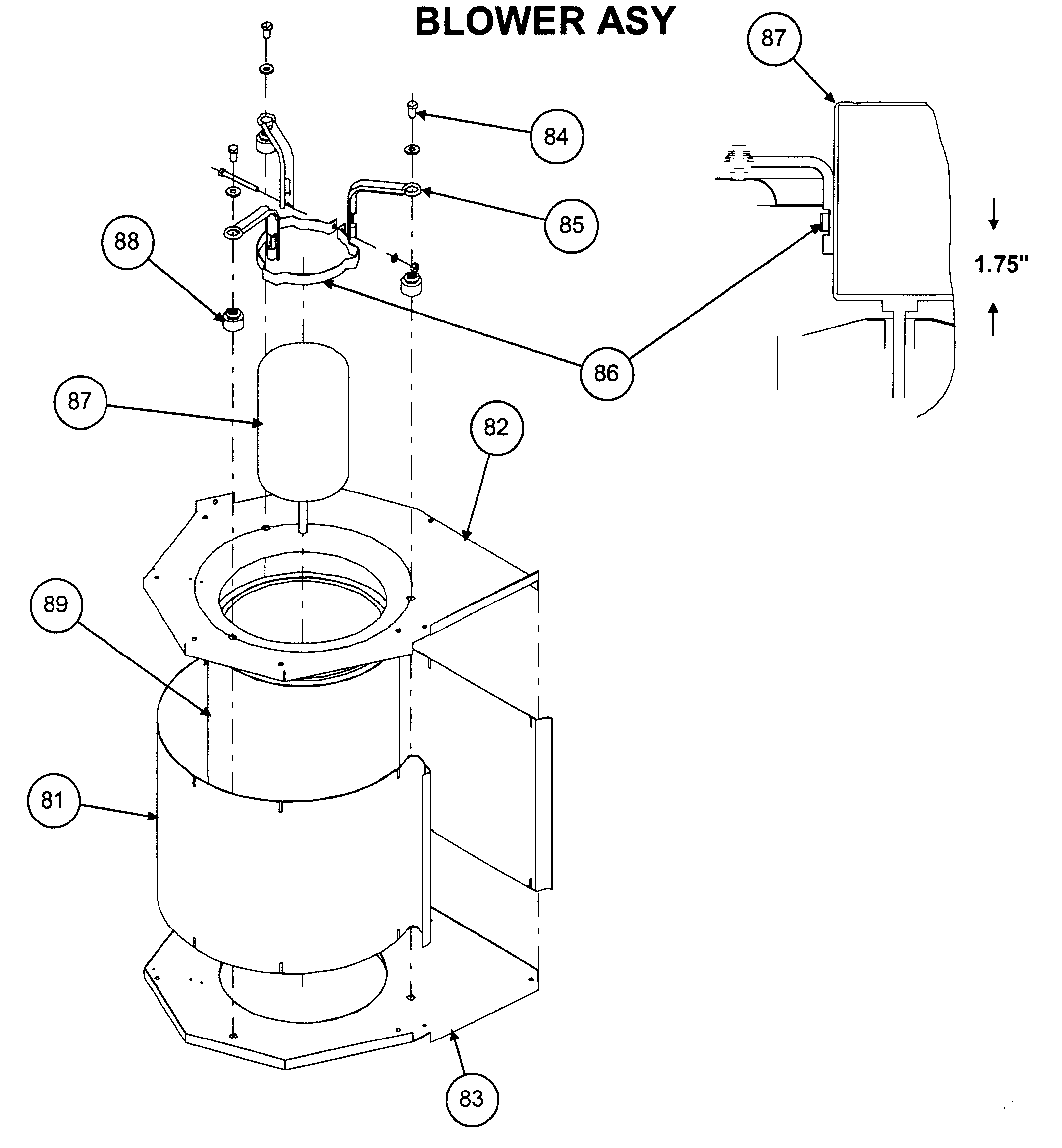

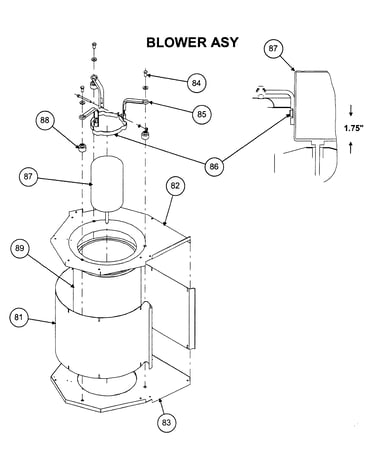

    Blower assy Diagram

    Wheel blwr

    Part #LA22RC001
    $112.00

    In Stock

    Cushion

    #115

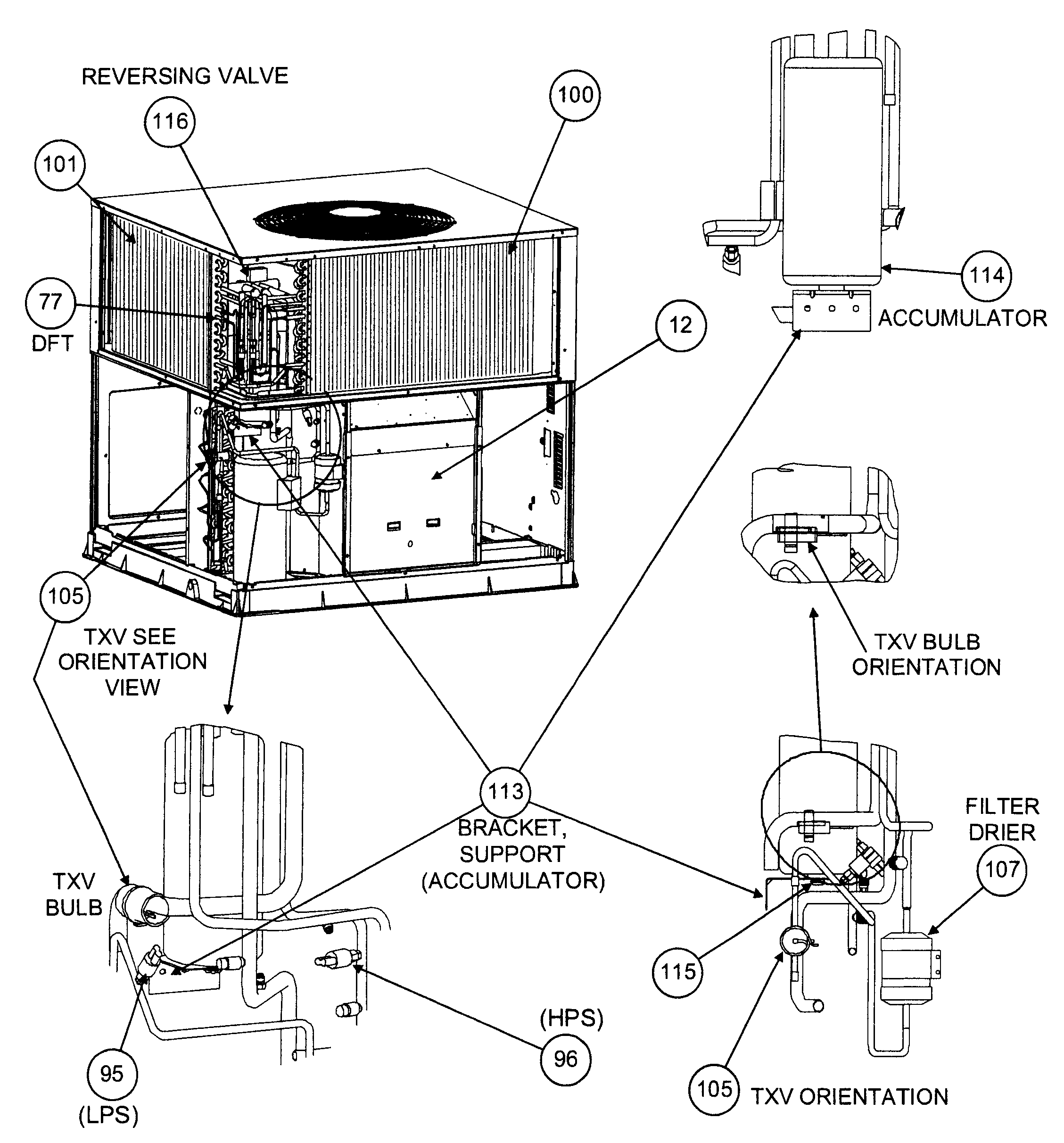

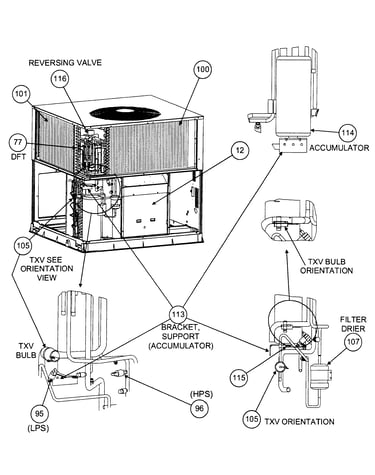

    Reversing valve Diagram

    Cushion

    Part #312251-201
    This item is not returnable
    $2.16

    In Stock

    Bolt

    #84

    Blower assy Diagram

    Bolt

    Part #AA06BS228
    This item is not returnable
    $2.16

    In Stock

    Solend Coil

    #116A

    Reversing valve Diagram

    Solend coil

    Part #EF19ZG235
    $68.88

    In Stock

    Arm

    #85

    Blower assy Diagram

    Arm

    Part #HC98ZZ250
    This item is not returnable
    $2.36

    In Stock

    Panel B/o

    #12

    Reversing valve Diagram

    Panel b/o

    Part #48GP500284
    $163.99

    In Stock

    Pan Base

    #14

    Front view/louver option/rear view Diagram

    Pan base

    Part #48GS400202
    $211.38

    In Stock

    Side Panel

    #37

    Front view/louver option/rear view Diagram

    Side panel

    Part #48GS500236
    $145.04

    In Stock
