Model #536918302 Craftsman 24" snow blower

Here are the diagrams and repair parts for Craftsman 536918302 24" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 217 parts

    Lawn & Garden Equipment Roll Pin

    #50

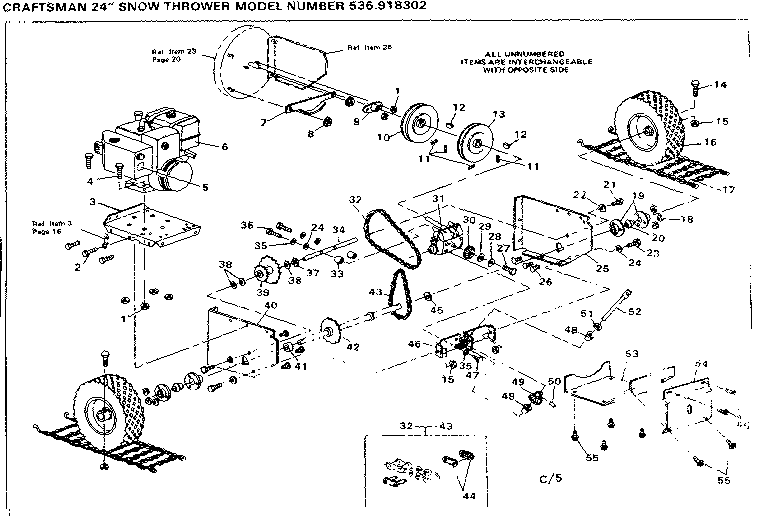

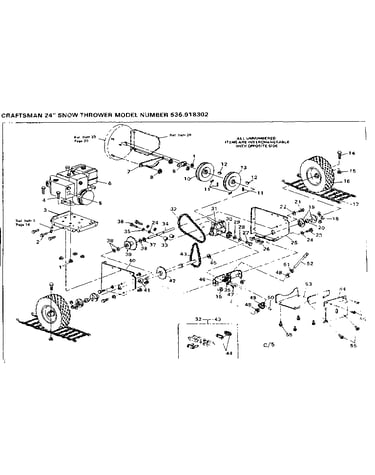

    Wheel assembly Diagram

    Lawn & garden equipment roll pin

    Part #710294MA
    ?
    Manufacturer substitution
    This part replaces 454512. Substitute parts can look different from the original.
    This part replaces 454512
    This item is not returnable
    $2.66 |
    41% OFF
    MSRP: $4.50

    In Stock

    Lawn & Garden Equipment Nut

    #8

    Wheel assembly Diagram

    Lawn & garden equipment nut

    Part #45905MA
    ?
    Manufacturer substitution
    This part replaces 45905. Substitute parts can look different from the original.
    This part replaces 45905
    This item is not returnable
    $2.79 |
    37% OFF
    MSRP: $4.40

    In Stock

    Lawn & Garden Equipment Nut, #10-24

    #21

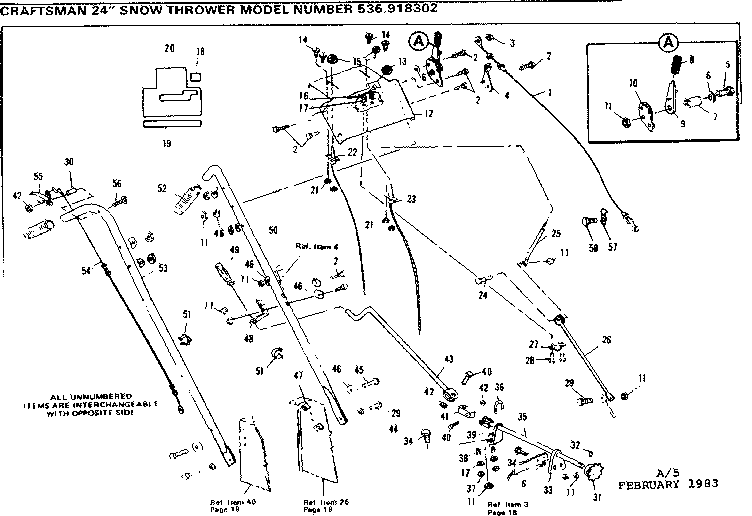

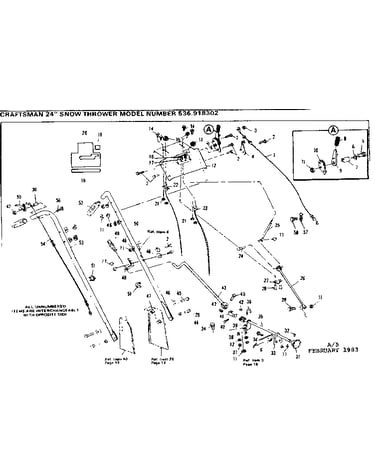

    Handle assembly Diagram

    Lawn & garden equipment nut, #10-24

    Part #308459MA
    ?
    Manufacturer substitution
    This part replaces 271166. Substitute parts can look different from the original.
    This part replaces 271166
    This item is not returnable
    $2.79 |
    35% OFF
    MSRP: $4.30

    In Stock

    Lock Washer

    #45

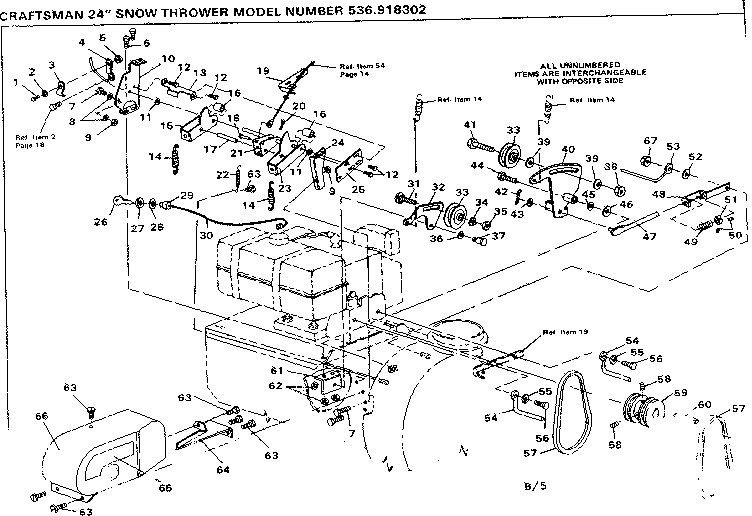

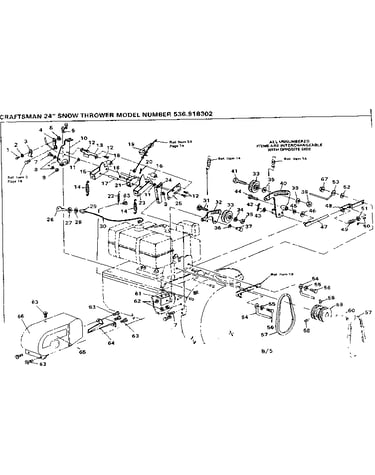

    Drive assembly Diagram

    Lock washer

    Part #138538

    The manufacturer no longer makes this part, and there's no substitute part

    Cotter Pin

    #42

    Drive assembly Diagram

    Cotter pin

    Part #121224

    The manufacturer no longer makes this part, and there's no substitute part

    Snowblower Cotter Pin

    #20

    Drive assembly Diagram

    Snowblower cotter pin

    Part #121223MA
    ?
    Manufacturer substitution
    This part replaces 121223. Substitute parts can look different from the original.
    This part replaces 121223
    This item is not returnable
    $2.56 |
    29% OFF
    MSRP: $3.60

    In Stock

    3/8 Washer

    #11

    Drive assembly Diagram

    3/8 washer

    Part #120394

    The manufacturer no longer makes this part, and there's no substitute part

    Carriage Bolt

    #20

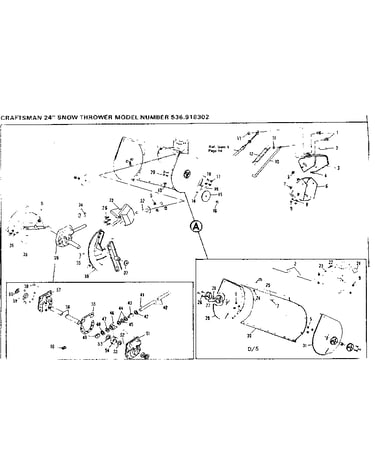

    Auger housing assembly Diagram

    Carriage bolt

    Part #STD533110
    ?
    Manufacturer substitution
    This part replaces 126358. Substitute parts can look different from the original.
    This part replaces 126358
    This item is not returnable
    $3.02

    In Stock

    Snowblower Impeller Shaft Bearing

    #45

    Auger housing assembly Diagram

    Snowblower impeller shaft bearing

    Part #50684MA
    ?
    Manufacturer substitution
    This part replaces 32397. Substitute parts can look different from the original.
    This part replaces 32397
    This item is not returnable
    $4.99 |
    23% OFF
    MSRP: $6.50

    In Stock

    Snowblower Nut

    #35

    Drive assembly Diagram

    Snowblower nut

    Part #71045MA
    ?
    Manufacturer substitution
    This part replaces 124829. Substitute parts can look different from the original.
    This part replaces 124829
    This item is not returnable
    $3.53 |
    28% OFF
    MSRP: $4.90

    In Stock
