GE JTP90DP3WW built-in oven with microwave Parts

Here are the diagrams and repair parts for GE JTP90DP3WW built-in oven with microwave, as well as links to manuals and error code tables, if available.

GE JTP90DP3WW built-in oven with microwave
By Schematic
By Part

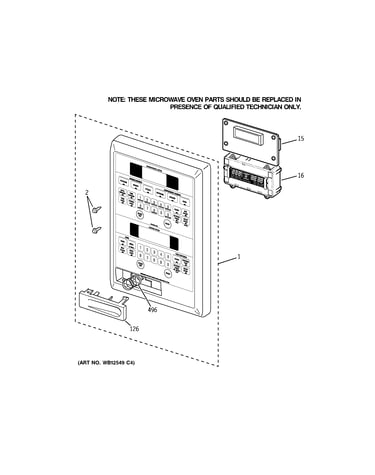

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JTP90DP3WW Built-In Oven with Microwave

  • Microwave Fuse for GE JTP90DP3WW - Part WB27X10928

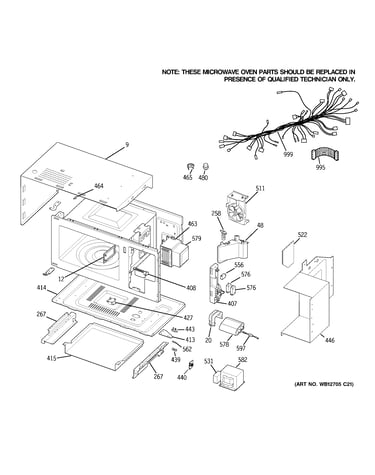

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $13.31
    13% OFF Phone Price : $15.31Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE JTP90DP3WW - Part 40A15

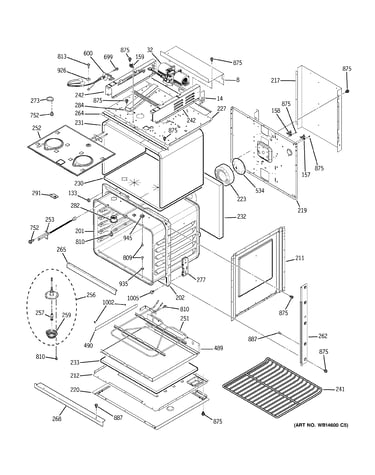

    Body with microwave support diagram

    Oven Lamp

    Part #WB08T10022

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10022. Substitute parts can look different from the original.
    In Stock
    $15.86
    11% OFF Phone Price : $17.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Temperature Sensor for GE JTP90DP3WW - Part WB23T10015

    Body with microwave support diagram

    Wall Oven Temperature Sensor

    Part #WB23T10015
    In Stock
    $35.75
    14% OFF Phone Price : $41.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for GE JTP90DP3WW - Part WB27X10597

    Microwave body parts diagram

    High-voltage Diode

    Part #WB27X10169

    Replaced by #WB27X10597

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10169. Substitute parts can look different from the original.
    In Stock
    $55.83
    10% OFF Phone Price : $61.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Safety Thermostat for GE JTP90DP3WW - Part WB24T10060

    Body with microwave support diagram

    Wall Oven Safety Thermostat

    Part #WB24T10060
    This item is not returnable
    In Stock
    $14.61
    12% OFF Phone Price : $16.61Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Oven Door Inner Glass for GE JTP90DP3WW - Part WB56X22160

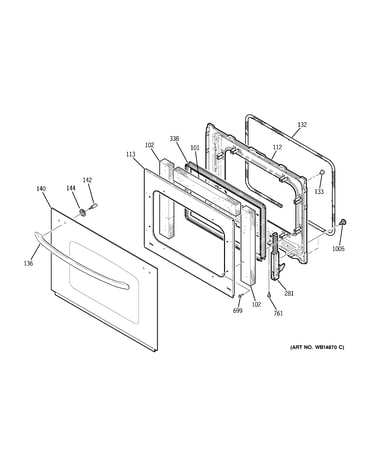

    Door diagram

    Pack Window

    Part #WB56T10152

    Replaced by #WB56X22160

    Info Icon
    Manufacturer substitution
    This part replaces WB56T10152. Substitute parts can look different from the original.
    In Stock
    $353.93
    $12.00 OFF Phone Price : $365.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Cooling Fan Assembly for GE JTP90DP3WW - Part WB26X10264

    Body with microwave support diagram

    Blower Fan

    Part #WB26T10048

    Replaced by #WB26X10264

    Info Icon
    Manufacturer substitution
    This part replaces WB26T10048. Substitute parts can look different from the original.
    In Stock
    $135.54
    8% OFF Phone Price : $147.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for GE JTP90DP3WW - Part WB08T10002

    Body with microwave support diagram

    Oven Lamp Holder

    Part #WB08T10002

    Replaced by #WB08T10002

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10002. Substitute parts can look different from the original.
    In Stock
    $35.01
    15% OFF Phone Price : $41.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP90DP3WW - Part WB1X1130

    Body with microwave support diagram

    Screw, #10-32 X 17/32-in

    Part #WB01X1253

    Replaced by #WB1X1130

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1253. Substitute parts can look different from the original.
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP90DP3WW - Part WB1M1

    Screw

    Part #WB01K5150

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
