Model # WL200821 Official Weslo ascent ii stepper

Here are the diagrams and repair parts for Official Weslo WL200821 ascent ii stepper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Nut,hex Nyl 012082
Nut,hex nyl

Part #012082

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Push Nut 103735
#36

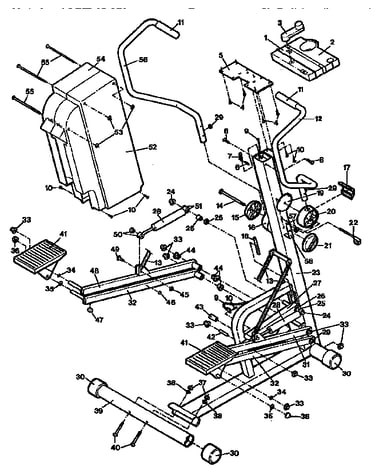

Unit parts diagram

Exercise equipment push nut

Part #103735

This item is not returnable
$2.16
In Stock
Nut,hex,zp,# 103762
#53

Unit parts diagram

Nut,hex,zp,#

Part #103762

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013162
#10

Unit parts diagram

Exercise equipment screw

Part #013162

This item is not returnable
$2.16
In Stock
Exercise Equipment Flat Washer 014041
Exercise equipment flat washer

Part #014041

This item is not returnable
$2.16
In Stock
Spcr,weld Cv 105101
#26

Unit parts diagram

Spcr,weld cv

Part #105101

This item is not returnable
$2.16
In Stock
Magnet,rnd,1 107094
#46

Unit parts diagram

Magnet,rnd,1

Part #107094

This item is not returnable
$2.16
In Stock
Endcap,stblz 109416
#30

Unit parts diagram

Endcap,stblz

Part #109416

Replaced by #130656

?
Manufacturer substitution
This part replaces 109416. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Spcr,shock R 109413
#25

Unit parts diagram

Spcr,shock r

Part #109413

The manufacturer no longer makes this part, and there's no substitute part

Knob,frictio 109511
#21

Unit parts diagram

Knob,frictio

Part #109511

The manufacturer no longer makes this part, and there's no substitute part
