Model # 113202421 Official Craftsman 180-amp arc welder

Here are the diagrams and repair parts for Official Craftsman 113202421 180-amp arc welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

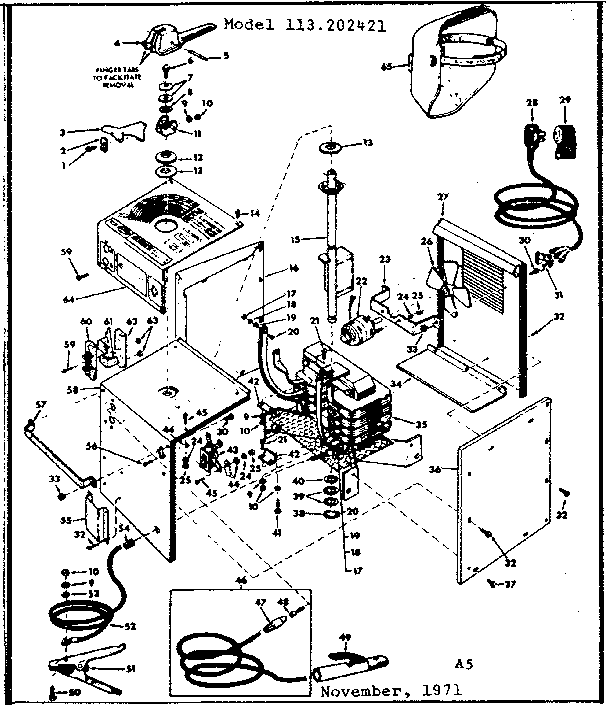

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |

Washer 131201
#18

Unit diagram

Washer

Part #131201

The manufacturer no longer makes this part, and there's no substitute part

Ground Clamp 51439
#51

Unit diagram

Ground clamp

Part #51439

The manufacturer no longer makes this part, and there's no substitute part

Welder Cable Block 61115
Welder cable block

Part #61115

The manufacturer no longer makes this part, and there's no substitute part

Washer 30509
#39

Unit diagram

Washer

Part #30509

The manufacturer no longer makes this part, and there's no substitute part

Screw 9415477
#50

Unit diagram

Screw

Part #9415477

The manufacturer no longer makes this part, and there's no substitute part

Block No. 6 61117
#60

Unit diagram

Block no. 6

Part #61117

The manufacturer no longer makes this part, and there's no substitute part

Washer 60013
#19

Unit diagram

Washer

Part #60013

The manufacturer no longer makes this part, and there's no substitute part

Screw 9426106
#32

Unit diagram

Screw

Part #9426106

The manufacturer no longer makes this part, and there's no substitute part

Washer 9414920
#53

Unit diagram

Washer

Part #9414920

The manufacturer no longer makes this part, and there's no substitute part

Collar Lock 61135
#12

Unit diagram

Collar lock

Part #61135

The manufacturer no longer makes this part, and there's no substitute part
