Model # 11621197 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11621197 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Gasket 742968
#52

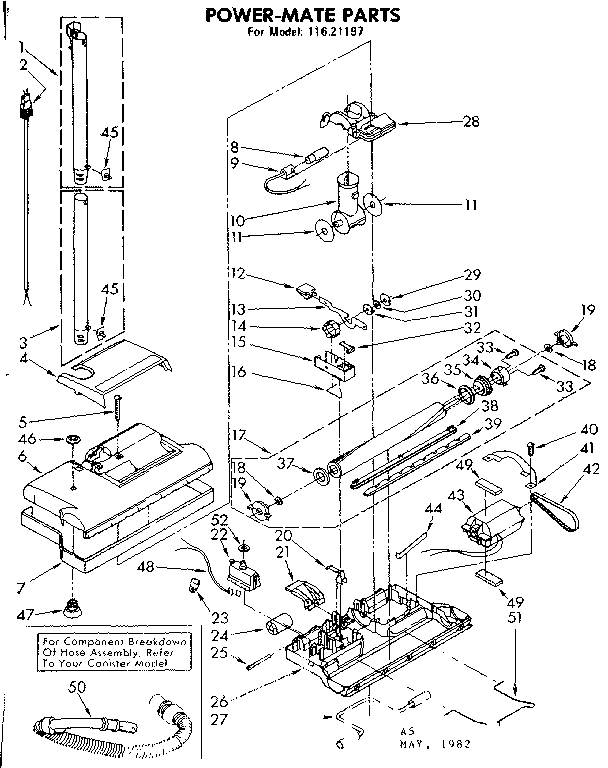

Powermate parts diagram

Gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Bridge 742422
#41

Powermate parts diagram

Bridge

Part #742422

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Powermate parts diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#50

Powermate parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Wand 742488
#3

Powermate parts diagram

Wand

Part #742488

The manufacturer no longer makes this part, and there's no substitute part

Bar 742029
#39

Powermate parts diagram

Bar

Part #742029

The manufacturer no longer makes this part, and there's no substitute part

Spring 725775
#16

Powermate parts diagram

Spring

Part #725775

The manufacturer no longer makes this part, and there's no substitute part

Roller 742007
#24

Powermate parts diagram

Roller

Part #742007

The manufacturer no longer makes this part, and there's no substitute part

Screw (silver) 681605
#33

Powermate parts diagram

Screw (silver)

Part #681605

The manufacturer no longer makes this part, and there's no substitute part

Gasket 742782
#49

Powermate parts diagram

Gasket

Part #742782

The manufacturer no longer makes this part, and there's no substitute part
