Whirlpool ACS052XH1 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACS052XH1 air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for ACS052XH1 Air Conditioner

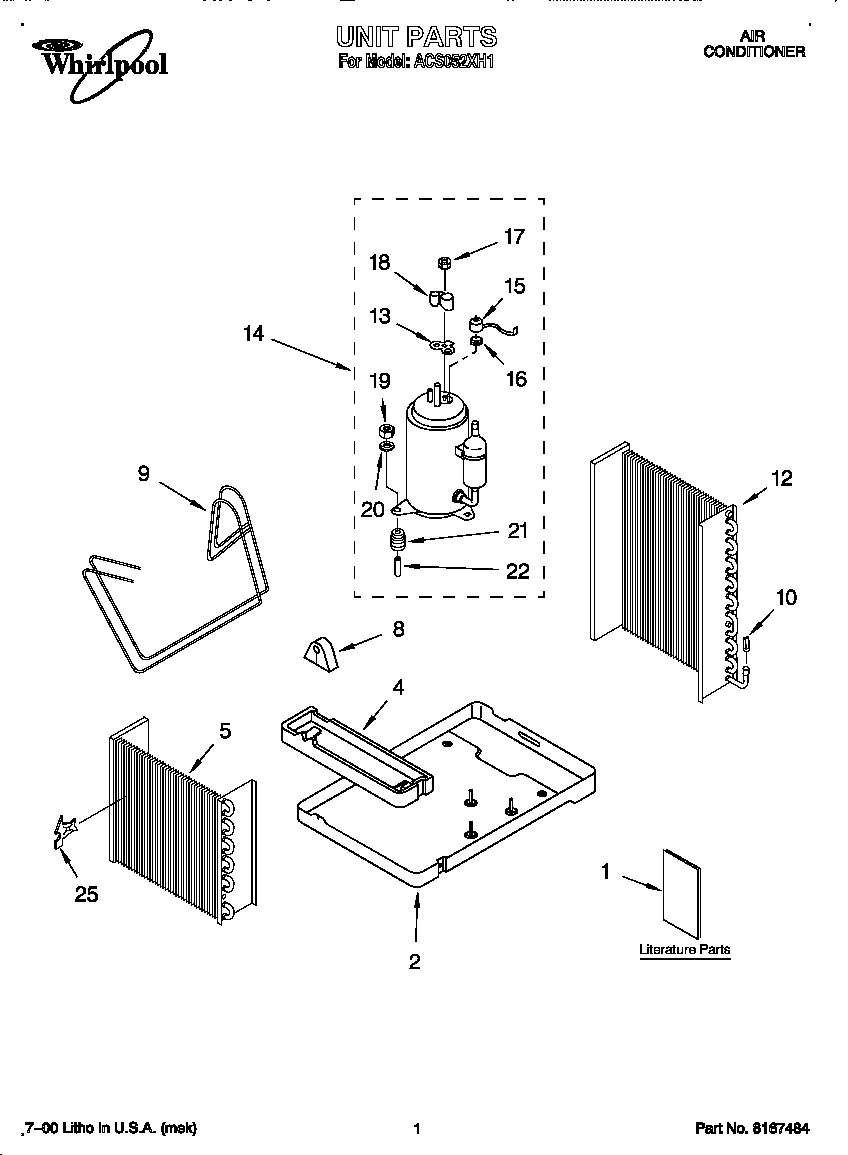

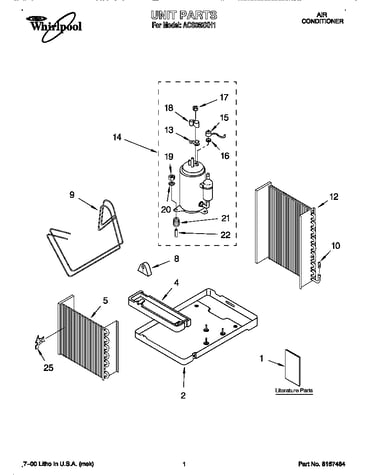

Unit diagram
Washer
Part #789784Replaced by #W11236646
Manufacturer substitutionThis part replaces 789784. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29
Qty

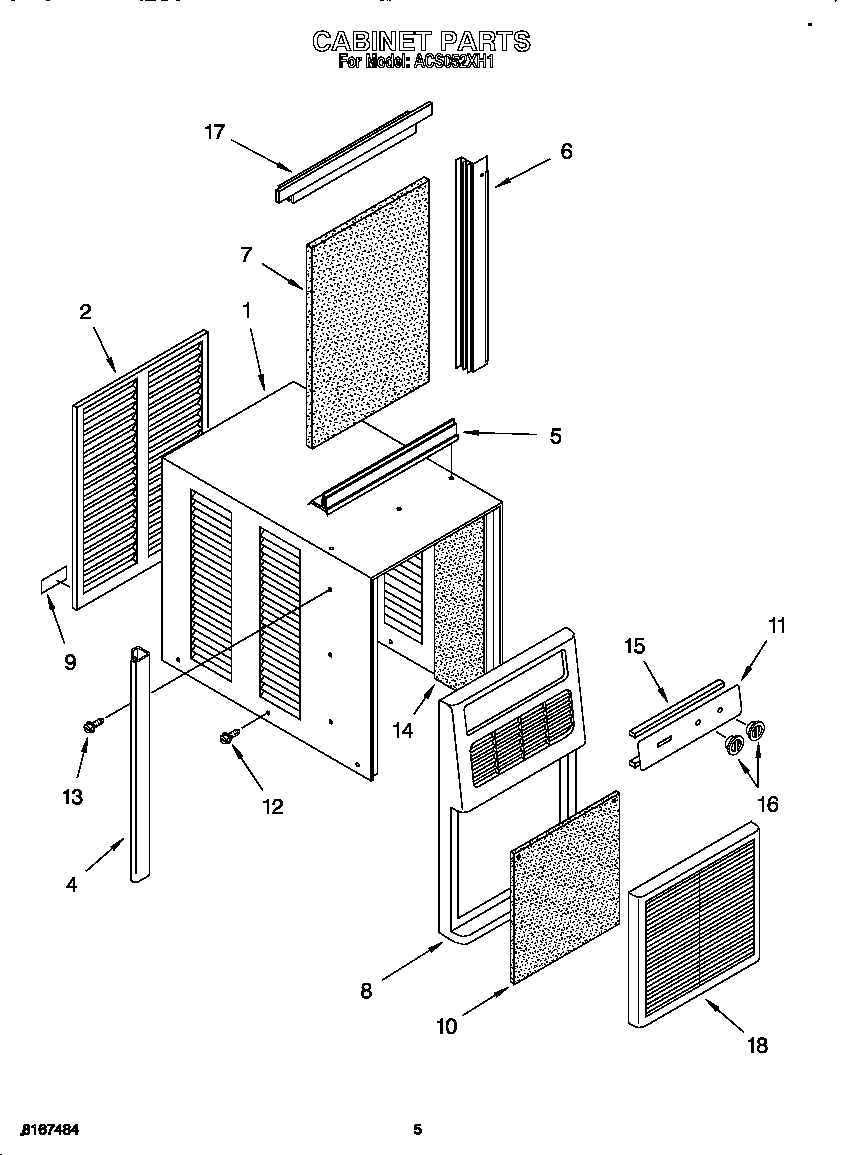

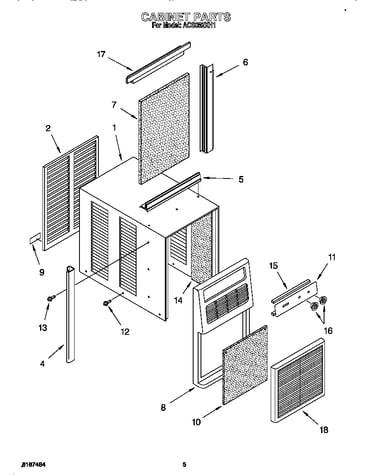

Cabinet diagram
Nameplate
Part #789925Replaced by #1187171
Manufacturer substitutionThis part replaces 789925. Substitute parts can look different from the original.In Stock$45.47QtyUnit diagram
Cover Gasket
Part #789831Replaced by #WP950035
Manufacturer substitutionThis part replaces 789831. Substitute parts can look different from the original.In Stock$66.29QtyCabinet diagram
Rear Panel
Part #789924
The manufacturer no longer makes this part, and there's no substitute part

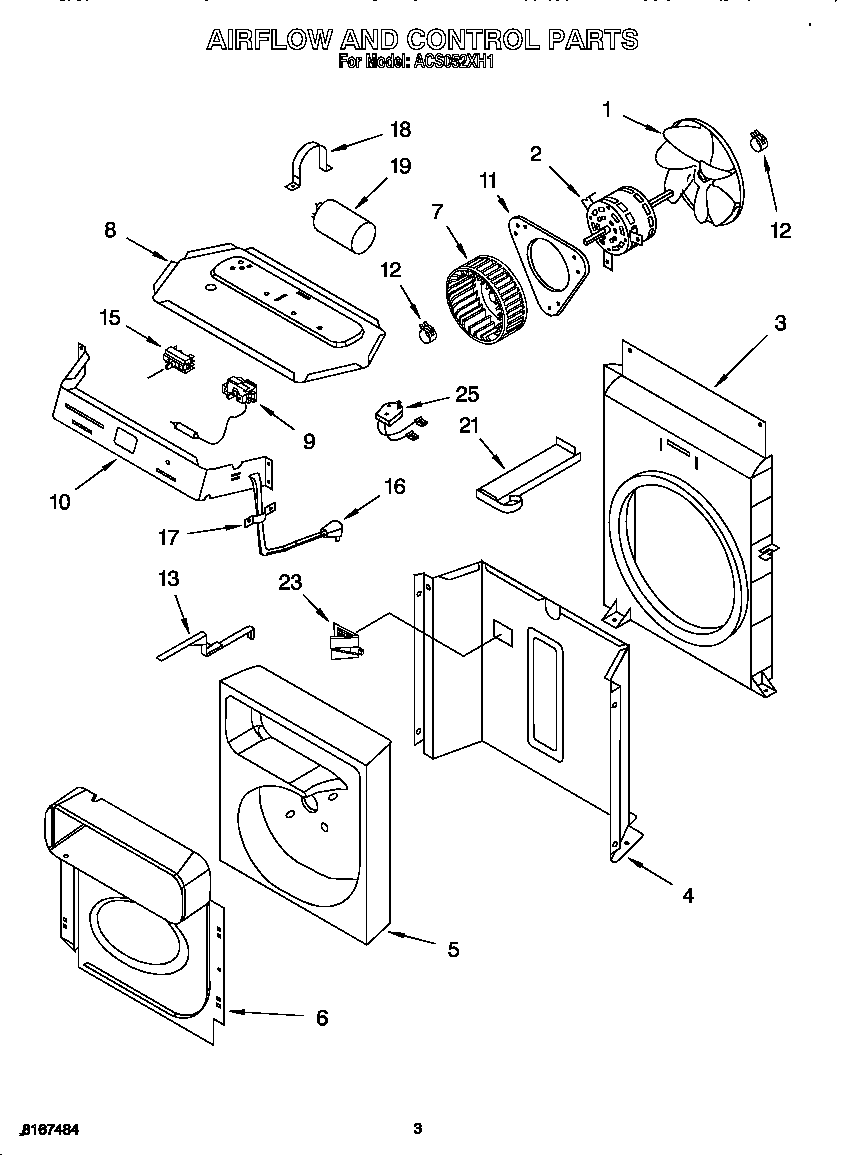

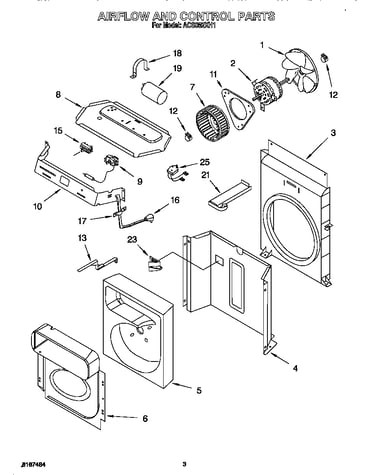

Air flow and control diagram
Capacitor Bracket
Part #789749
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Control Knob
Part #789841
The manufacturer no longer makes this part, and there's no substitute part
Air flow and control diagram
Support
Part #789807
The manufacturer no longer makes this part, and there's no substitute part

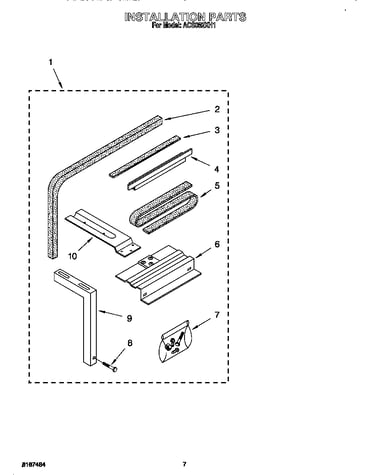

Installation diagram
Seal Strip
Part #789744
The manufacturer no longer makes this part, and there's no substitute part
Installation diagram
Seal Strip
Part #789692
The manufacturer no longer makes this part, and there's no substitute part
Air flow and control diagram
Air Conditioner Blower Wheel
Part #789838
The manufacturer no longer makes this part, and there's no substitute part
