Tappan
Gas Cooktop

Model # 14-3028-23-02 Official Tappan cooktop - 5995224549

Here are the diagrams and repair parts for Official Tappan 14-3028-23-02 cooktop - 5995224549, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Cooktop Burner, Right Rear 3201435
#8

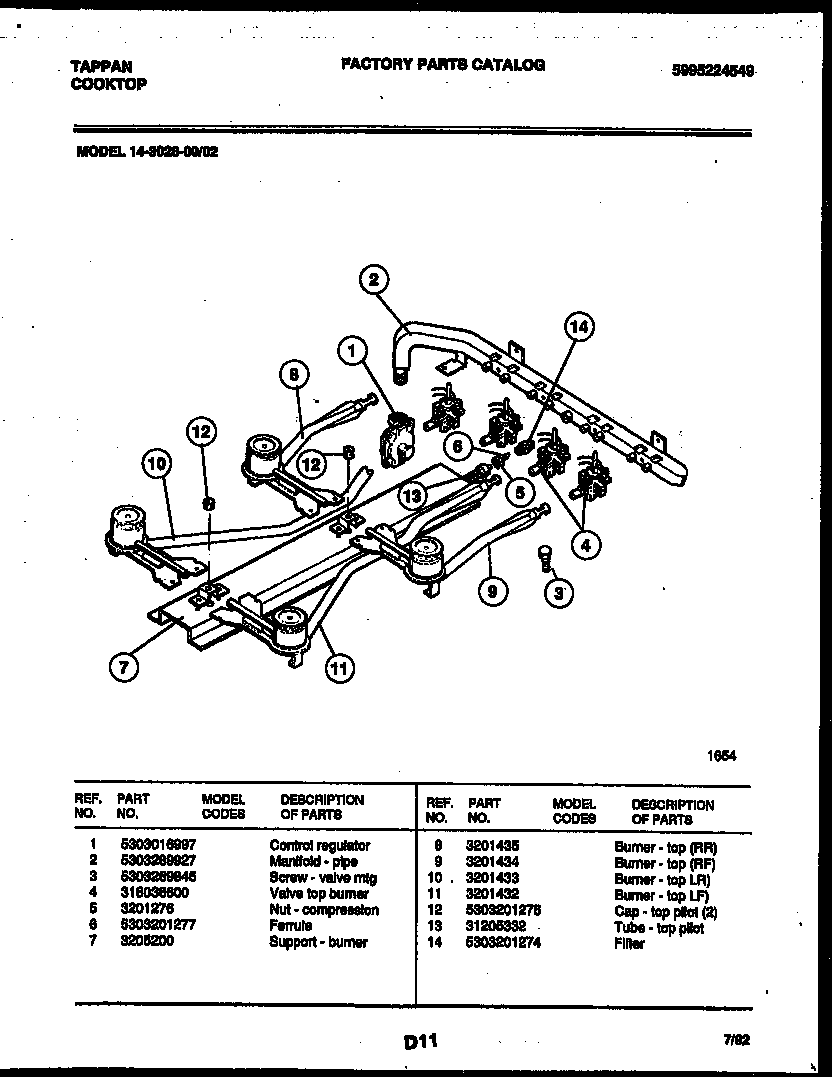

Burner, manifold and gas control diagram

Cooktop burner, right rear

Part #3201435

$258.48
In Stock
Burner Valve 5303269845
#3

Burner, manifold and gas control diagram

Burner valve

Part #5303269845

Replaced by #316048200

?
Manufacturer substitution
This part replaces 5303269845. Substitute parts can look different from the original.
$13.17
In Stock
Grate 5303012700
#7

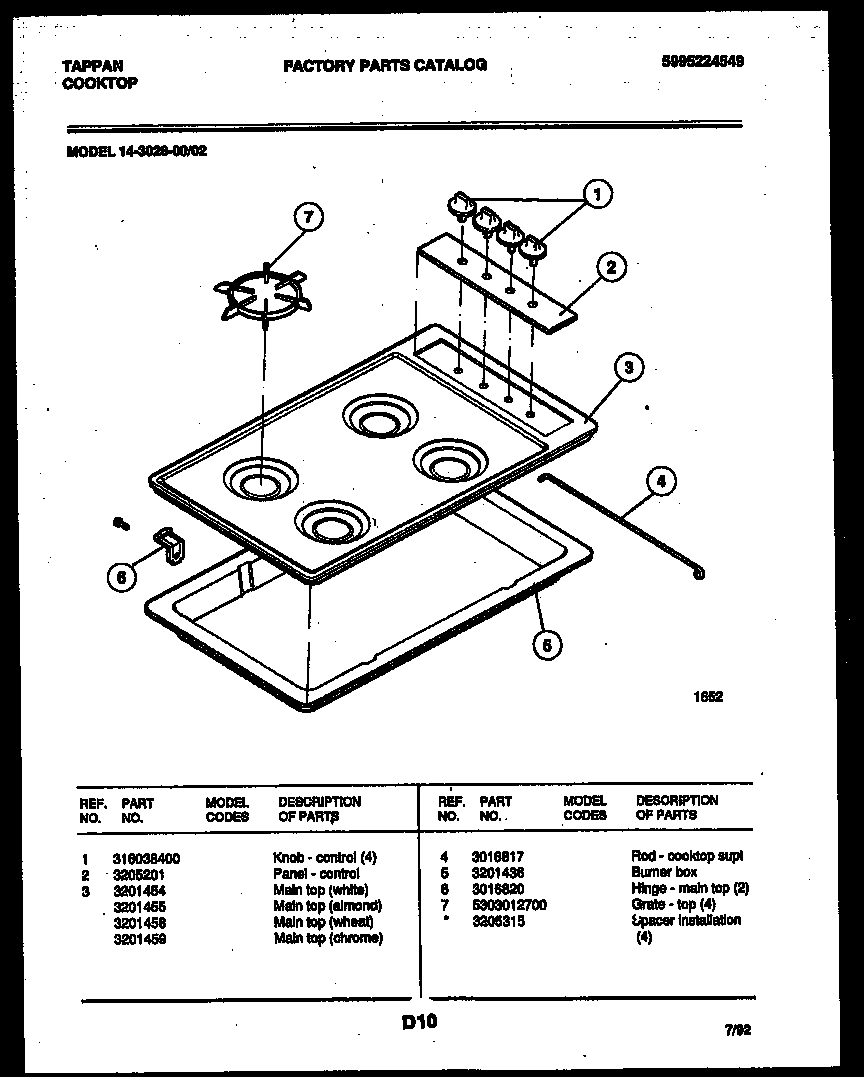

Cooktop parts diagram

Grate

Part #5303012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 5303012700. Substitute parts can look different from the original.
$37.00 |
12% OFF Phone Price : $42.00
In Stock
Top-main Whi 3201454
#3

Cooktop parts diagram

Top-main whi

Part #3201454

The manufacturer no longer makes this part, and there's no substitute part

Burner 3201433
#10

Burner, manifold and gas control diagram

Burner

Part #3201433

The manufacturer no longer makes this part, and there's no substitute part

Top-main Chr 3201459
#3

Cooktop parts diagram

Top-main chr

Part #3201459

The manufacturer no longer makes this part, and there's no substitute part

Regulator 5303016997
#1

Burner, manifold and gas control diagram

Regulator

Part #5303016997

The manufacturer no longer makes this part, and there's no substitute part

Hinge 3016820
#6

Cooktop parts diagram

Hinge

Part #3016820

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 316038400
#1

Cooktop parts diagram

Control knob

Part #316038400

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 3205201
#2

Cooktop parts diagram

Control panel

Part #3205201

The manufacturer no longer makes this part, and there's no substitute part
