Model #24ABA336A0030010 Official Carrier air conditioner

Here are the diagrams and repair parts for Carrier 24ABA336A0030010 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 83 parts

Central Air Conditioner Compressor Hard Start Kit#NI

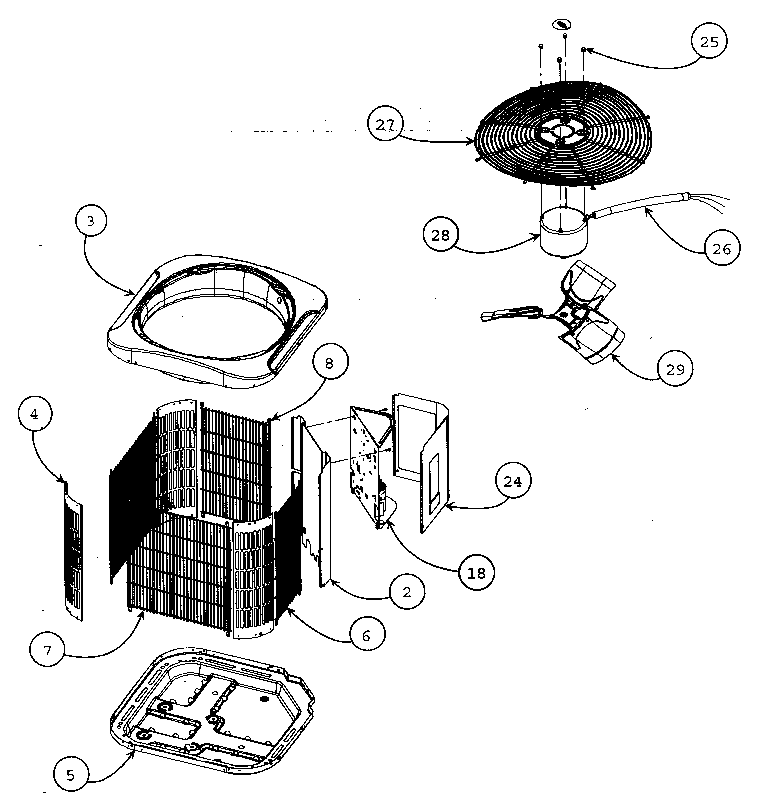

Cabinet parts Diagram

In Stock
$109.99 |
8% OFF
Phone Price: $119.99
Fan Guard#27

Cabinet parts Diagram

Fan guard

Part #329681-401
In Stock
$43.99
Mtr Mountng#25

Cabinet parts Diagram

Mtr mountng

Part #316709-201
This item is not returnable
In Stock
$2.16
Central Air Conditioner Dual-Motor Run Capacitor#21

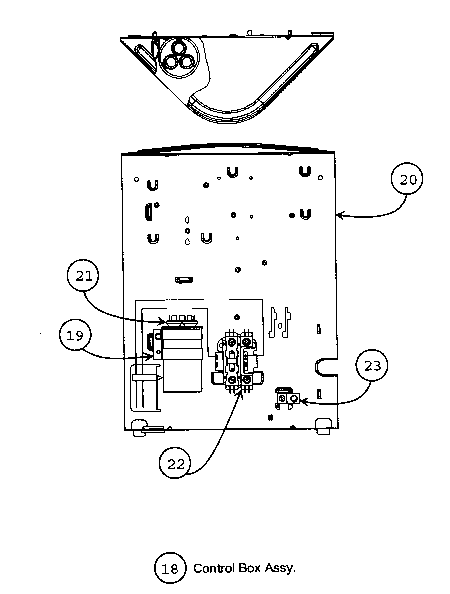

Control box Diagram

Capactr dual

Part #P291-4553RS
Replaced by #CAP050450440RTS
?
Manufacturer substitution
This part replaces P291-4553RS. Substitute parts can look different from the original.
In Stock
$66.39 |
7% OFF
Phone Price: $71.39
Serv Panel#2

Cabinet parts Diagram

Serv panel

Part #329606-704164
In Stock
$33.04
Top Cover#3

Cabinet parts Diagram

Top cover

Part #329617-701164
In Stock
$140.36
Raceway#26

Cabinet parts Diagram

Raceway

Part #319421-313
This item is not returnable
In Stock
$2.49
Spring#NI

Cabinet parts Diagram

Spring

Part #331847-401
This item is not returnable
In Stock
$2.56
Cornr Post#4

Cabinet parts Diagram

Cornr post

Part #332198-704164
In Stock
$15.94
Switch, Pr#NI

Cabinet parts Diagram

Switch, pr

Part #HK02ZA403
In Stock
$31.60
