Maytag
Microwave/Hood Combo

Model # MMV5000BDB Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMV5000BDB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

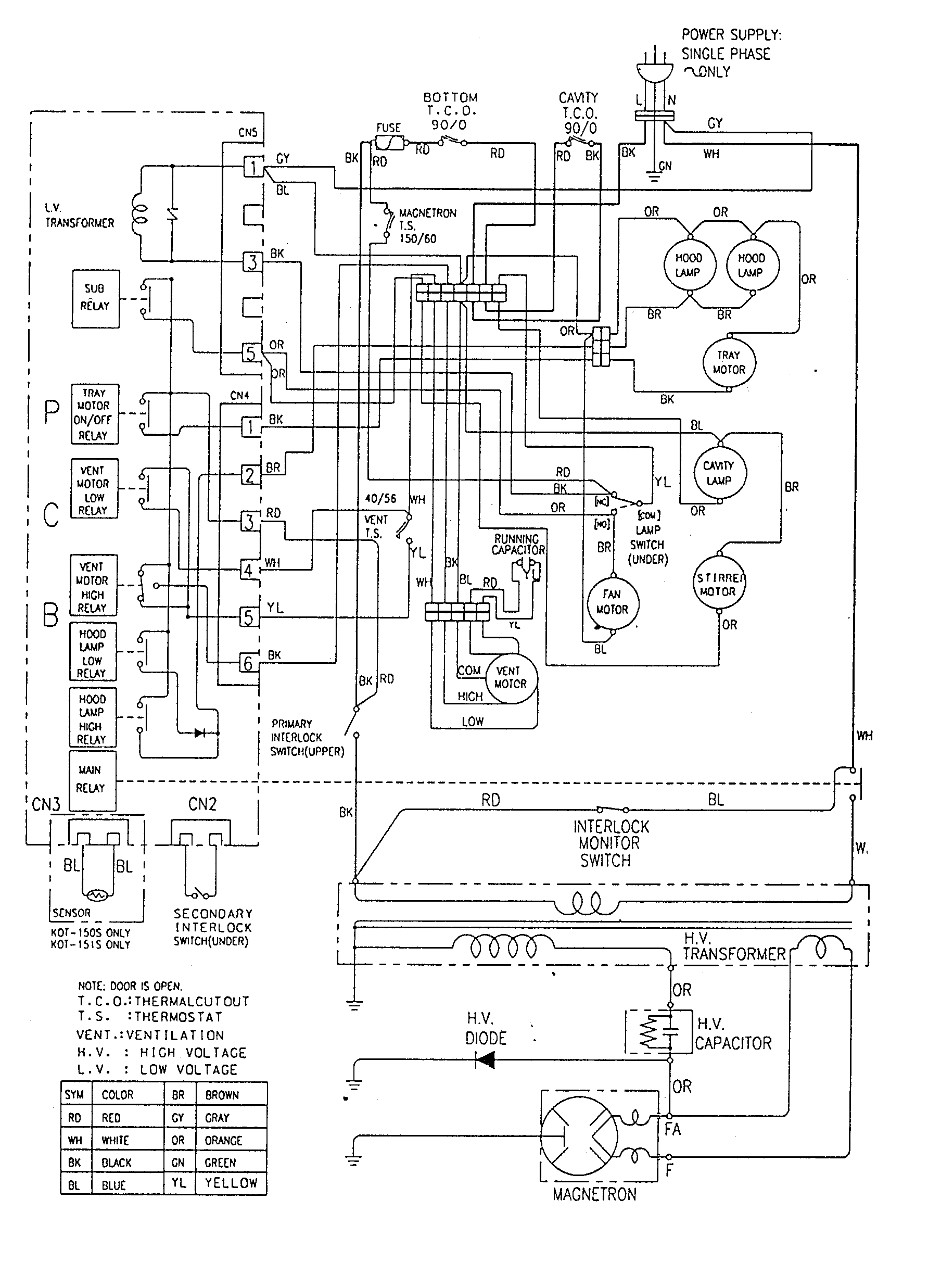

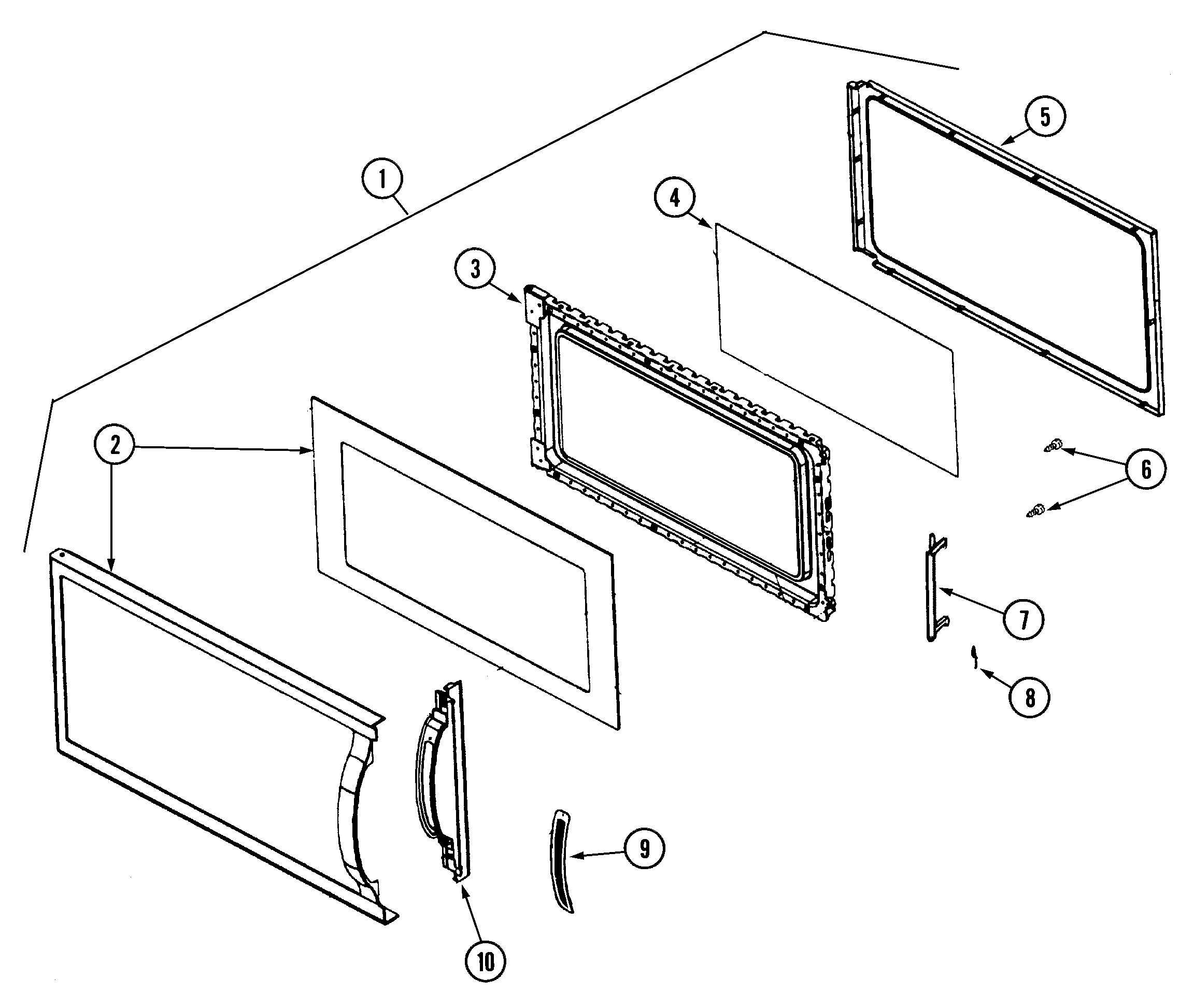

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Lamp 56001350
Lamp

Part #56001350

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 56001350. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
High-voltage Diode 56001030
#11

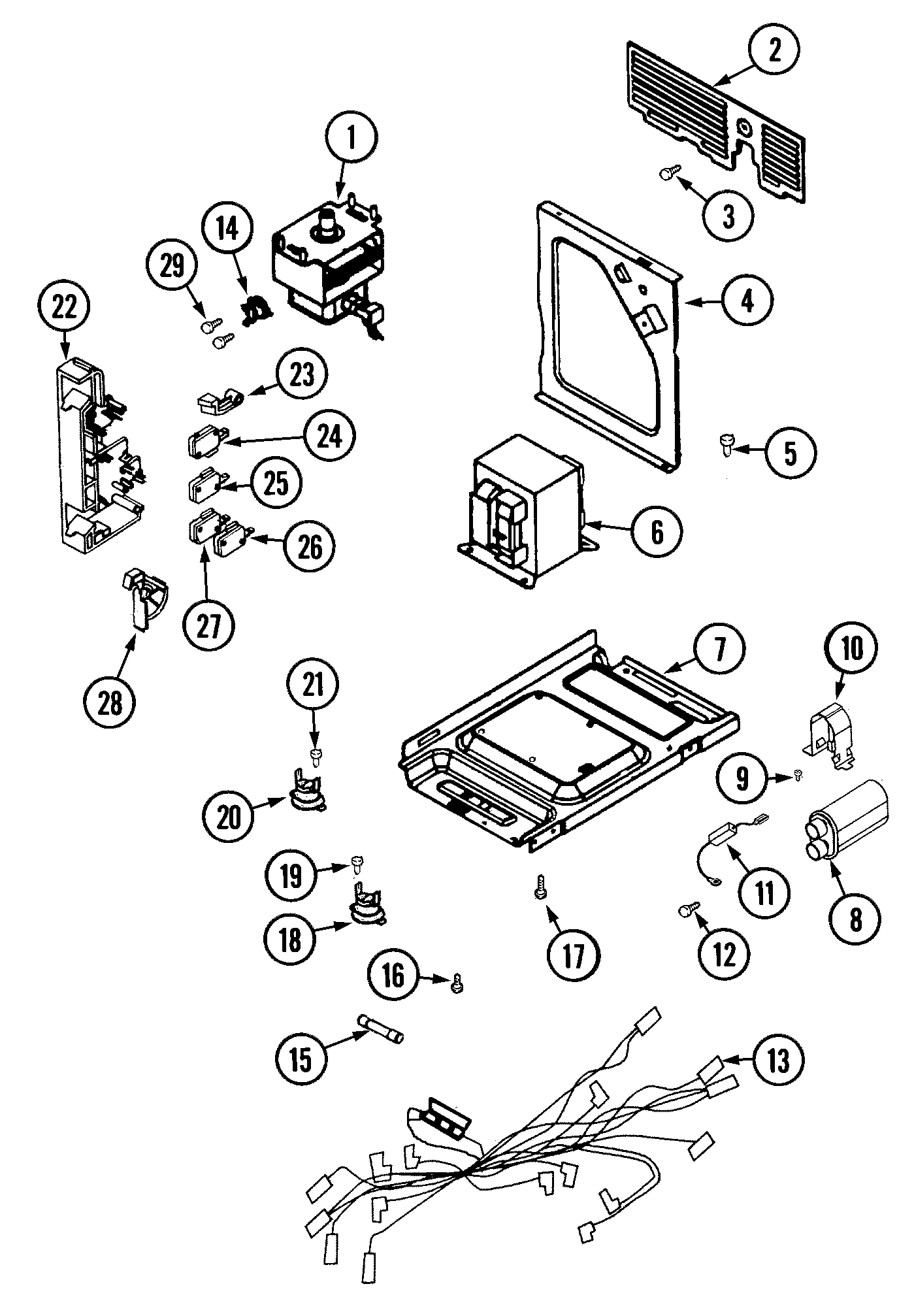

Internal controls diagram

High-voltage diode

Part #56001030

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces 56001030. Substitute parts can look different from the original.
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Microwave Grease Filter, 2-pack 56001069
#2

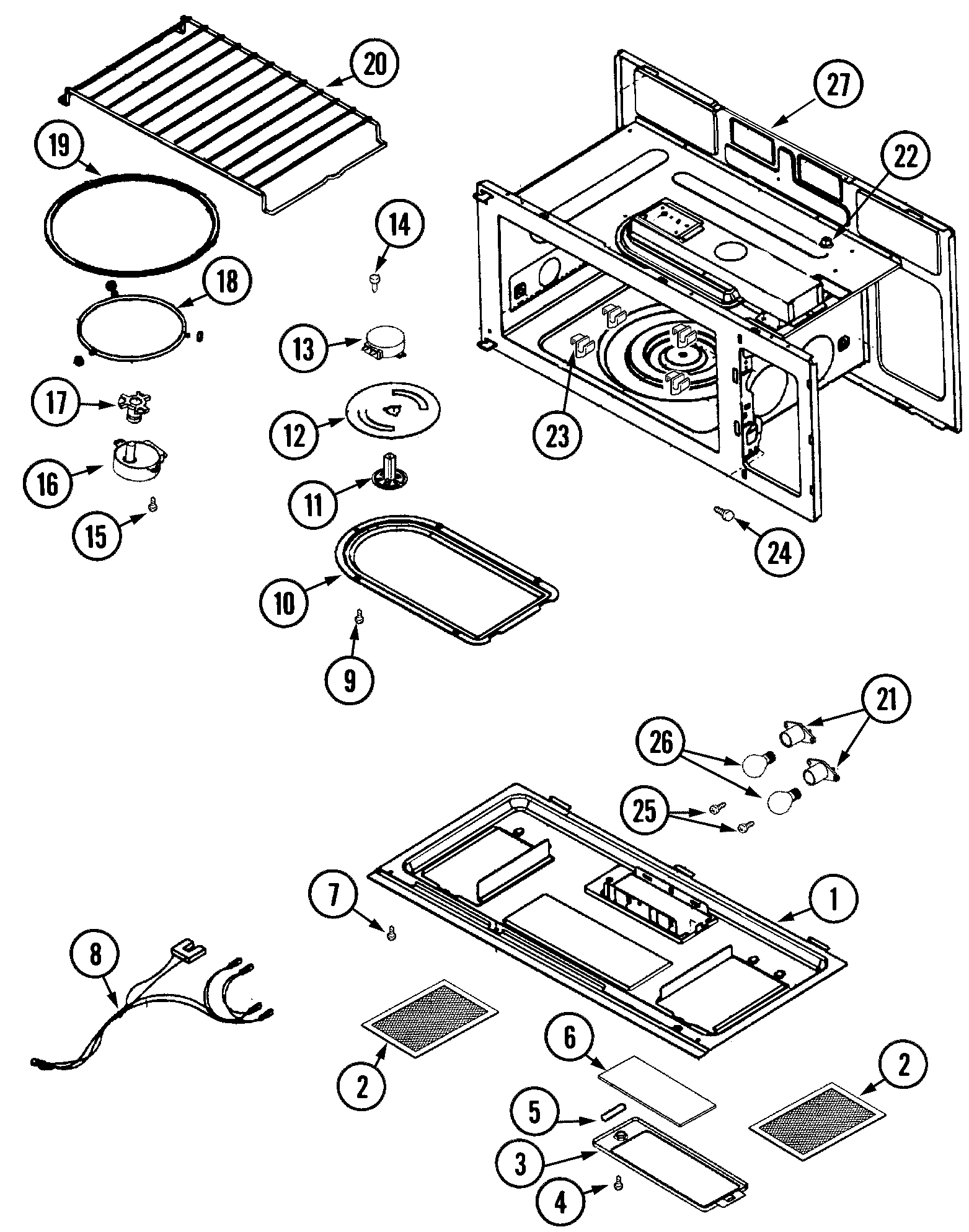

Base & cavity diagram

Microwave grease filter, 2-pack

Part #56001069

Replaced by #WP56001069

?
Manufacturer substitution
This part replaces 56001069. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Secondary Switch 56001037
#26

Internal controls diagram

Secondary switch

Part #56001037

Replaced by #W10915404

?
Manufacturer substitution
This part replaces 56001037. Substitute parts can look different from the original.
This item is not returnable
$13.09 |
13% OFF Phone Price : $15.09
In Stock
Screw 56001151
Screw

Part #56001151

Replaced by #WP56001173

?
Manufacturer substitution
This part replaces 56001151. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Microwave Control Panel Assembly 56001315
#1A

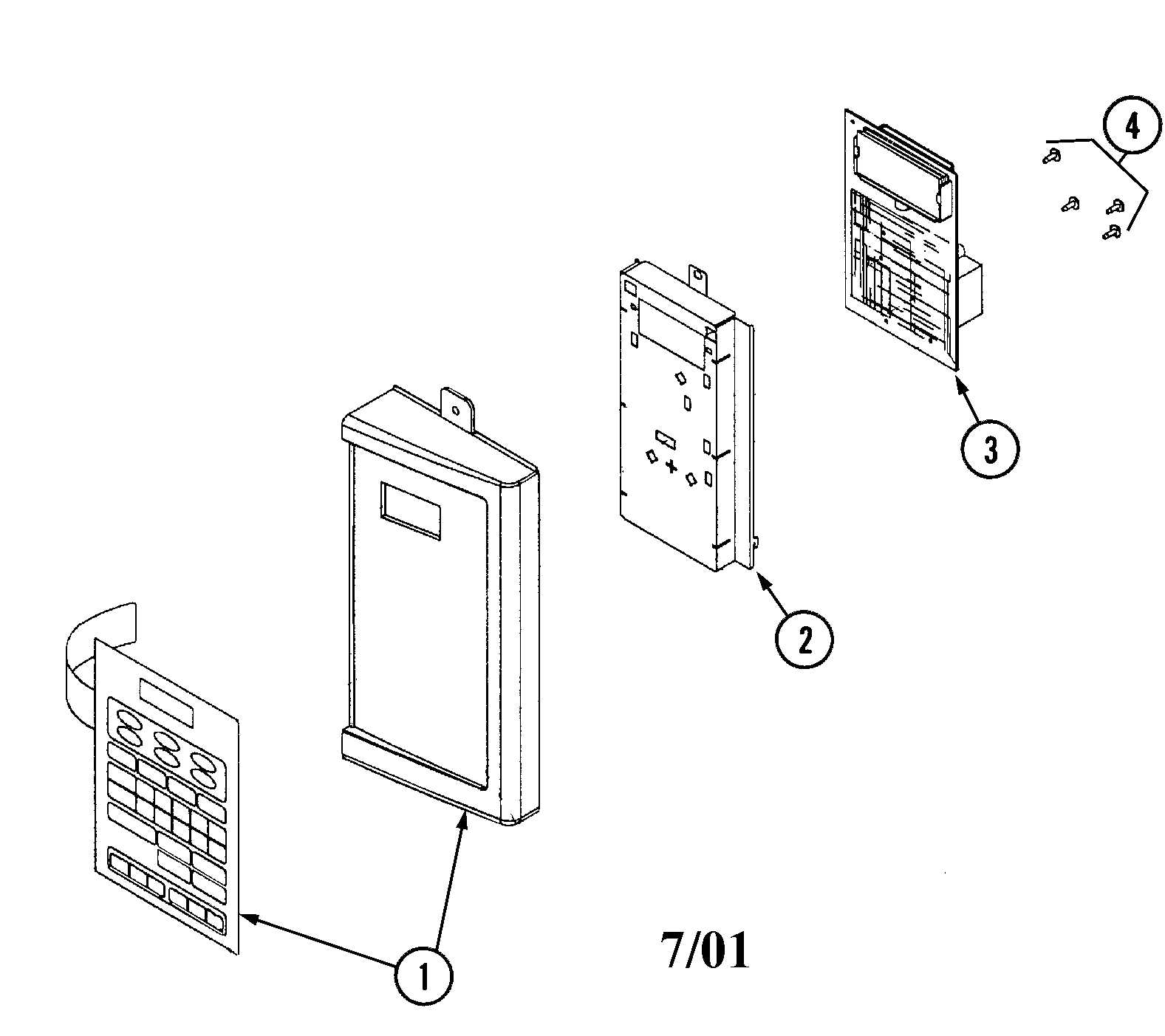

Control panel diagram

Microwave control panel assembly

Part #56001315

Replaced by #WP56001315

?
Manufacturer substitution
This part replaces 56001315. Substitute parts can look different from the original.
$48.09
In Stock
Control Panel 56001316
#1B

Control panel diagram

Control panel

Part #56001316

Replaced by #WP56001315

?
Manufacturer substitution
This part replaces 56001316. Substitute parts can look different from the original.
$48.09
In Stock
Microwave Stirrer Fan Motor 56001337
#13

Base & cavity diagram

Microwave stirrer fan motor

Part #56001337

$76.31
In Stock
Glass Tray 56001043
#19

Base & cavity diagram

Glass tray

Part #56001043

Replaced by #WP56001043

?
Manufacturer substitution
This part replaces 56001043. Substitute parts can look different from the original.
$49.09
In Stock
Charcoal Filter 56001084
#20

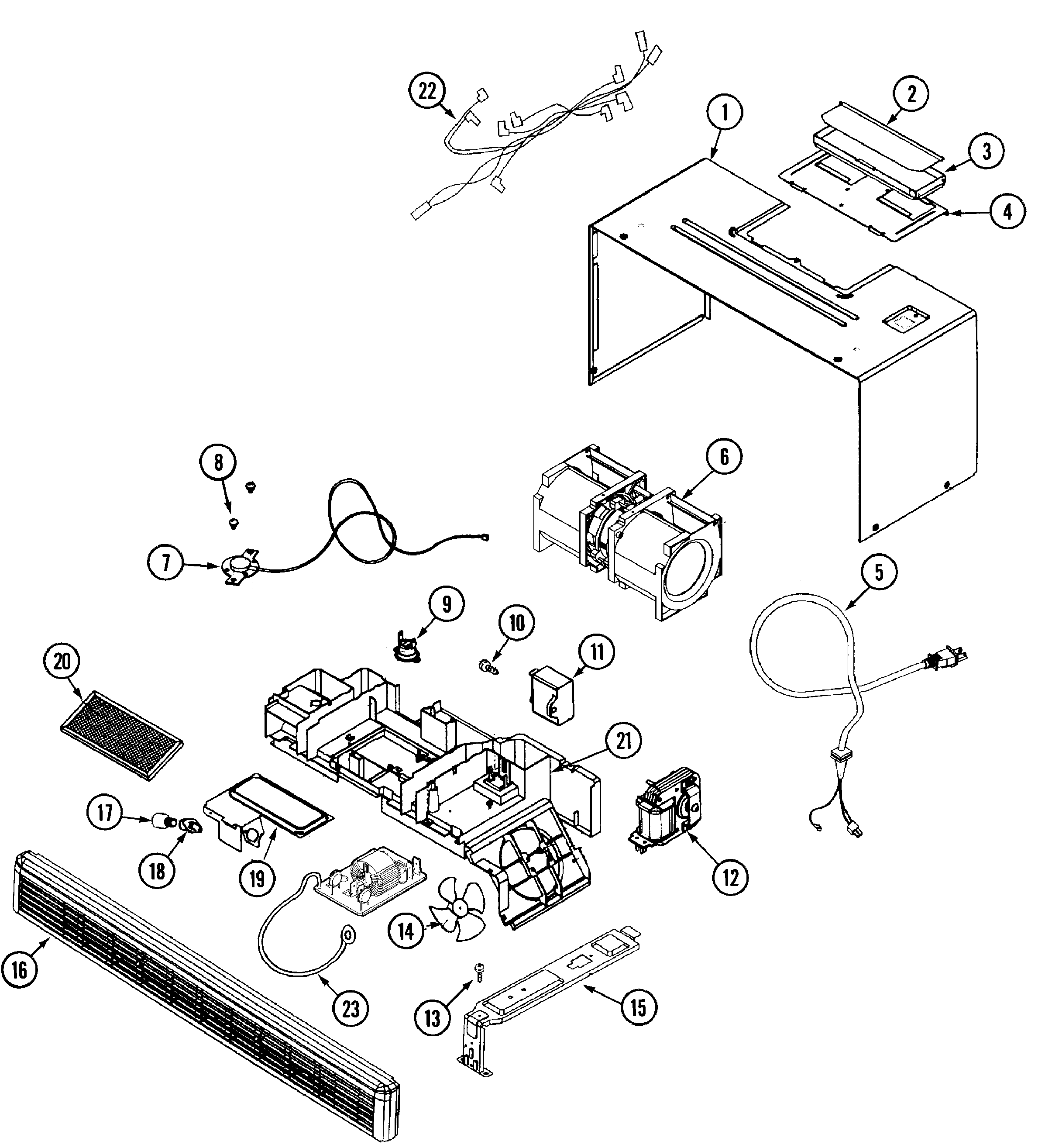

Cabinet & ventilation diagram

Charcoal filter

Part #56001084

Replaced by #WP56001084

?
Manufacturer substitution
This part replaces 56001084. Substitute parts can look different from the original.
$16.47
In Stock
