Model # JNM3160DF1BB Official GE microwave

Here are the diagrams and repair parts for Official GE JNM3160DF1BB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

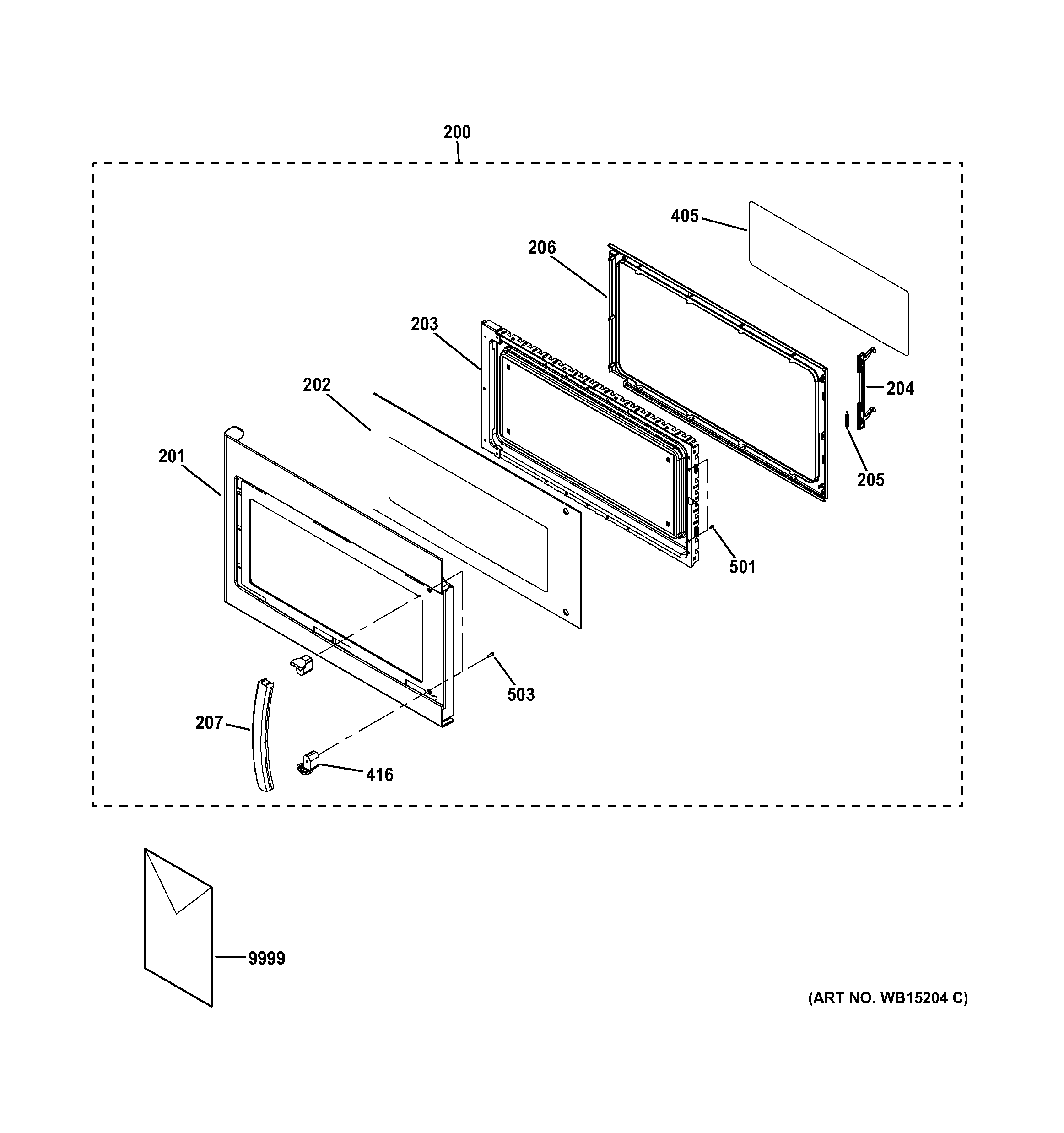

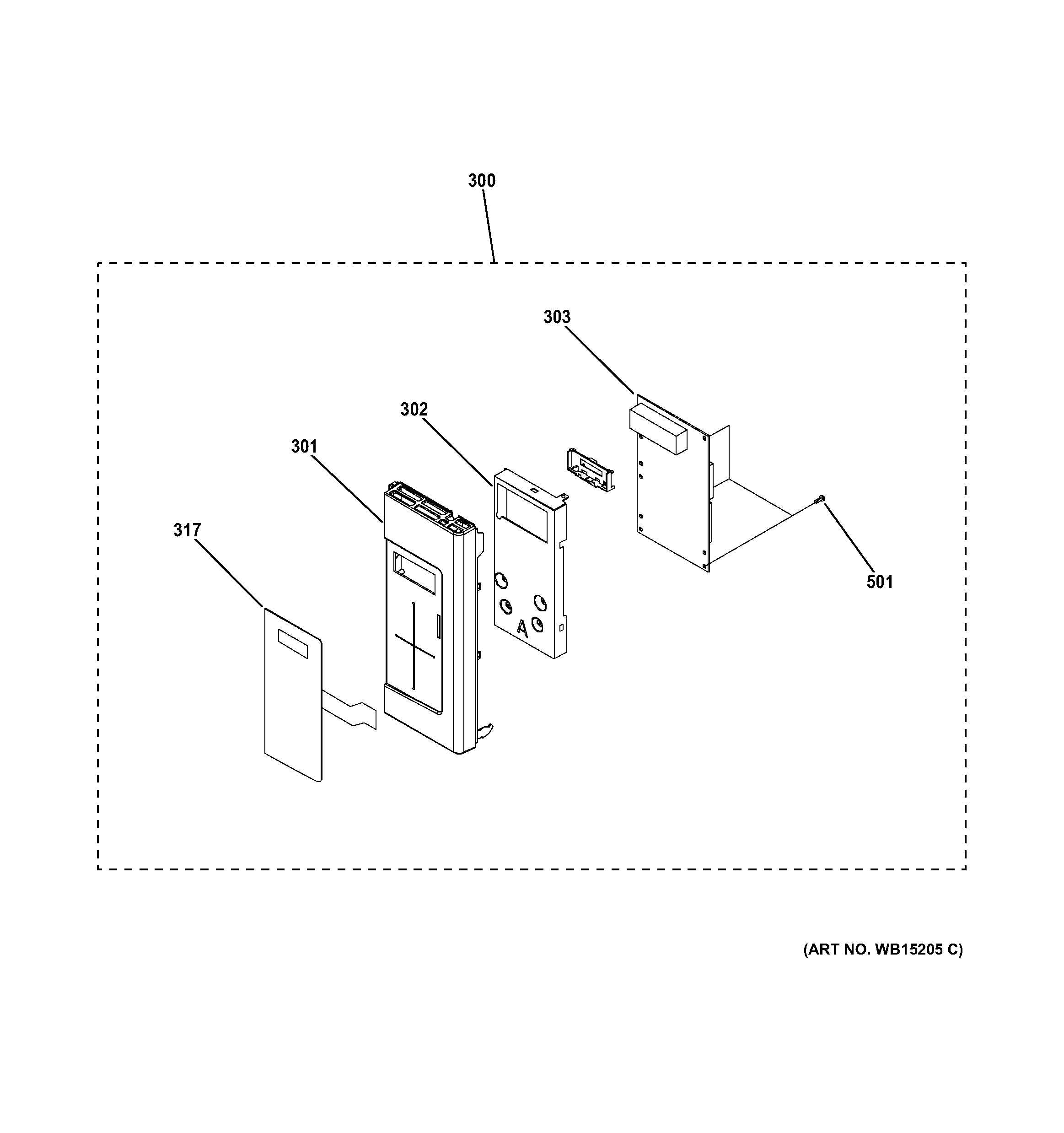

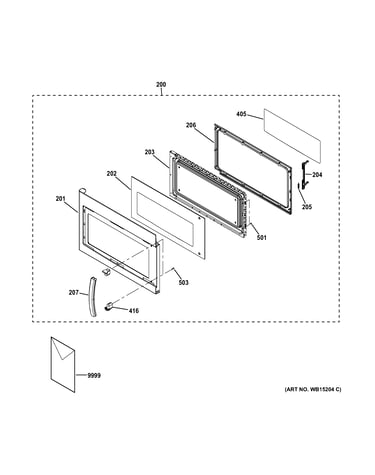

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 68 parts |

Microwave door monitor switch (replaces wb24x10147)

Part #WB24X10205

$57.39 |

8% OFF Phone Price : $62.39

In Stock

Qty

#129

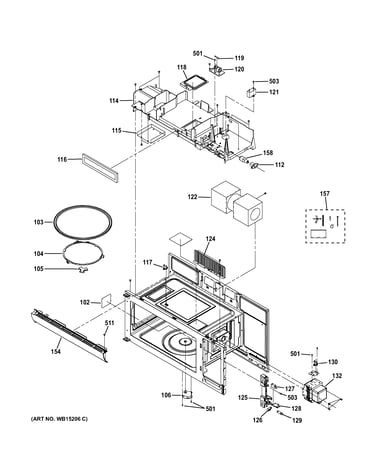

Oven cavity parts diagram

Micro-switch

Part #WB24X10147

Replaced by #WB24X10205

$57.39 |

8% OFF Phone Price : $62.39

In Stock

Qty

#119

Oven cavity parts diagram

Microwave fuse

Part #WB27X11138

$52.47 |

9% OFF Phone Price : $57.47

In Stock

Qty

Microwave Door Interlock Switch (replaces Wb24x10148, Wb24x28940) WB24X10204

#127

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x10148, wb24x28940)

Part #WB24X10204

$55.44 |

8% OFF Phone Price : $60.44

In Stock

Qty

#125

Oven cavity parts diagram

Microwave door latch housing

Part #WB06X10610

$37.31 |

12% OFF Phone Price : $42.31

In Stock

Qty

Microwave Door Interlock Switch Lever WB03X10348

#126

Oven cavity parts diagram

Microwave door interlock switch lever

Part #WB03X10348

$31.87 |

14% OFF Phone Price : $36.87

In Stock

Qty

#130

Oven cavity parts diagram

Microwave thermostat

Part #WB27X11210

$69.28 |

7% OFF Phone Price : $74.28

In Stock

Qty

#120

Oven cavity parts diagram

Microwave noise filter

Part #WB27X11140

$136.07 |

10% OFF Was : $151.19

In Stock

Qty

#106

Oven cavity parts diagram

Microwave turntable motor

Part #WB26X10176

Replaced by #WB26X32190

$51.05 |

9% OFF Phone Price : $56.05

In Stock

Qty

Microwave High-voltage Capacitor WB27X11214

#141

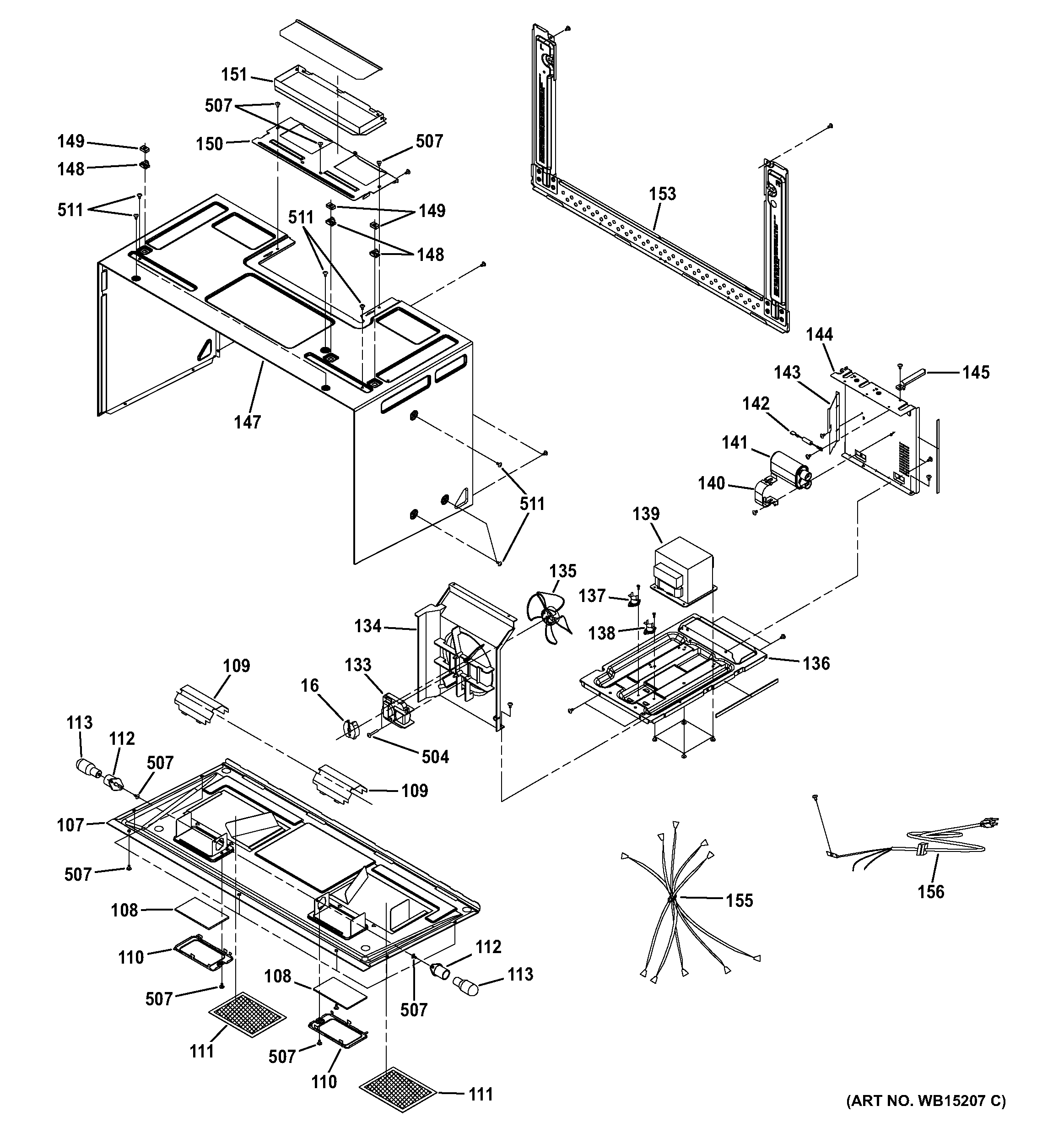

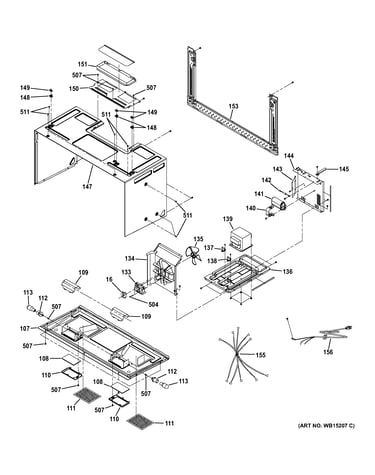

Interior parts diagram

Microwave high-voltage capacitor

Part #WB27X11214

$109.31 |

8% OFF Phone Price : $119.31

In Stock

Qty
