Sharp R-490AK microwave

Sharp R-490AK microwave Parts

Here are the diagrams and repair parts for Sharp R-490AK microwave, as well as links to manuals and error code tables, if available.

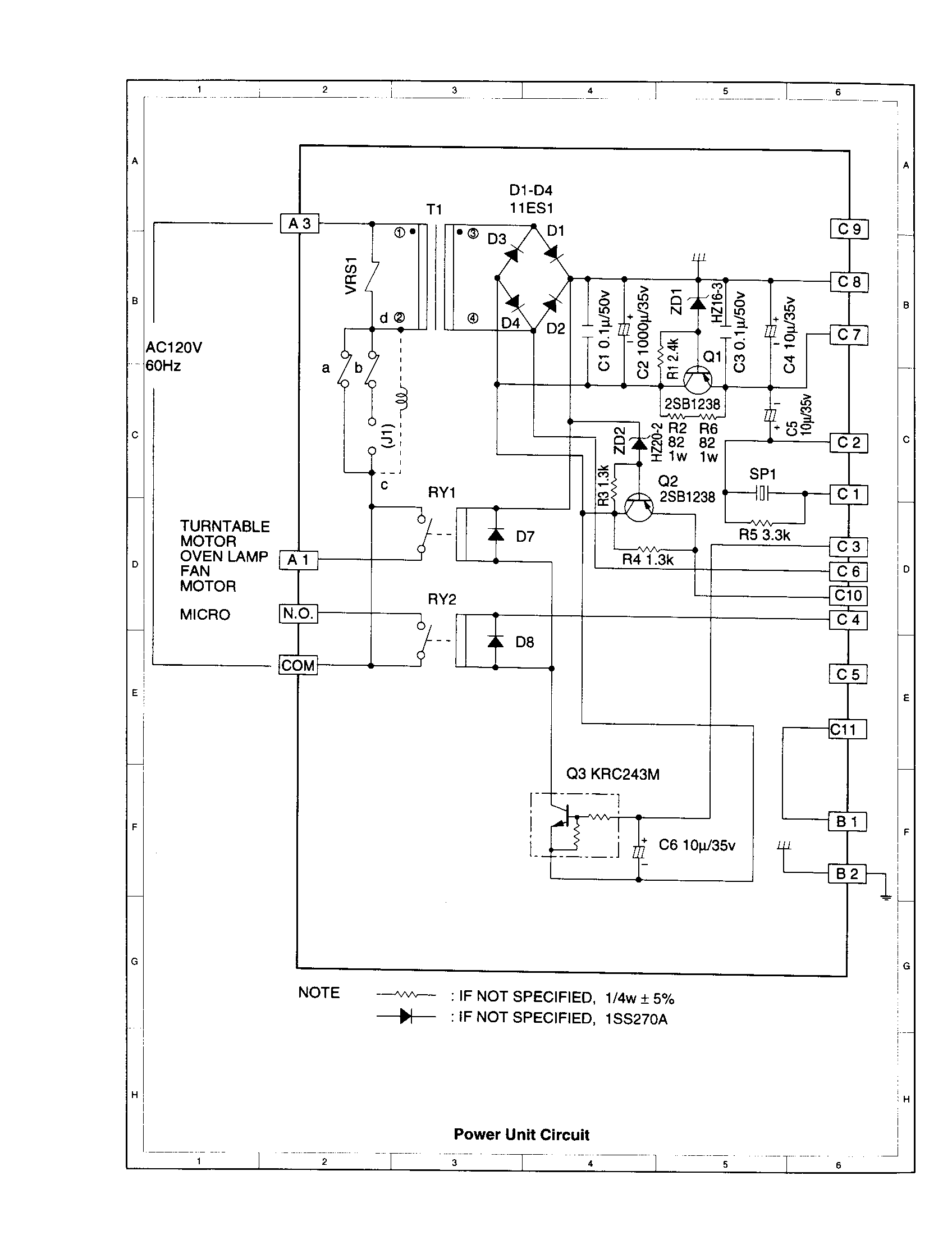

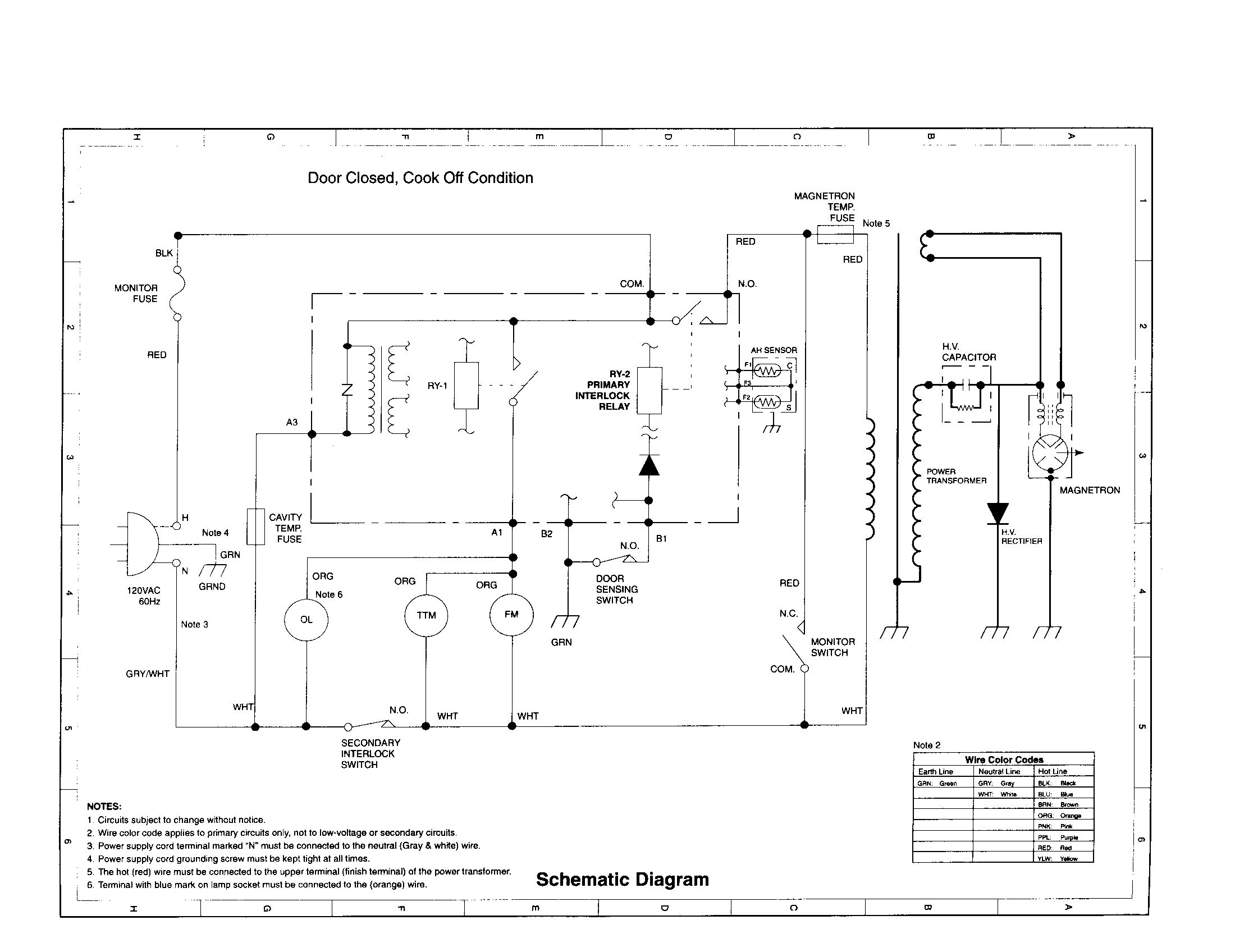

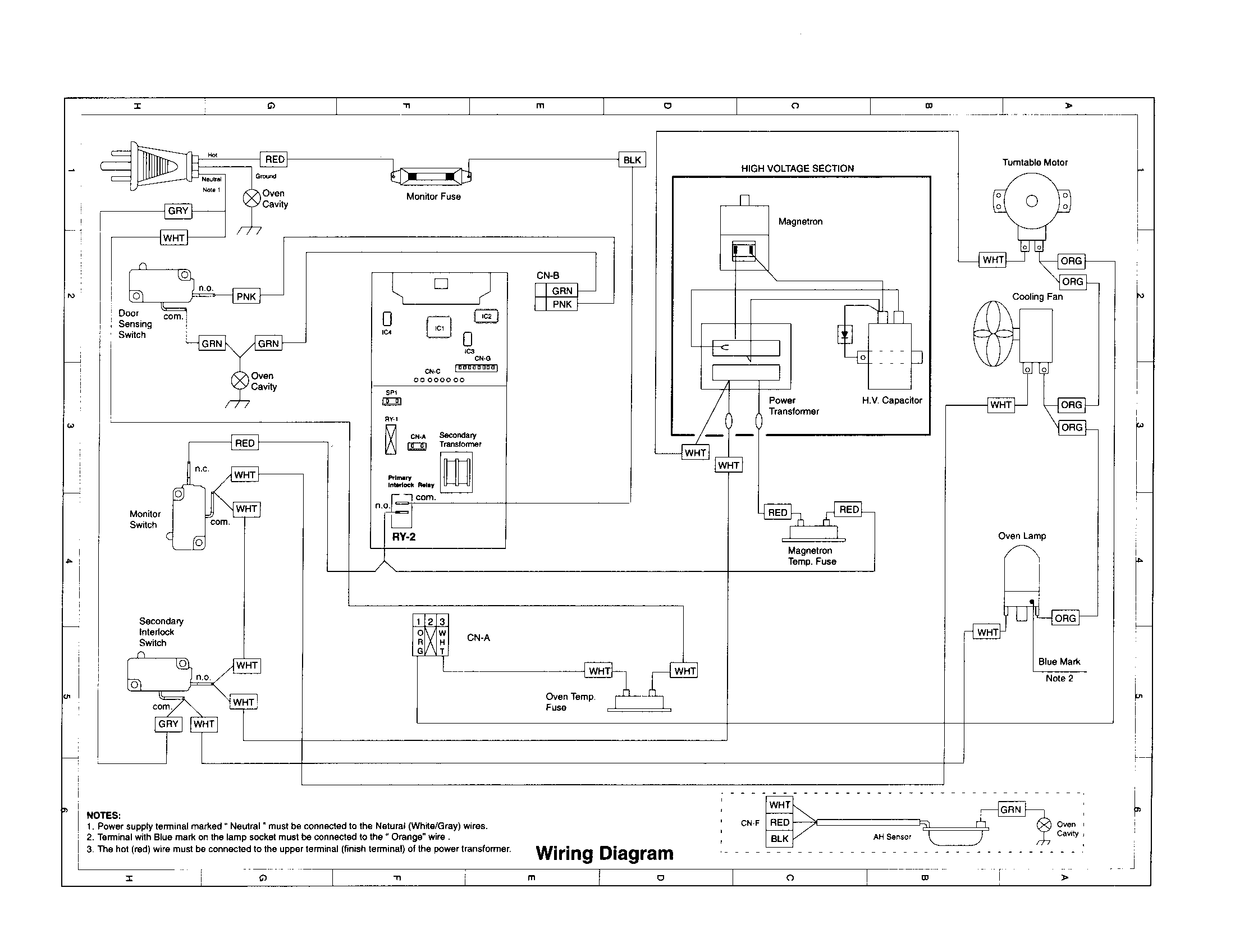

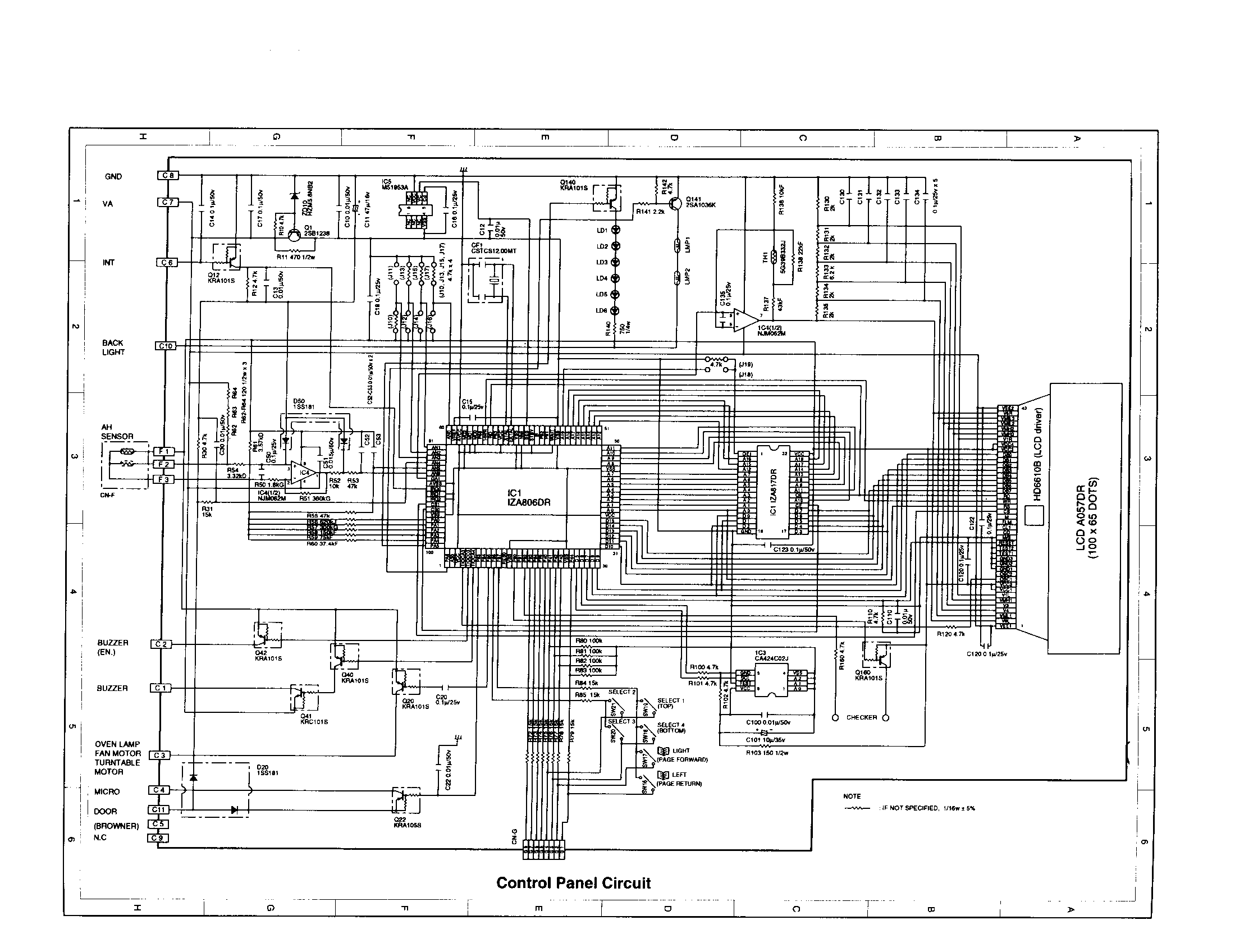

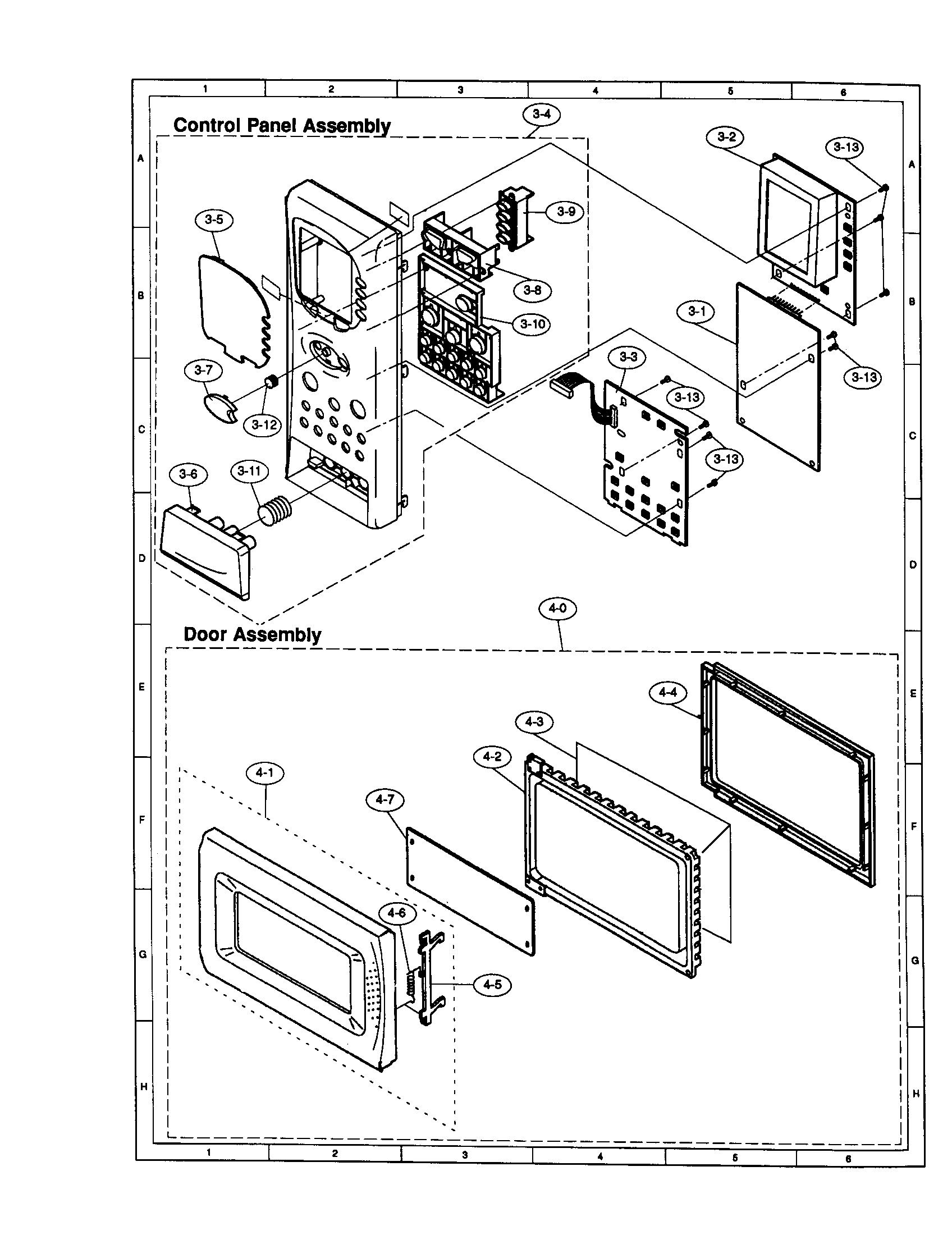

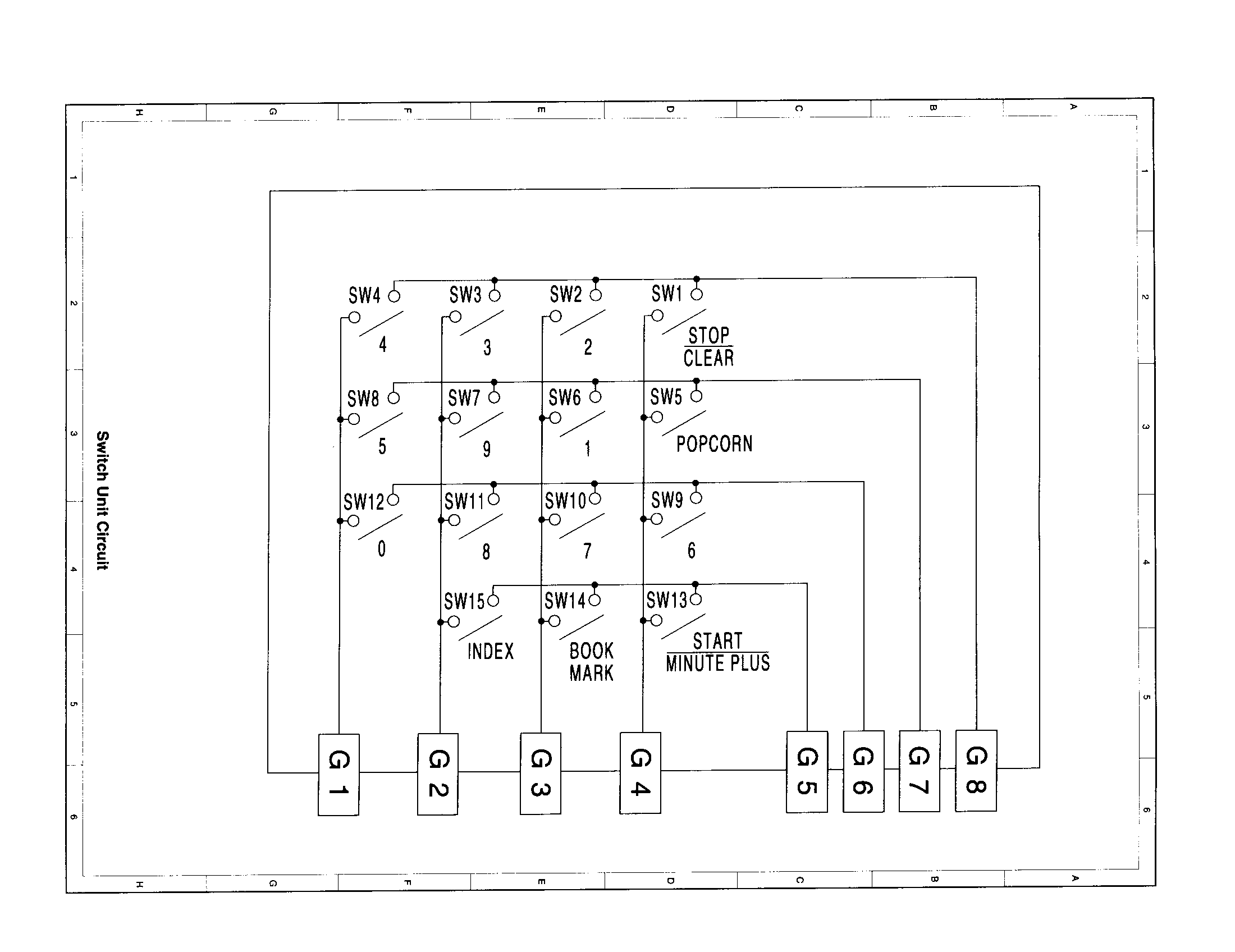

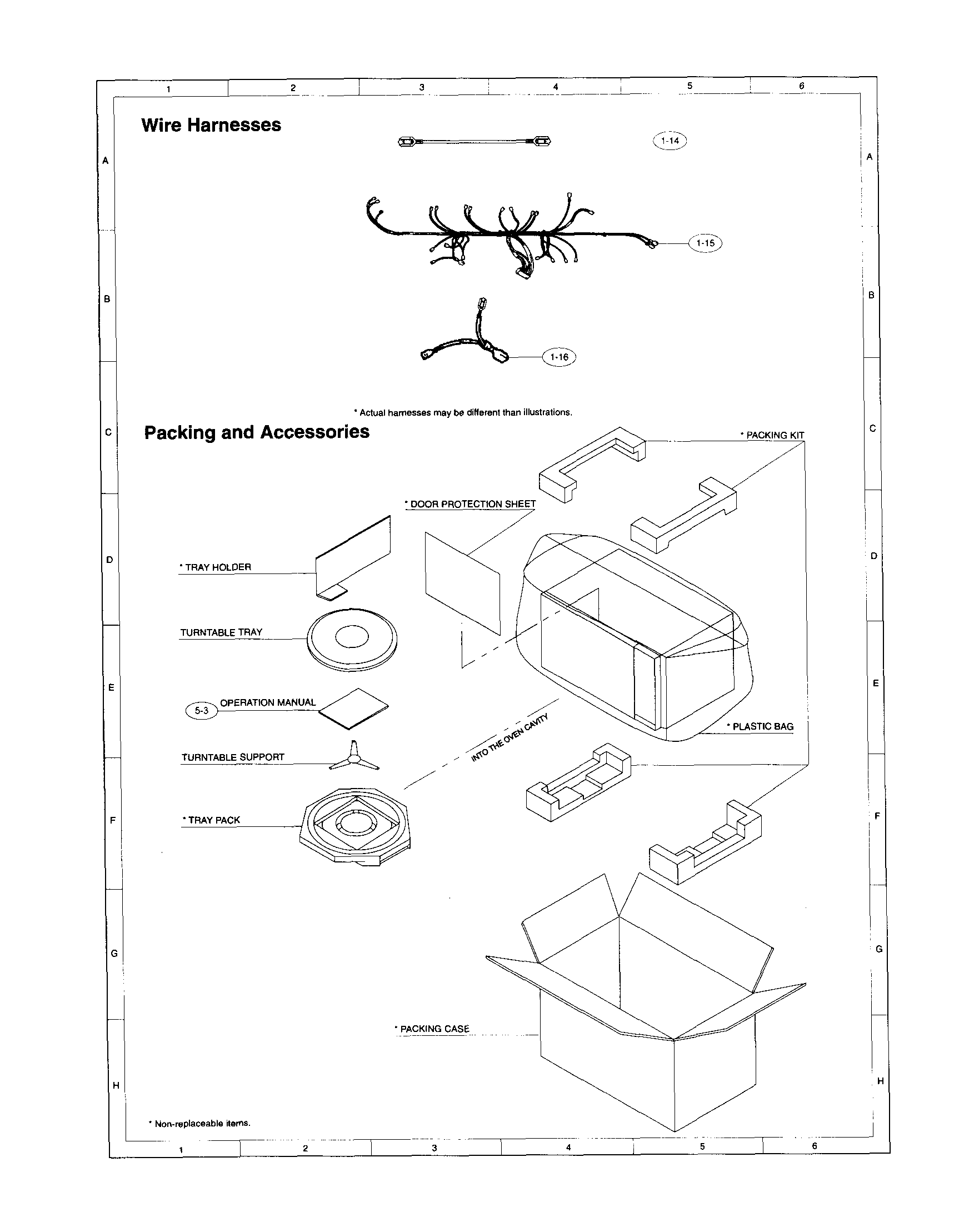

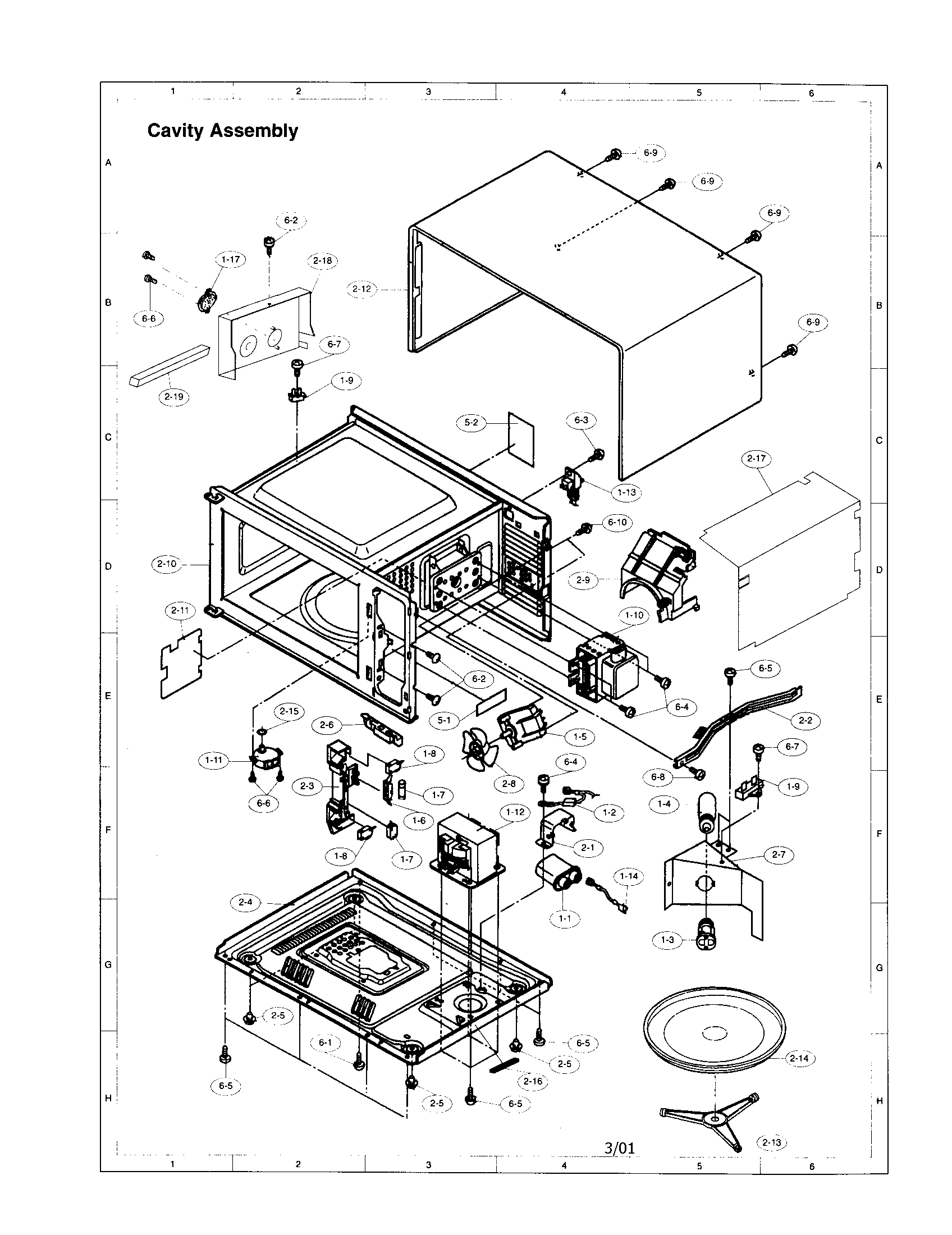

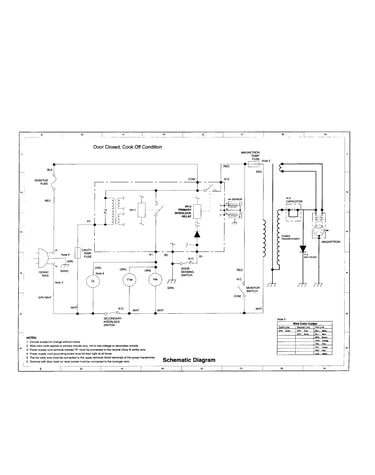

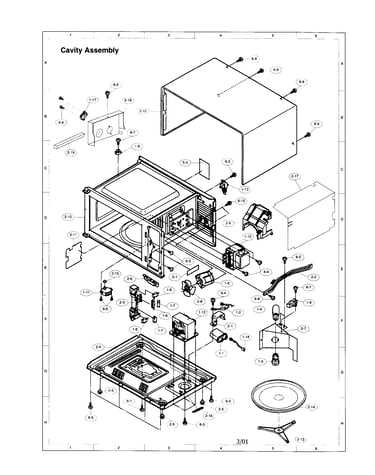

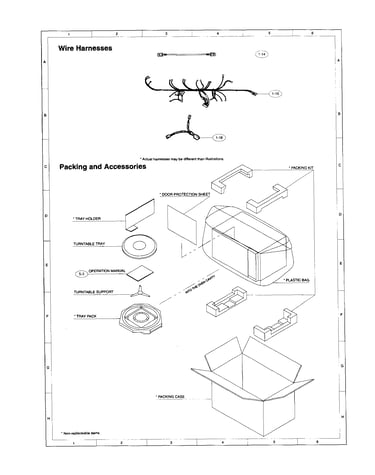

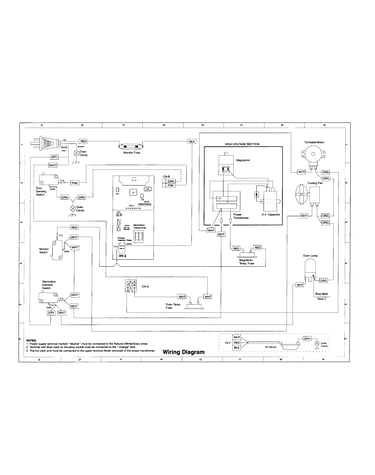

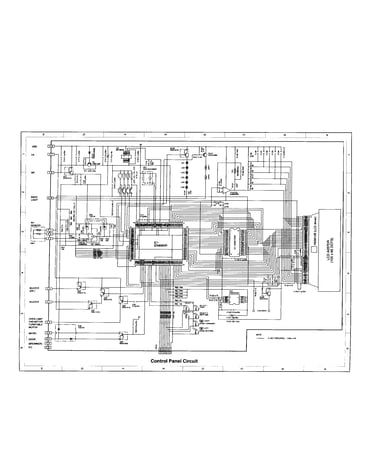

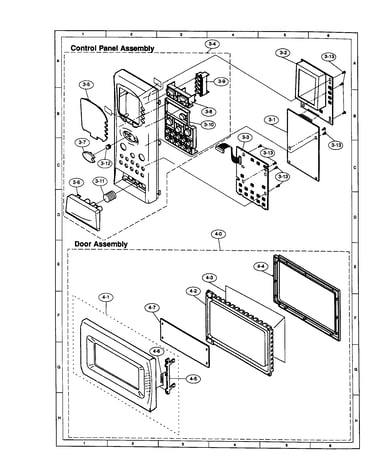

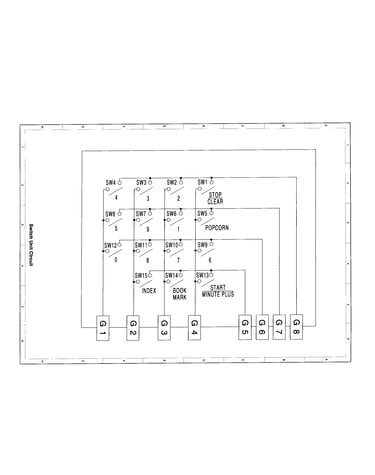

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-490AK Microwaves

  • Switch for Sharp R-490AK - Part QSW-MA110WRE0

    #1-08

    All parts diagram

    Switch

    Part #QSW-MA110WRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Latch Hook for Sharp R-490AK - Part PHOK-B013MRF0

    #2-03

    All parts diagram

    Latch Hook

    Part #PHOK-B013MRF0

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay for Sharp R-490AK - Part RRLY-A080DRE0

    #NI

    All parts diagram

    Relay

    Part #RRLY-A080DRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Sharp R-490AK - Part VRS-B13AA820J

    #NI

    All parts diagram

    Resistor

    Part #VRS-B13AA820J

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for Sharp R-490AK - Part FFS-BA016/KIT

    #1-07

    All parts diagram

    Switch

    Part #FFS-BA016/KIT

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp Socket for Sharp R-490AK - Part QSOCLB006MRE0

    #1-03

    All parts diagram

    Lamp Socket

    Part #QSOCLB006MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder for Sharp R-490AK - Part QFSHDB003MRE0

    #1-06

    All parts diagram

    Fuse Holder

    Part #QFSHDB003MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Sharp R-490AK - Part VCEAB31VW108M

    #NI

    All parts diagram

    Capacitor

    Part #VCEAB31VW108M

    The manufacturer no longer makes this part, and there's no substitute part

  • Sealer Fil for Sharp R-490AK - Part PSHEPB021MRE0

    #4-03

    All parts diagram

    Sealer Fil

    Part #PSHEPB021MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermal Cu for Sharp R-490AK - Part QFS-TB006MRE0

    #1-09

    All parts diagram

    Thermal Cu

    Part #QFS-TB006MRE0

    The manufacturer no longer makes this part, and there's no substitute part
