Model # JVM1665SN1SS Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1665SN1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

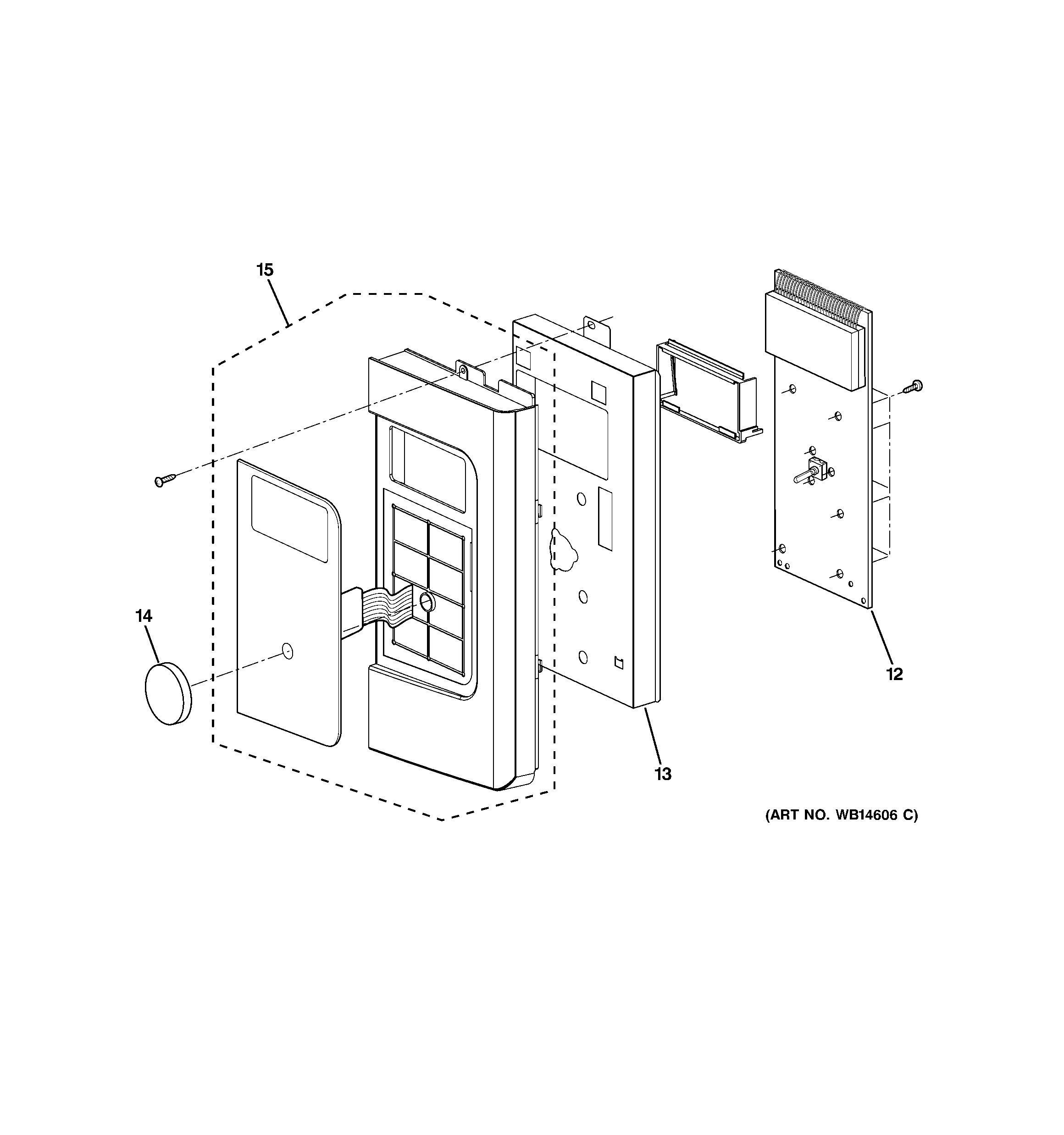

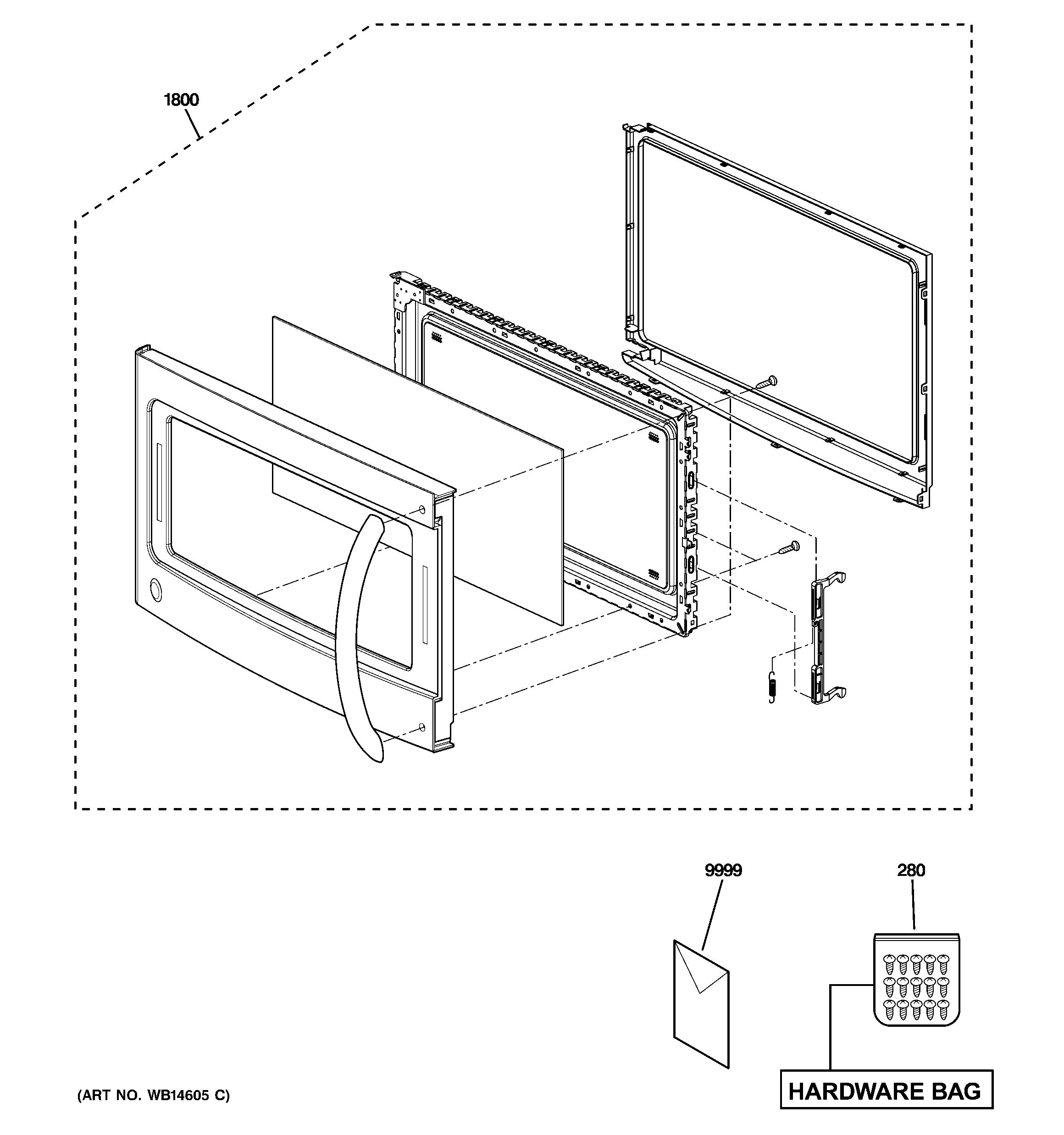

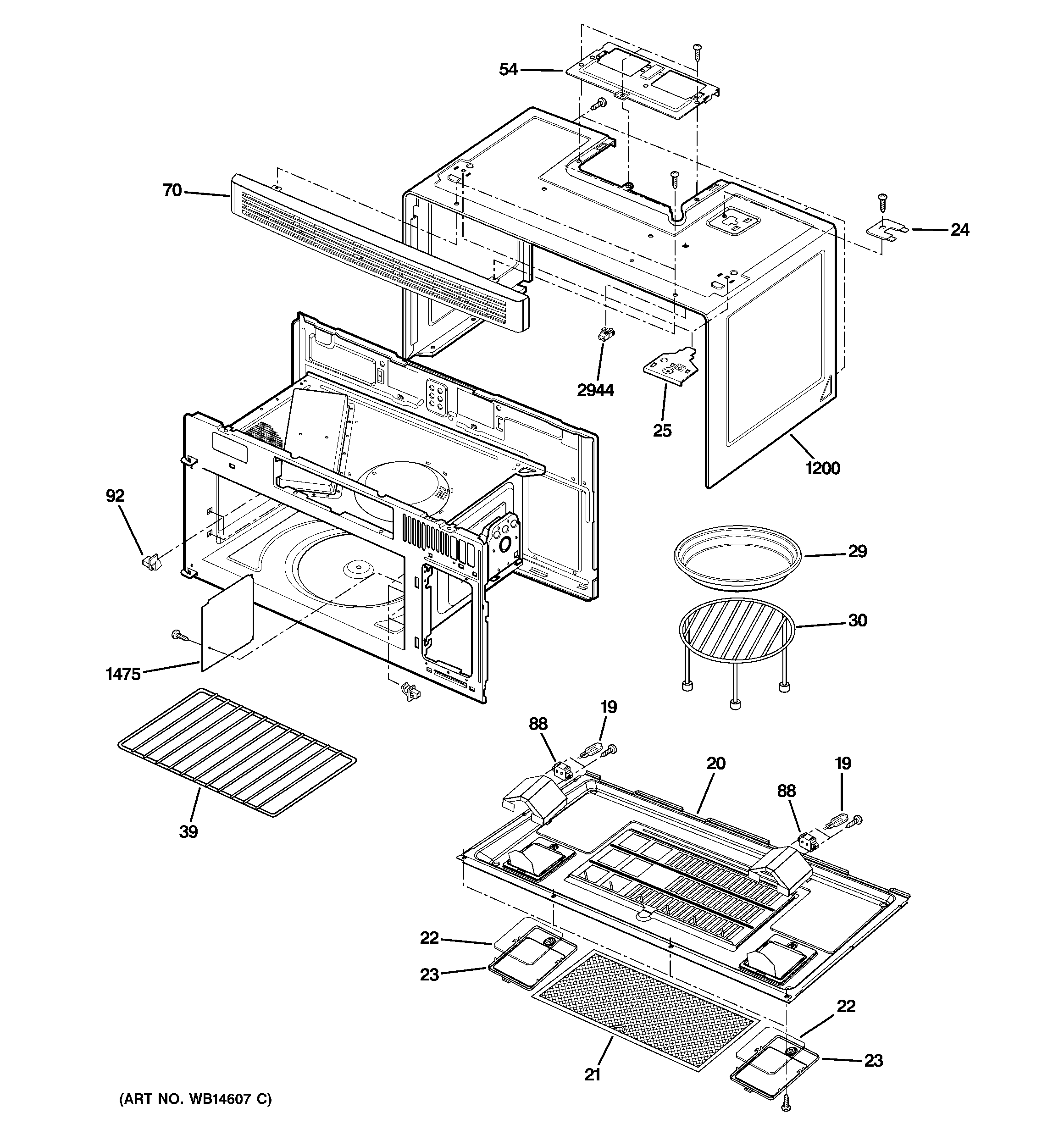

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Microwave Fuse (replaces Wb27x10388) WB27X10928
#47

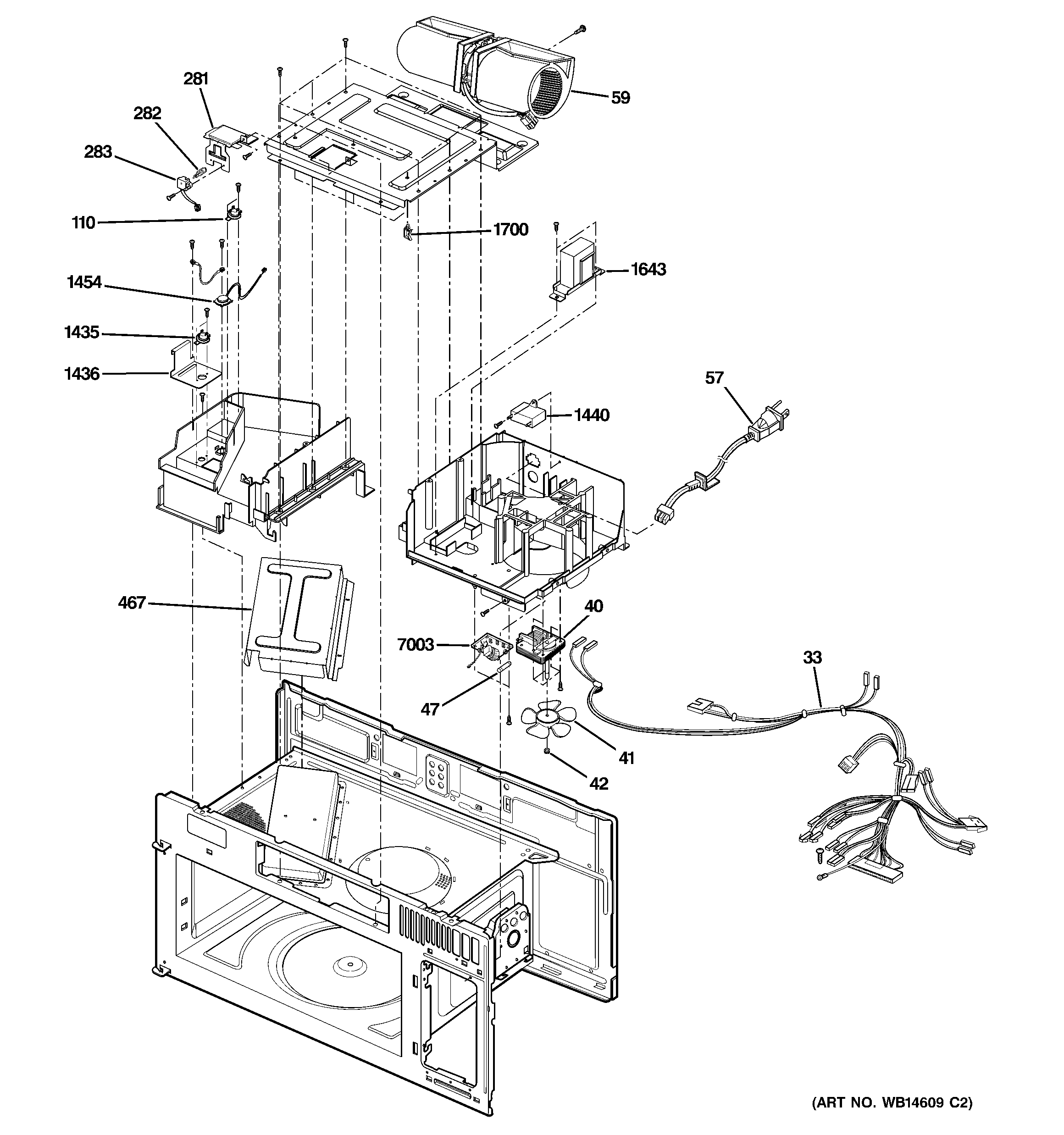

Interior parts (2) diagram

Microwave fuse (replaces wb27x10388)

Part #WB27X10928

BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb27x10892, Wb27x10965, Wb27x11035) WB27X10930
#50

Interior pats (1) diagram

Microwave high-voltage diode (replaces wb27x10892, wb27x10965, wb27x11035)

Part #WB27X10930

Replaced by #WB27X35382

?
Manufacturer substitution
This part replaces WB27X10930. Substitute parts can look different from the original.
BEST SELLER
$19.87
In Stock
Drive Capacitor WB27X10701
#1438

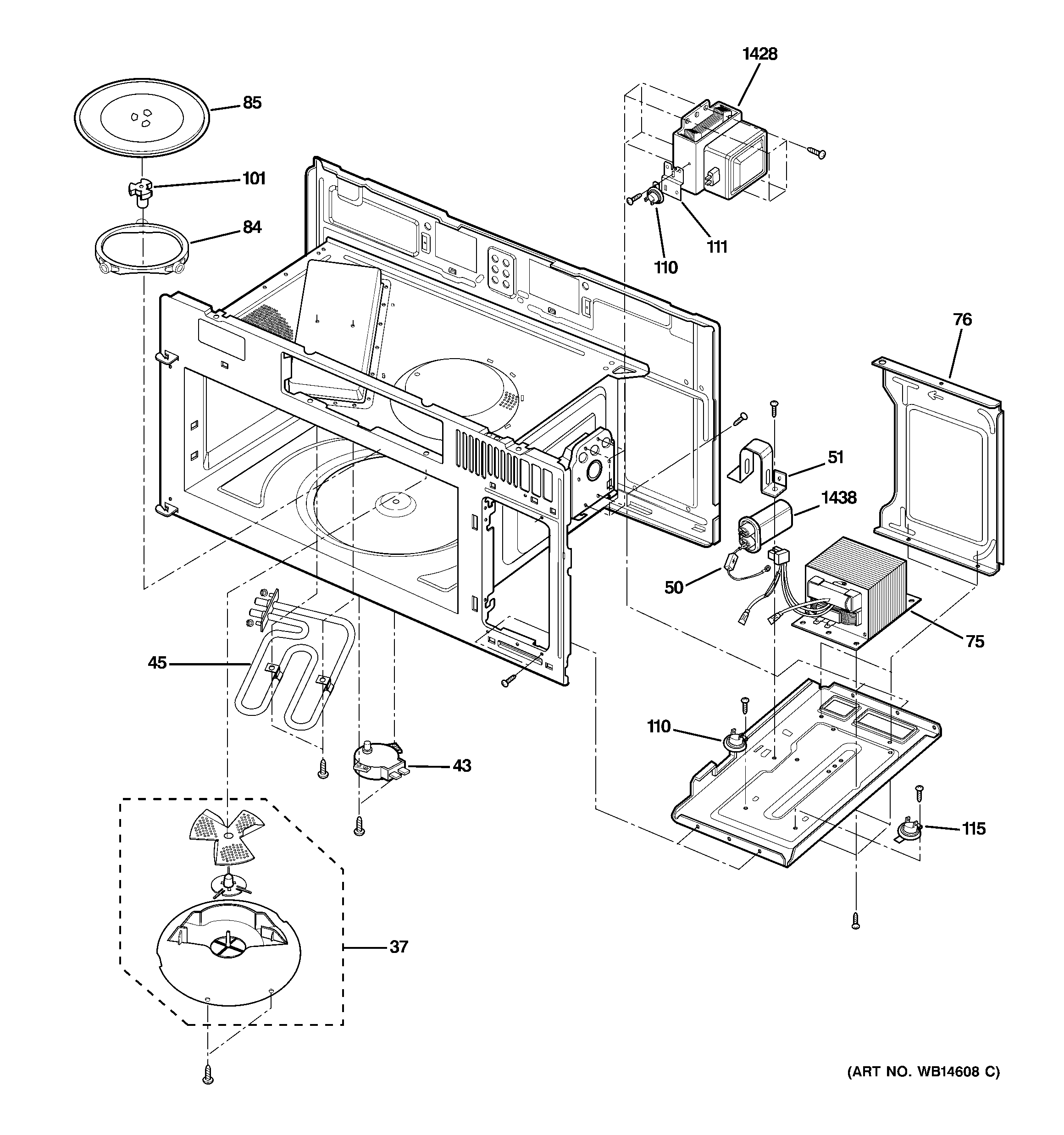

Interior pats (1) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Monitor Switch WB24X0817
#1445

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
BEST SELLER
$22.56 |
18% OFF Phone Price : $27.56
In Stock
Microwave Mounting Plate (replaces Wb56x10204) WB56X10669
#9001

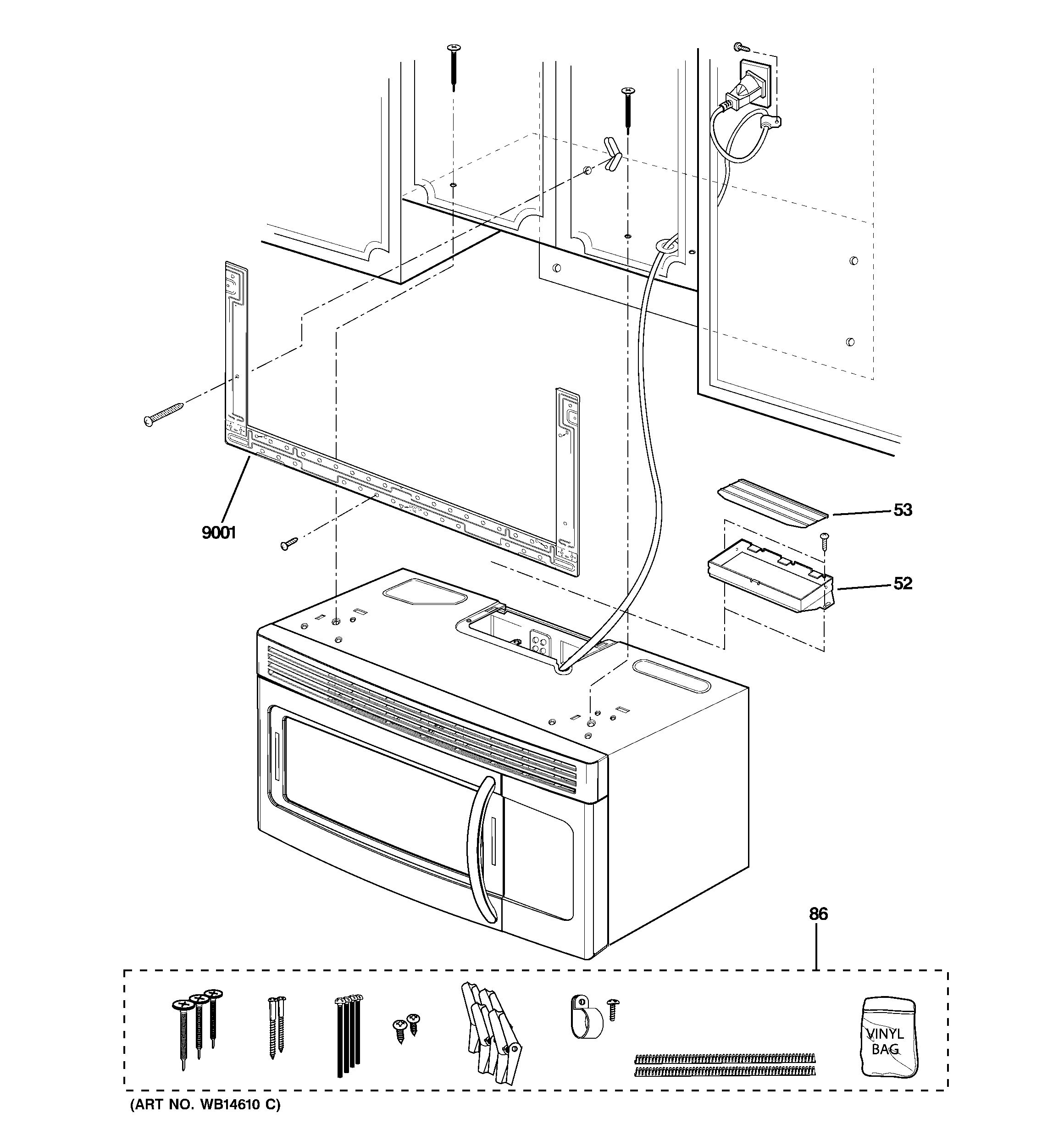

Installation parts diagram

Microwave mounting plate (replaces wb56x10204)

Part #WB56X10669

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10669. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
19% OFF Phone Price : $25.80
In Stock
Microwave Thermal Cut-off (replaces Wb20x10007) WB21X10149
#1435

Interior parts (2) diagram

Microwave thermal cut-off (replaces wb20x10007)

Part #WB21X10149

$12.60 |
14% OFF Phone Price : $14.60
In Stock
Microwave Humidity Sensor WB27X10857
#1454

Interior parts (2) diagram

Microwave humidity sensor

Part #WB27X10857

$88.55 |
5% OFF Phone Price : $93.55
In Stock
Microwave Vent Damper WB06X10686
#53

Installation parts diagram

Microwave vent damper

Part #WB06X10686

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lamp 12v 20w WB36X10176
#282

Interior parts (2) diagram

Lamp 12v 20w

Part #WB36X10176

Replaced by #WB01X10239

?
Manufacturer substitution
This part replaces WB36X10176. Substitute parts can look different from the original.
$27.25 |
16% OFF Phone Price : $32.25
In Stock
Microwave Thermal Cut-off WB27X10932
#115

Interior pats (1) diagram

Microwave thermal cut-off

Part #WB27X10932

This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
