Kenmore Elite
Microwave/Hood Combo

Model # 72180802401 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 72180802401 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

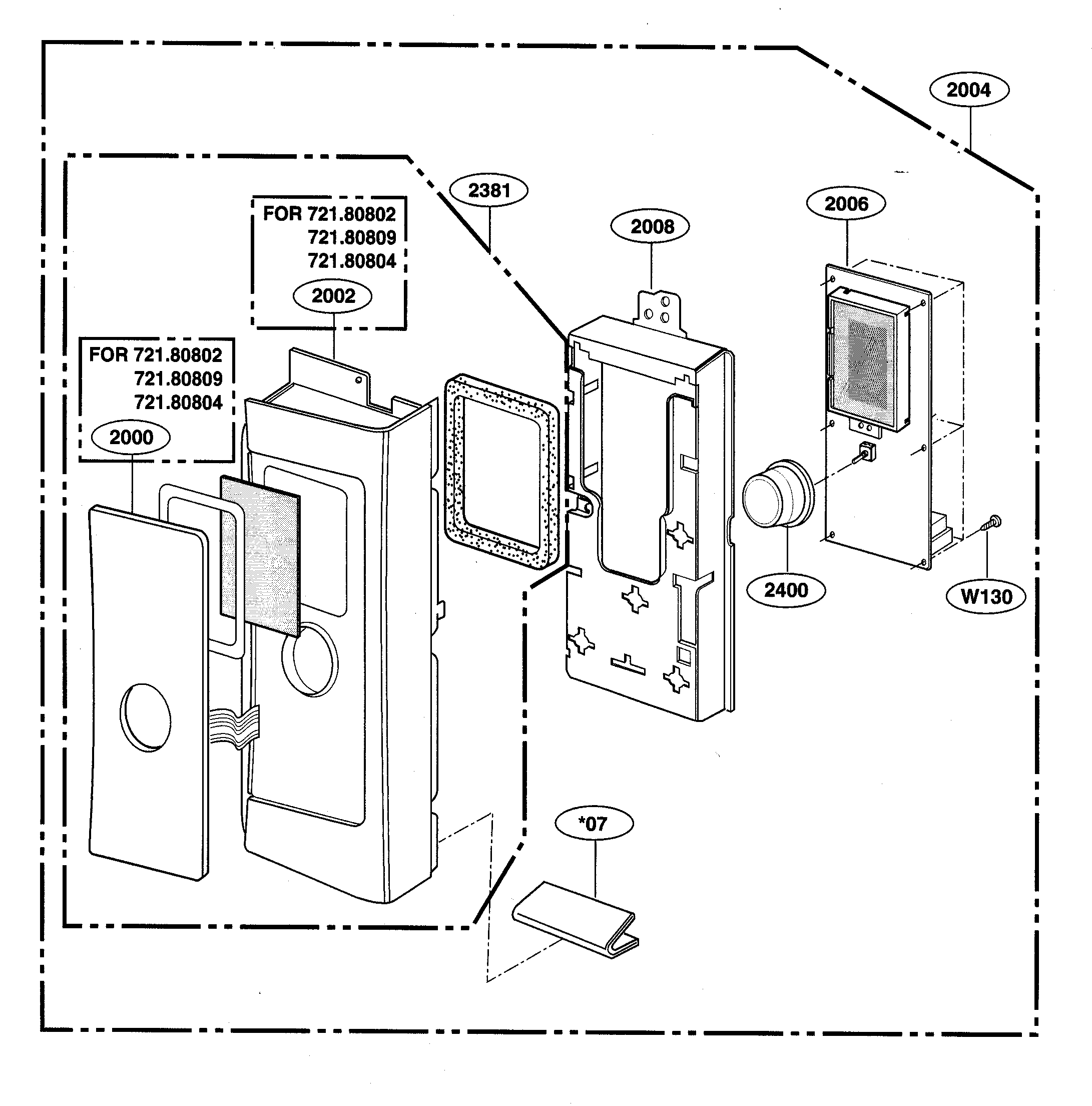

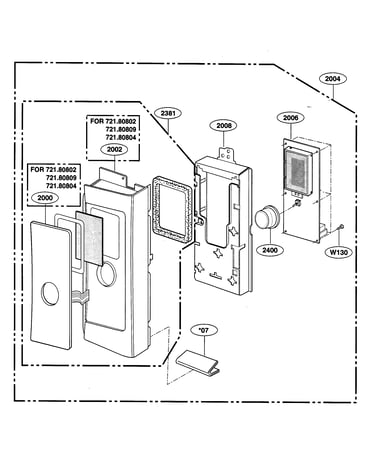

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

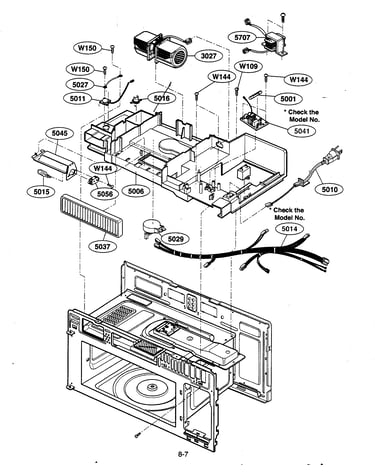

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
Grease Filter 2B72705B
#3026

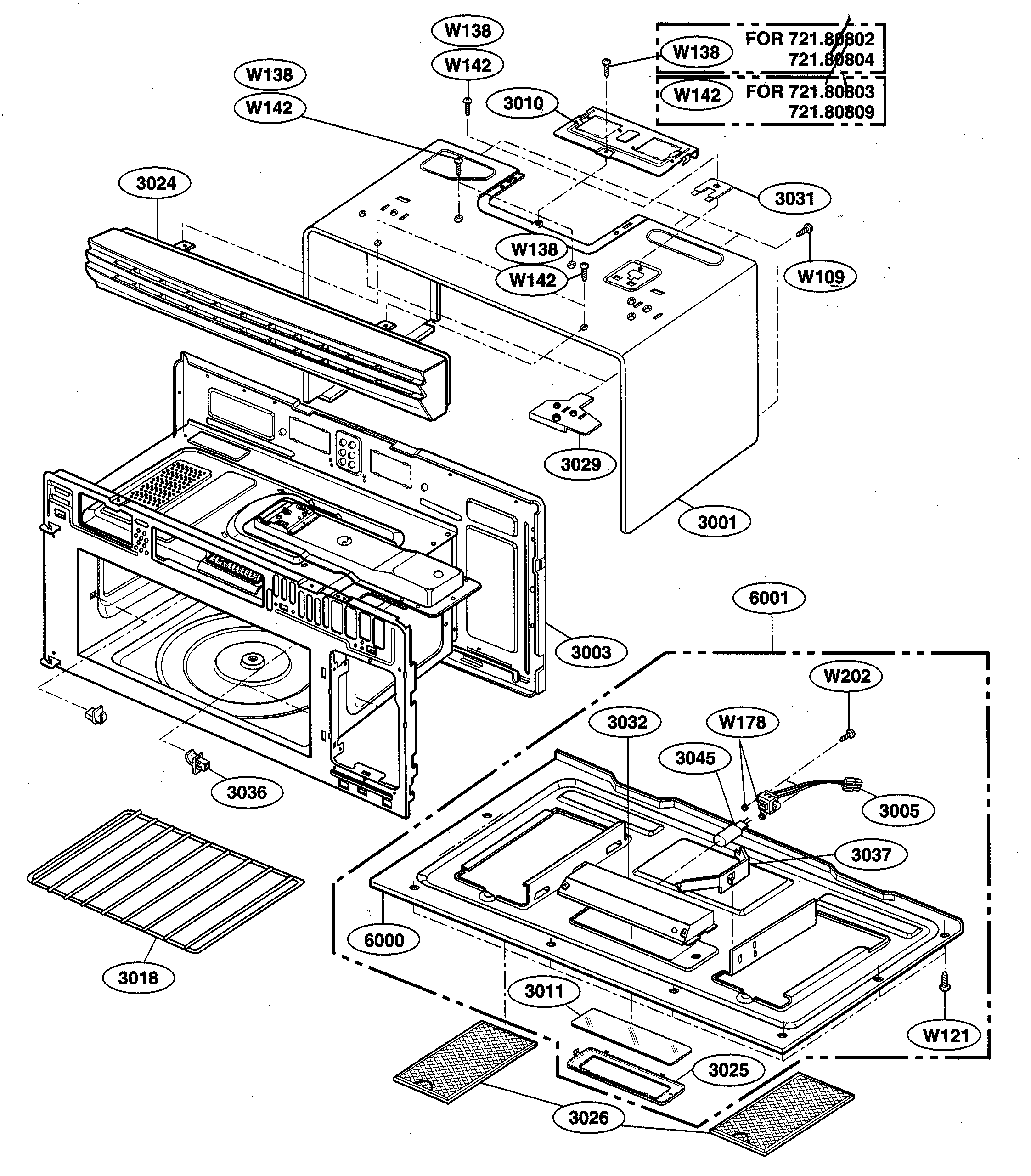

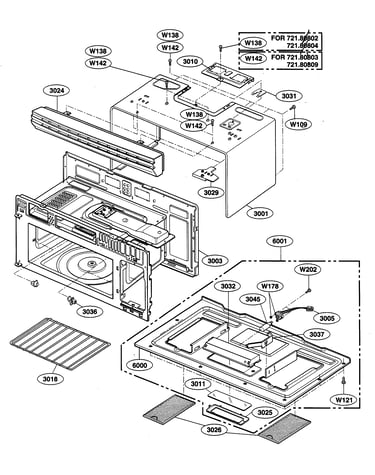

Oven cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Microwave Magnetron 6324W1A001E
#5009

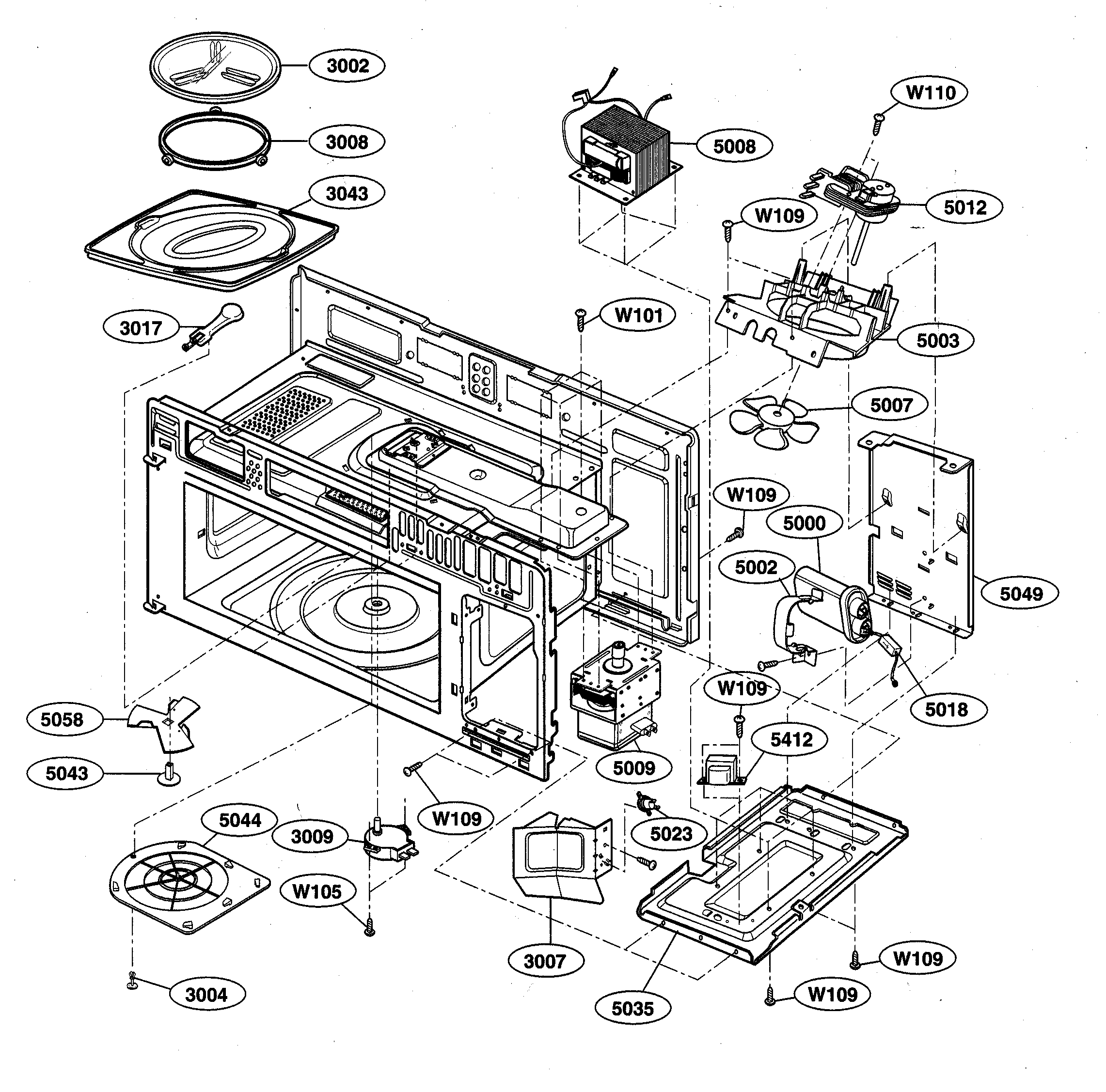

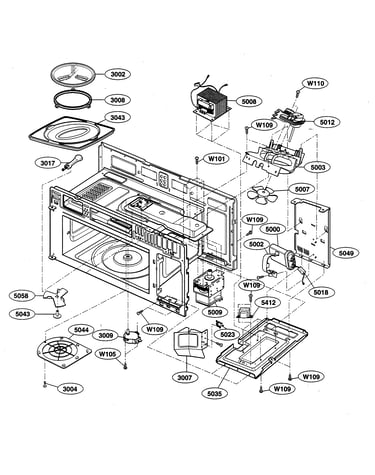

Interior parts 1 diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Micro-switch 6600W1K004B
#4003

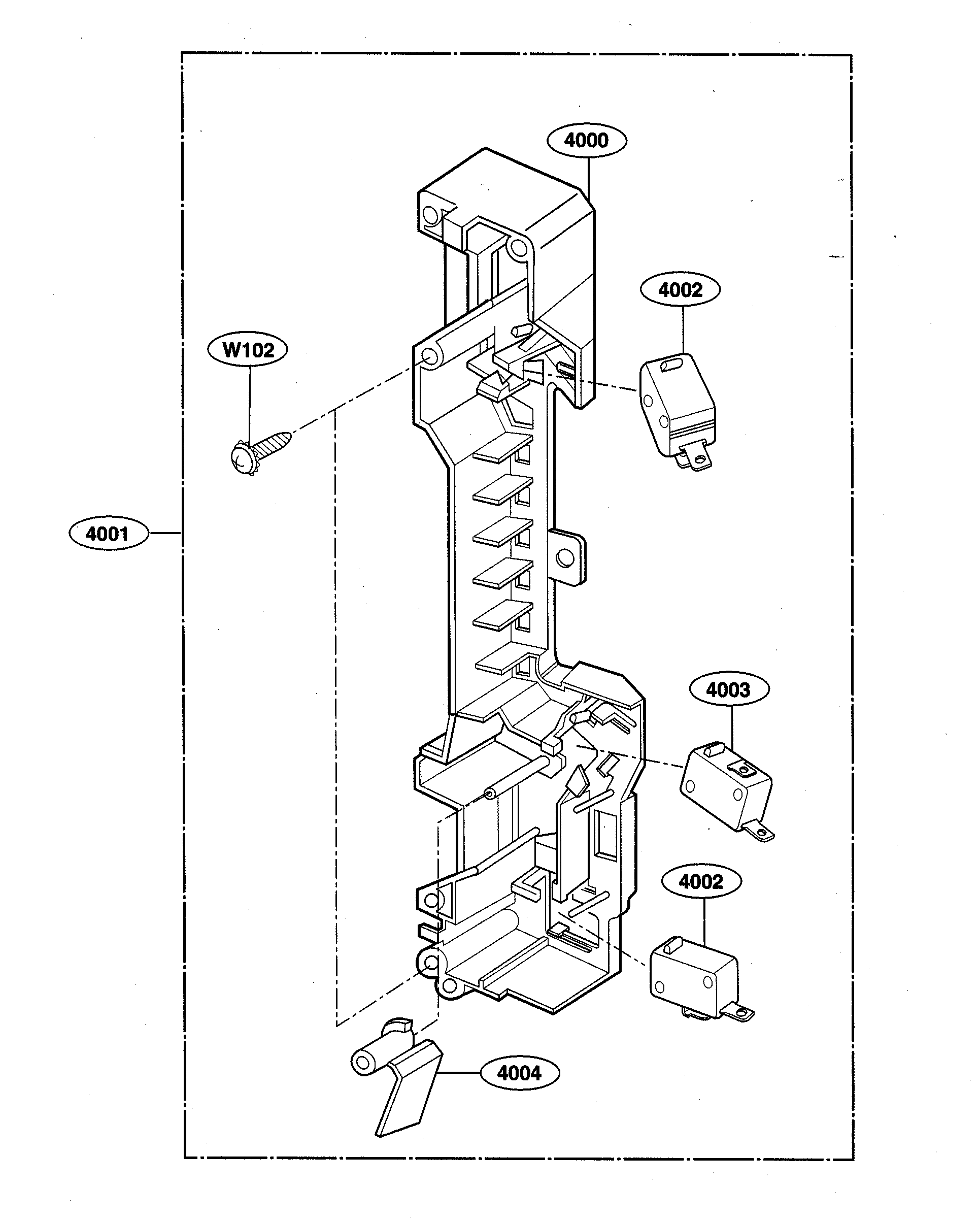

Latch board diagram

Microwave micro-switch

Part #6600W1K004B

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 6600W1K004B. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave Micro-switch 6600W1K004C
#4002

Latch board diagram

Microwave micro-switch

Part #6600W1K004C

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K004C. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A016M
#4001

Latch board diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A016M

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse 3B74133K
#5001

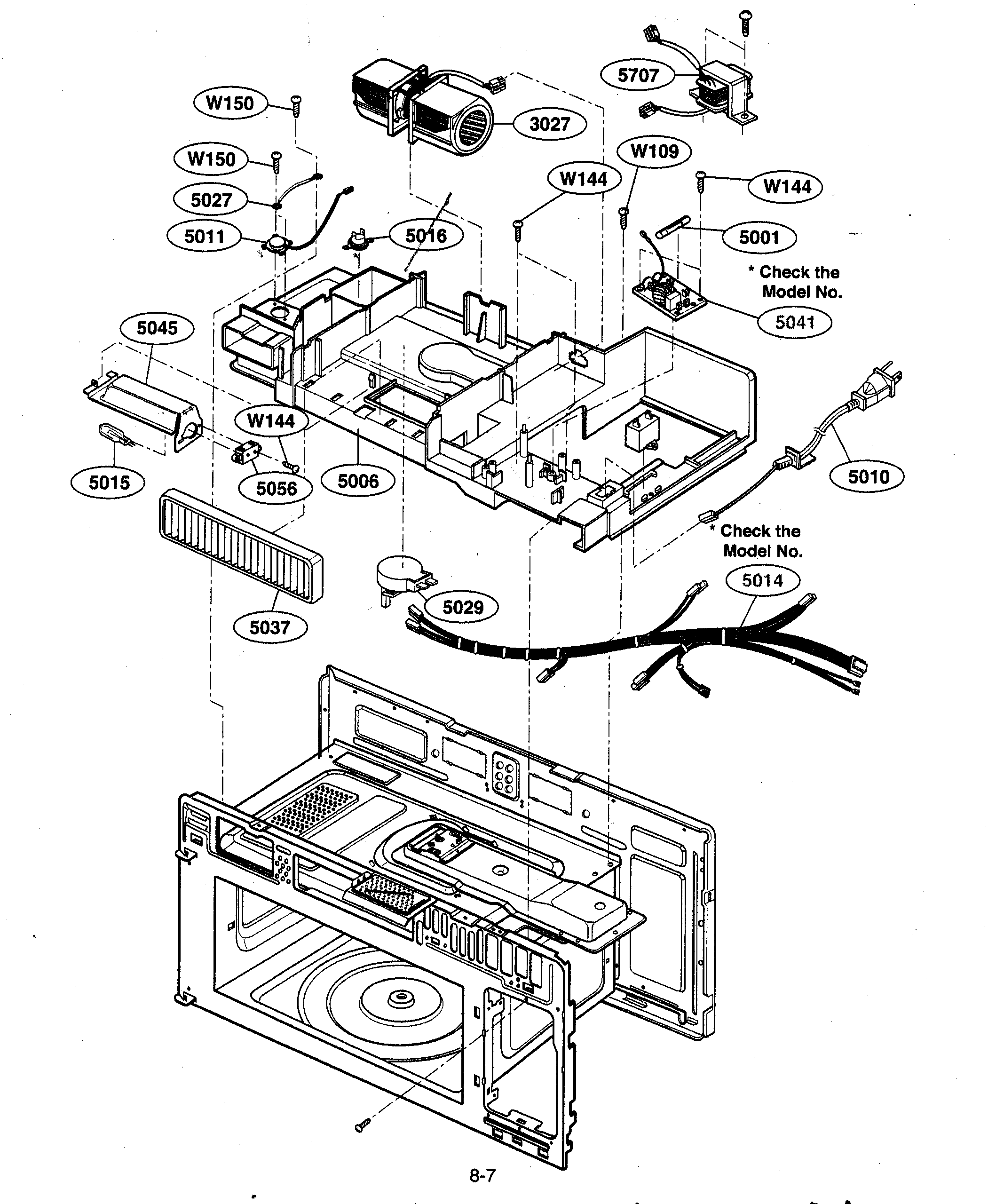

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

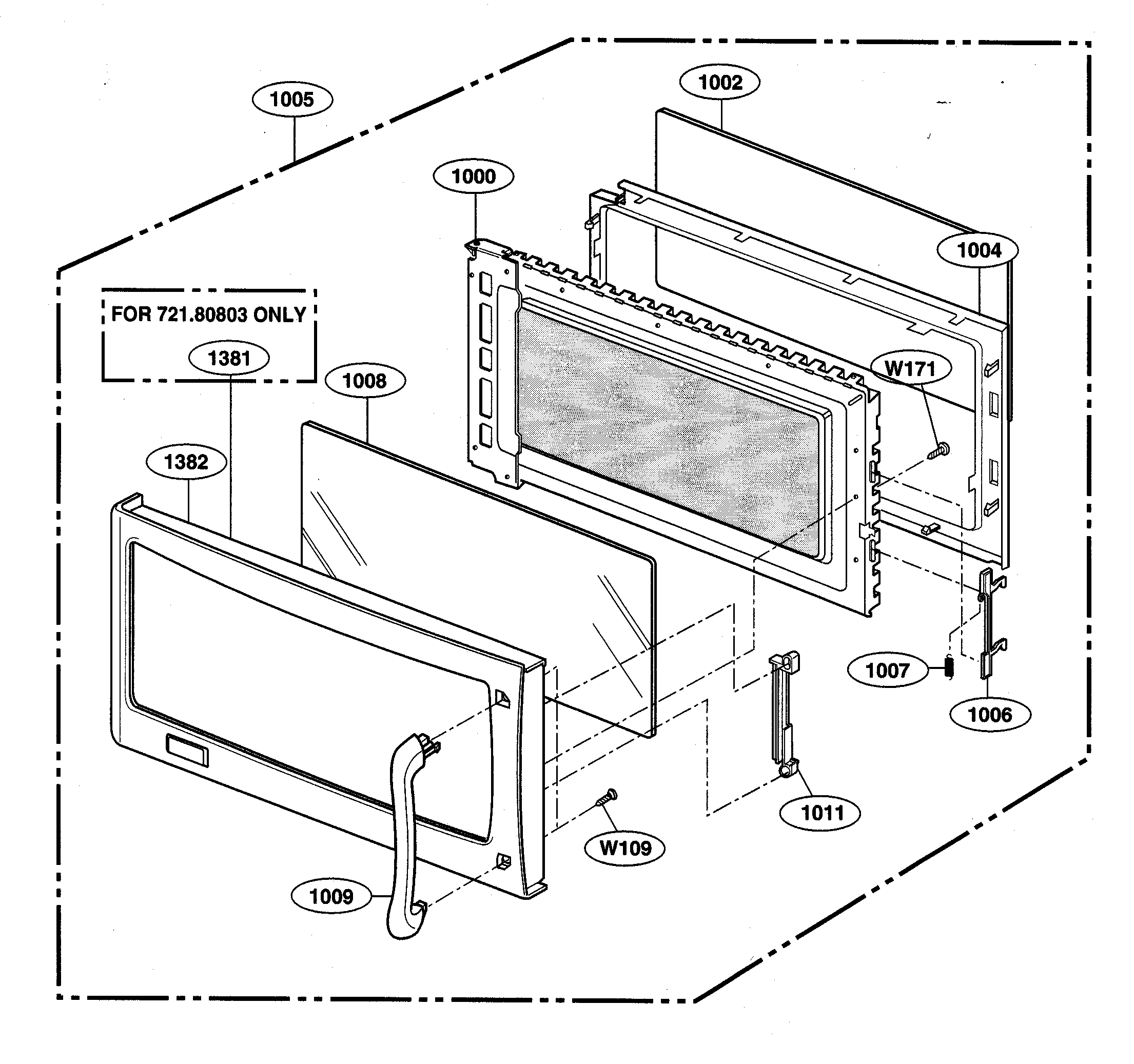

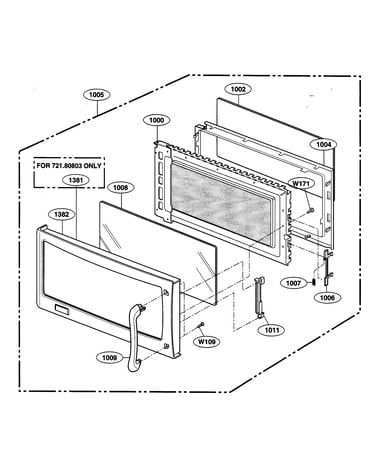

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

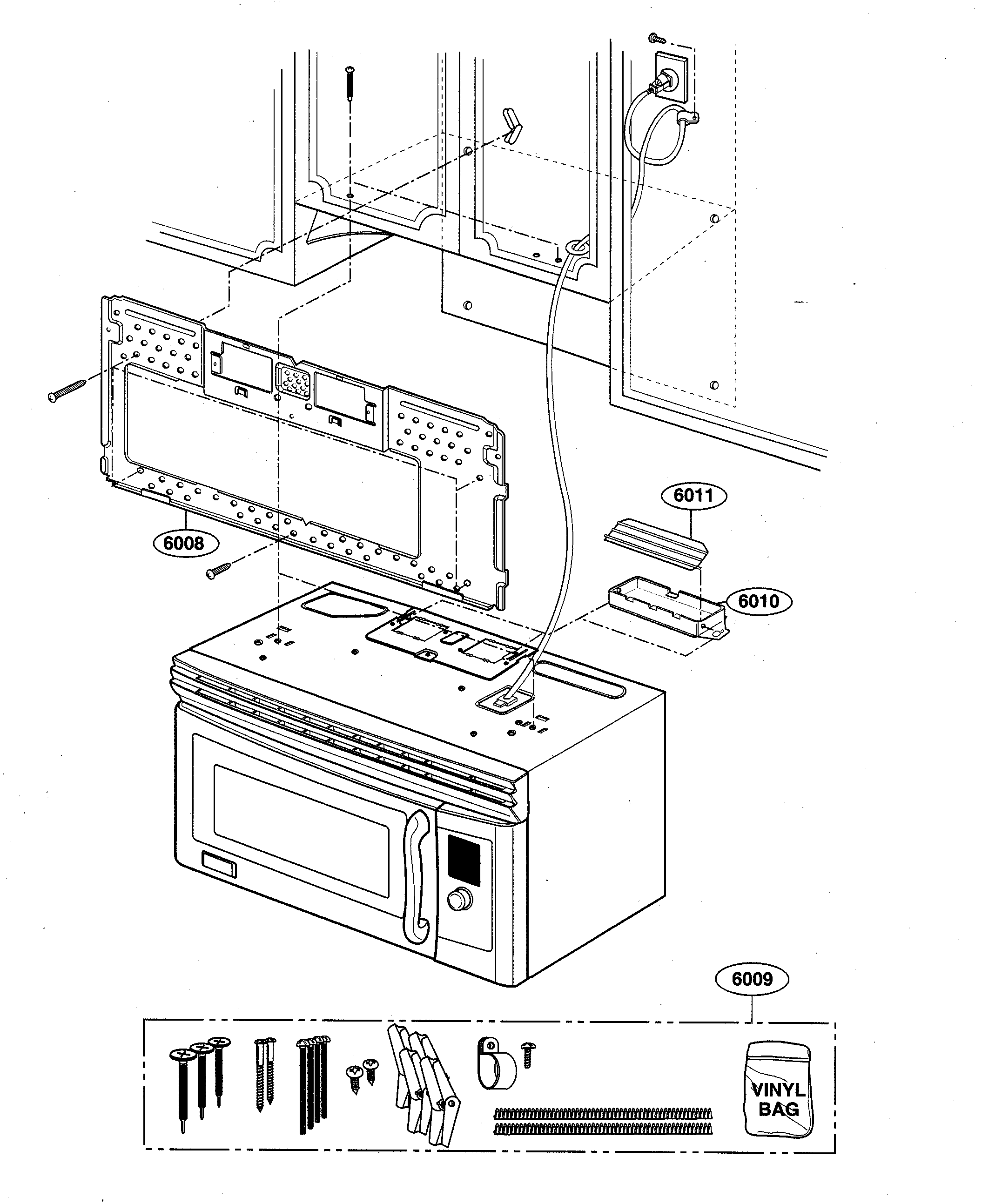

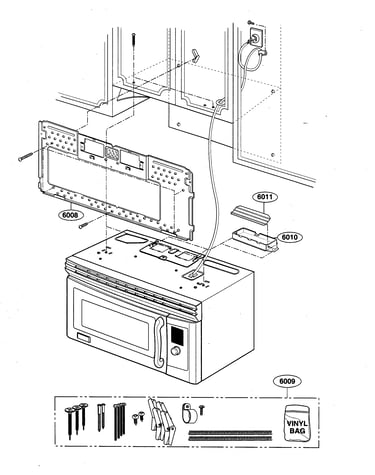

Installation diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
