Model #AVP12AAX2 GE air conditioner

Here are the diagrams and repair parts for GE AVP12AAX2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 82 parts

    Uc/installat

    #NI

    All parts Diagram

    Uc/installat

    Part #49-7278
    $8.49

    In Stock

    Uc/installat

    #NI

    All parts Diagram

    Uc/installat

    Part #49-7291
    $8.49

    In Stock

    Mini Package Rack

    #NI

    All parts Diagram

    Mini package rack

    Part #31-8818
    ?
    Manufacturer substitution
    This part replaces 31-8814. Substitute parts can look different from the original.
    This part replaces 31-8814
    $39.49

    In Stock

    Grille

    #300

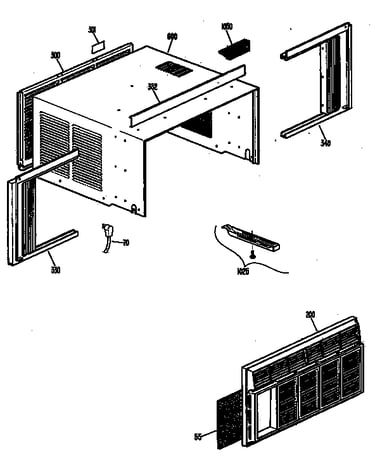

    Cabinet Diagram

    Grille

    Part #WJ71X2292

    The manufacturer no longer makes this part, and there's no substitute part

    Crtainasmlh

    #330

    Cabinet Diagram

    Crtainasmlh

    Part #WJ69X160

    The manufacturer no longer makes this part, and there's no substitute part

    Compres Kit

    #100

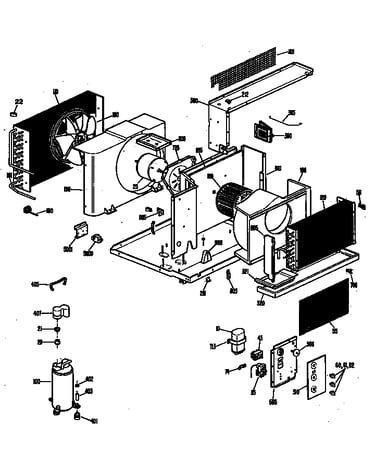

    Chassis Diagram

    Compres kit

    Part #WJ98X1052

    The manufacturer no longer makes this part, and there's no substitute part

    Cabinet

    #600

    Cabinet Diagram

    Cabinet

    Part #WJ90X186

    The manufacturer no longer makes this part, and there's no substitute part

    Top Chan Asm

    #352

    Cabinet Diagram

    Top chan asm

    Part #WJ68X187

    The manufacturer no longer makes this part, and there's no substitute part

    Top Chan Asm

    #352

    Cabinet Diagram

    Top chan asm

    Part #WJ68X212

    The manufacturer no longer makes this part, and there's no substitute part

    Crtainasm Rh

    #340

    Cabinet Diagram

    Crtainasm rh

    Part #WJ69X159

    The manufacturer no longer makes this part, and there's no substitute part
