ICP TXA224AKA1 condensing unit Parts
Here are the diagrams and repair parts for ICP TXA224AKA1 condensing unit, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for TXA224AKA1 Condensing Unit

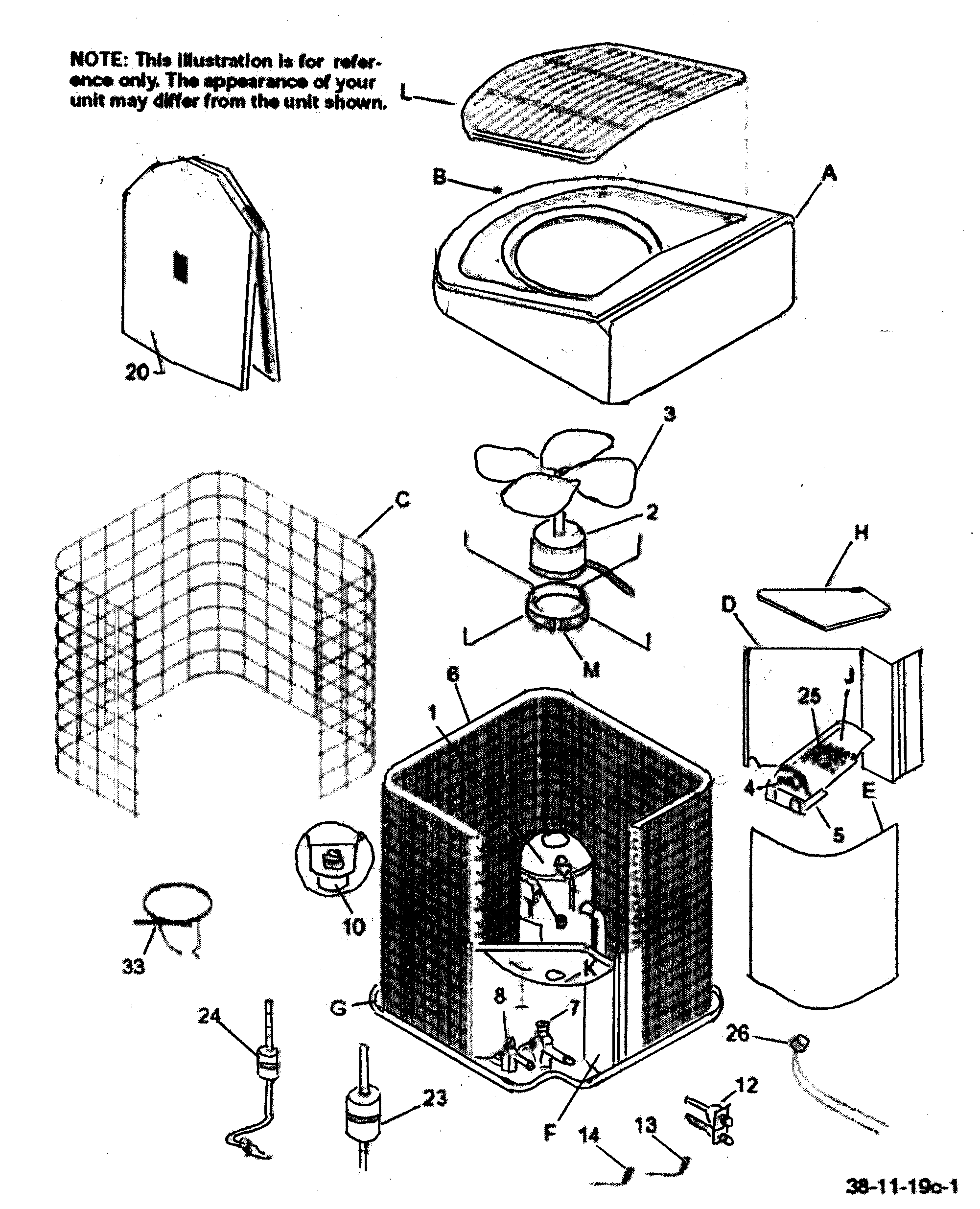

Condensing unit diagram
Fan Motor
Part #1087473Replaced by #1172248
Manufacturer substitutionThis part replaces 1087473. Substitute parts can look different from the original.In Stock$291.79$12.00 OFF Phone Price : $303.79
Qty
Condensing unit diagram
Valve
Part #1087884Replaced by #1085989
Manufacturer substitutionThis part replaces 1087884. Substitute parts can look different from the original.In Stock$132.96QtyCondensing unit diagram
Board
Part #1086071Replaced by #1088977
Manufacturer substitutionThis part replaces 1086071. Substitute parts can look different from the original.In Stock$109.4810% OFF Phone Price : $121.48QtyCondensing unit diagram
Bottom Control Box
Part #1087470
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Grille Coil Mesh 28"
Part #1087404
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Grille Inl
Part #1086921
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Comp
Part #ZP20K3EPFV130
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Shelf,box
Part #1087926
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Grommet
Part #1052060
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Condenser Coil
Part #1088766
The manufacturer no longer makes this part, and there's no substitute part
