Model # 8331435 Official Craftsman electronic insect killer

Here are the diagrams and repair parts for Official Craftsman 8331435 electronic insect killer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 39 parts |

Insect Killer Black Light Bulb 530-2815-S

#22

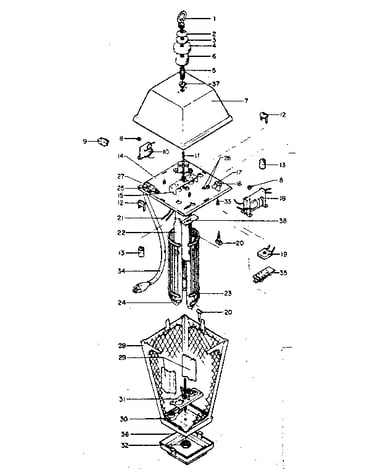

Replacement parts diagram

Insect killer black light bulb

Part #530-2815-S

The manufacturer no longer makes this part, and there's no substitute part

#25

Replacement parts diagram

Bushing

Part #596738

The manufacturer no longer makes this part, and there's no substitute part

#35

Replacement parts diagram

Cell

Part #5052951

The manufacturer no longer makes this part, and there's no substitute part

#21

Replacement parts diagram

High voltage wire

Part #512404P03

The manufacturer no longer makes this part, and there's no substitute part

#10

Replacement parts diagram

Ballast (14080 only)

Part #5323006

The manufacturer no longer makes this part, and there's no substitute part

#11

Replacement parts diagram

Rod assembly

Part #5053165

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Nut

Part #2456269P06

The manufacturer no longer makes this part, and there's no substitute part

#17

Replacement parts diagram

Insulator

Part #5442624

The manufacturer no longer makes this part, and there's no substitute part

#20

Replacement parts diagram

Insulator

Part #5442839

The manufacturer no longer makes this part, and there's no substitute part

#13

Replacement parts diagram

Starter

Part #5312034

The manufacturer no longer makes this part, and there's no substitute part
