Model # DSC-S950B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-S950B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Connector 182033311
#J1

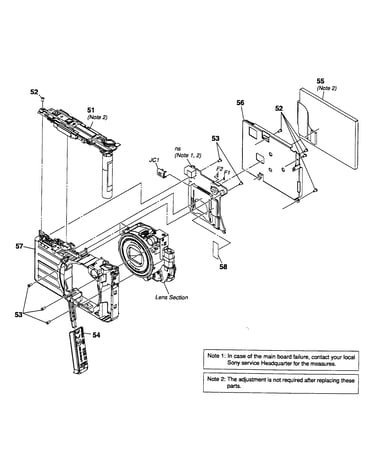

Frame assy diagram

Connector

Part #182033311

In Stock
Battery Charger 148721211
#NI

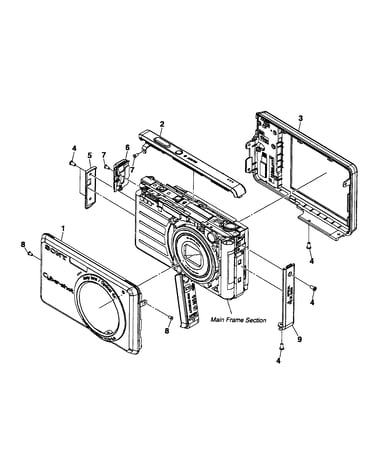

Overall assy diagram

Battery charger

Part #148721211

In Stock
Main Frame X23457121
#57

Frame assy diagram

Main frame

Part #X23457121

In Stock
Filter Set 413532401
#102

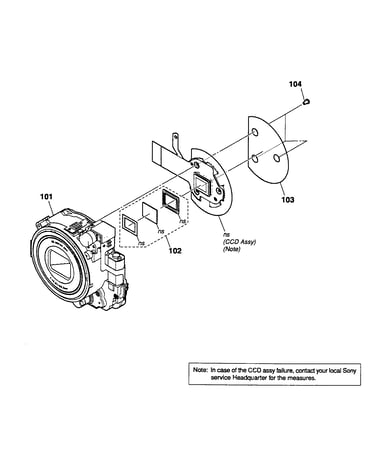

Lens assy diagram

Filter set

Part #413532401

In Stock
Lid 413531701
#54

Frame assy diagram

Lid

Part #413531701

This item is not returnable
In Stock
Lens Block A1701284A
#101

Lens assy diagram

Lens block

Part #A1701284A

In Stock
Block,st A1701267A
#51

Frame assy diagram

Block,st

Part #A1701267A

In Stock
A/v Cable 319698001
#NI

Overall assy diagram

A/v cable

Part #319698001

In Stock
Fuse,1a30v 157636311
#F1

Frame assy diagram

Fuse,1a30v

Part #157636311

In Stock
Hand Strap 205098101
#NI

Overall assy diagram

Hand strap

Part #205098101

Replaced by #447089901

?
Manufacturer substitution
This part replaces 205098101. Substitute parts can look different from the original.
In Stock
