Kenmore
Room Air Conditioner

Model # 58072184200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072184200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

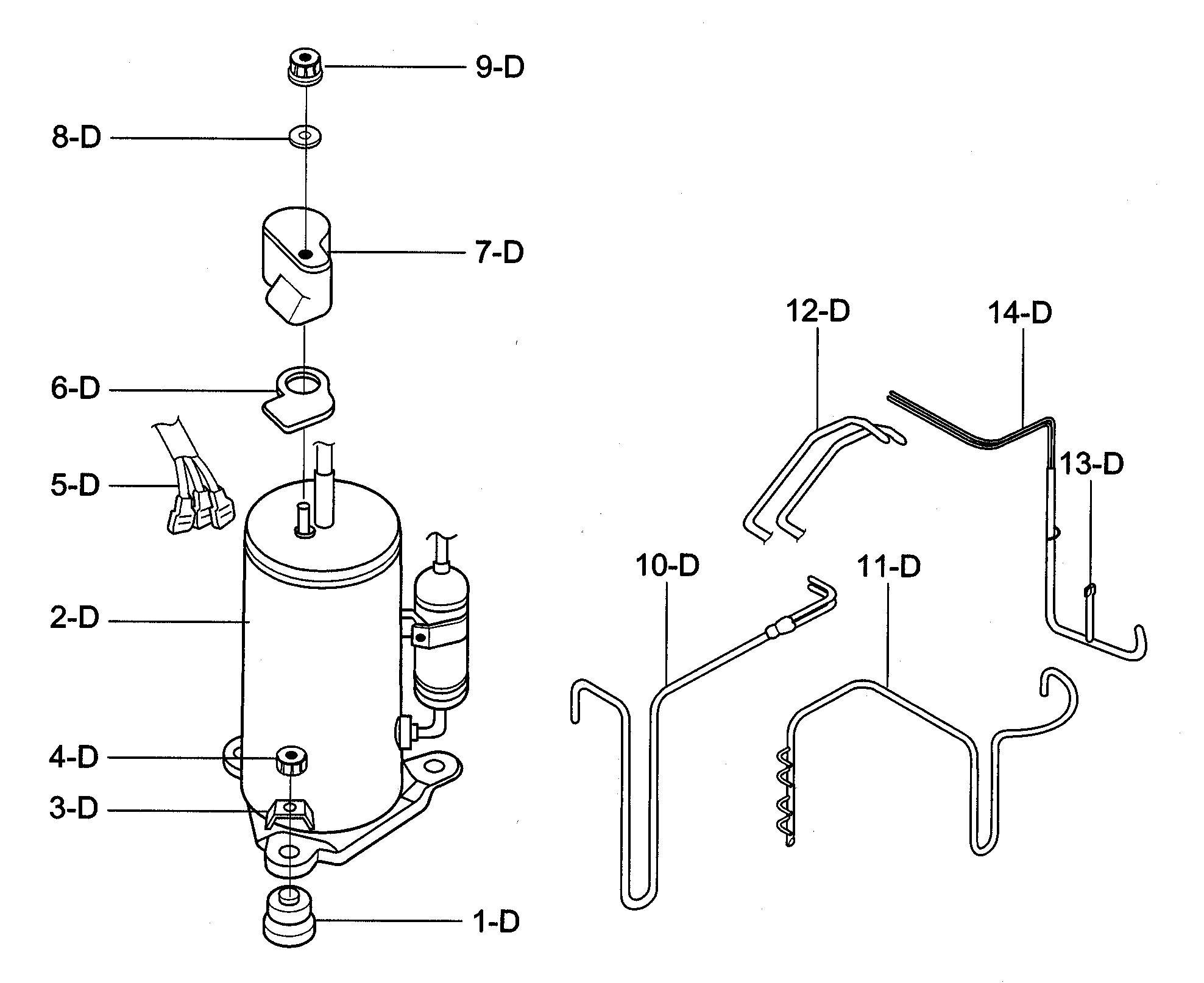

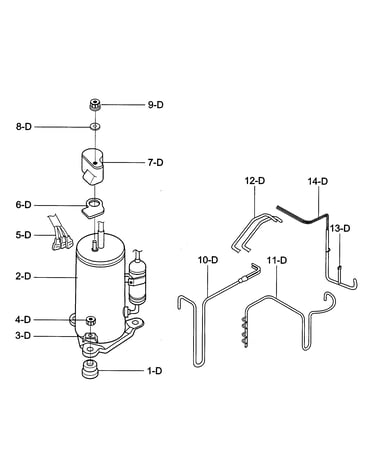

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#19-C

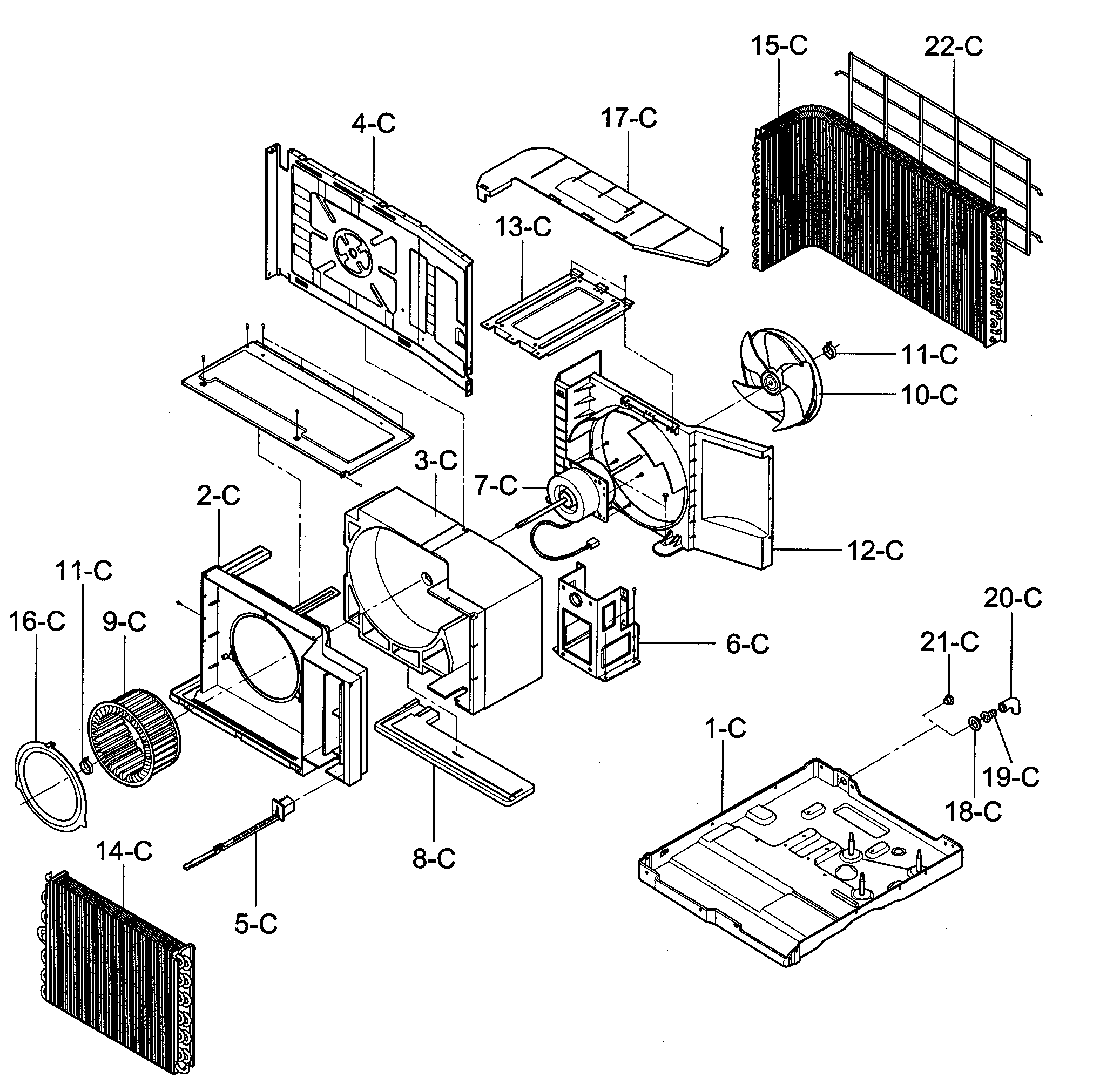

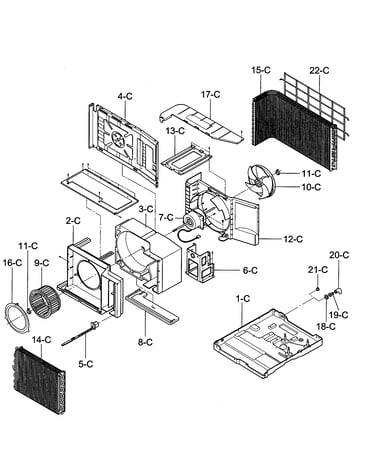

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Thermostat (replaces 2h01109d, 2h01109e, 2h01109f, 2h01109g, 2h01109m, 2h01109x, 2h01127b, 67300402) 2H01109L
#2-B

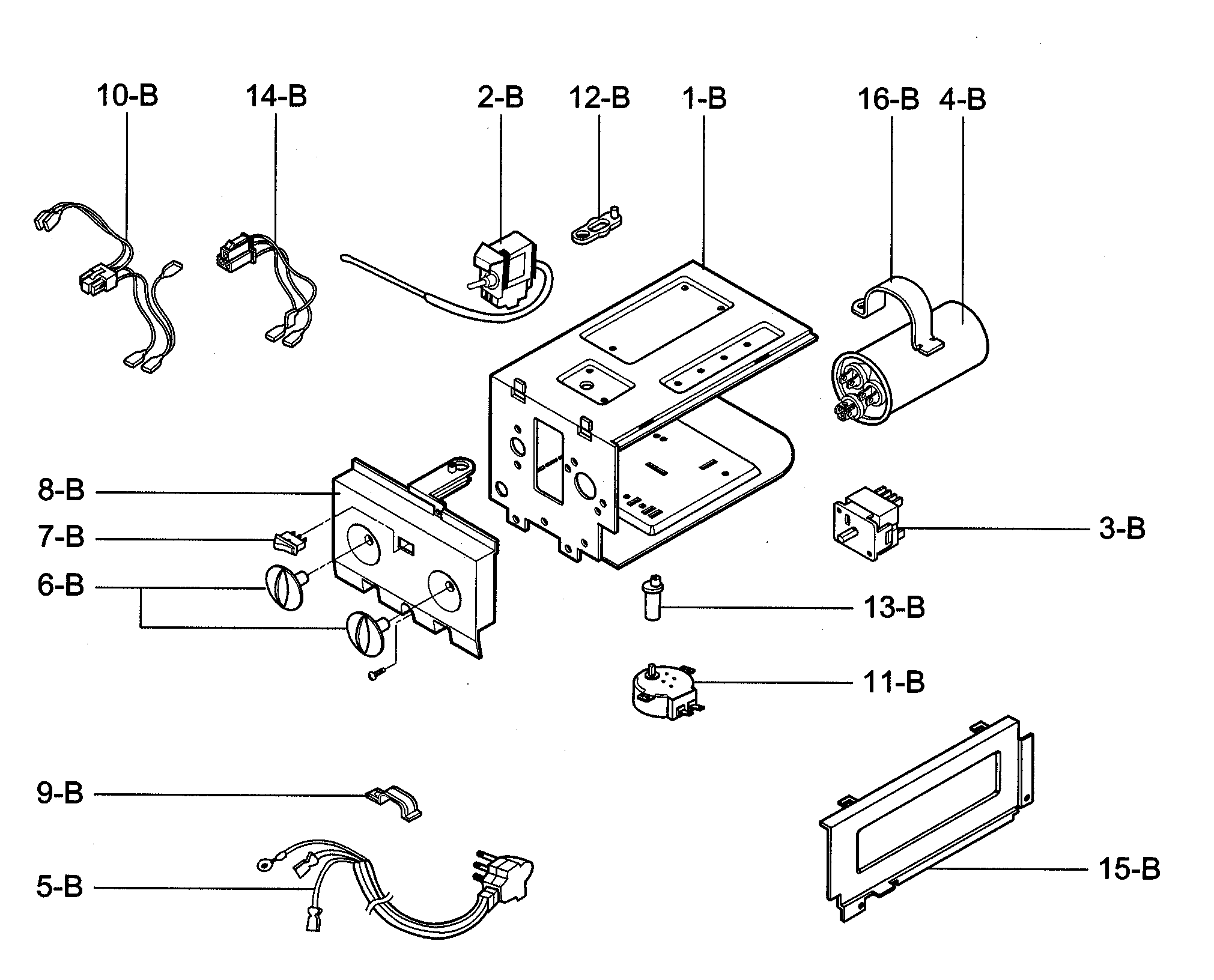

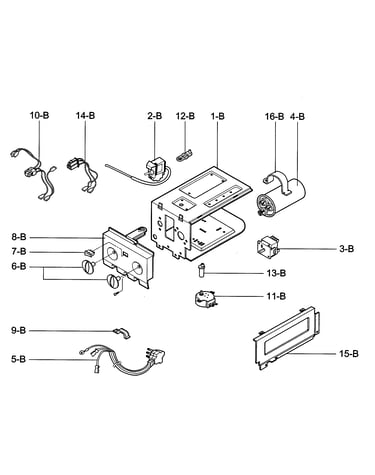

Control box assy diagram

Room air conditioner thermostat (replaces 2h01109d, 2h01109e, 2h01109f, 2h01109g, 2h01109m, 2h01109x, 2h01127b, 67300402)

Part #2H01109L

$31.05 |
14% OFF Phone Price : $36.05
In Stock
Vane 5990AR2972A
#4-A

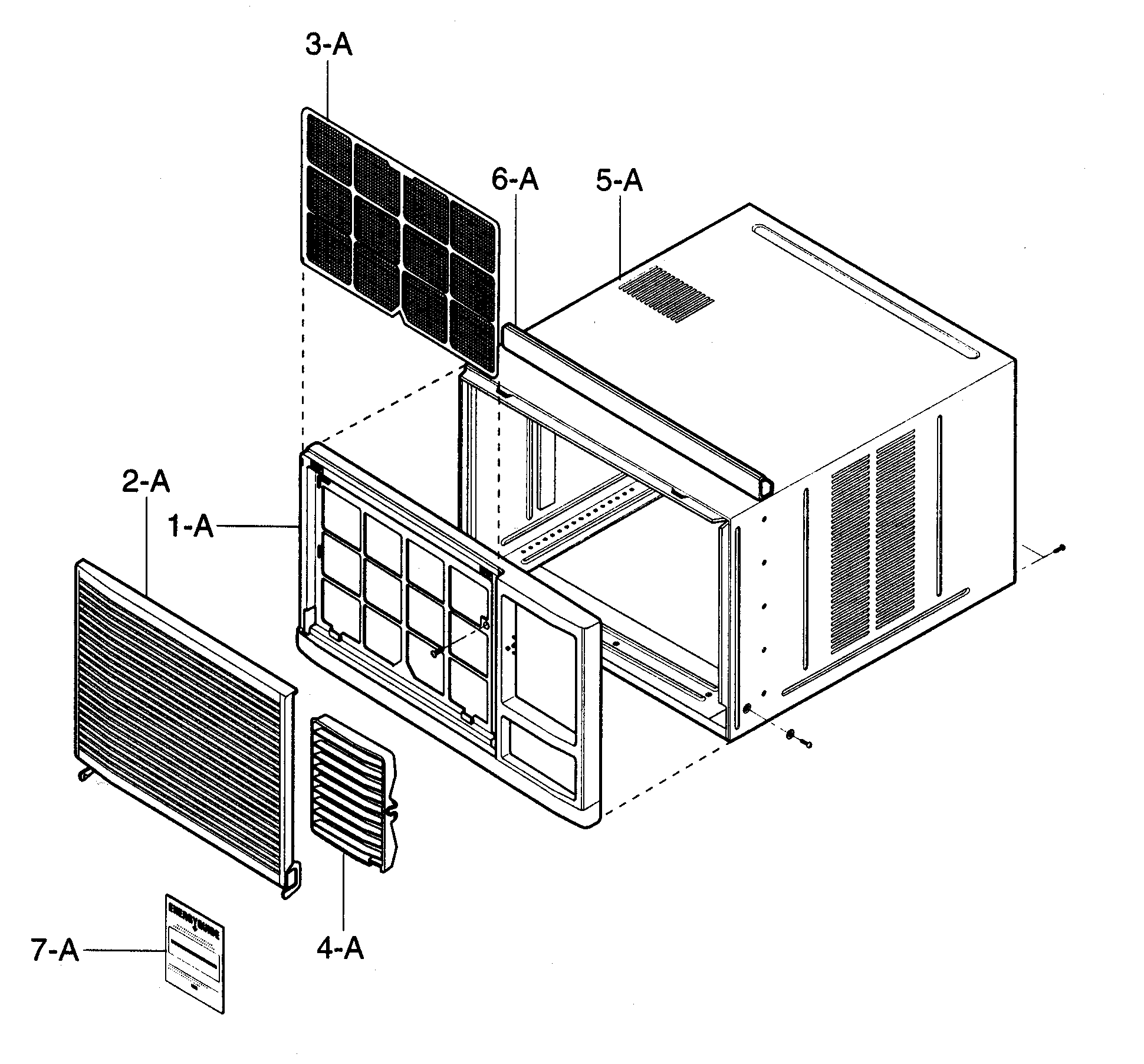

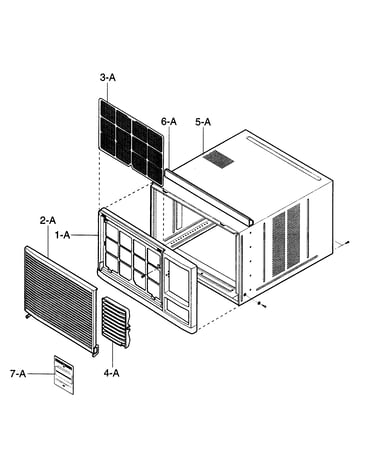

Cabinet/front grille assy diagram

Vane

Part #5990AR2972A

Replaced by #3531A11002L

?
Manufacturer substitution
This part replaces 5990AR2972A. Substitute parts can look different from the original.
$74.89 |
6% OFF Phone Price : $79.89
In Stock
Room Air Conditioner Window Lock Bracket 4H01785B
#1-E

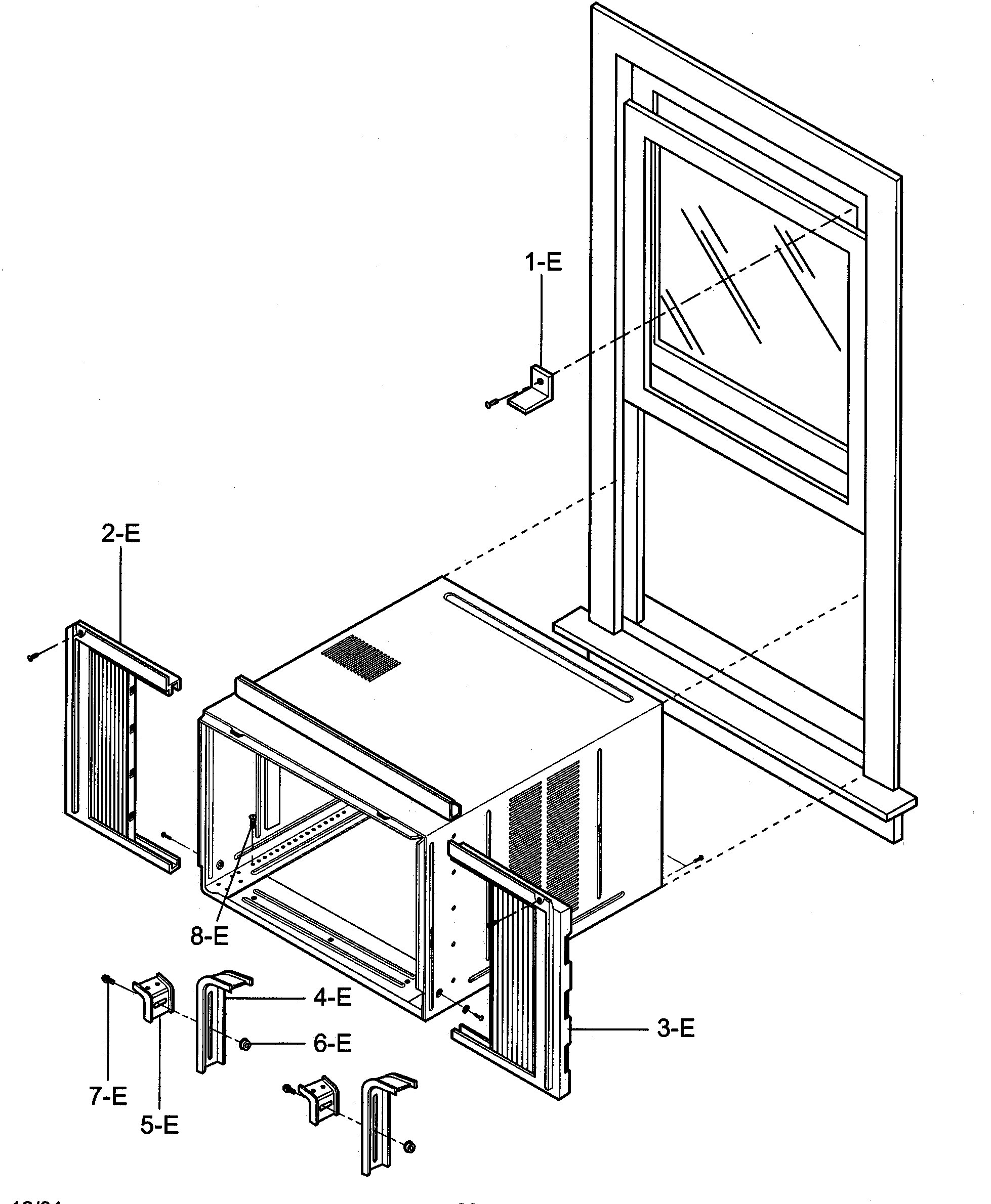

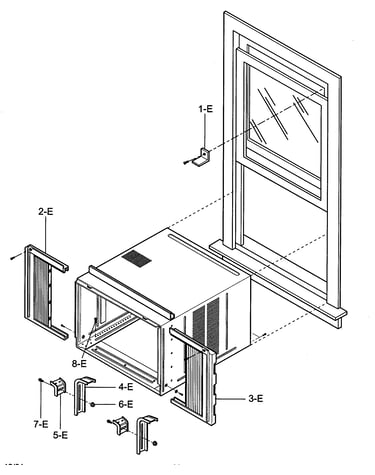

Installation kit assy diagram

Room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.06 |
20% OFF Phone Price : $5.06
In Stock
Room Air Conditioner Louver Link 4520AR4386A
#12-B

Control box assy diagram

Room air conditioner louver link

Part #4520AR4386A

This item is not returnable
$4.51
In Stock
Base Assembly 3040AR6160A
#8-C

Air handling/cycle parts diagram

Base assembly

Part #3040AR6160A

This item is not returnable
$7.00
In Stock
Room Air Conditioner Drain Pipe Rubber Washer 4H01029F
#18-C

Air handling/cycle parts diagram

Room air conditioner drain pipe rubber washer

Part #4H01029F

This item is not returnable
$4.51
In Stock
Mount 4960AR1596A
#6-C

Air handling/cycle parts diagram

Mount

Part #4960AR1596A

$27.47
In Stock
Cover 3550AR6173A
#17-C

Air handling/cycle parts diagram

Cover

Part #3550AR6173A

$18.83
In Stock
Switch 2H01316C
#7-B

Control box assy diagram

Switch

Part #2H01316C

$10.60
In Stock
