Model # LBA200K103A/P1166108C Official Amana remote air handler - lba series

Here are the diagrams and repair parts for Official Amana LBA200K103A-P1166108C remote air handler - lba series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Duct Flange R1000520
Duct flange

Part #R1000520

The manufacturer no longer makes this part, and there's no substitute part

Bearing W/cushion R1000008
#61

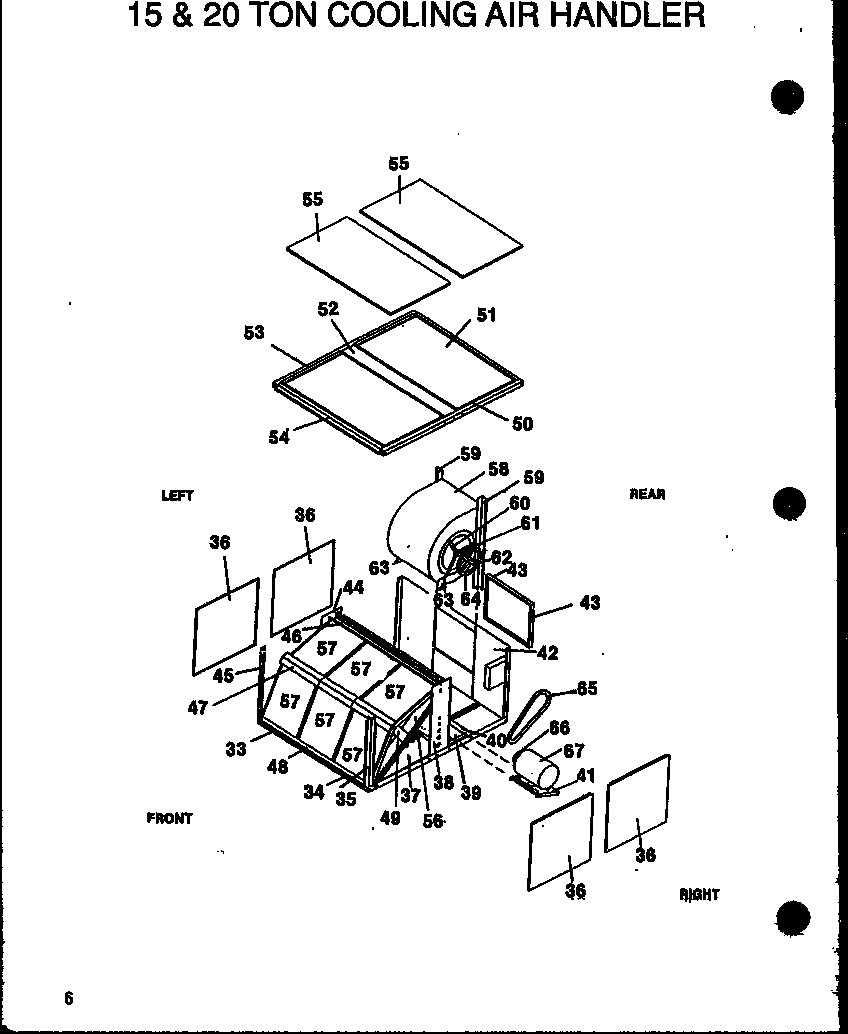

15 & 20 ton cooling air handler (lba150k103a/p1166107c) (lba200k103a/p1166108c) diagram

Bearing w/cushion

Part #R1000008

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Shaft R1000038
#62A

15 & 20 ton cooling air handler (lba150k103a/p1166107c) (lba200k103a/p1166108c) diagram

Air conditioner blower shaft

Part #R1000038

The manufacturer no longer makes this part, and there's no substitute part

Motor, 3 Hp, 208-230/460 R1000079
#32B

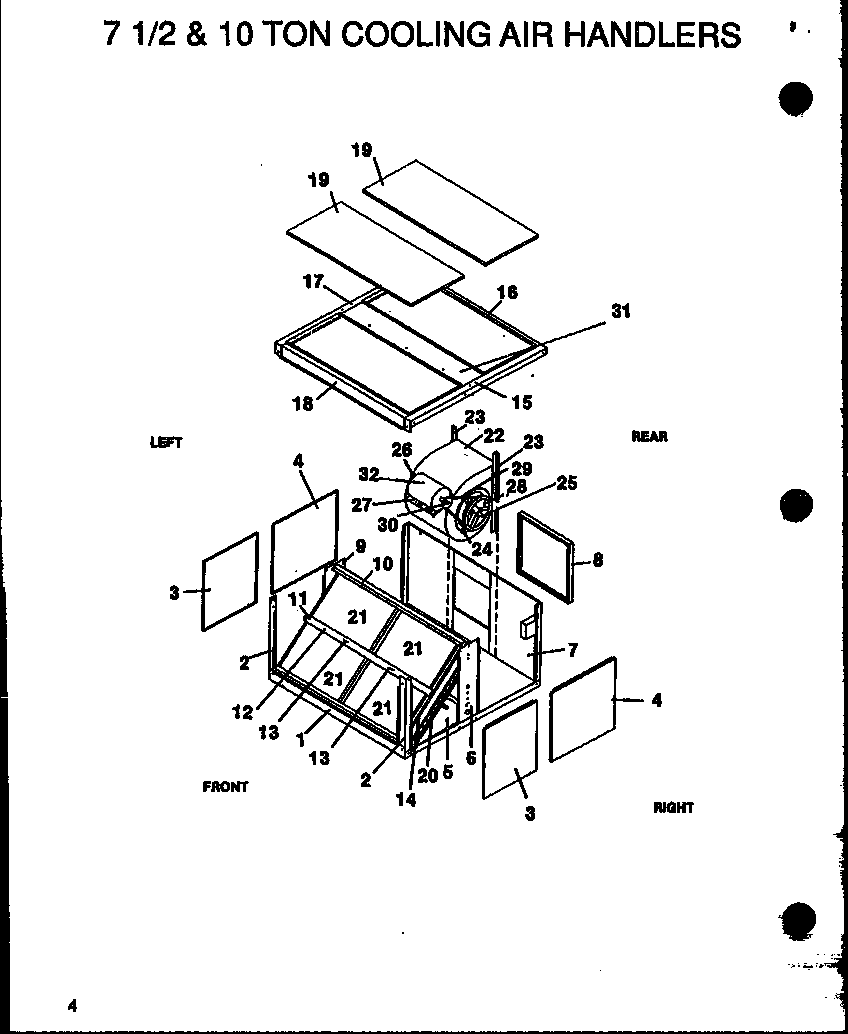

7 1/2 & 10 ton cooling air handlers (lba075l103a/p1166105c) (lba100l103a/p1166106c) diagram

Motor, 3 hp, 208-230/460

Part #R1000079

The manufacturer no longer makes this part, and there's no substitute part

Top Panel Assembly-front R1000639
#3

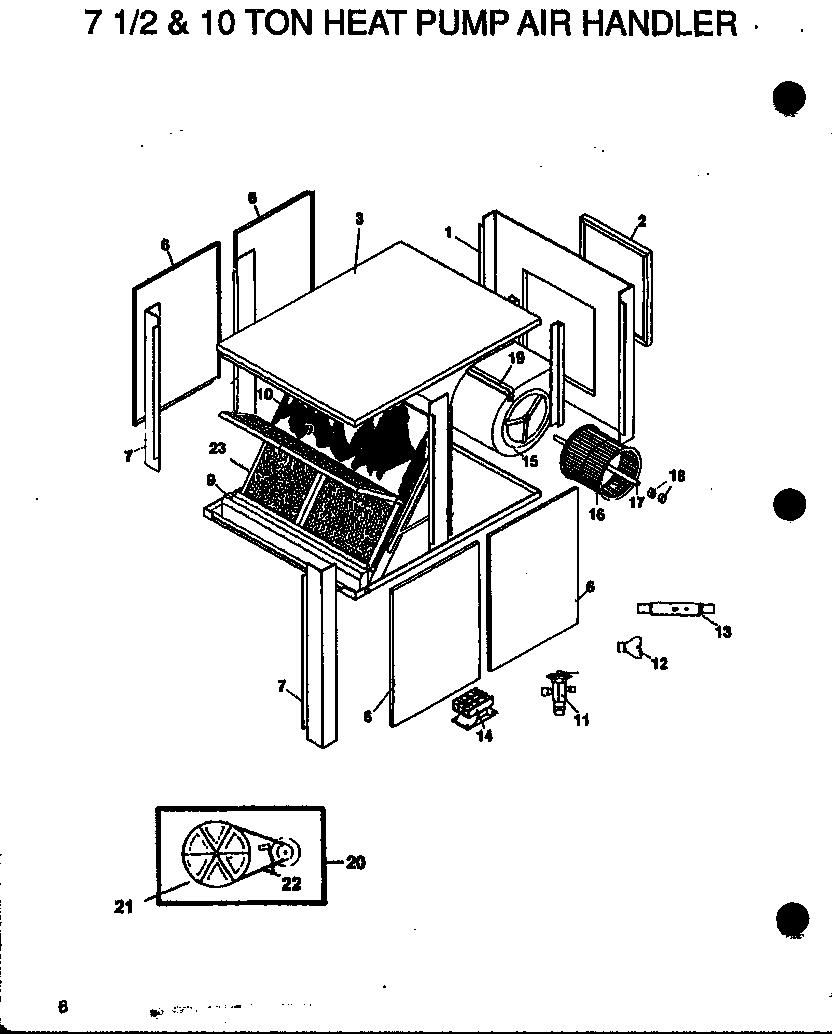

7 1/2 & 10 ton heat pump air handler (lba075k203a/p1166203c) (lba100k203a/p1166204c) diagram

Top panel assembly-front

Part #R1000639

The manufacturer no longer makes this part, and there's no substitute part

Distributor R1000155
#12B

7 1/2 & 10 ton heat pump air handler (lba075k203a/p1166203c) (lba100k203a/p1166204c) diagram

Distributor

Part #R1000155

The manufacturer no longer makes this part, and there's no substitute part

Motor, 2 Hp 208-230/460 V R1000077

#NI

All parts diagram

Motor, 2 hp 208-230/460 v

Part #R1000077

The manufacturer no longer makes this part, and there's no substitute part

Filter, 20" X 25" X 1" (permanent) R1000313
#23B

7 1/2 & 10 ton heat pump air handler (lba075k203a/p1166203c) (lba100k203a/p1166204c) diagram

Filter, 20" x 25" x 1" (permanent)

Part #R1000313

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel R1000044

#NI

All parts diagram

Air conditioner blower wheel

Part #R1000044

The manufacturer no longer makes this part, and there's no substitute part

Blower Support Angle R1000041
#63

15 & 20 ton cooling air handler (lba150k103a/p1166107c) (lba200k103a/p1166108c) diagram

Blower support angle

Part #R1000041

The manufacturer no longer makes this part, and there's no substitute part
